Neo-Pure

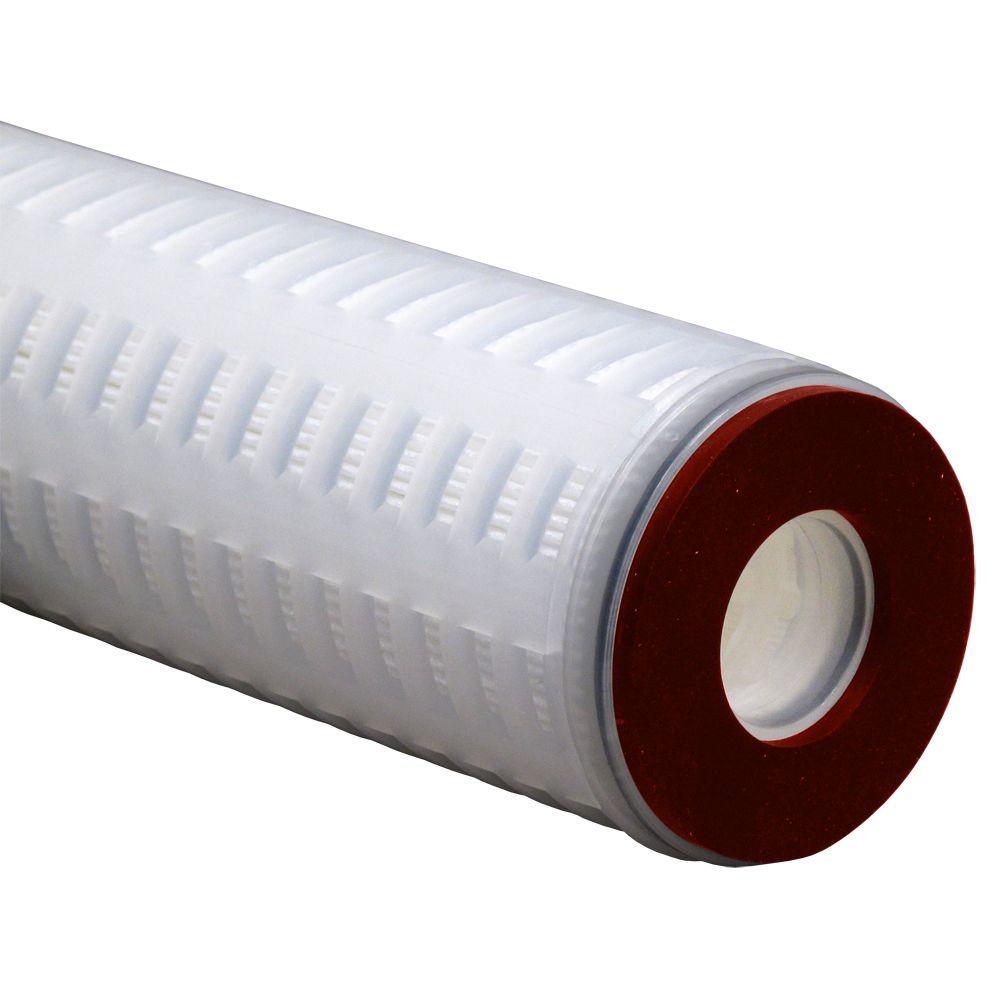

Neo-Pure 10" High Purity Polypropylene Filter 0.45 micron DOE Viton Gaskets

Part Number: HP-PP-26100-0.45-F-V

In Stock

out of stock

In Stock

$43.99

The Neo-Pure HP-PP High Purity Polypropylene Filter Cartridges are manufactured in the USA in a state-of-the-art white room. They are absolute-rated Beta 5000 (99.98%) retention efficiency for high purity applications. HP-PP Series filters feature a rigid, molded cage for greater stability and 7 sq. ft of media surface area per 10″ length for high throughput and particle retention. All filter materials comply with the FDA CFR criteria for food and beverage contact and meet USP Class VI Biological Testing for plastics.

Specifications:
  • Micron Rating: 0.45 micron absolute
  • End Caps: DOE (double open end)
  • Filter Dimensions: 9-3/4" L x 2.67" OD
  • Absolute rated Beta 5000 retention efficiency
  • All materials comply with FDA requirements for food contact
  • Gradient fixed pore structure increases dirt holding capacity while resisting unloading under high pressure differential
  • 100% polypropylene construction for a wide range of chemical compatibility
  • 7 square feet of media surface area
  • Gasket Material: Viton
  • Made in USA




Weight & Dimensions

Approx Length (Inches)

10" (25.4 cm)

Case Quantity

12

Weight (lbs)

0.75

Details

Capacity

As Needed

Gaskets

Viton

Max Temp (°F)

176

Micron Rating (Absolute)

0.45 µm

O-Rings

Silicone

Surface Area

7 Square Feet

Cap Material

Polypropylene

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-2/3"

End Cap Type

Double Open Ended (DOE)

Inner Diameter

1"

Media Type

Polypropylene

Micron Rating

0.45 µm ABS

Origin

USA

Product Length

10"

Warranty & Certifications

Certifications

FDA CFR-21


Neo-Pure




The Neo-Pure HP-PP High Purity Polypropylene Filter Cartridges are manufactured in the USA in a state-of-the-art white room. They are absolute-rated Beta 5000 (99.98%) retention efficiency for high purity applications. HP-PP Series filters feature a rigid, molded cage for greater stability and 7 sq. ft of media surface area per 10″ length for high throughput and particle retention. All filter materials comply with the FDA CFR criteria for food and beverage contact and meet USP Class VI Biological Testing for plastics.

Specifications:
  • Micron Rating: 0.45 micron absolute
  • End Caps: DOE (double open end)
  • Filter Dimensions: 9-3/4" L x 2.67" OD
  • Absolute rated Beta 5000 retention efficiency
  • All materials comply with FDA requirements for food contact
  • Gradient fixed pore structure increases dirt holding capacity while resisting unloading under high pressure differential
  • 100% polypropylene construction for a wide range of chemical compatibility
  • 7 square feet of media surface area
  • Gasket Material: Viton
  • Made in USA



Weight & Dimensions

Approx Length (Inches)

10" (25.4 cm)

Case Quantity

12

Weight (lbs)

0.75

Details

Capacity

As Needed

Gaskets

Viton

Max Temp (°F)

176

Micron Rating (Absolute)

0.45 µm

O-Rings

Silicone

Surface Area

7 Square Feet

Cap Material

Polypropylene

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-2/3"

End Cap Type

Double Open Ended (DOE)

Inner Diameter

1"

Media Type

Polypropylene

Micron Rating

0.45 µm ABS

Origin

USA

Product Length

10"

Warranty & Certifications

Certifications

FDA CFR-21
