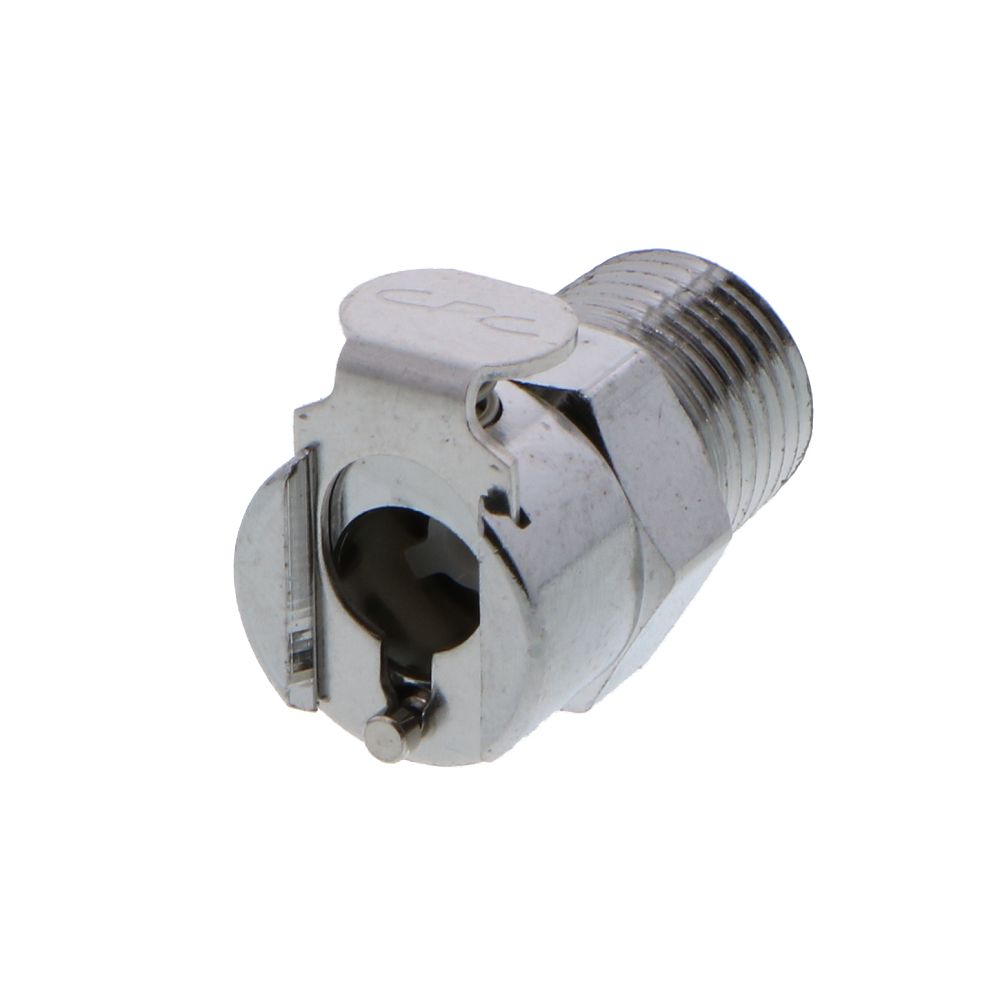

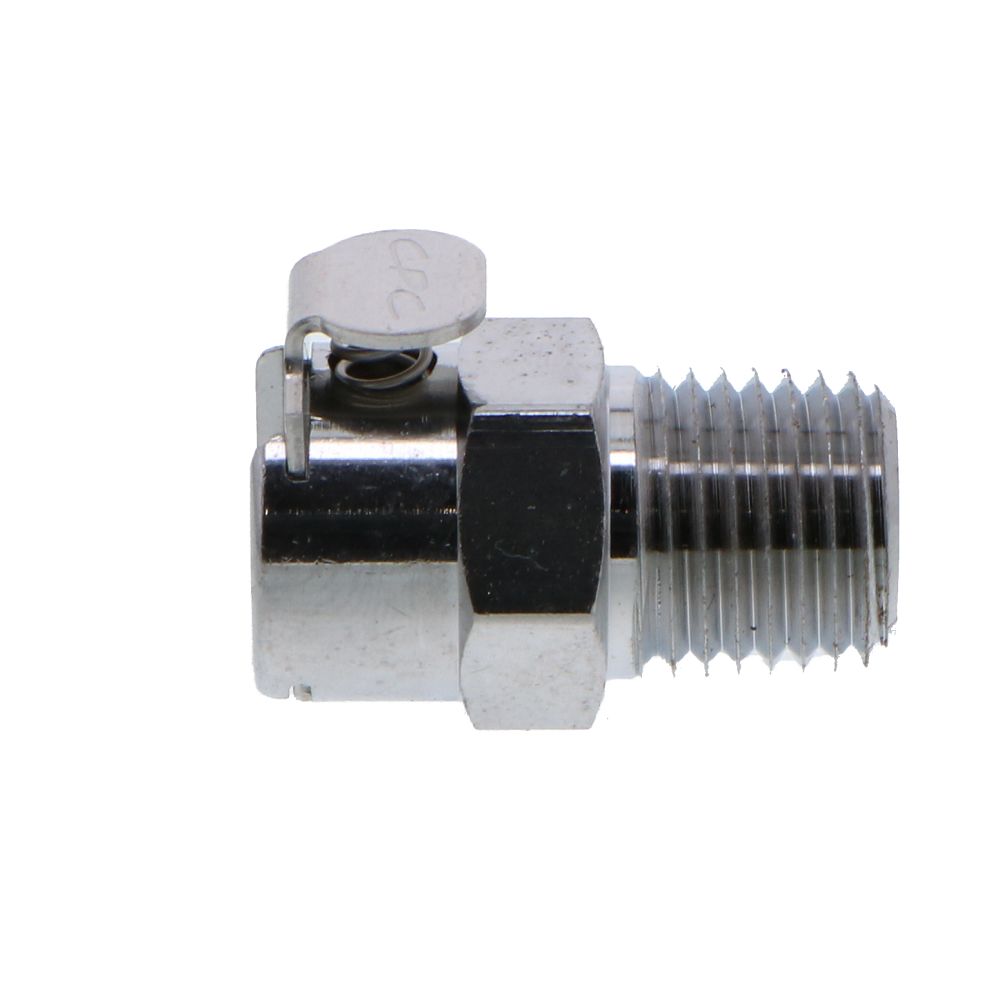

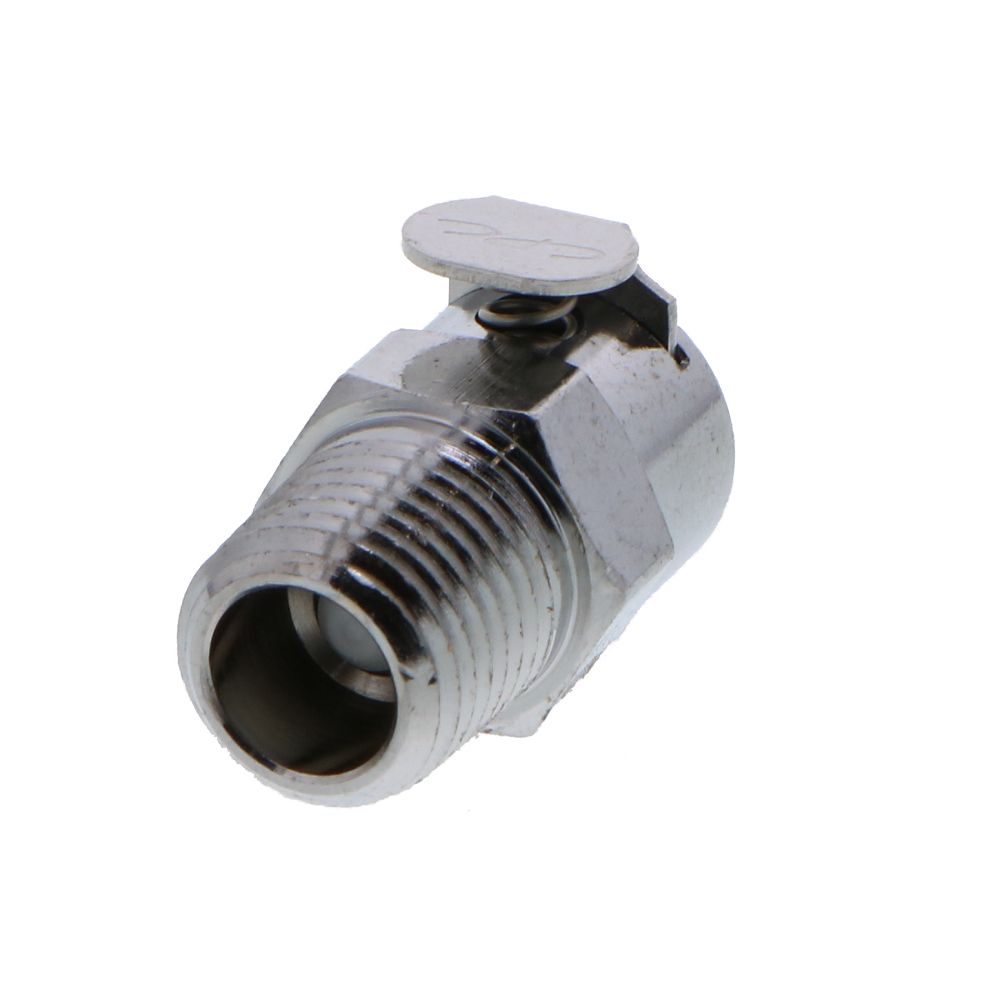

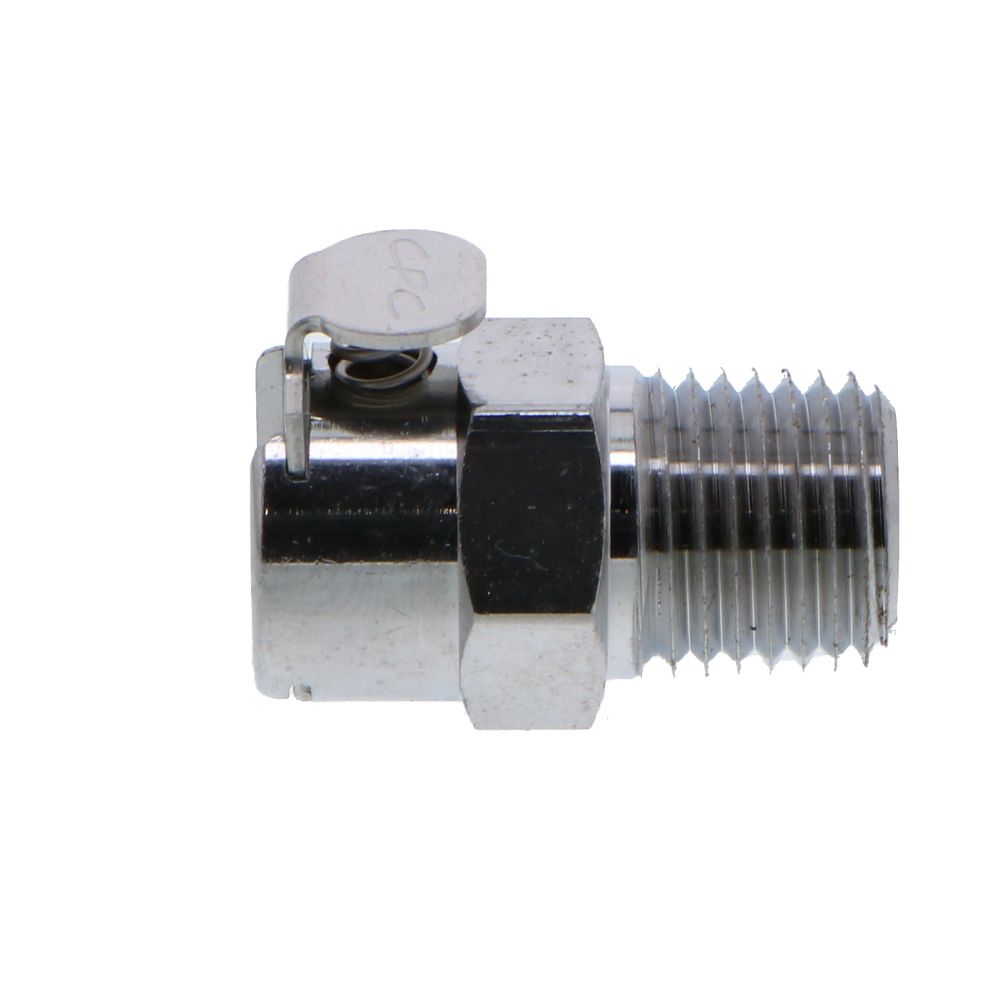

MCD1004 Valved Male Thread Coupling Body 1/4 NPT
Part Number: MCD1004
Alt. Part Number: 20CBV-SB1-04
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Specifications:
- Material: Brass
- Pressure Range: Vacuum to 250 psi, 17.3 bar
- Mounting Option: Thread
- Valve Option: Valved
- Finish: Chrome
- Temperature Range: -40ºF to 180ºF
- Valve Spring: 316 Stainless Steel
- Seal Options: Buna-N

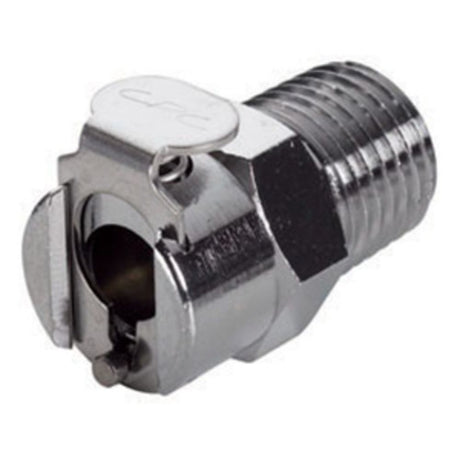

- NSF Listed Version (part # 15900) Available Upon Request
WARNING!
| Product Details | |
|---|---|
Application | Water |
Body Material | Chrome-Plated Brass |
External Springs And Pin | Stainless Steel |
Inlet Connection | 1/4" MPT |
Max Pressure (Psi) | 180 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Thread |
Nsf Version | No |
Outlet Connection | 1/4" MPT |
Series | MC |
Shape | Straight |
Size | 1/4" |
Spring | 316 Stainless Steel |
Thumb Latch | Stainless Steel |
Valve Type | Valved |
Color / Finish | Chrome |
Connection Type | Male (MPT) |
Origin | USA |
Type | Coupling Body |
