Colder Products

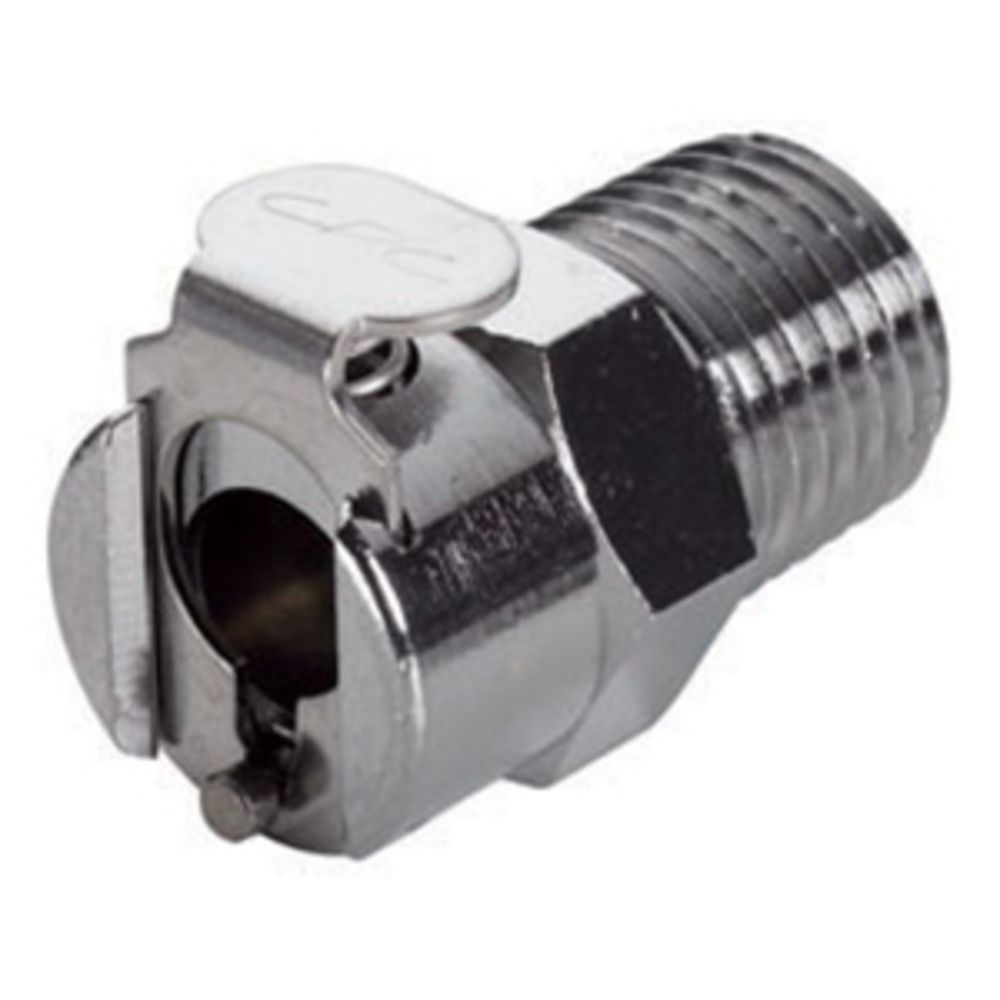

15900 NSF Valved Coupling Body 1/4 NPT

Part Number: 15900

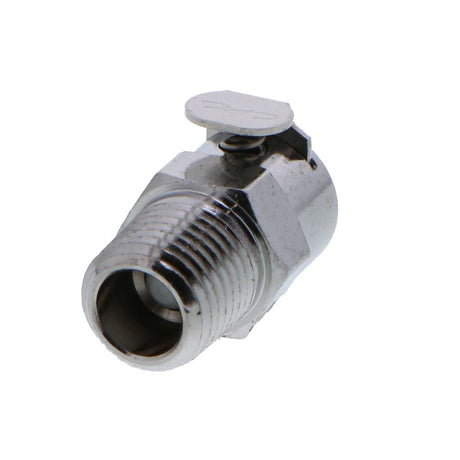

Alt. Part Number: MCD1004 (Non-NSF)

In Stock

out of stock

In Stock

$12.22

MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperatures or pressures, MC Series couplings feature one-hand operation for swift and easy connects and disconnects. MC NSF parts are listed under the criteria of the NSF/ANSI Standards.

Specifications:
  • Material: Brass
  • Material Finish: Chrome
  • Color: Chrome
  • Valve Option: Valved
  • Mounting Option: Thread
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Temperature Range: -40°F to 180°F
  • Seal Options: FDA BUNA-N
  • Valve Spring: 316 Stainless Steel


Details

Series

MC

Bag Quantity

10 Units

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Thread

Operating Pressure Range

Vacuum to 250 psi, 17.3 bar PSI

Operating Temperature Range

-40 to 180 Degrees Fahrenheit

Origin

USA

Seal Material

FDA BUNA-N

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless steel

Thumb Latch

Stainless steel

Inlet/Outlet Connection

1/4" | MPT


15900




MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperatures or pressures, MC Series couplings feature one-hand operation for swift and easy connects and disconnects. MC NSF parts are listed under the criteria of the NSF/ANSI Standards.

Specifications:
  • Material: Brass
  • Material Finish: Chrome
  • Color: Chrome
  • Valve Option: Valved
  • Mounting Option: Thread
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Temperature Range: -40°F to 180°F
  • Seal Options: FDA BUNA-N
  • Valve Spring: 316 Stainless Steel

Details

Series

MC

Bag Quantity

10 Units

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Thread

Operating Pressure Range

Vacuum to 250 psi, 17.3 bar PSI

Operating Temperature Range

-40 to 180 Degrees Fahrenheit

Origin

USA

Seal Material

FDA BUNA-N

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless steel

Thumb Latch

Stainless steel

Inlet/Outlet Connection

1/4" | MPT
