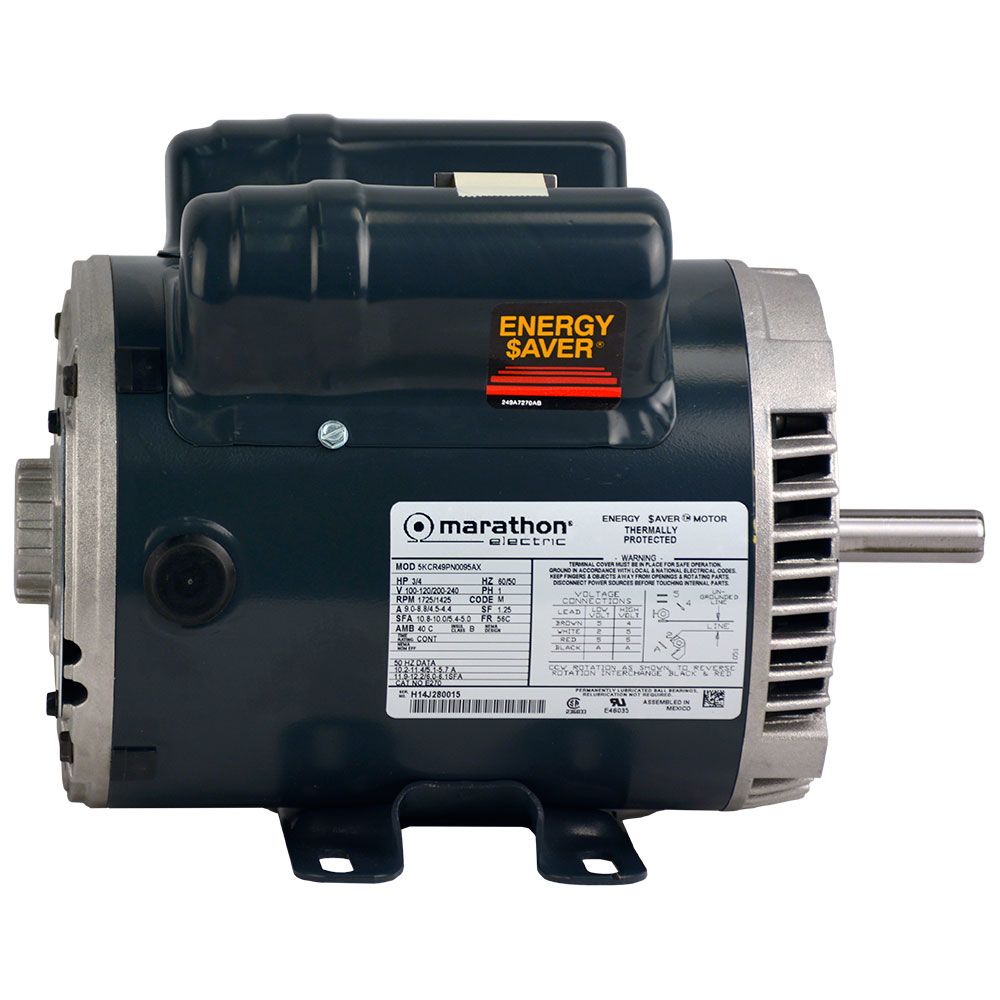

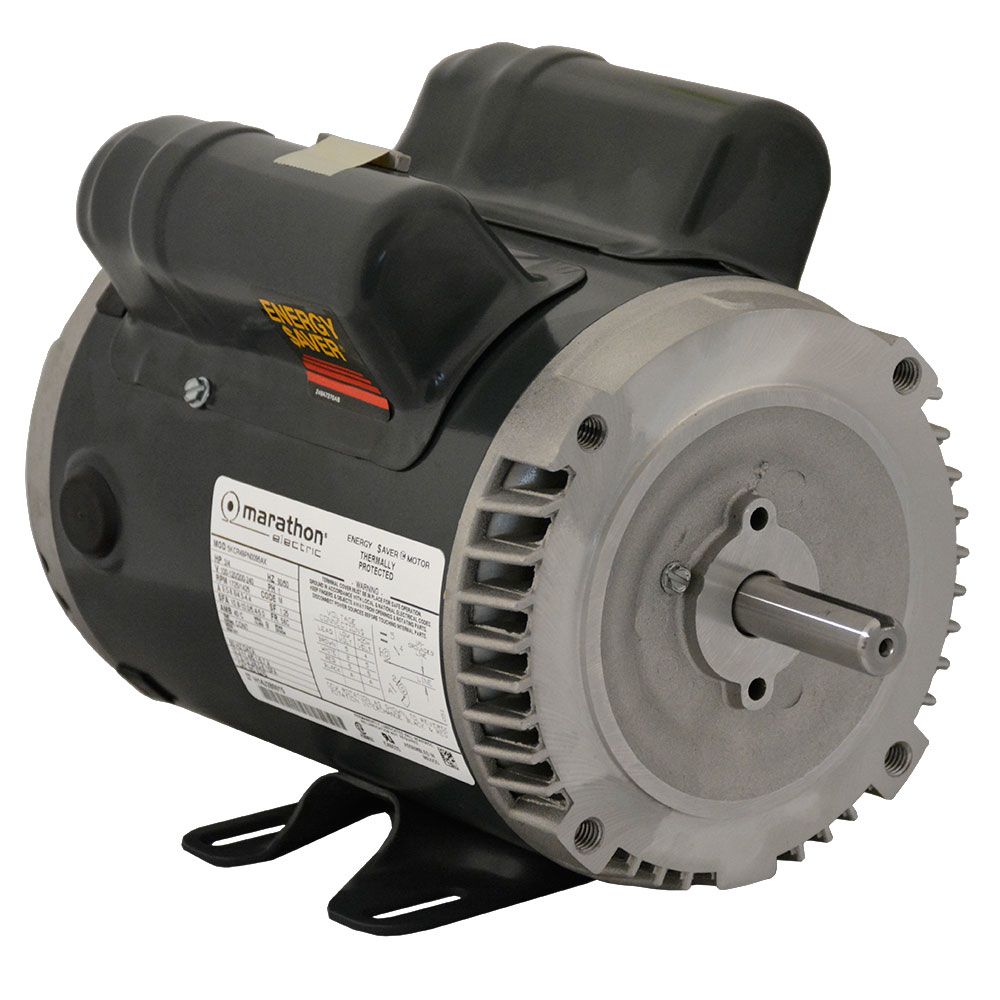

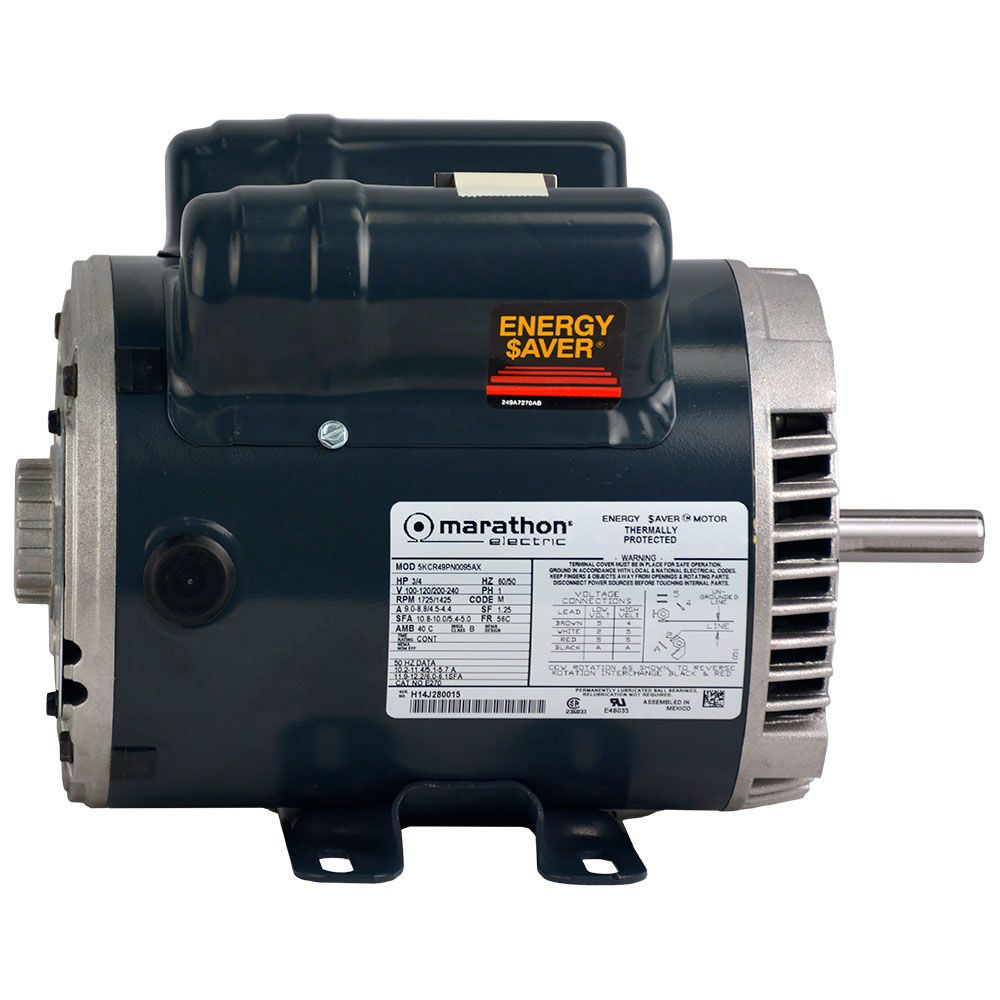

Marathon Electric E270 5KCR49PN0095X 1 Phase AC Motor

Part Number: 5KCR49PN0095X

In Stock

out of stock

In Stock

$278.16

This 3/4 HP RO/Carbonator Motor is manufactured by Marathon Electric to be completely interchangeable with OEM units. The 1 Phase AC Motor is a practical tool when light horsepower is needed for both industry or home applications. The carbonator motor features an automatic reset thermal protector and is UL recognized and CSA certified. The pump can be mounted vertically or horizontally to suit your application. Fresh Water Systems not only carries the Marathon Electric 1 Phase AC Electric Motor, but also Procon Motors, wire harnesses and wire harness assemblies.

Features:
  • Marathon Electric Carbonator Pump Motors
  • Auto reset thermal protection
  • Voltage: 100-120/200-240
  • AC single phase
  • Rotation: counterclockwise
  • Marathon Model Number: 5KCR49PN0095X
  • Manufacturer: Marathon Electric (formerly Manufactured by GE)
Specifications:
  • Power: 3/4 HP
  • Nameplate RPM: 1725 RPM
  • Frame: 56C
  • Mounting: C-Face Rigid
  • Voltage: 100-120/200-240
  • RPM: 1725 - 60 Hz / 1425 - 50 Hz
  • Full Load Amps: 9.0-8.8 / 4.5-4.4
  • Type: Single Phase
  • Enclosure: Open Drip Proof
  • Insulation: Class B




Weight & Dimensions

Approx Length (Inches)

11.37"

Weight (lbs)

14

Details

Ambient Temperature Range

Max 104 °F

Amps

9.0-8.8 / 4.5-4.4 Amps Full Load

Direction

Counter-Clockwise

Efficiency

0.78

Frequency

50/60 Hz

Insulation Class - Temp.

B

Load Rpm

1725 RPM @ 60 Hz, 1425 RPM @ 50 Hz

Mounting Options

Bolt-On

Nominal Speed - Rpm

1725

Power

3/4 hp

Rating

Continuous

Series

E270

Shaft Diameter

5/8"

Type

Carbonator Motors

Voltage

110VAC, 220VAC

Warranty & Certifications

Certifications

CSA Approved


Marathon

Marathon




This 3/4 HP RO/Carbonator Motor is manufactured by Marathon Electric to be completely interchangeable with OEM units. The 1 Phase AC Motor is a practical tool when light horsepower is needed for both industry or home applications. The carbonator motor features an automatic reset thermal protector and is UL recognized and CSA certified. The pump can be mounted vertically or horizontally to suit your application. Fresh Water Systems not only carries the Marathon Electric 1 Phase AC Electric Motor, but also Procon Motors, wire harnesses and wire harness assemblies.

Features:
  • Marathon Electric Carbonator Pump Motors
  • Auto reset thermal protection
  • Voltage: 100-120/200-240
  • AC single phase
  • Rotation: counterclockwise
  • Marathon Model Number: 5KCR49PN0095X
  • Manufacturer: Marathon Electric (formerly Manufactured by GE)
Specifications:
  • Power: 3/4 HP
  • Nameplate RPM: 1725 RPM
  • Frame: 56C
  • Mounting: C-Face Rigid
  • Voltage: 100-120/200-240
  • RPM: 1725 - 60 Hz / 1425 - 50 Hz
  • Full Load Amps: 9.0-8.8 / 4.5-4.4
  • Type: Single Phase
  • Enclosure: Open Drip Proof
  • Insulation: Class B



Weight & Dimensions

Approx Length (Inches)

11.37"

Weight (lbs)

14

Details

Ambient Temperature Range

Max 104 °F

Amps

9.0-8.8 / 4.5-4.4 Amps Full Load

Direction

Counter-Clockwise

Efficiency

0.78

Frequency

50/60 Hz

Insulation Class - Temp.

B

Load Rpm

1725 RPM @ 60 Hz, 1425 RPM @ 50 Hz

Mounting Options

Bolt-On

Nominal Speed - Rpm

1725

Power

3/4 hp

Rating

Continuous

Series

E270

Shaft Diameter

5/8"

Type

Carbonator Motors

Voltage

110VAC, 220VAC

Warranty & Certifications

Certifications

CSA Approved
