Parker

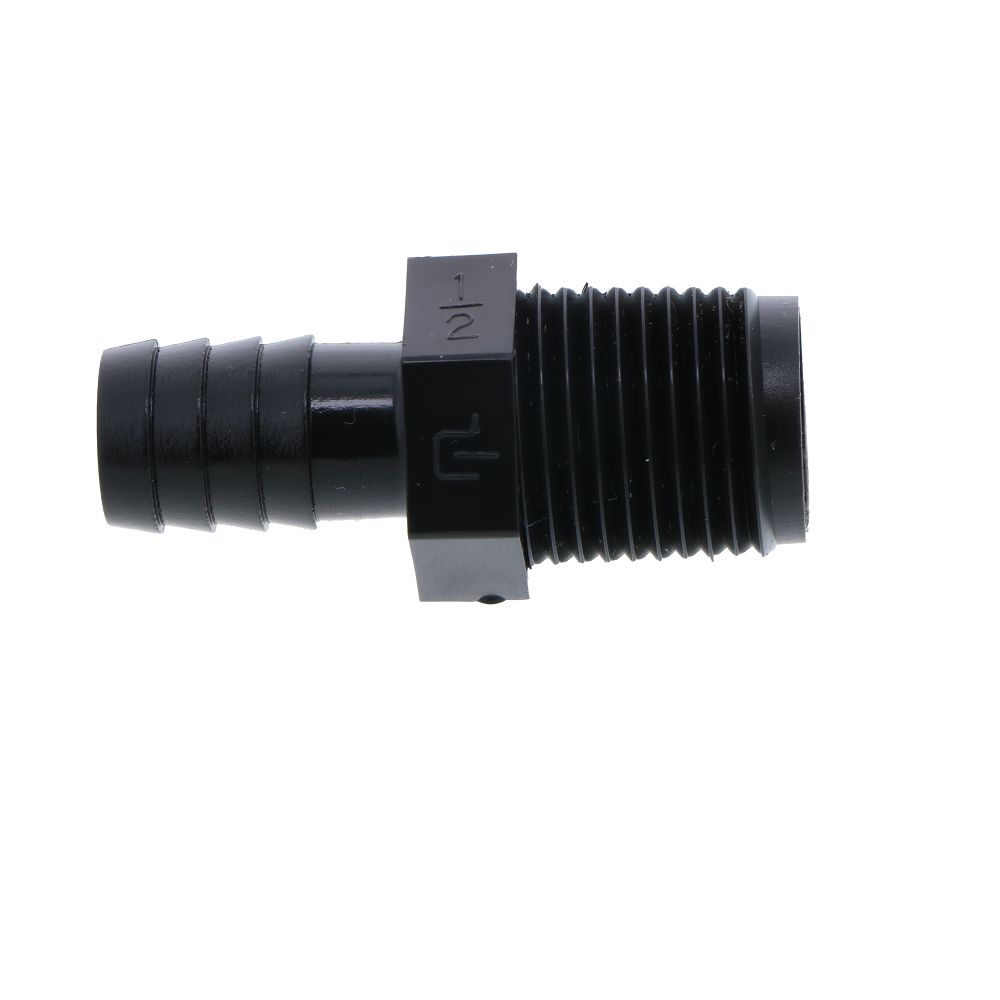

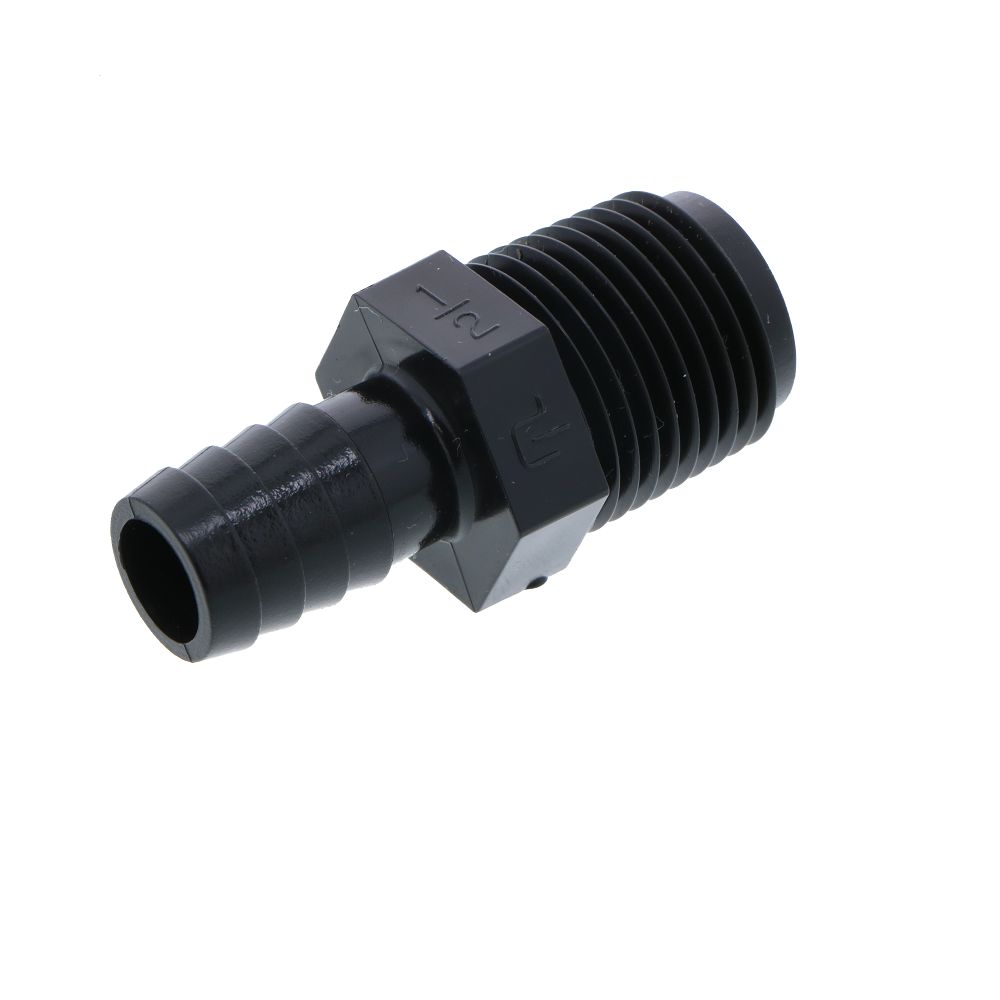

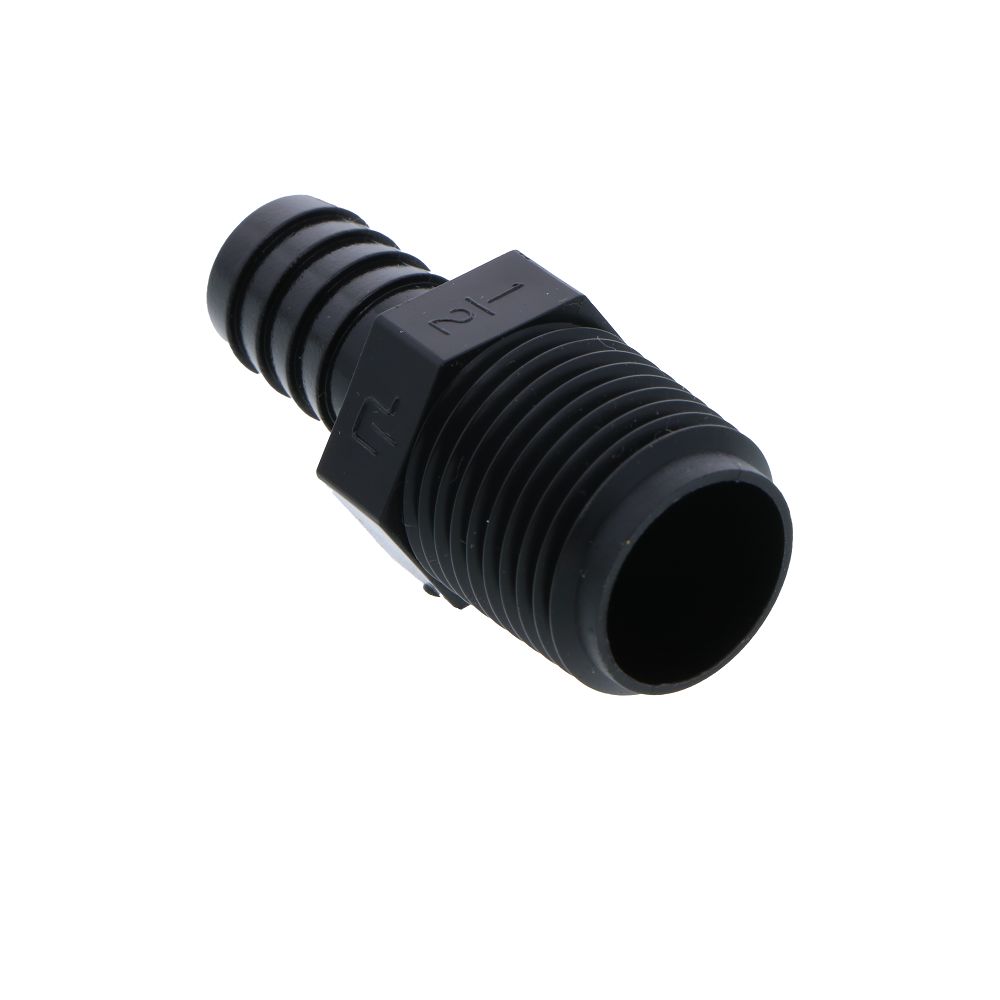

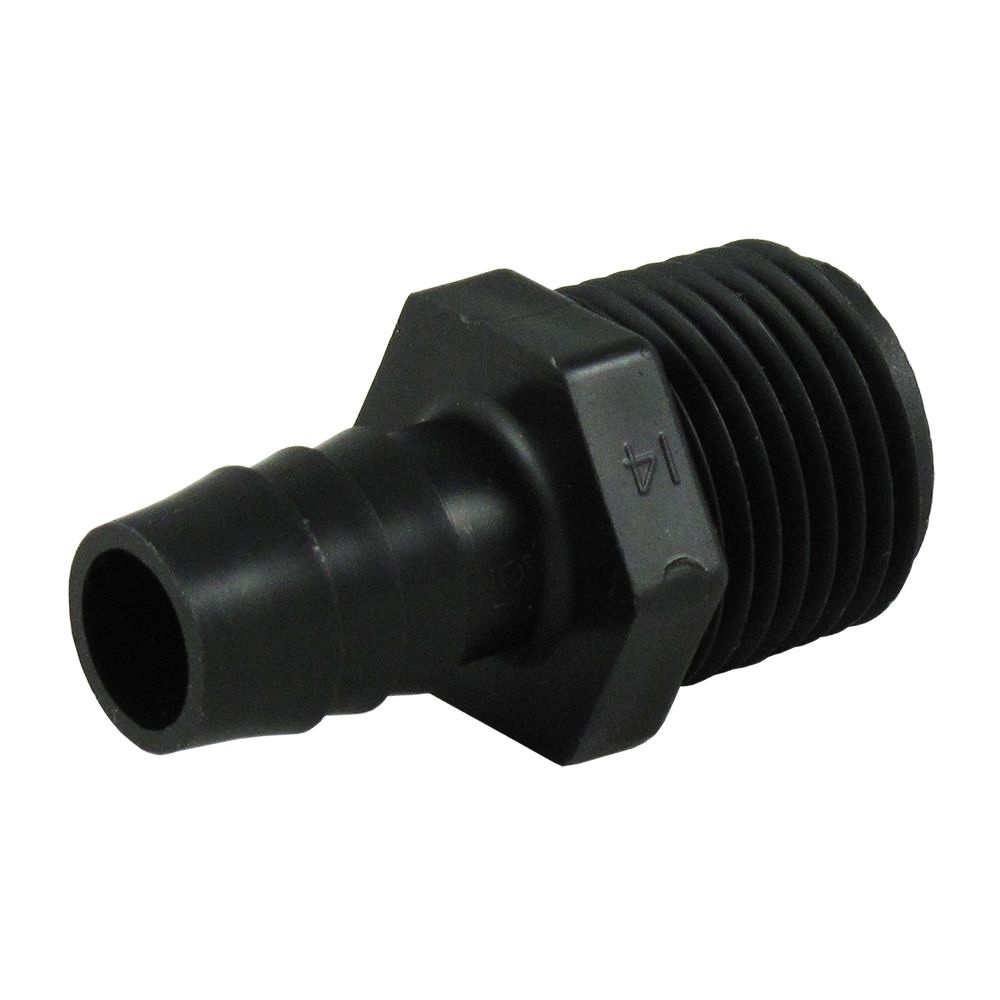

Male Barb Connector PE - 1/2 ID Barb x 1/2 MNPT

Part Number: MCB-0808PE

Alt. Part Number: P8MCB8

In Stock

out of stock

In Stock

$6.36

Barb fittings are precision injection molded from high-strength, chemically inert thermoplastic materials. Fittings are commonly used with clear vinyl tubing, urethane tubing and a variety of rubber tubing and hose. Typically used in systems where pressures do not exceed 125 PSI. When used in excess of 125 PSI, fittings should be tested by the customer in his particular application. Operating pressures of fittings are governed by ambient and fluid temperatures, type of fluid conveyed, hose or tubing used, clamping mechanism employed and conditions of mechanical abuse. Available in either black high density polyethylene or white nylon.

Specifications:
  • Standard four barb design
  • Maximum gripping and sealing when used with clamp
  • Leak-free sealing to 125 psi working pressure
  • Meets FDA and NSF-51 specifications for food contact




Weight & Dimensions

Height (inches)

0.63

Length (inches)

1.88

Weight (lbs)

0.000625

Width (inches)

0.63

Details

Application

Water, Beverage, Cooling Systems

Barb Size

1/2" ID

Body Material

Polypropylene

Inlet/Outlet Connection

1/2" MPT

Max Pressure (Psi)

125

Max Temp (°F)

212

Min Pressure (Psi)

0

Min Temp (°F)

0

Mounting Options

Thread

Series

Par-Barb

Size

1/2"

Color / Finish

Black

Connection Type

Male (MPT)

Type

Adapter

Warranty & Certifications

Certifications

NSF 51; FDA Approved



Barb fittings are precision injection molded from high-strength, chemically inert thermoplastic materials. Fittings are commonly used with clear vinyl tubing, urethane tubing and a variety of rubber tubing and hose. Typically used in systems where pressures do not exceed 125 PSI. When used in excess of 125 PSI, fittings should be tested by the customer in his particular application. Operating pressures of fittings are governed by ambient and fluid temperatures, type of fluid conveyed, hose or tubing used, clamping mechanism employed and conditions of mechanical abuse. Available in either black high density polyethylene or white nylon.

Specifications:
  • Standard four barb design
  • Maximum gripping and sealing when used with clamp
  • Leak-free sealing to 125 psi working pressure
  • Meets FDA and NSF-51 specifications for food contact



Weight & Dimensions

Height (inches)

0.63

Length (inches)

1.88

Weight (lbs)

0.000625

Width (inches)

0.63

Details

Application

Water, Beverage, Cooling Systems

Barb Size

1/2" ID

Body Material

Polypropylene

Inlet/Outlet Connection

1/2" MPT

Max Pressure (Psi)

125

Max Temp (°F)

212

Min Pressure (Psi)

0

Min Temp (°F)

0

Mounting Options

Thread

Series

Par-Barb

Size

1/2"

Color / Finish

Black

Connection Type

Male (MPT)

Type

Adapter

Warranty & Certifications

Certifications

NSF 51; FDA Approved

Reviews
