Liquatec

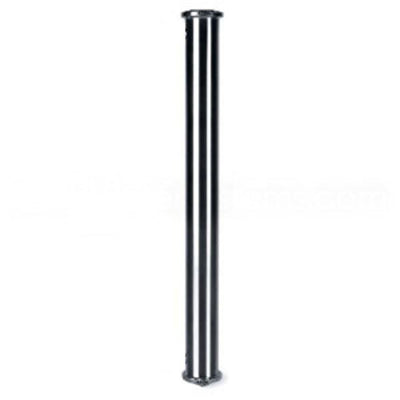

Liquatec 2.5" x 40" Stainless Steel RO Membrane Pressure Vessel

Part Number: VSH-2540

Alt. Part Number: SPV-2540

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Stainless Steel Membrane Housing 2.5" x 40" 3/8" Feed as a substitute.

Intended Use:
Stainless Steel Membrane Housing 2.5 x 40 3/8 Feed MHSS-2540-3838. Stainless Steel Membrane Housing 2.5 x 40 with 3/8 Feed Port Features: 304L Stainless Steel HousingStainless Steel Membrane Housing 2.5 x 40 with 3/8 Feed Port Features: The 2.5 x 40 Stainless Steel Pressure Vessel is designed for use in commercial reverse osmosis nanofiltration and ultrafiltration applications. These seamless body RO housings accommodate standard 2.5 membranes and withstand pressures up to 250 PSI. Accommodates All Standard 2.5 x 40 Sized Membranes 3/8 Feed Port 3/8 Permeate Port Made of 304 Stainless Steel Will not be affected by UV Rays or Sunlight Lighter than PVC More durable than PVC Will not warp crack or weep like fiberglass (FRP housings equivalent in pressure rating) Molded U-Type clamp closures provide a strong seal 2540 Series Stainless Steel Housing Pressure Vessel Specifications Commercial Stainless Steel Membrane Housings

Features:
  • Will not be affected by UV Rays or Sunlight
  • Lighter than PVC
  • More durable than PVC
  • Will not warp, crack, or weep like fiberglass (FRP housings equivalent in pressure rating)
  • Molded "U-Type" clamp closures provide a stronger seal (ends of the housing and glass reinforced polymide caps)




Weight & Dimensions

Weight (lbs)

9

Approx Length (Inches)

40"

Details

Max Pressure (Psi)

300

Closure Type

Clamp

Diameter

2-1/2"

End Cap Type

Glass Reinforced Polymide

Housing Material

Stainless Steel

O-Rings

EPDM

Port Size

3/8", 1/4"


Liquatec

Liquatec




Intended Use:
Stainless Steel Membrane Housing 2.5 x 40 3/8 Feed MHSS-2540-3838. Stainless Steel Membrane Housing 2.5 x 40 with 3/8 Feed Port Features: 304L Stainless Steel HousingStainless Steel Membrane Housing 2.5 x 40 with 3/8 Feed Port Features: The 2.5 x 40 Stainless Steel Pressure Vessel is designed for use in commercial reverse osmosis nanofiltration and ultrafiltration applications. These seamless body RO housings accommodate standard 2.5 membranes and withstand pressures up to 250 PSI. Accommodates All Standard 2.5 x 40 Sized Membranes 3/8 Feed Port 3/8 Permeate Port Made of 304 Stainless Steel Will not be affected by UV Rays or Sunlight Lighter than PVC More durable than PVC Will not warp crack or weep like fiberglass (FRP housings equivalent in pressure rating) Molded U-Type clamp closures provide a strong seal 2540 Series Stainless Steel Housing Pressure Vessel Specifications Commercial Stainless Steel Membrane Housings

Features:
  • Will not be affected by UV Rays or Sunlight
  • Lighter than PVC
  • More durable than PVC
  • Will not warp, crack, or weep like fiberglass (FRP housings equivalent in pressure rating)
  • Molded "U-Type" clamp closures provide a stronger seal (ends of the housing and glass reinforced polymide caps)



NOTE: This item is discontinued. We recommend the Stainless Steel Membrane Housing 2.5" x 40" 3/8" Feed as a substitute.

Weight & Dimensions

Weight (lbs)

9

Approx Length (Inches)

40"

Details

Max Pressure (Psi)

300

Closure Type

Clamp

Diameter

2-1/2"

End Cap Type

Glass Reinforced Polymide

Housing Material

Stainless Steel

O-Rings

EPDM

Port Size

3/8", 1/4"
