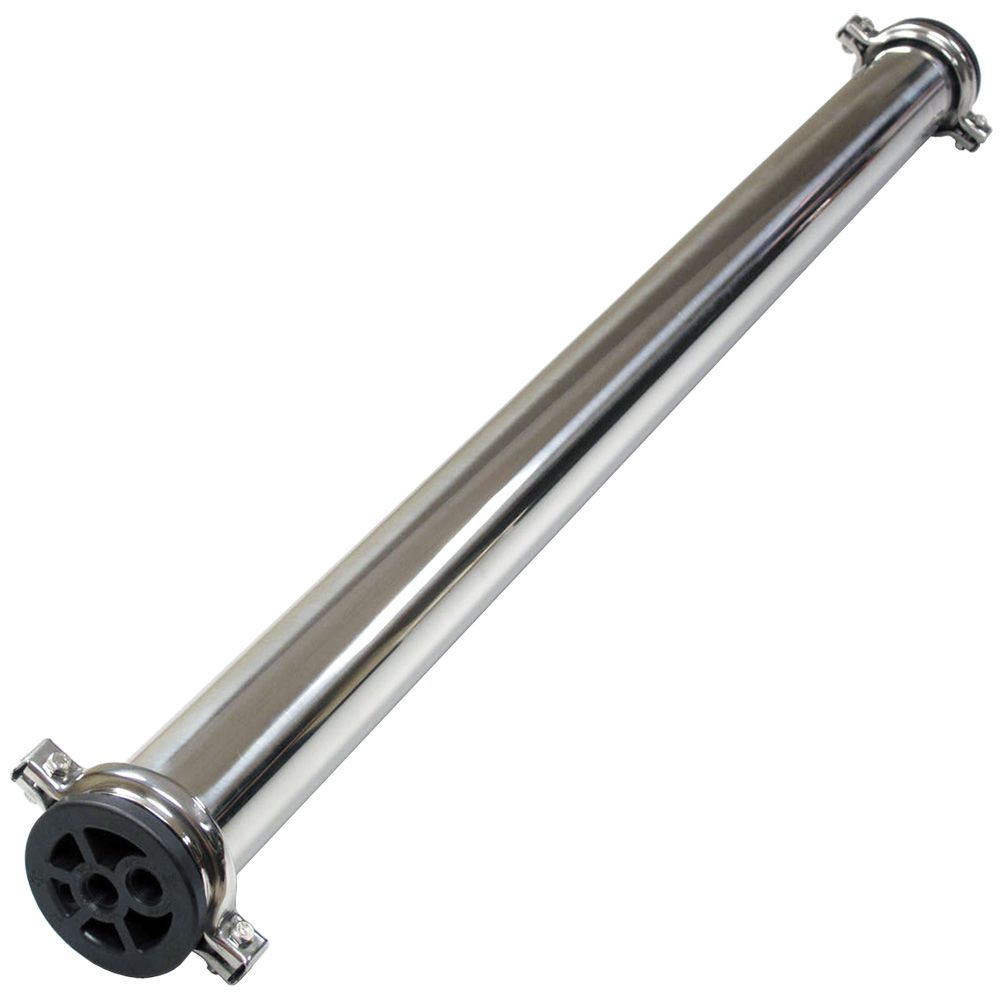

The 2.5" x 40" Stainless Steel Pressure Vessel is designed for use in commercial reverse osmosis, nanofiltration and ultrafiltration applications. These seamless body RO housings accommodate standard 2.5" membranes and withstand pressures up to 250 PSI.
Features:
Compatible with:
Features:
- Accommodates All Standard 2.5" x 40" Sized Membranes
- 3/8" Feed Port
- 3/8" Permeate Port
- Made of 304 Stainless Steel
- Will not be affected by UV Rays or Sunlight
- Lighter than PVC
- More durable than PVC
- Will not warp, crack, or weep like fiberglass (FRP housings equivalent in pressure rating)
- Molded "U-Type" clamp closures provide a strong seal
Compatible with:
| AXEON Membranes | 202921, MHPVC-2540-38 |
| Hydronix | SPV-2540 |
| Liquatec | VSH-2540 |
| PureGen | MH-2540SS-3838 |
Weight & Dimensions
Height (inches) | 3.5 |
Length (inches) | 42.75 |
Weight (lbs) | 7.034375 |
Width (inches) | 3.44 |
Details
Closure Type | Clamp |
Diameter | 2-1/2" |
End Cap Type | Nylon |
Housing Material | 304 Stainless Steel |
Max Pressure (Psi) | 250 |
Max Temp (°F) | 120 |
Min Temp (°F) | 35 |
O-Rings | Buna-N |
Port Size | 3/8; 3/8" |
The 2.5" x 40" Stainless Steel Pressure Vessel is designed for use in commercial reverse osmosis, nanofiltration and ultrafiltration applications. These seamless body RO housings accommodate standard 2.5" membranes and withstand pressures up to 250 PSI.
Features:
- Accommodates All Standard 2.5" x 40" Sized Membranes
- 3/8" Feed Port
- 3/8" Permeate Port
- Made of 304 Stainless Steel
- Will not be affected by UV Rays or Sunlight
- Lighter than PVC
- More durable than PVC
- Will not warp, crack, or weep like fiberglass (FRP housings equivalent in pressure rating)
- Molded "U-Type" clamp closures provide a strong seal
Compatible with:
| AXEON Membranes | 202921, MHPVC-2540-38 |
| Hydronix | SPV-2540 |
| Liquatec | VSH-2540 |
| PureGen | MH-2540SS-3838 |
Weight & Dimensions
Height (inches) | 3.5 |
Length (inches) | 42.75 |
Weight (lbs) | 7.034375 |
Width (inches) | 3.44 |
Details
Closure Type | Clamp |
Diameter | 2-1/2" |
End Cap Type | Nylon |
Housing Material | 304 Stainless Steel |
Max Pressure (Psi) | 250 |
Max Temp (°F) | 120 |
Min Temp (°F) | 35 |
O-Rings | Buna-N |
Port Size | 3/8; 3/8" |
