Colder Products

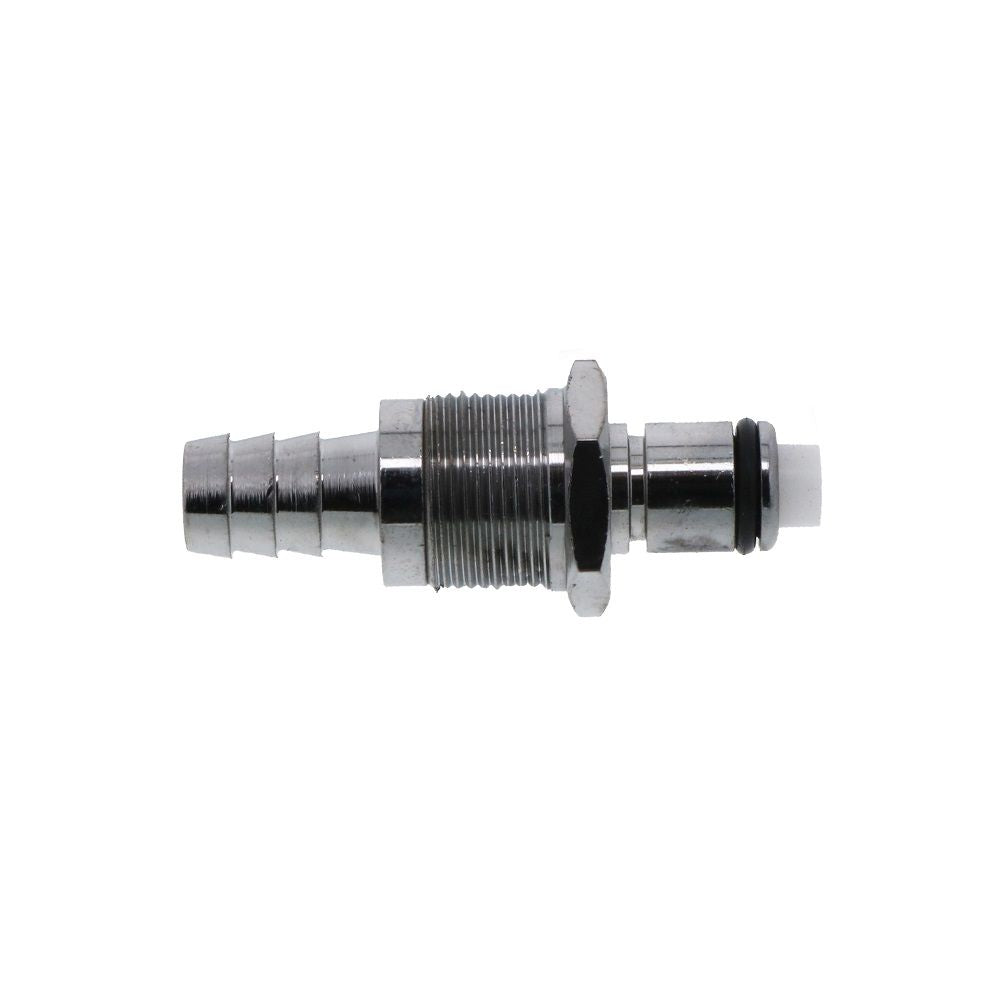

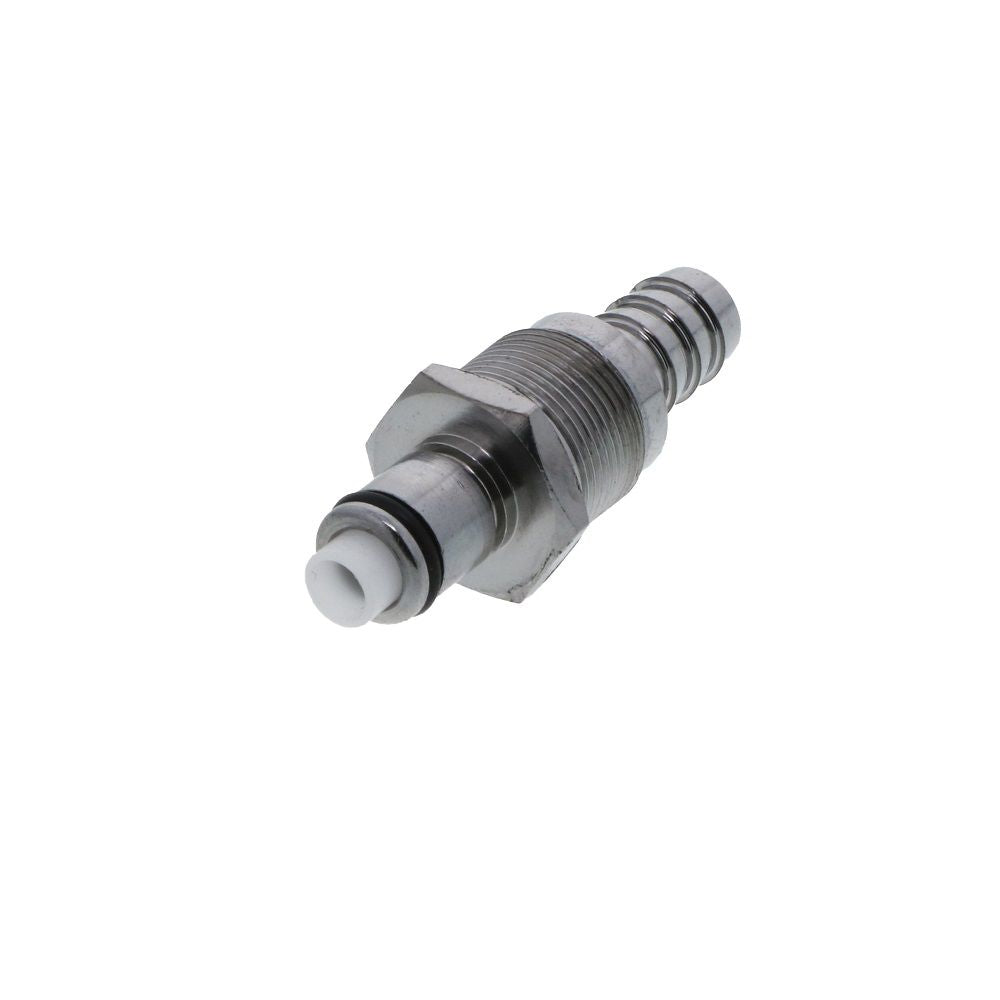

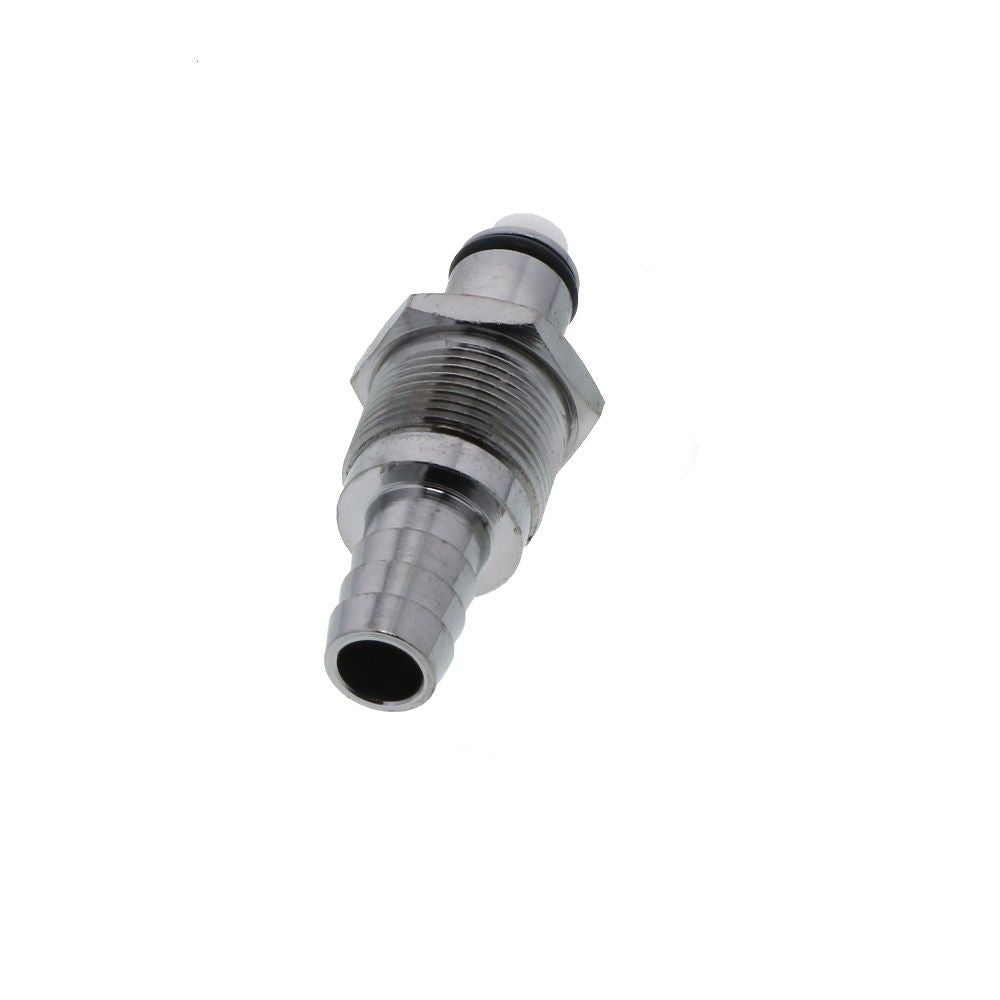

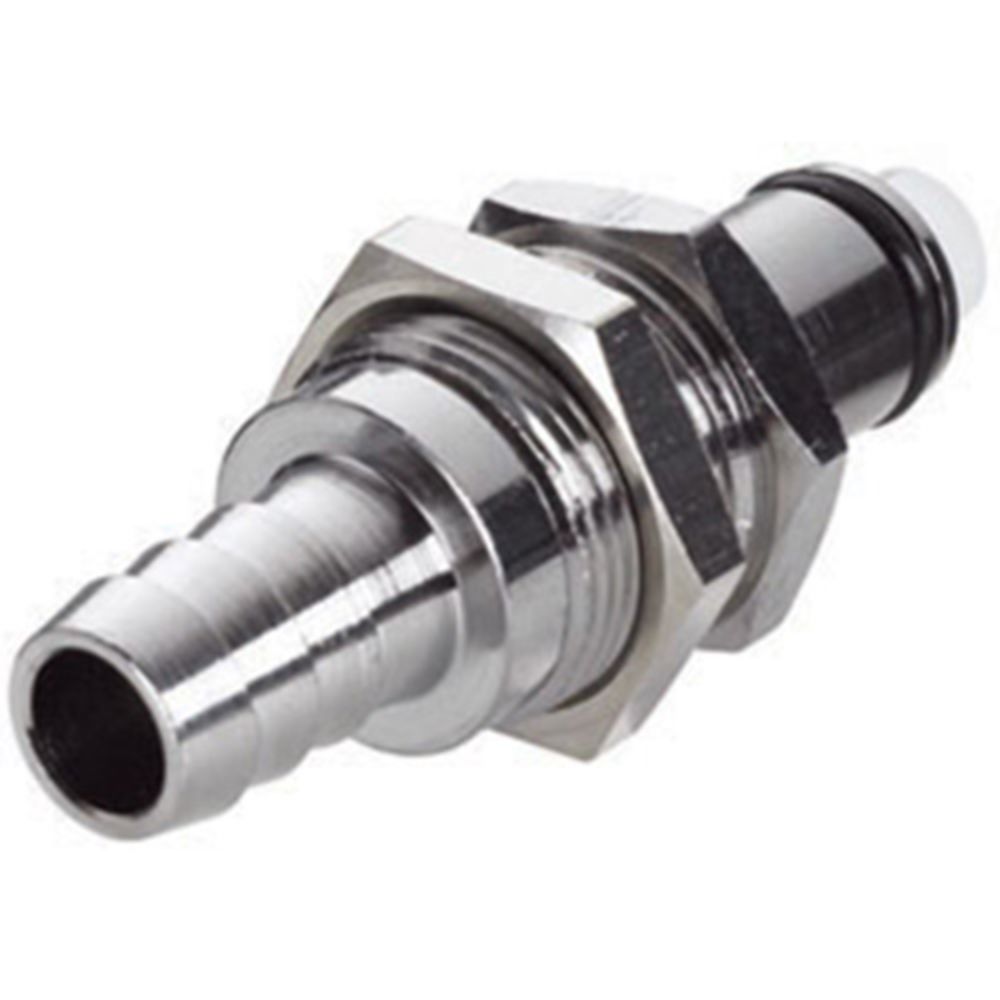

LCD42006 Valved Panel Mount Hose Barb Coupling Insert 3/8 ID Barb

Part Number: LCD42006

In Stock

out of stock

In Stock

$18.66

Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Valve Spring: 316 Stainless Steel
  • Available in Bags of 10 Units




Weight & Dimensions

Height (inches)

0.5

Length (inches)

2

Weight (lbs)

0.00625

Width (inches)

0.5

Details

Application

Water

Barb Size

3/8" ID

Body Material

Chrome-Plated Brass

Max Pressure (Psi)

250

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Panel Mount

Seal Material

Buna-N

Series

LC

Spring

316 Stainless Steel

Valve Type

Valved

Type

Coupling Insert


LCD42006




Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Valve Spring: 316 Stainless Steel
  • Available in Bags of 10 Units



Weight & Dimensions

Height (inches)

0.5

Length (inches)

2

Weight (lbs)

0.00625

Width (inches)

0.5

Details

Application

Water

Barb Size

3/8" ID

Body Material

Chrome-Plated Brass

Max Pressure (Psi)

250

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Panel Mount

Seal Material

Buna-N

Series

LC

Spring

316 Stainless Steel

Valve Type

Valved

Type

Coupling Insert

Documentation
LCD42006
