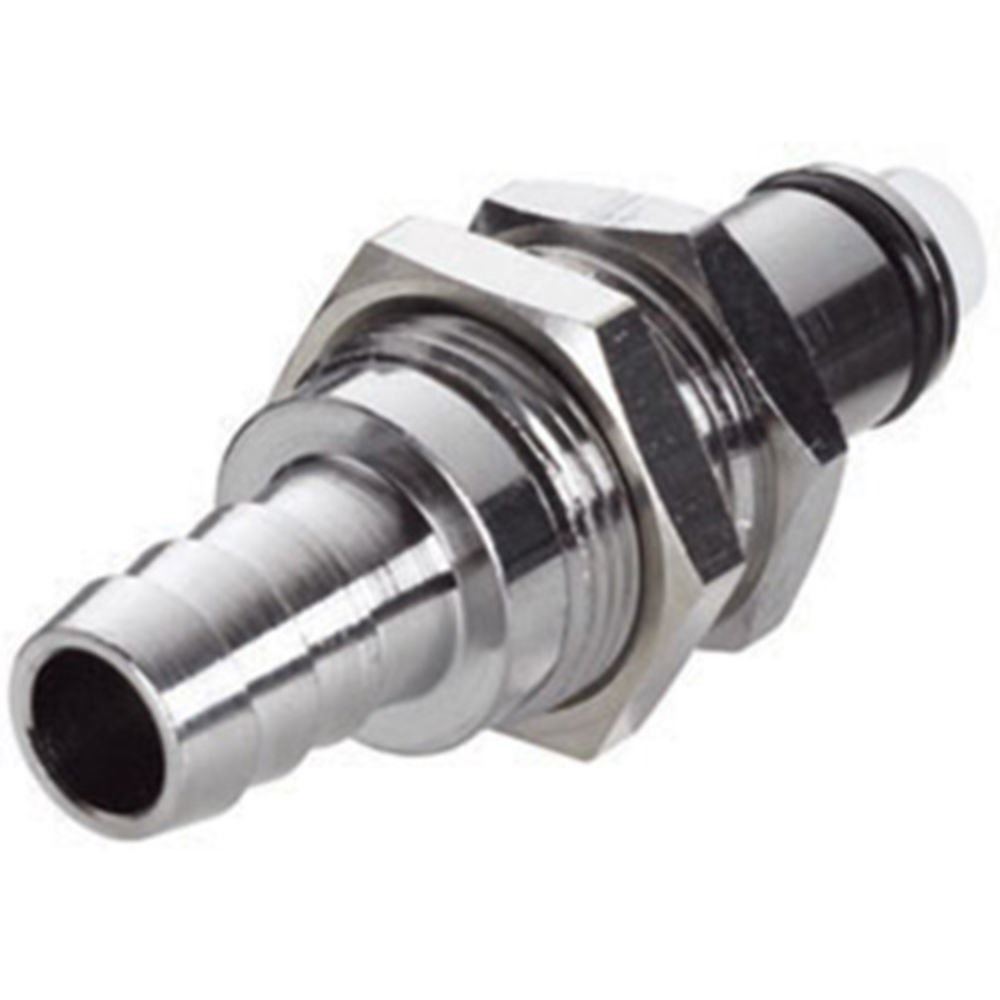

Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.
Specifications:
Specifications:
- Material: Brass
- Material Finish: Chrome
- Color: Chrome
- Mounting Option: Panel Mount
- Temperature Range: -40°F to 180°F (-40°C to 82°C)
- Seal Options: FDA BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
Details
Series | LC |
Max Temp (°F) | 180 |
Max Pressure (Psi) | 250 |
Min Temp (°F) | -40 |
Min Pressure (Psi) | Vacuum |
Barb Size | 3/8" ID |
Application | Water |
Bag Quantity | 10 |
Body Material | Chrome-Plated Brass |
Color / Finish | Chrome |
Mounting Options | Panel Mount |
Seal Material | Buna-N |
Spring | 316 Stainless Steel |
Valve Type | Valved |
External Springs And Pin | Stainless Steel |
Thumb Latch | Stainless steel |
Warranty & Certifications
Certifications | NSF 169 |
Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.
Specifications:
- Material: Brass
- Material Finish: Chrome
- Color: Chrome
- Mounting Option: Panel Mount
- Temperature Range: -40°F to 180°F (-40°C to 82°C)
- Seal Options: FDA BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
Details
Series | LC |
Max Temp (°F) | 180 |
Max Pressure (Psi) | 250 |
Min Temp (°F) | -40 |
Min Pressure (Psi) | Vacuum |
Barb Size | 3/8" ID |
Application | Water |
Bag Quantity | 10 |
Body Material | Chrome-Plated Brass |
Color / Finish | Chrome |
Mounting Options | Panel Mount |
Seal Material | Buna-N |
Spring | 316 Stainless Steel |
Valve Type | Valved |
External Springs And Pin | Stainless Steel |
Thumb Latch | Stainless steel |
Warranty & Certifications
Certifications | NSF 169 |
