Colder Products

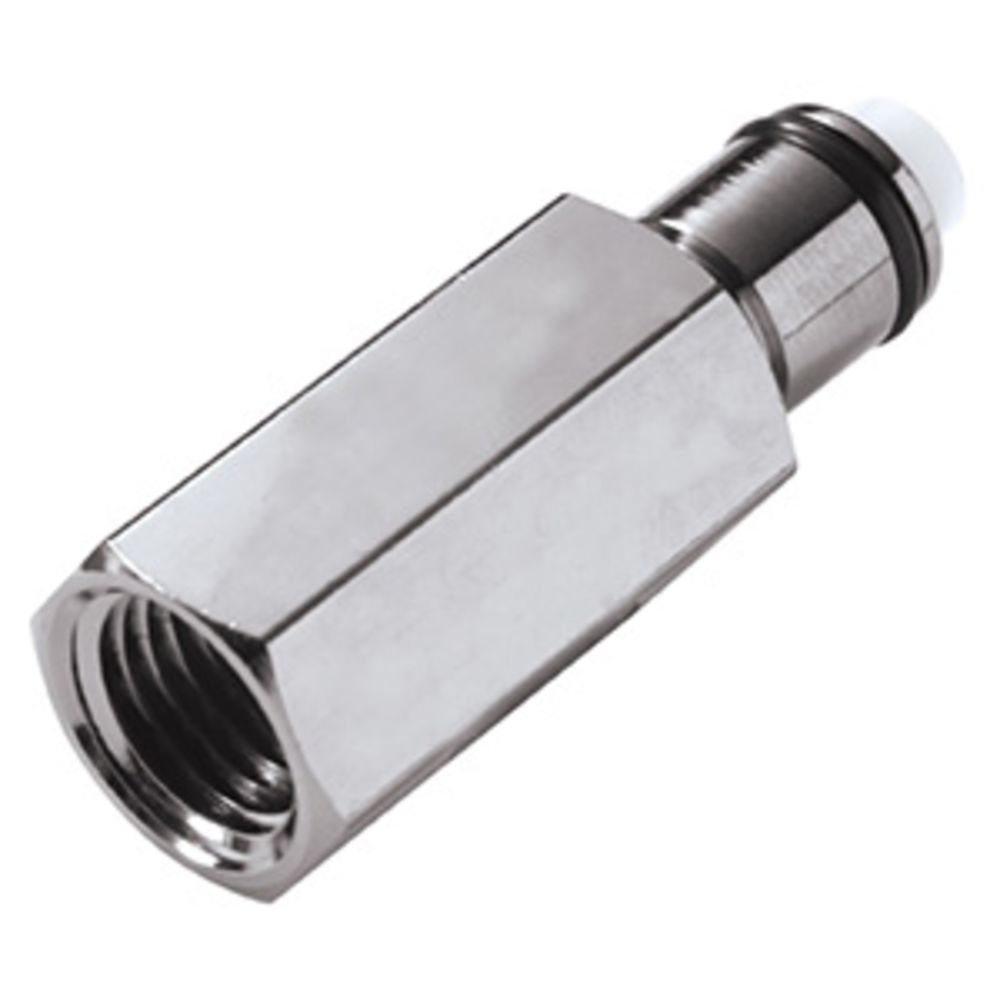

LCD26004 Valved Female Thread Coupling Insert 1/4 NPT

Part Number: LCD26004

In Stock

out of stock

In Stock

$14.29

Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.
Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: 1/4" NPT Thread
  • Valve Option: Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • NSF Listed Version (part # 71700) Available Upon Request




Weight & Dimensions

Height (inches)

0.5

Length (inches)

2.25

Weight (lbs)

0.125

Width (inches)

1

Details

Application

Water

Body Material

Chrome-Plated Brass

Inlet/Outlet Connection

1/4" FPT

Max Pressure (Psi)

250

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Thread

Seal Material

Buna-N

Series

LC

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

Connection Type

Female (FPT)

Origin

USA

Type

Coupling Insert


LCD26004




Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.
Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: 1/4" NPT Thread
  • Valve Option: Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • NSF Listed Version (part # 71700) Available Upon Request



Weight & Dimensions

Height (inches)

0.5

Length (inches)

2.25

Weight (lbs)

0.125

Width (inches)

1

Details

Application

Water

Body Material

Chrome-Plated Brass

Inlet/Outlet Connection

1/4" FPT

Max Pressure (Psi)

250

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Thread

Seal Material

Buna-N

Series

LC

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

Connection Type

Female (FPT)

Origin

USA

Type

Coupling Insert

Documentation
LCD26004
