Colder Products

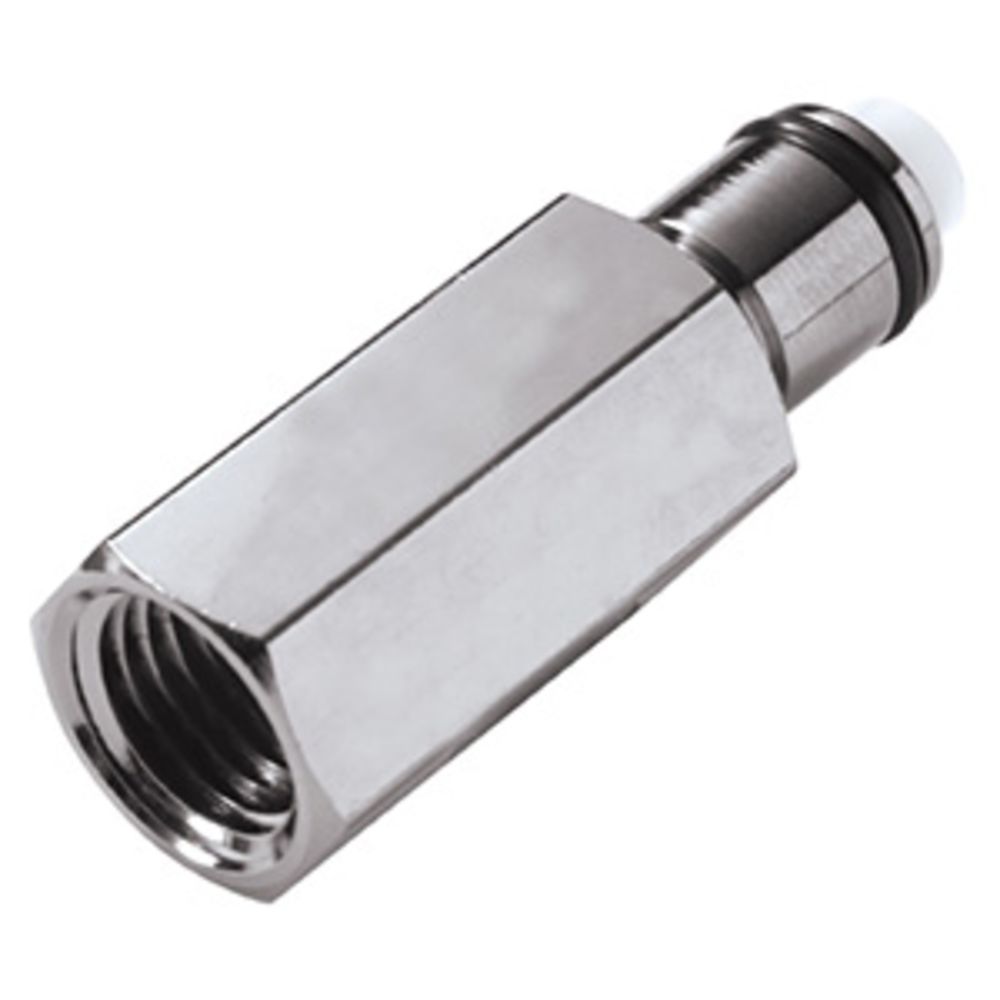

71700 NSF Valved Coupling Insert 1/4 NPT

Part Number: 71700

Alt. Part Number: LCD26004 (Non-NSF)

In Stock

out of stock

In Stock

$14.37

CPC’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects from water and beverage lines.

Specifications:
  • Material: Brass
  • Material Finish: Chrome
  • Color: Chrome
  • Mounting Option: Thread
  • Temperature Range: -40°F to 180°F (-40°C to 82°C)
  • Seal Options: FDA BUNA-N
  • Valve Spring: 316 Stainless Steel
  • Valve Option: Valved




Details

Series

LC

Max Temp (°F)

180

Max Pressure (Psi)

250

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Application

Water

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Thread

Seal Material

Buna-N

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless steel

Inlet/Outlet Connection

1/4" MPT

Warranty & Certifications

Certifications

NSF 169


71700




CPC’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects from water and beverage lines.

Specifications:
  • Material: Brass
  • Material Finish: Chrome
  • Color: Chrome
  • Mounting Option: Thread
  • Temperature Range: -40°F to 180°F (-40°C to 82°C)
  • Seal Options: FDA BUNA-N
  • Valve Spring: 316 Stainless Steel
  • Valve Option: Valved



Details

Series

LC

Max Temp (°F)

180

Max Pressure (Psi)

250

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Application

Water

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Thread

Seal Material

Buna-N

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless steel

Inlet/Outlet Connection

1/4" MPT

Warranty & Certifications

Certifications

NSF 169
