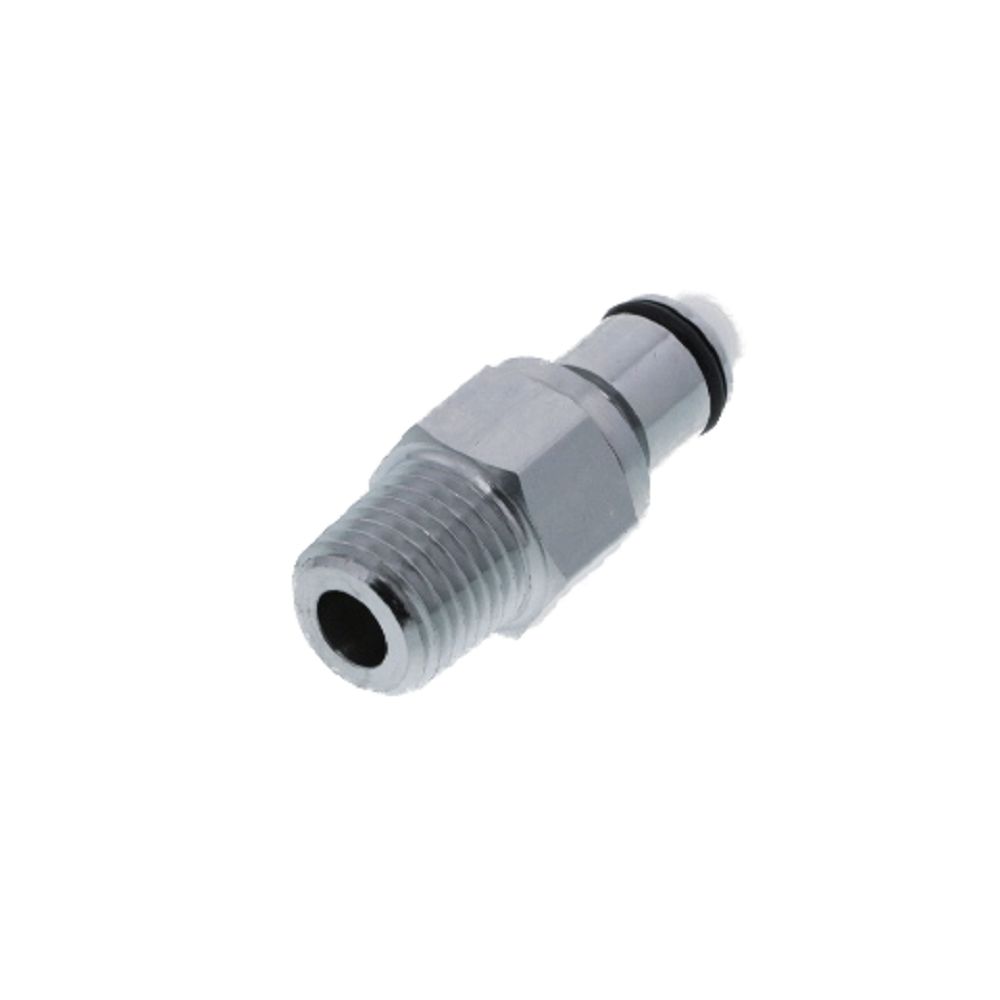

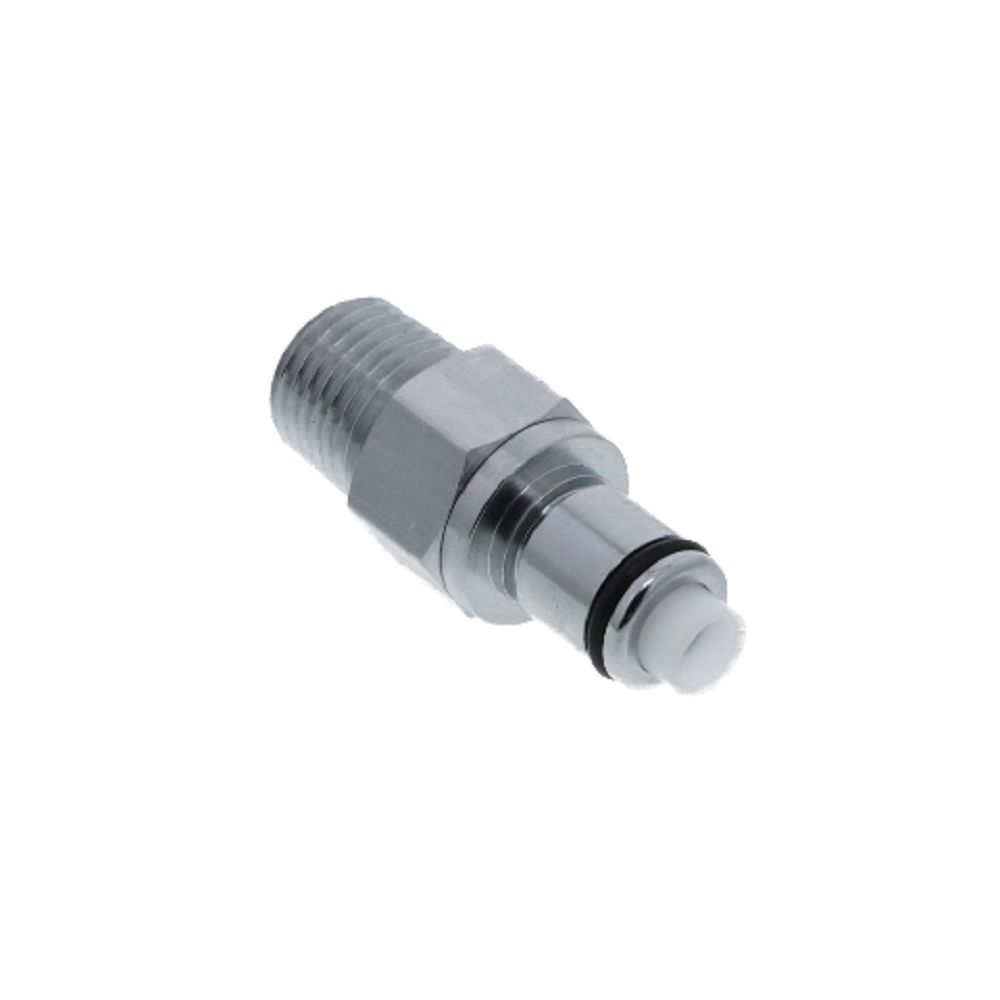

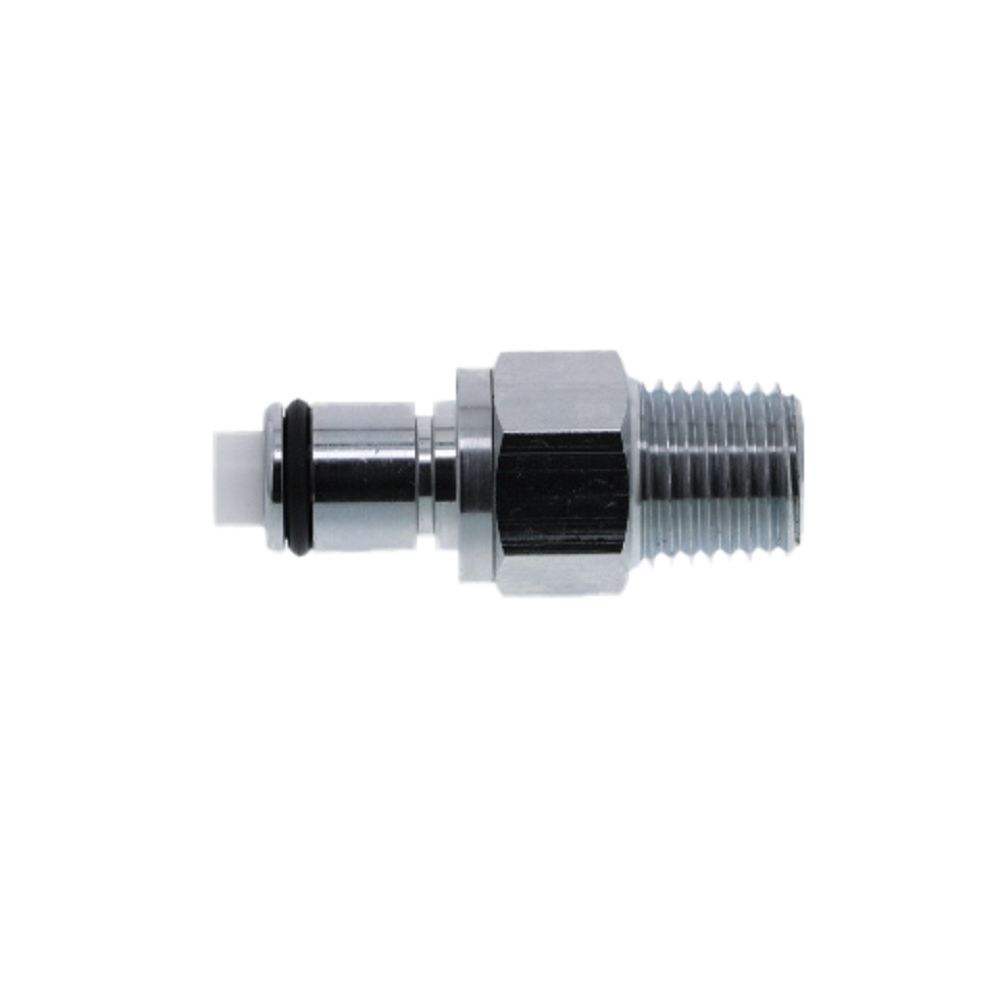

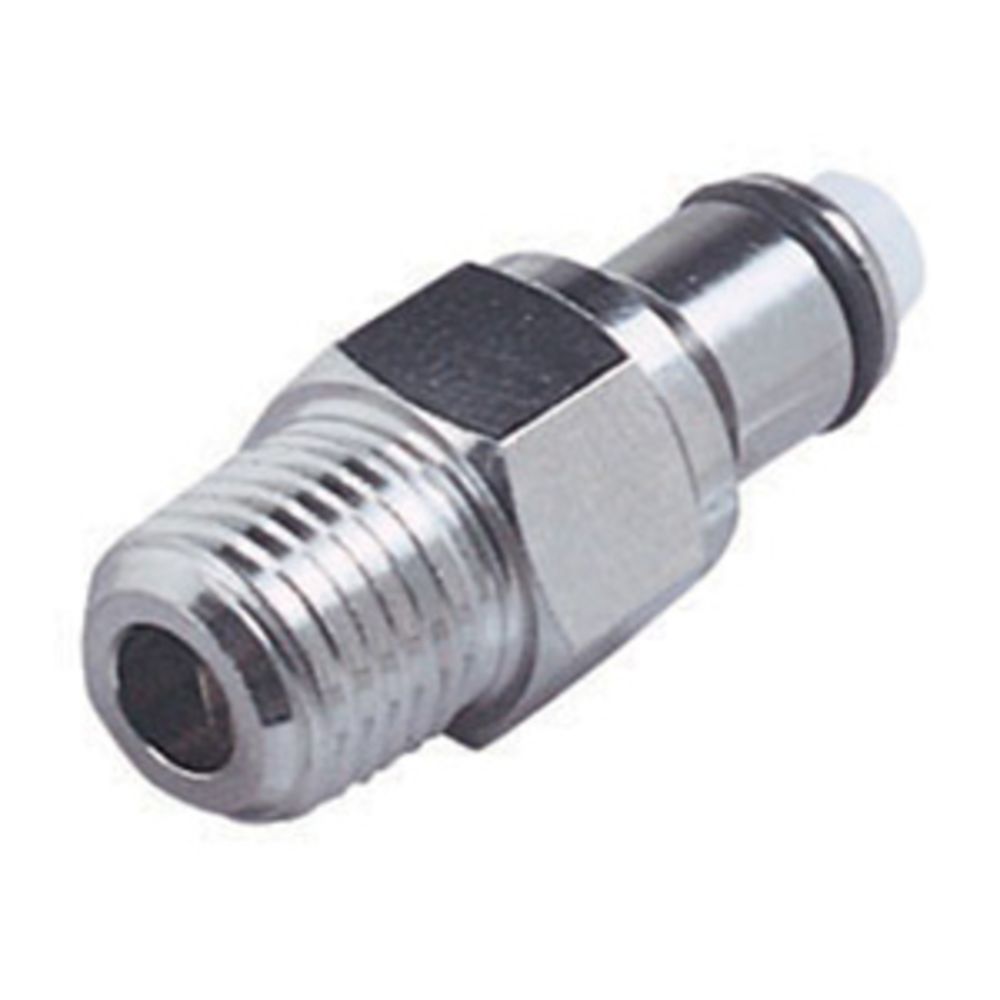

LCD24004 Valved Male Thread Coupling Insert 1/4 NPT

5.0

(1 reviews)

Part Number: LCD24004-Z

1 4

Colder Products

LCD24004 Valved Male Thread Coupling Insert 1/4 NPT

5.0

(1 reviews)

Part Number: LCD24004-Z

MSRP: $19.07

$19.07

Quantity

Unit Price

Price

Savings

$19.07

—

$18.59

$185.93

100

$18.11

$1,811.65

Product variants

Due to supply chain issues at the start , If the non-NSF version is not in stock, an identical Colder part with NSF testing (Auto-upgrade) will be sent to fulfill the order instead of the original part.

You May Also Need

Replacement Part
71500 NSF Valved Coupling Insert 1/4 NPT

Regular price From $19.32

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:

Material: Brass
Pressure Range: Vacuum to 250 psi, 17.3 bar
Mounting Option: 1/4" NPT Thread
Valve Option: Valved
Finish: Chrome
Temperature Range: -40ºF to 180ºF
Valve Spring: 316 Stainless Steel
Seal Options: Buna-N
NSF Listed Version (part # 71500) Available Upon Request

Specifications

Product Details
Inlet Connection	1/4" MPT
Max Pressure (Psi)	250
Max Temp (°F)	180°F
Min Temp (°F)	-40°F
Nsf Version	No
Outlet Connection	1/4" MPT
Series	LC
Shape	Straight
Size	1/4"
Valve Type	Valved
Color / Finish	Silver
Connection Type	Male (MPT)
Origin	U.S.A.
Type	Coupling
Shipping Dimensions
Shipping Length	1.63 in.
Shipping Width	0.5 in.
Shipping Height	0.5 in.
Product Weight & Dimensions
Product Height	0.5 in.
Product Length	1.63 in.
Product Width	0.5 in.
Product Weight (lbs)	0.003125

Product Details
Inlet Connection	1/4" MPT
Max Pressure (Psi)	250
Max Temp (°F)	180°F
Min Temp (°F)	-40°F
Nsf Version	No
Outlet Connection	1/4" MPT
Series	LC
Shape	Straight
Size	1/4"
Valve Type	Valved
Color / Finish	Silver
Connection Type	Male (MPT)
Origin	U.S.A.
Type	Coupling
Shipping Dimensions
Shipping Length	11 in.
Shipping Width	11 in.
Shipping Height	11 in.
Product Weight & Dimensions
Product Weight (lbs)	0.7

Product Details
Inlet Connection	1/4" MPT
Max Pressure (Psi)	250
Max Temp (°F)	180°F
Min Temp (°F)	-40°F
Nsf Version	No
Outlet Connection	1/4" MPT
Series	LC
Shape	Straight
Size	1/4"
Valve Type	Valved
Color / Finish	Silver
Connection Type	Male (MPT)
Origin	U.S.A.
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	5

Downloads

LCD24004 Valved Male Thread Coupling Insert 1/4 NPT Manual

Reviews (1)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

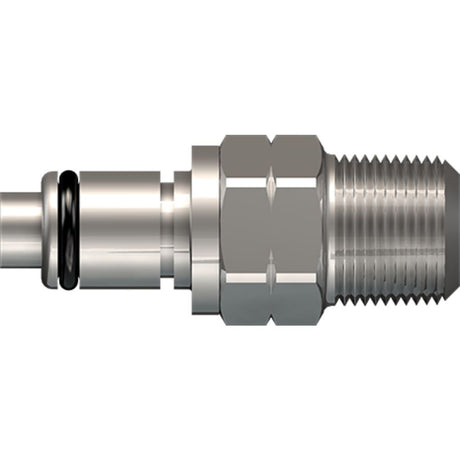

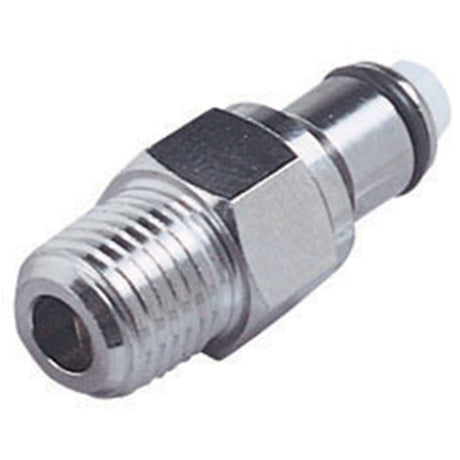

Facet	Colder Products LCD24004 Valved Male Thread Coupling Insert 1/4 NPT 5.0 Regular price From $19.07 Low stock Part #: LCD24004-Z Save up to 5% with bulk pricing Current Product	Colder Products LCD24004V Valved Male Thread Coupling Insert 1/4 NPT Viton O-ring Regular price From $20.29 Low stock Part #: LCD24004V Save up to 5% with bulk pricing View details	Colder Products 71500 NSF Valved Coupling Insert 1/4 NPT Regular price From $19.32 Very low stock Part #: 71500 Save up to 5% with bulk pricing View details	Linktech LinkTech 40CB Series Male Thread Male, Valved, 1/4" MNPT, Chrome Brass, Buna N Regular price From $16.43 Part #: 40CBV-PB1-04 Save up to 14% with bulk pricing View details
