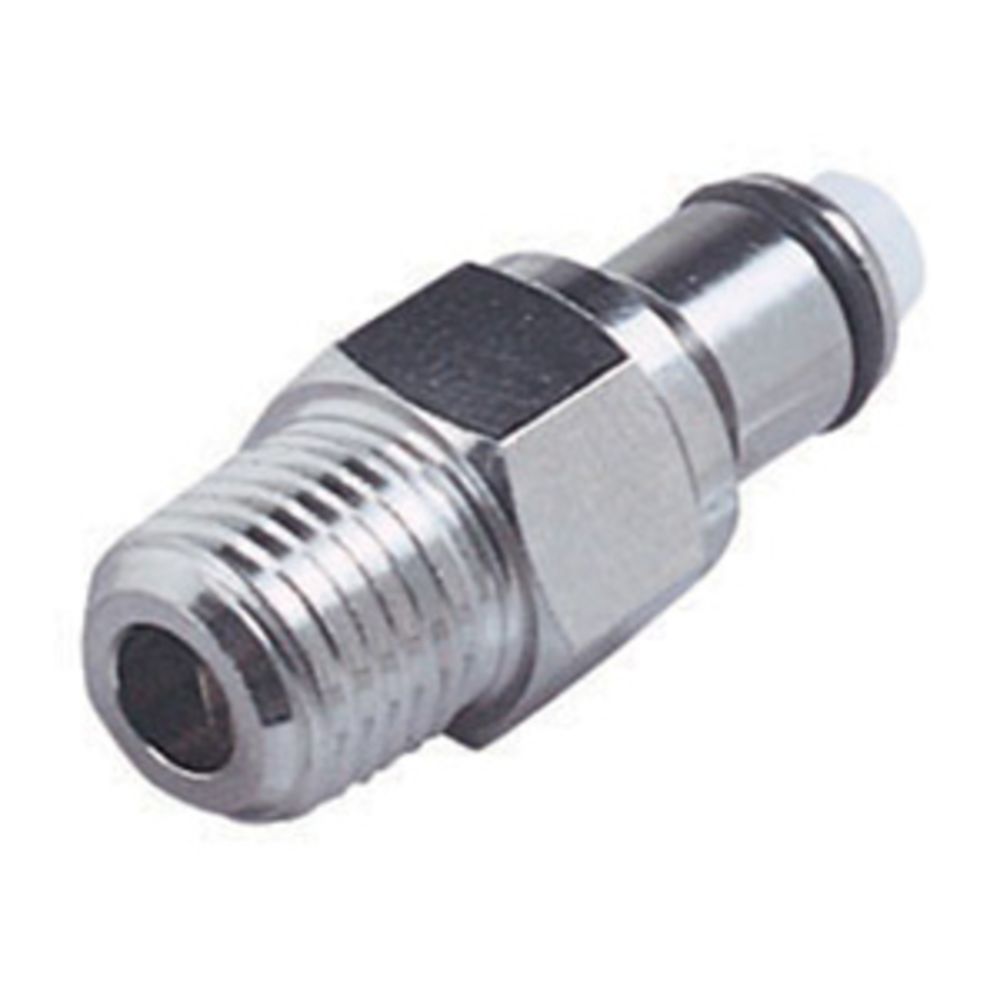

71500 NSF Valved Coupling Insert 1/4 NPT

Part Number: 71500 Alt. Part Number: LCD24004 (Non-NSF), 40CBV-PB1-04

Colder Products

71500 NSF Valved Coupling Insert 1/4 NPT

Part Number: 71500 Alt. Part Number: LCD24004 (Non-NSF), 40CBV-PB1-04

MSRP: $40.02

$19.32

Quantity

Unit Price

Price

Savings

$19.32

—

$18.83

$188.37

100

$18.35

$1,835.39

Product variants

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

CPC’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects from water and beverage lines.

Specifications:

Material: Brass
Material Finish: Chrome
Color: Chrome
Mounting Option: Thread
Temperature Range: -40°F to 180°F (-40°C to 82°C)
Pressure Range: Vacuum to 250 psi, 17.3 bar
Seal Options: FDA BUNA-N
Valve Spring: 316 Stainless Steel
Valve Option: Valved

Specifications

Product Details
Inlet Connection	1/4" MPT
Max Pressure (Psi)	250
Max Temp (°F)	180°F
Min Temp (°F)	-40°F
Nsf Version	Yes
Outlet Connection	1/4" MPT
Seal / O-Ring Material	Buna-N (Nitrile)
Series	LC
Shape	Straight
Size	1/4"
Valve Type	Valved
Color / Finish	Silver
Connection Type	Male (MPT)
Type	Coupling
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	1.63 in.
Shipping Width	0.5 in.
Shipping Height	0.5 in.
Product Weight & Dimensions
Product Weight (lbs)	0.003125

Product Details
Inlet Connection	1/4" MPT
Max Pressure (Psi)	250
Max Temp (°F)	180°F
Min Temp (°F)	-40°F
Nsf Version	Yes
Outlet Connection	1/4" MPT
Seal / O-Ring Material	Buna-N (Nitrile)
Series	LC
Shape	Straight
Size	1/4"
Valve Type	Valved
Color / Finish	Silver
Connection Type	Male (MPT)
Type	Coupling
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	8 in.
Shipping Width	12 in.
Shipping Height	2 in.
Product Weight & Dimensions
Product Weight (lbs)	5

Product Details
Inlet Connection	1/4" MPT
Max Pressure (Psi)	250
Max Temp (°F)	180°F
Min Temp (°F)	-40°F
Nsf Version	Yes
Outlet Connection	1/4" MPT
Seal / O-Ring Material	Buna-N (Nitrile)
Series	LC
Shape	Straight
Size	1/4"
Valve Type	Valved
Color / Finish	Silver
Connection Type	Male (MPT)
Type	Coupling
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Product Weight & Dimensions
Product Weight (lbs)	5

Downloads

71500 NSF Valved Coupling Insert 1/4 NPT Manual
