Colder Products

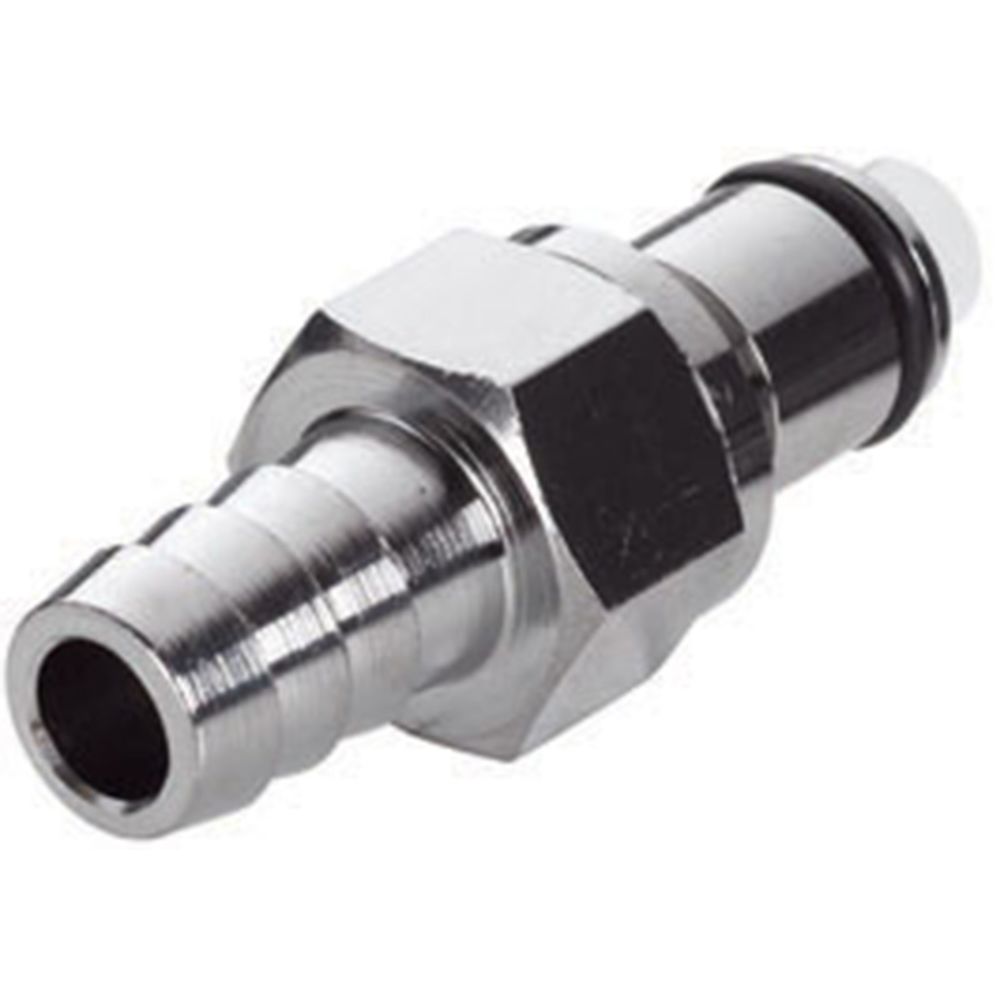

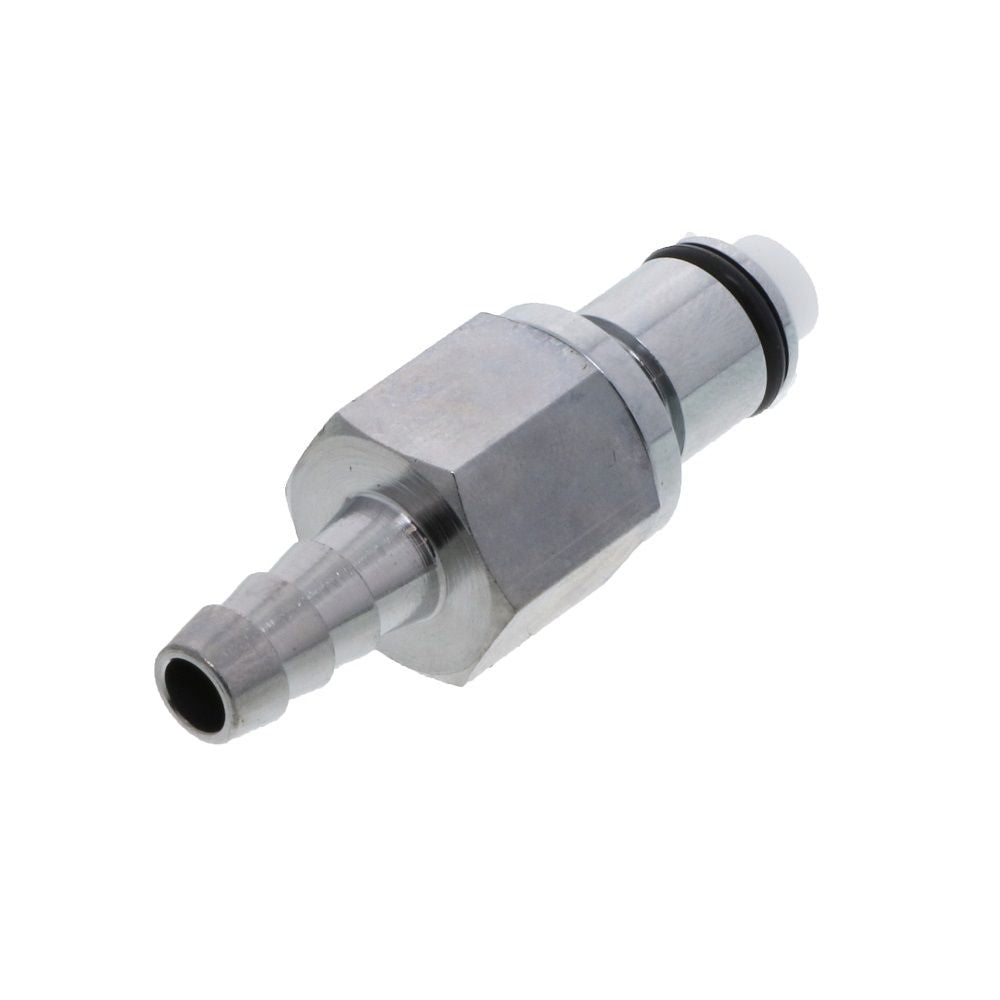

LCD22004V Valved In-Line Hose Barb Coupling Insert 1/4 ID Barb FKM (Viton) O-ring

Part Number: LCD22004V

In Stock

out of stock

In Stock

$29.53

Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

 Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: FKM (Viton)




Weight & Dimensions

Bag Quantity

10

Weight (lbs)

0.05

Details

Application

Water

Barb Size

1/4" ID

Body Material

Chrome-Plated Brass

Max Pressure (Psi)

250

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Seal Material

FKM (Viton)

Series

LC

Spring

316 Stainless Steel

Valve Type

Valved

Color / Finish

Chrome

Origin

USA

Type

Coupling Insert


LCD22004V




Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

 Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: FKM (Viton)



Weight & Dimensions

Bag Quantity

10

Weight (lbs)

0.05

Details

Application

Water

Barb Size

1/4" ID

Body Material

Chrome-Plated Brass

Max Pressure (Psi)

250

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Seal Material

FKM (Viton)

Series

LC

Spring

316 Stainless Steel

Valve Type

Valved

Color / Finish

Chrome

Origin

USA

Type

Coupling Insert

Documentation
LCD22004V
Reviews
