Colder Products

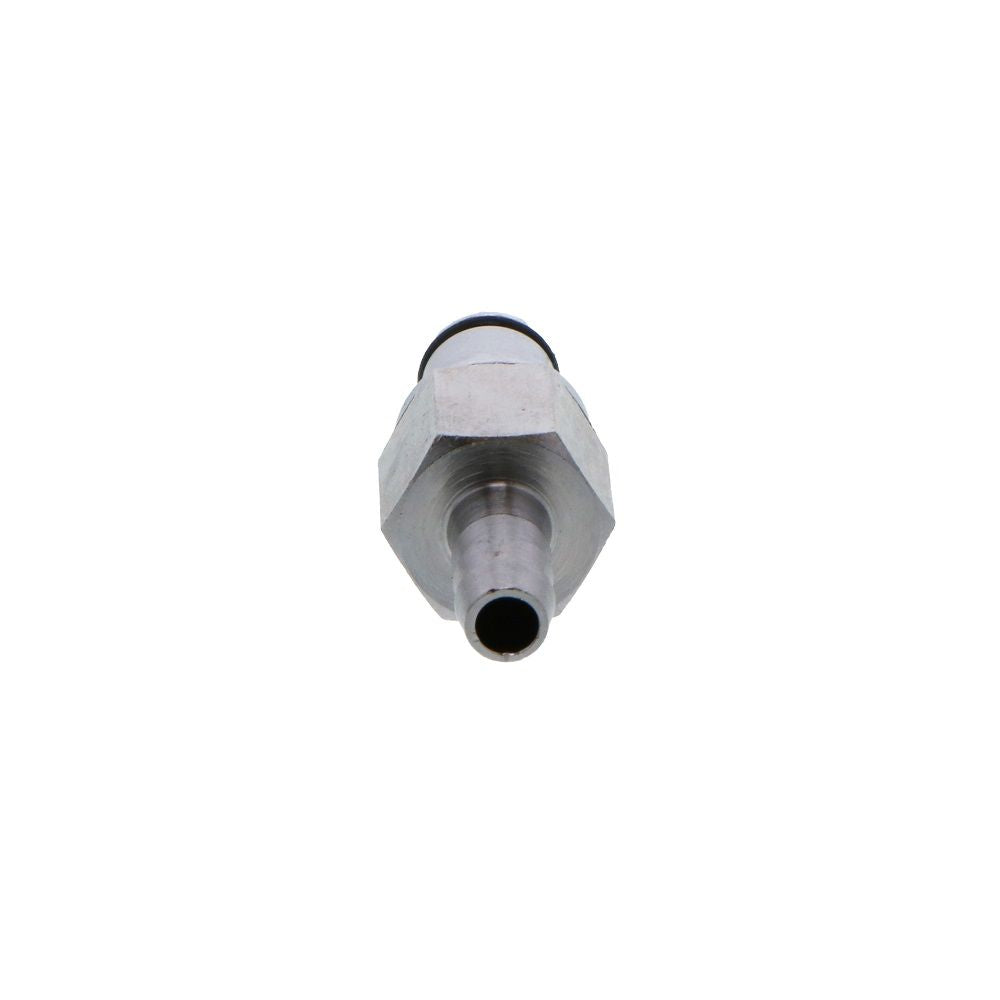

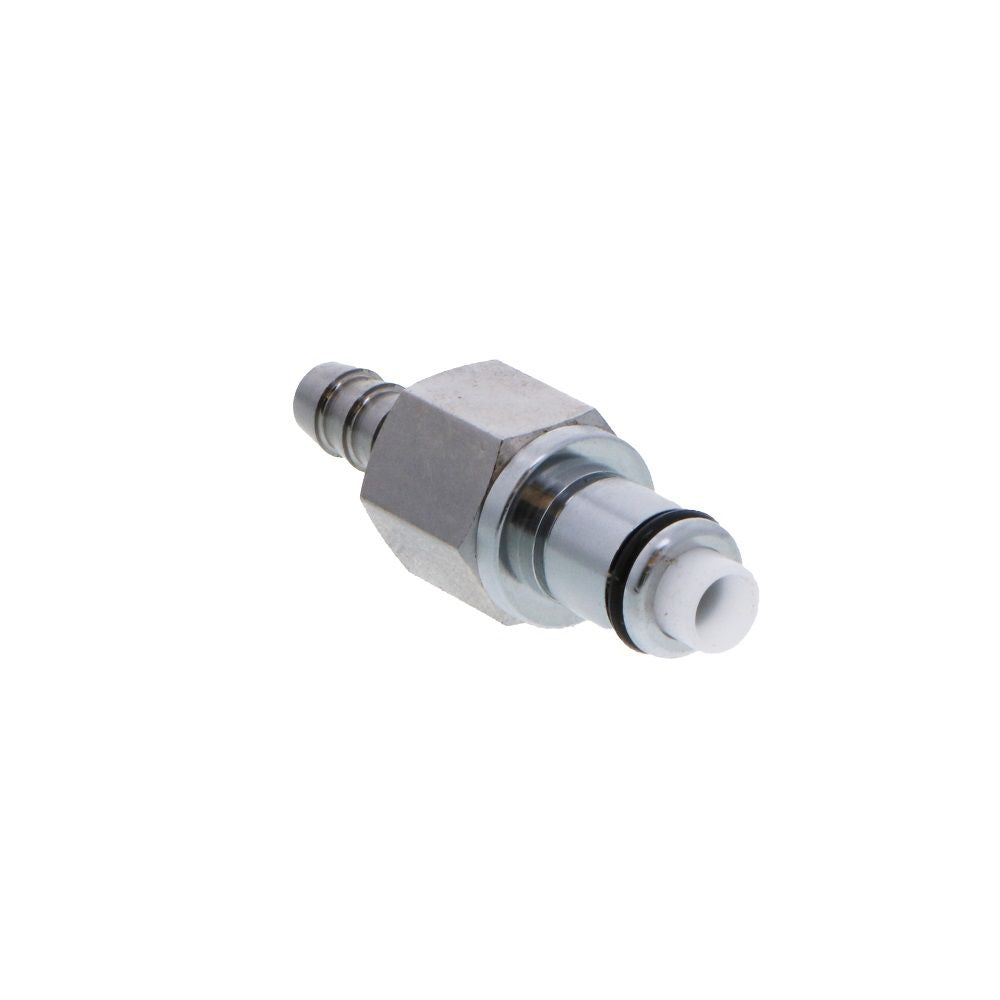

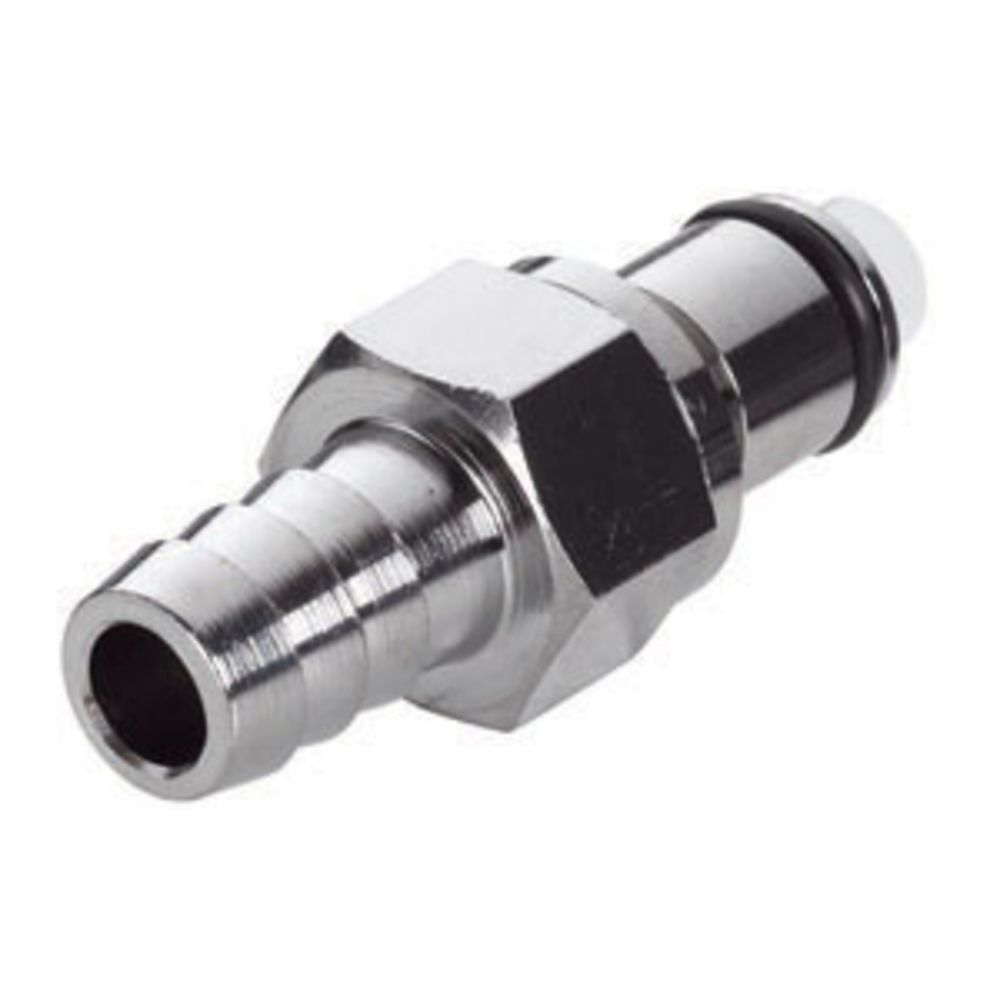

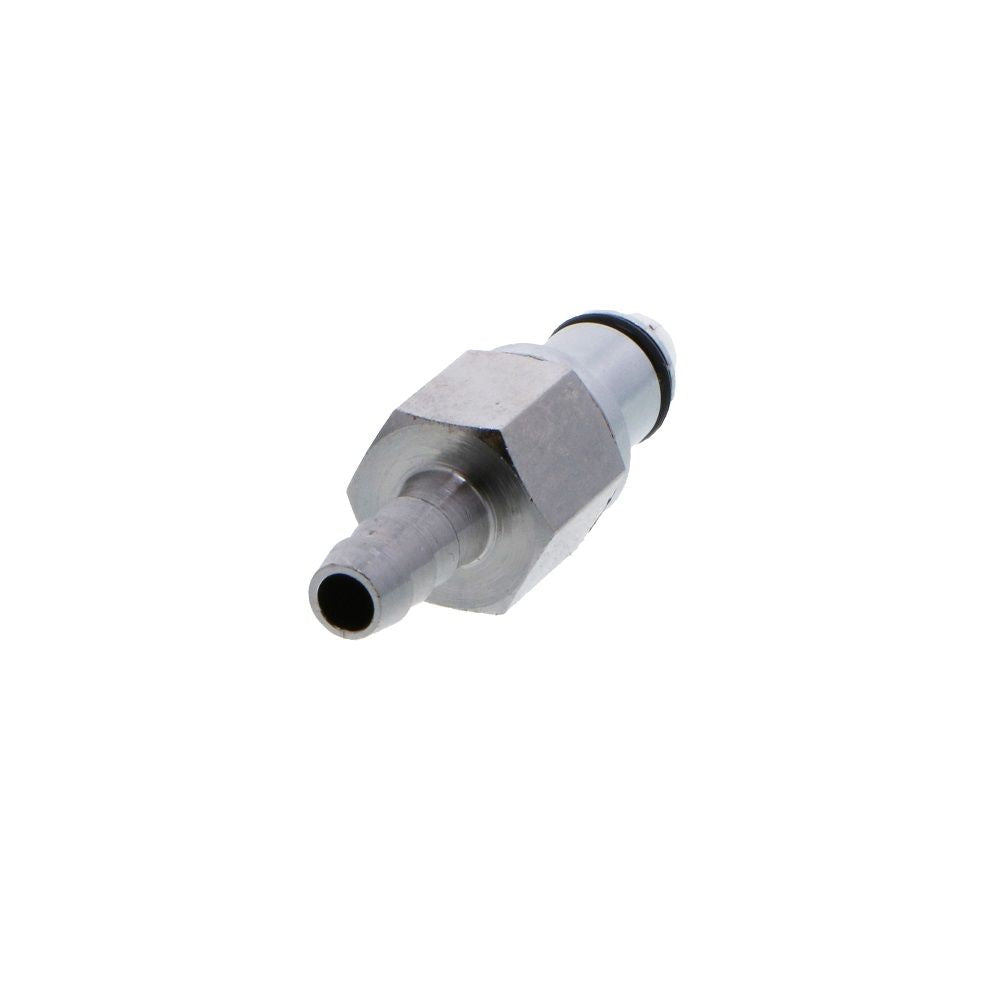

LCD22004 Valved In-Line Hose Barb Coupling Insert 1/4 ID Barb

Part Number: LCD22004

In Stock

out of stock

In Stock

$12.98


Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • NSF Listed Version (part # 70500) Available Upon Request


Weight & Dimensions

Weight (lbs)

0.05

Details

Series

LC

Max Temp (°F)

180

Max Pressure (Psi)

250

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Barb Size

1/4" ID

Application

Water

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Free Floating

Origin

USA

Seal Material

Buna-N

Spring

316 stainless steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless steel


LCD22004





Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • NSF Listed Version (part # 70500) Available Upon Request

Weight & Dimensions

Weight (lbs)

0.05

Details

Series

LC

Max Temp (°F)

180

Max Pressure (Psi)

250

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Barb Size

1/4" ID

Application

Water

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Free Floating

Origin

USA

Seal Material

Buna-N

Spring

316 stainless steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless steel
