Colder Products

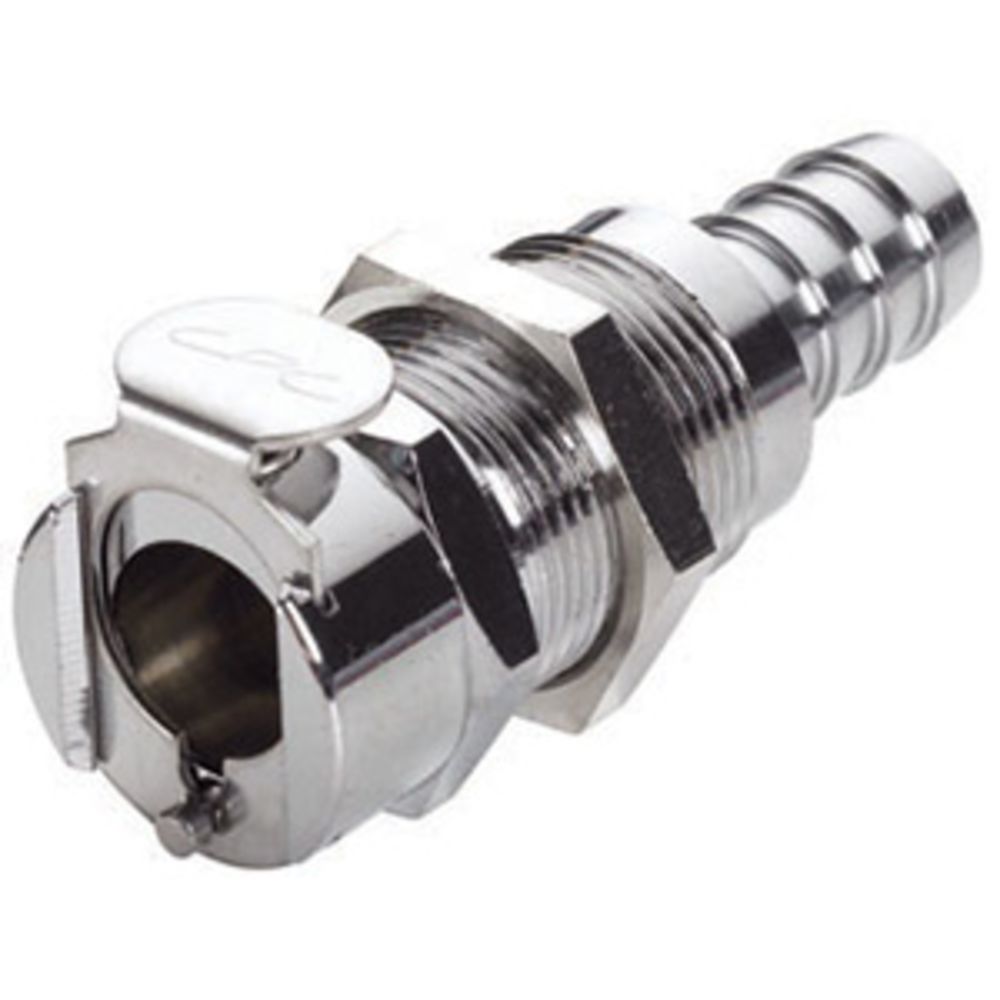

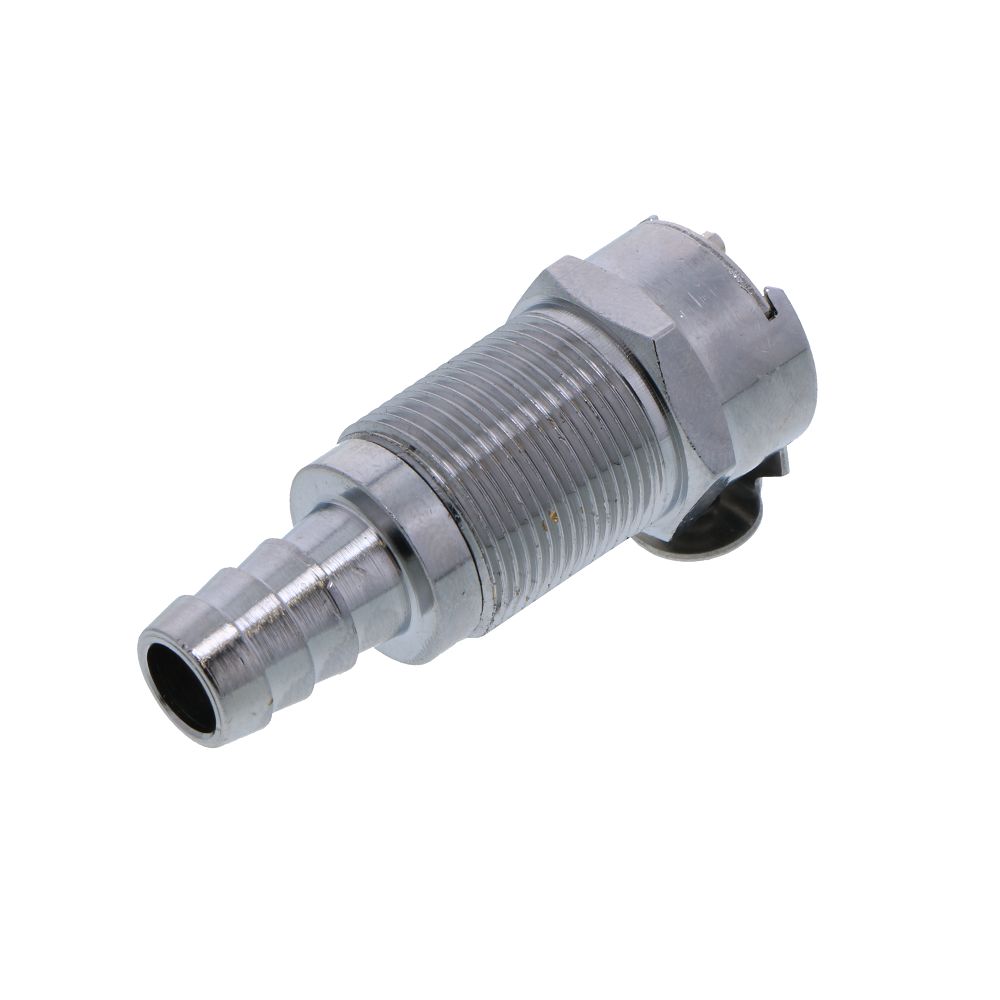

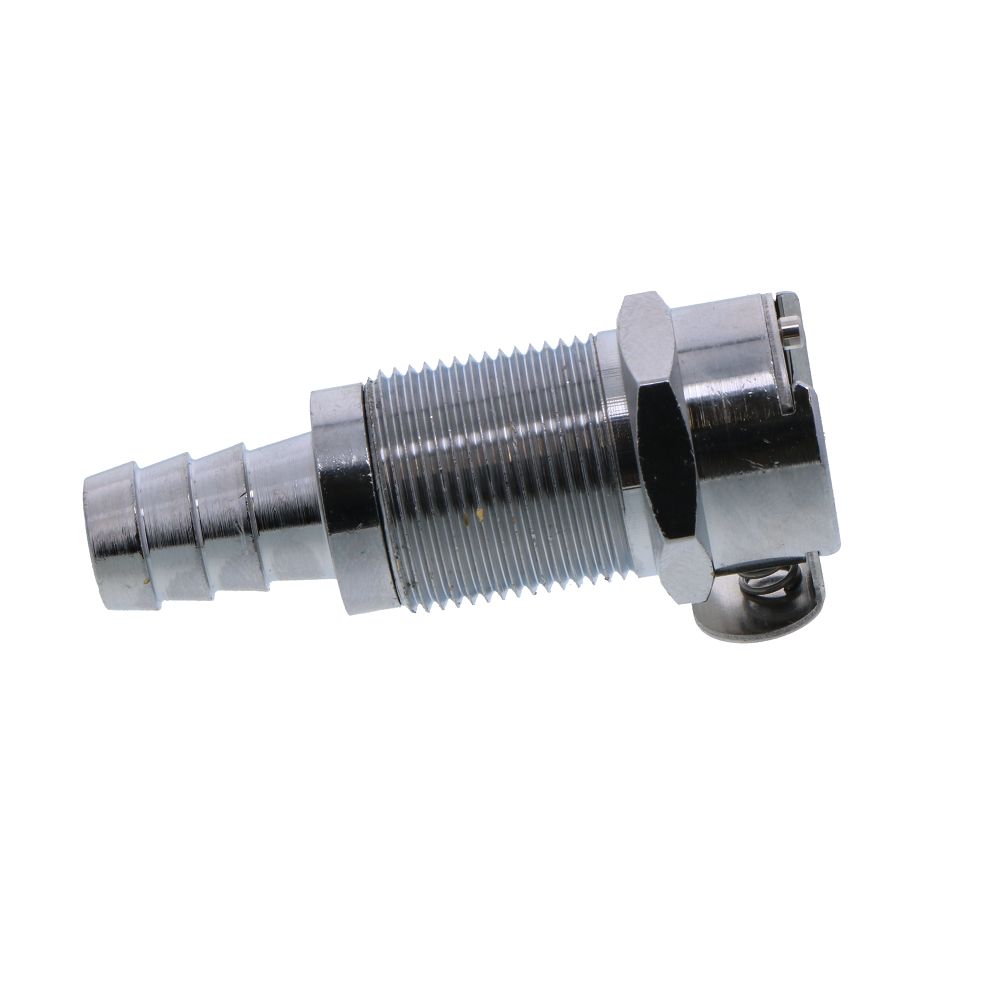

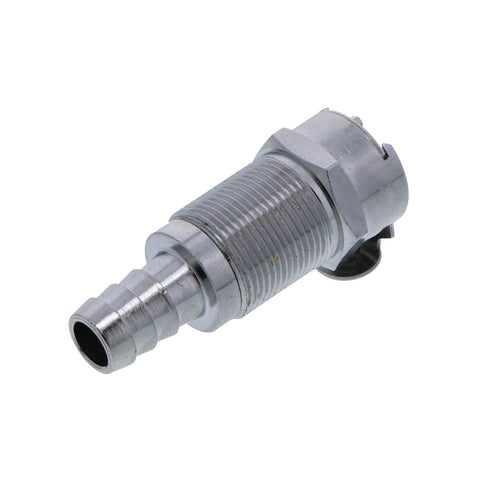

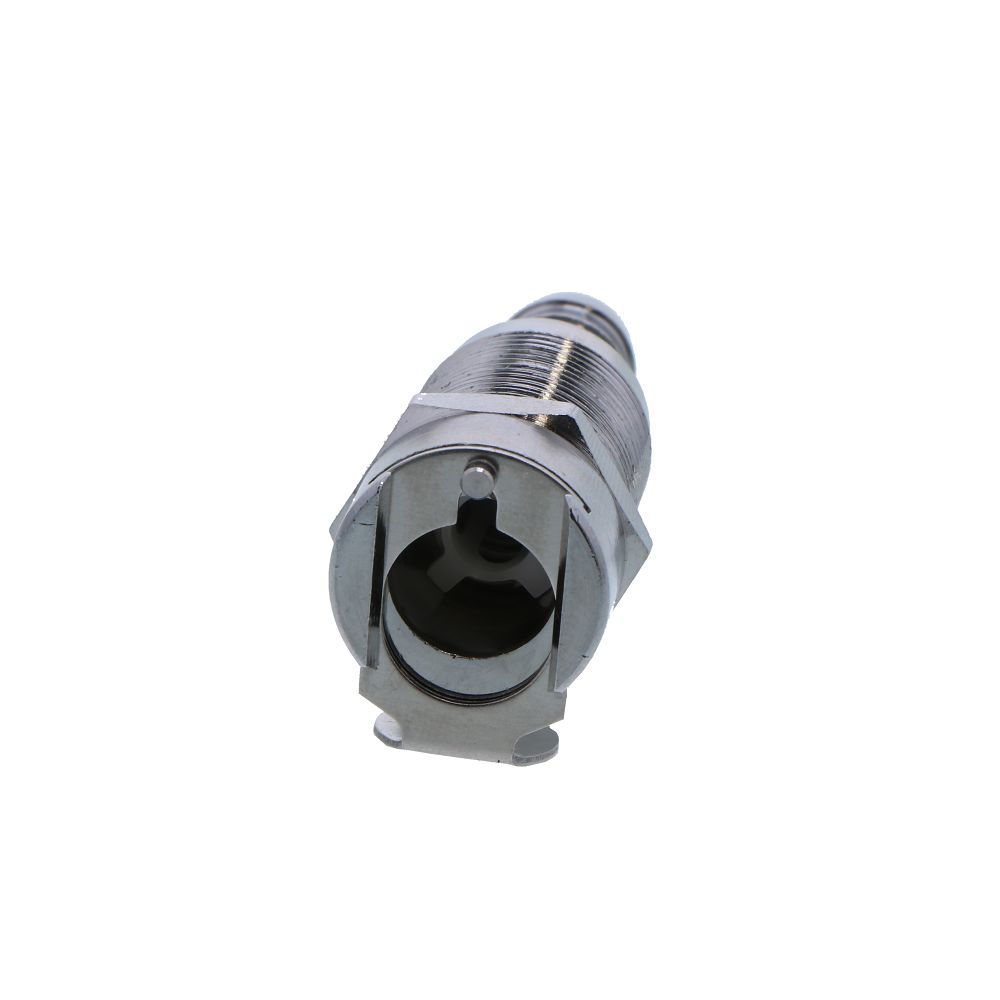

LCD16006 Valved Panel Mount Hose Barb Coupling Body 3/8 ID Barb

Part Number: LCD16006

In Stock

out of stock

In Stock

$22.78

Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Finish: Chrome
  • Temperature Range: -40º F to 180º F
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • NSF Listed Version (part # 75800) Available Upon Request




Weight & Dimensions

Length (inches)

2

Height (inches)

0.75

Width (inches)

0.875

Weight (lbs)

0.119

Details

Series

LC

Max Temp (°F)

180

Max Pressure (Psi)

250

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Barb Size

3/8" ID

Application

Water

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Panel Mount

Origin

USA

Seal Material

Buna-N

Spring

316 stainless steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless steel


LCD16006




Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Finish: Chrome
  • Temperature Range: -40º F to 180º F
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • NSF Listed Version (part # 75800) Available Upon Request



Weight & Dimensions

Length (inches)

2

Height (inches)

0.75

Width (inches)

0.875

Weight (lbs)

0.119

Details

Series

LC

Max Temp (°F)

180

Max Pressure (Psi)

250

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Barb Size

3/8" ID

Application

Water

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Panel Mount

Origin

USA

Seal Material

Buna-N

Spring

316 stainless steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless steel

Documentation
LCD16006
Reviews
