Colder Products

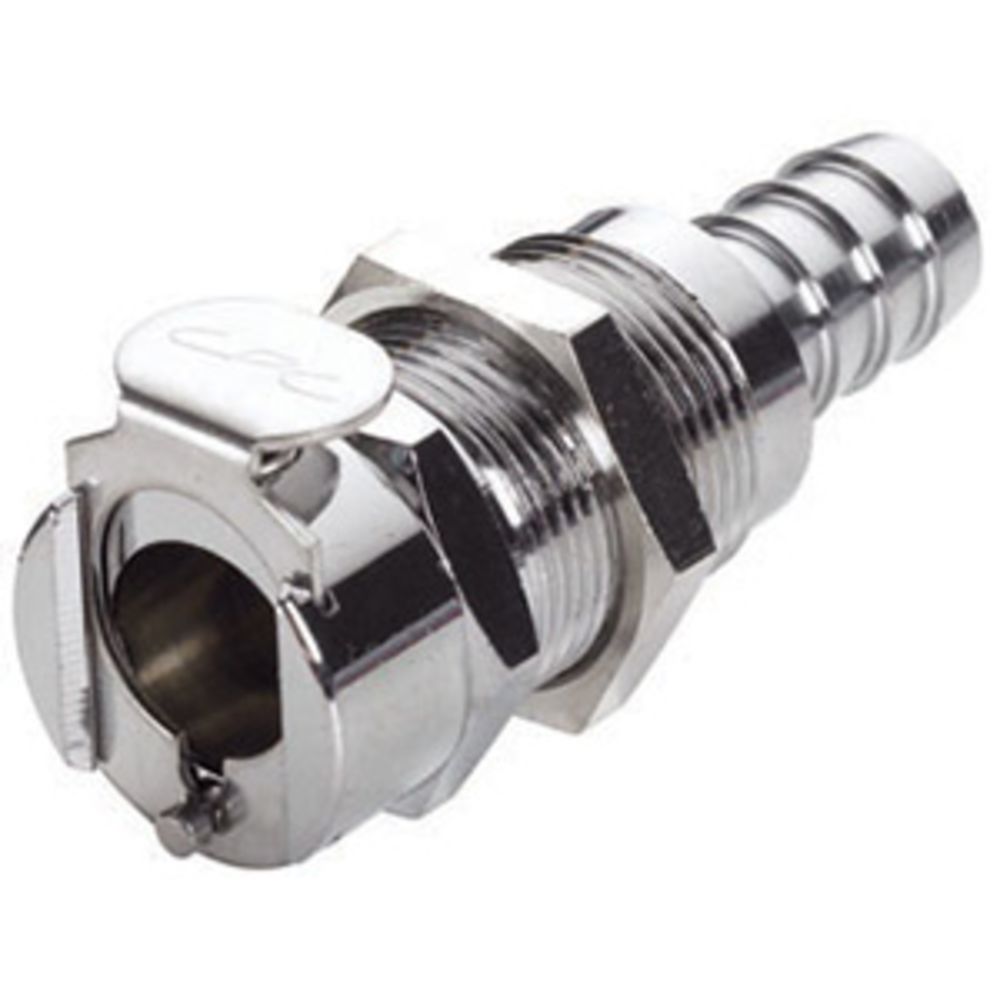

75800 NSF Valved Panel Mount Hose Barb Coupling Body 3/8 ID Barb

Part Number: 75800

Alt. Part Number: LCD16006 (Non-NSF)

In Stock

out of stock

In Stock

$24.28

Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Material Finish: Chrome
  • Color: Chrome
  • Mounting Option: Panel Mount
  • Temperature Range: -40°F to 180°F (-40°C to 82°C)
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Seal Options: FDA BUNA-N
  • Valve Spring: 316 Stainless Steel
  • Valve Option: Valved




Weight & Dimensions

Height (inches)

0.875

Length (inches)

2

Weight (lbs)

0.119

Width (inches)

0.875

Details

Application

Water

Barb Size

3/8" ID

Body Material

Chrome-Plated Brass

External Springs And Pin

Stainless Steel

Max Pressure (Psi)

250

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Panel Mount

Seal Material

Buna-N

Series

LC

Spring

316 Stainless Steel

Thumb Latch

Stainless Steel

Valve Type

Valved

Color / Finish

Chrome

Origin

USA

Type

Coupling Body

Warranty & Certifications

Certifications

NSF 169


75800




Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Material Finish: Chrome
  • Color: Chrome
  • Mounting Option: Panel Mount
  • Temperature Range: -40°F to 180°F (-40°C to 82°C)
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Seal Options: FDA BUNA-N
  • Valve Spring: 316 Stainless Steel
  • Valve Option: Valved



Weight & Dimensions

Height (inches)

0.875

Length (inches)

2

Weight (lbs)

0.119

Width (inches)

0.875

Details

Application

Water

Barb Size

3/8" ID

Body Material

Chrome-Plated Brass

External Springs And Pin

Stainless Steel

Max Pressure (Psi)

250

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Panel Mount

Seal Material

Buna-N

Series

LC

Spring

316 Stainless Steel

Thumb Latch

Stainless Steel

Valve Type

Valved

Color / Finish

Chrome

Origin

USA

Type

Coupling Body

Warranty & Certifications

Certifications

NSF 169

Documentation
75800
