Colder Products

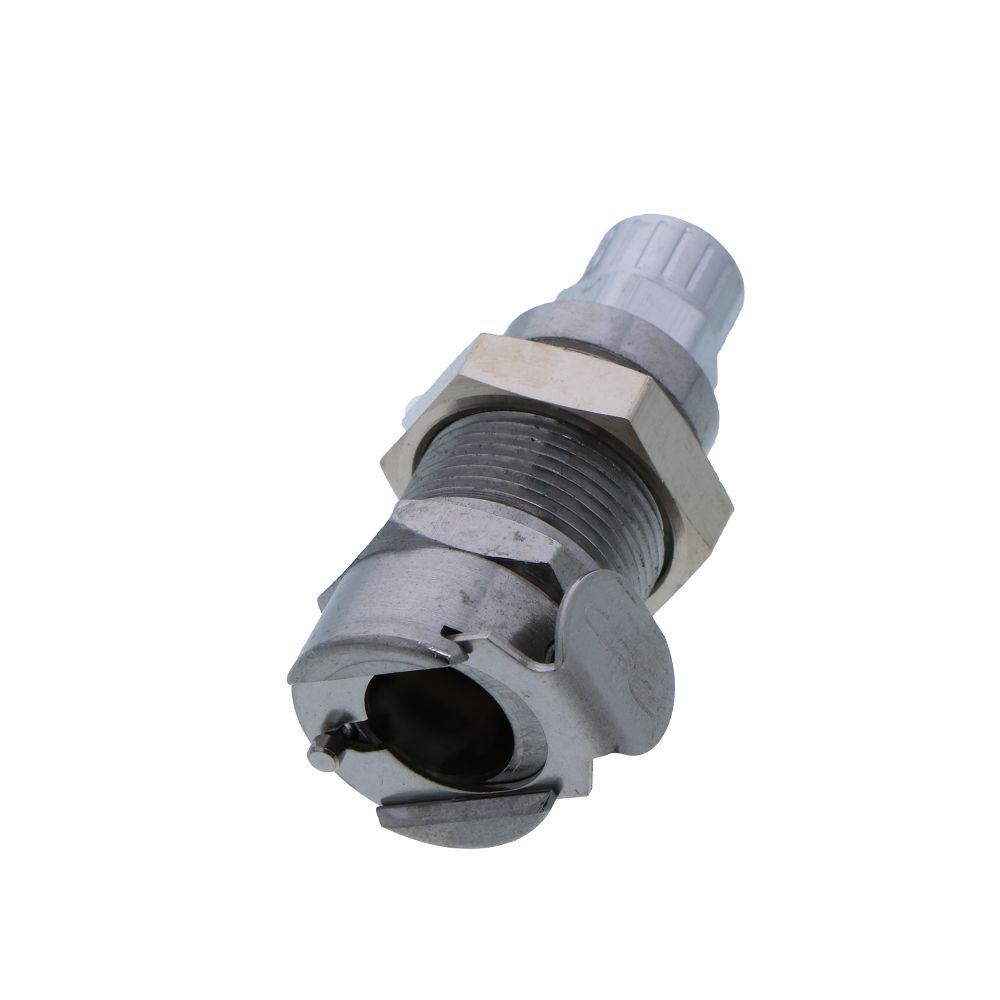

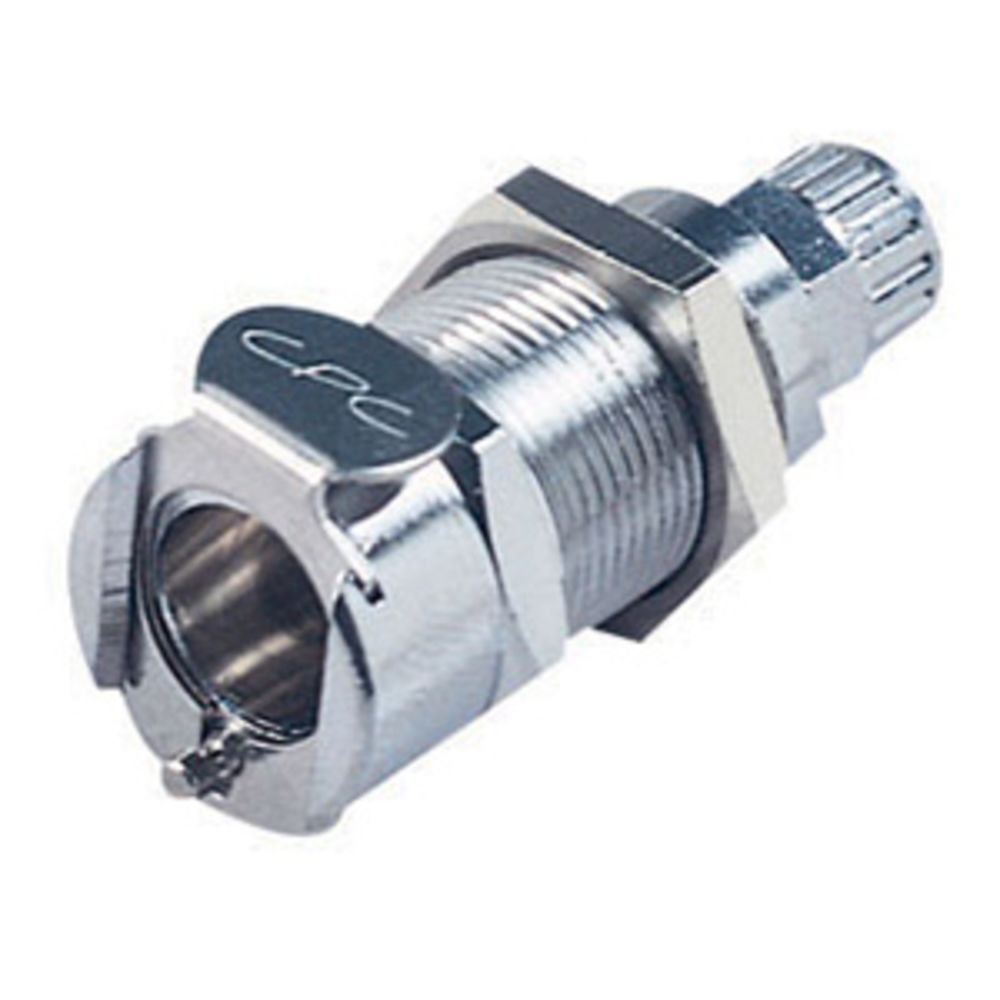

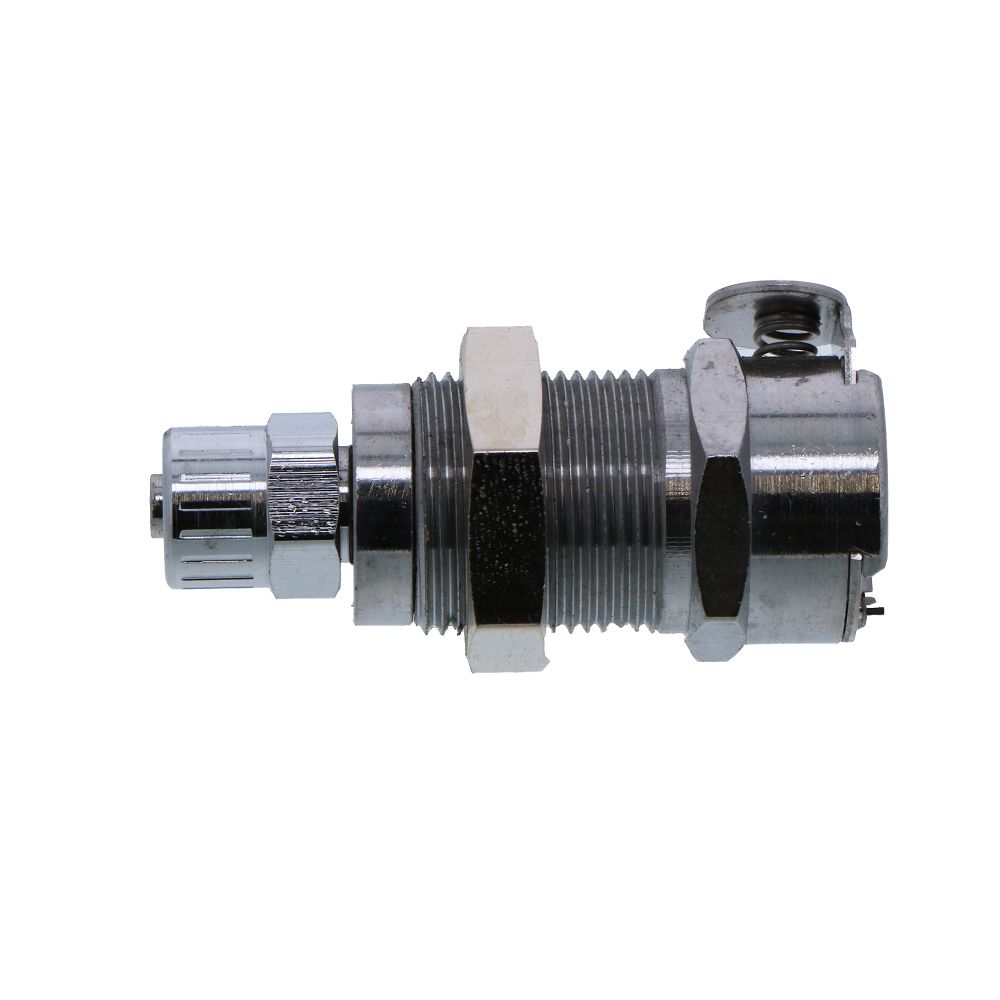

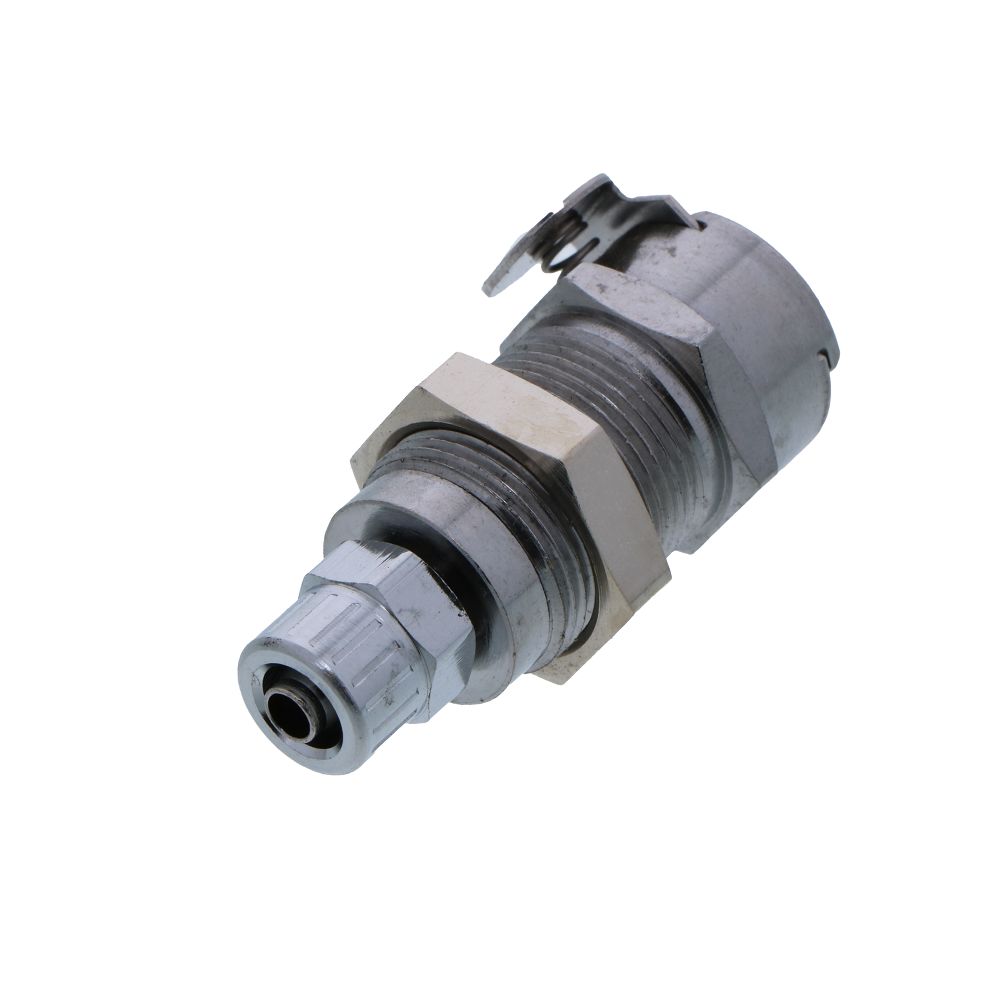

LCD12004 Valved Panel Mount PTF Coupling Body 1/4 PTF

Part Number: LCD12004

In Stock

out of stock

In Stock

$23.08

Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Panel Mount
  • Tubing Size: .17" ID, 1/4" OD
  • Valve Option: Valved
  • Finish: Chrome
  • Temperature Range: -40º F to 180º F
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N


Details

Application

Water

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

1/4" FPT

Max Operating Pressure

250

Max Operating Temperature

180

Mounting Options

Panel Mount

Origin

USA

Push In Size

1/4" OD

Seal Material

Buna-N

Series

LC

Size

1/4"

Spring

316 Stainless Steel

Thumb Latch

Stainless steel

Valve Type

Valved


LCD12004




Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Panel Mount
  • Tubing Size: .17" ID, 1/4" OD
  • Valve Option: Valved
  • Finish: Chrome
  • Temperature Range: -40º F to 180º F
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N

Details

Application

Water

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

1/4" FPT

Max Operating Pressure

250

Max Operating Temperature

180

Mounting Options

Panel Mount

Origin

USA

Push In Size

1/4" OD

Seal Material

Buna-N

Series

LC

Size

1/4"

Spring

316 Stainless Steel

Thumb Latch

Stainless steel

Valve Type

Valved

Documentation
LCD12004

Reviews
