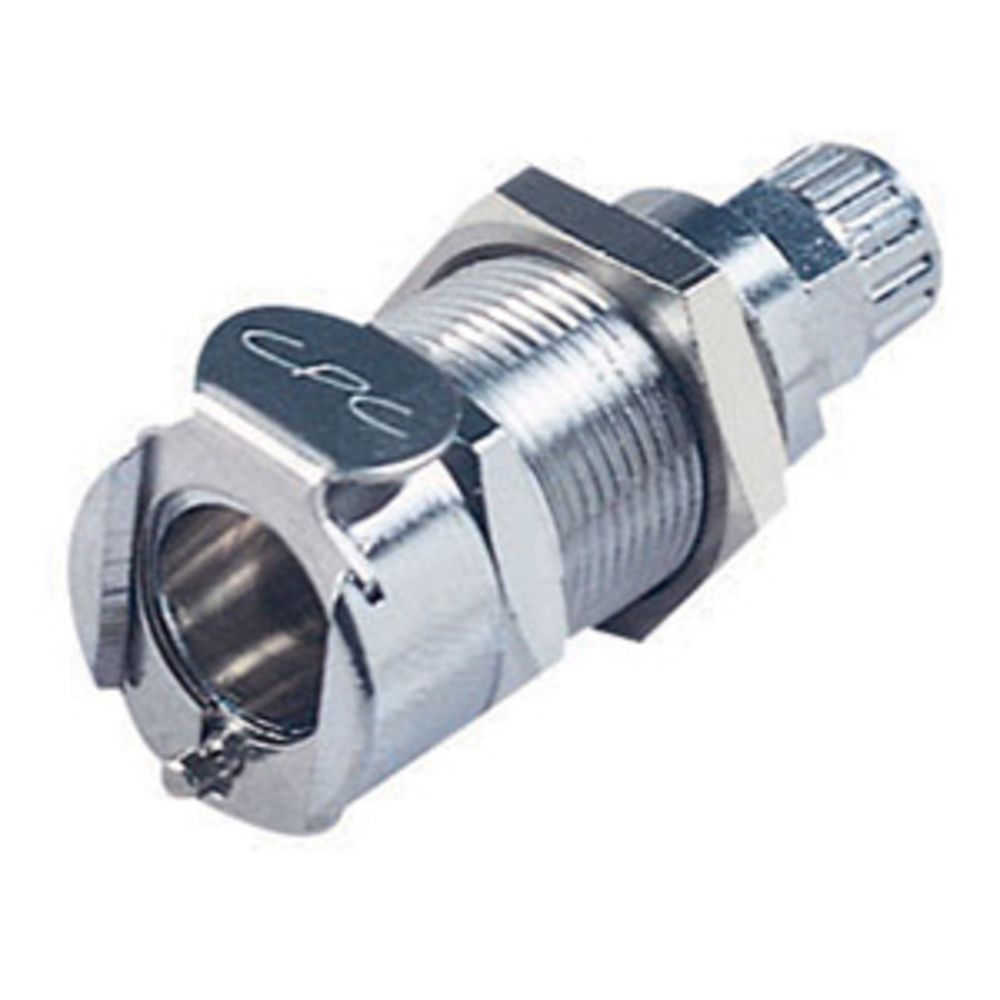

75400 NSF Valved Panel Mount Coupling Body 1/4 PTF

Part Number: 75400

Alt. Part Number: LCD12004 (Non-NSF)

In Stock

out of stock

In Stock

$23.97

Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Material Finish: Chrome
  • Color: Chrome
  • Mounting Option: Panel Mount
  • Temperature Range: -40°F to 180°F (-40°C to 82°C)
  • Pressure range: Vacuum to 250 psi, 17.3 bar
  • Seal Options: FDA BUNA-N
  • Valve Spring: 316 Stainless Steel
  • Valve Option: Valved


Details

Series

LC

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Max Operating Pressure

Vacuum to 250 PSI, 17.3 bar

Mounting Options

Panel Mount

Operating Temperature Range

-40-180 °F

Seal Material

FDA BUNA-N

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless Steel

Inlet/Outlet Connection

1/4" | FPT


75400




Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Material Finish: Chrome
  • Color: Chrome
  • Mounting Option: Panel Mount
  • Temperature Range: -40°F to 180°F (-40°C to 82°C)
  • Pressure range: Vacuum to 250 psi, 17.3 bar
  • Seal Options: FDA BUNA-N
  • Valve Spring: 316 Stainless Steel
  • Valve Option: Valved

Details

Series

LC

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Max Operating Pressure

Vacuum to 250 PSI, 17.3 bar

Mounting Options

Panel Mount

Operating Temperature Range

-40-180 °F

Seal Material

FDA BUNA-N

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless Steel

Inlet/Outlet Connection

1/4" | FPT
