Colder Products

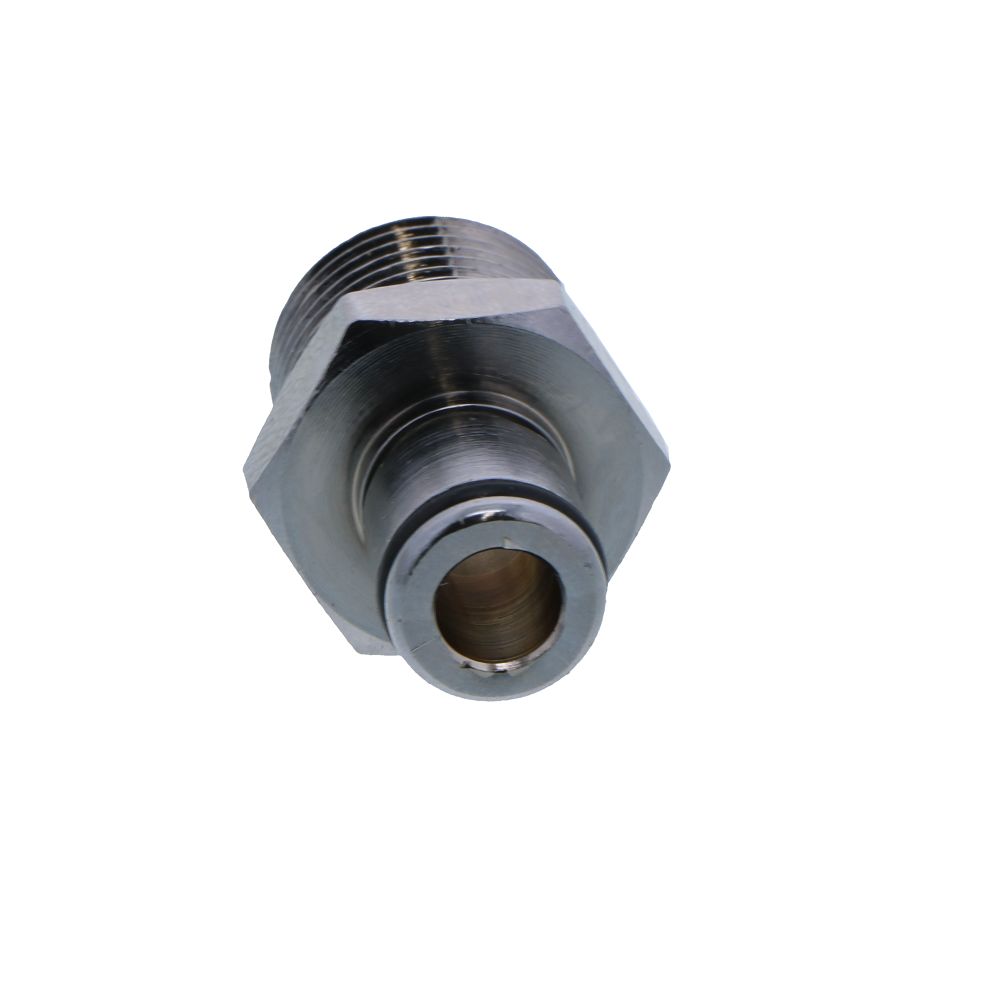

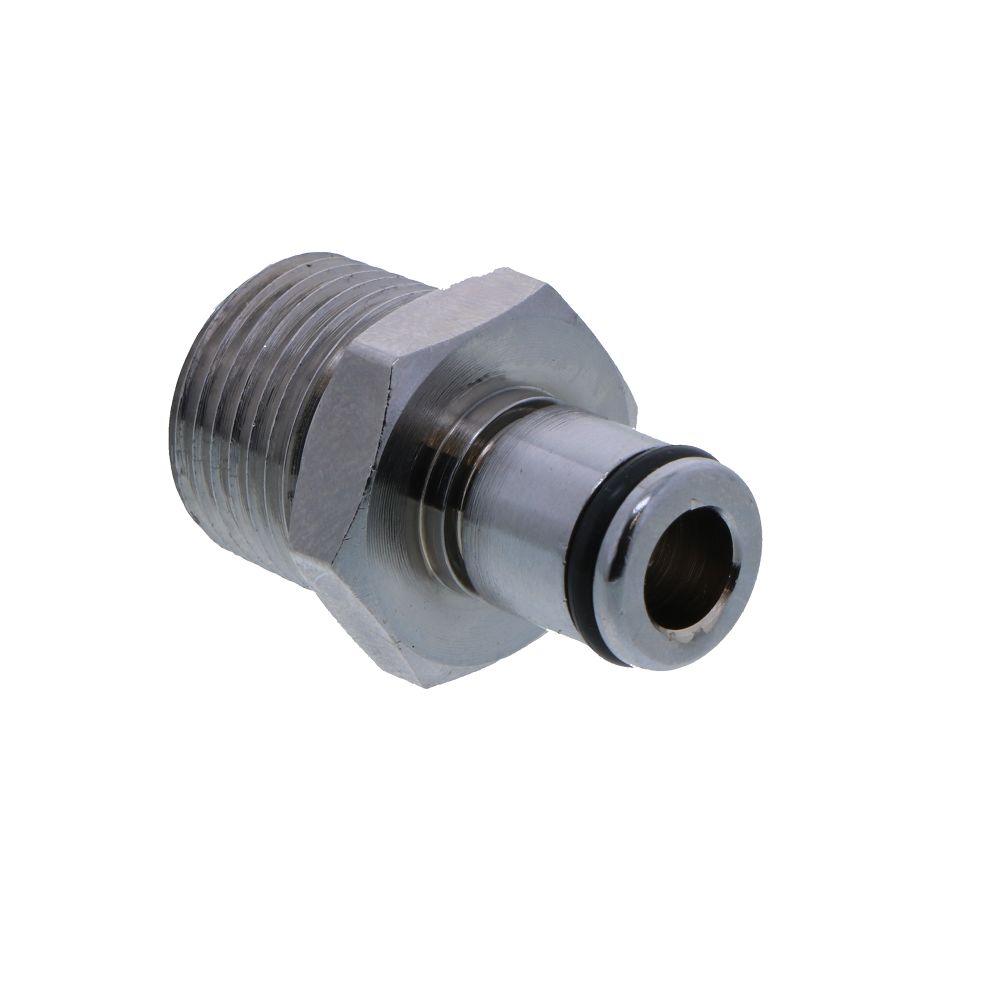

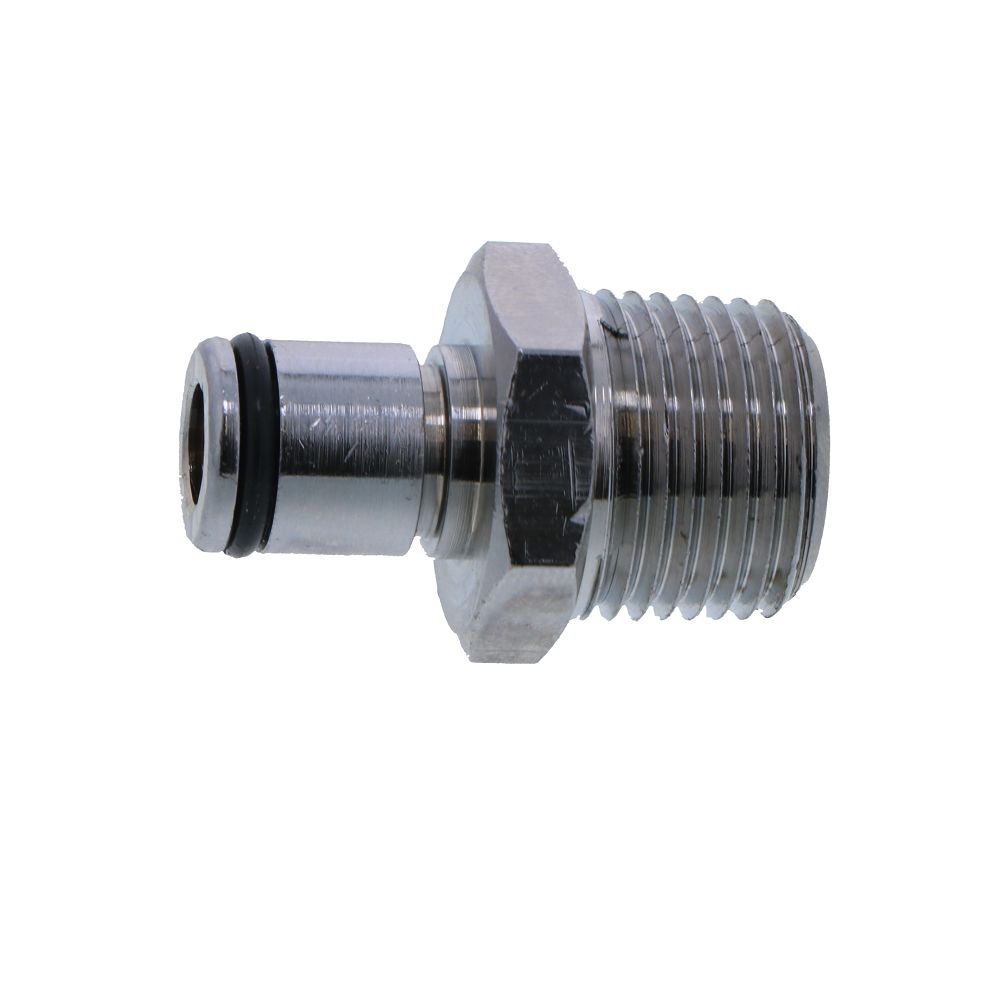

LC24006 Male Thread Coupling Insert 3/8 NPT

Part Number: LC24006

In Stock

out of stock

In Stock

$6.92

Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: 3/8" NPT Thread
  • Valve Option: Non-Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 10 Units

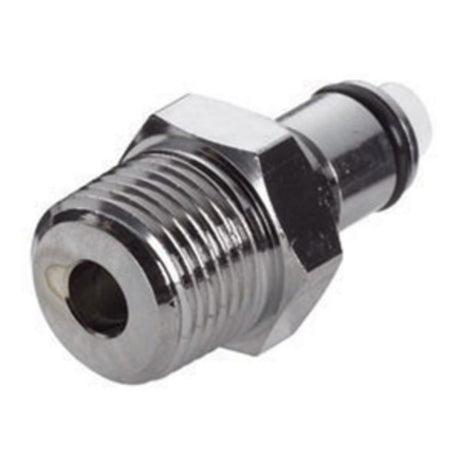

  • NSF Listed Version (part # 72200) Available Upon Request




Weight & Dimensions

Height (inches)

0.63

Length (inches)

1.13

Weight (lbs)

0.00625

Width (inches)

0.63

Details

Application

Water

Body Material

Chrome-Plated Brass

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

3/8" MPT

Max Pressure (Psi)

250

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Thread

Seal Material

Buna-N

Series

LC

Size

3/8"

Spring

316 stainless steel

Thumb Latch

Stainless steel

Valve Type

Non-Valved

Color / Finish

Chrome

Connection Type

Male (MPT)

Origin

USA

Type

Coupling Insert


LC24006




Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: 3/8" NPT Thread
  • Valve Option: Non-Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 10 Units
  • NSF Listed Version (part # 72200) Available Upon Request



Weight & Dimensions

Height (inches)

0.63

Length (inches)

1.13

Weight (lbs)

0.00625

Width (inches)

0.63

Details

Application

Water

Body Material

Chrome-Plated Brass

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

3/8" MPT

Max Pressure (Psi)

250

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Thread

Seal Material

Buna-N

Series

LC

Size

3/8"

Spring

316 stainless steel

Thumb Latch

Stainless steel

Valve Type

Non-Valved

Color / Finish

Chrome

Connection Type

Male (MPT)

Origin

USA

Type

Coupling Insert

Documentation
LC24006
