Colder Products

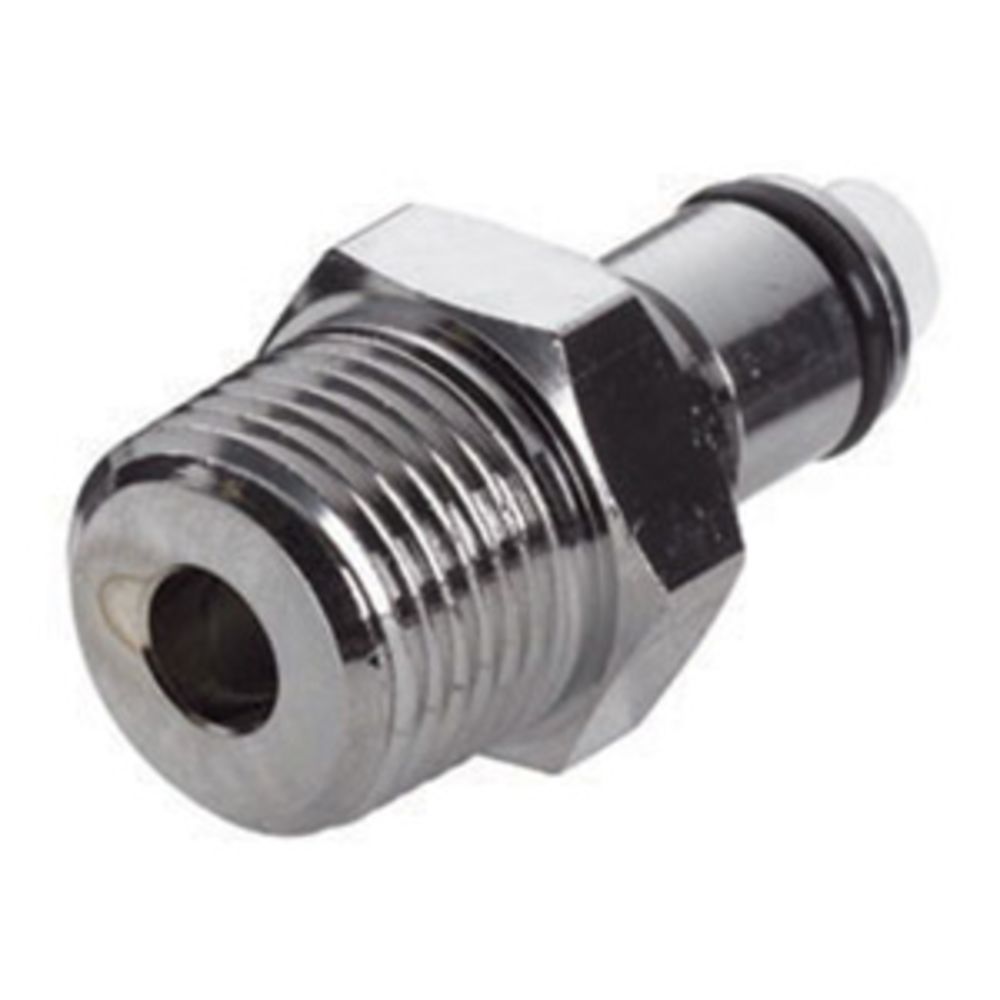

72200 NSF Non-Valved Coupling Insert 3/8 NPT

Part Number: 72200

Alt. Part Number: LC24006 (Non-NSF)

In Stock

out of stock

In Stock

$7.39

Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Material Finish: Chrome
  • Color: Chrome
  • Mounting Option: Thread
  • Temperature Range: -40°F to 180°F (-40°C to 82°C)
  • Pressure Range:Vacuum to 250 psi, 17.3 bar
  • Seal Options: FDA BUNA-N
  • Valve Option: Non-Valved




Details

Series

LC

Max Temp (°F)

180

Max Pressure (Psi)

250

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Application

Water

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Thread

Seal Material

Buna-N

Size

3/8"

Spring

316 stainless steel

Valve Type

Non-Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless steel

Inlet/Outlet Connection

3/8" MPT

Warranty & Certifications

Certifications

NSF 169


72200




Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Material Finish: Chrome
  • Color: Chrome
  • Mounting Option: Thread
  • Temperature Range: -40°F to 180°F (-40°C to 82°C)
  • Pressure Range:Vacuum to 250 psi, 17.3 bar
  • Seal Options: FDA BUNA-N
  • Valve Option: Non-Valved



Details

Series

LC

Max Temp (°F)

180

Max Pressure (Psi)

250

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Application

Water

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Thread

Seal Material

Buna-N

Size

3/8"

Spring

316 stainless steel

Valve Type

Non-Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless steel

Inlet/Outlet Connection

3/8" MPT

Warranty & Certifications

Certifications

NSF 169
