Colder Products

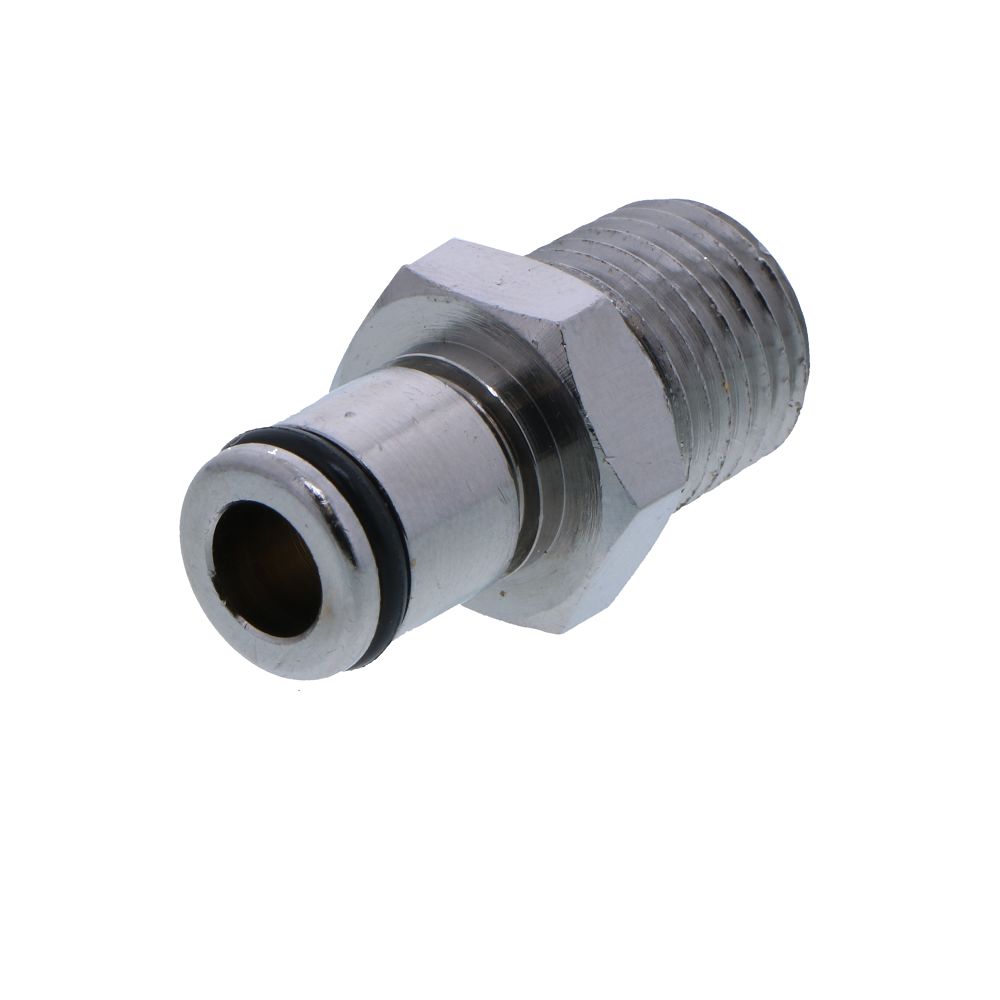

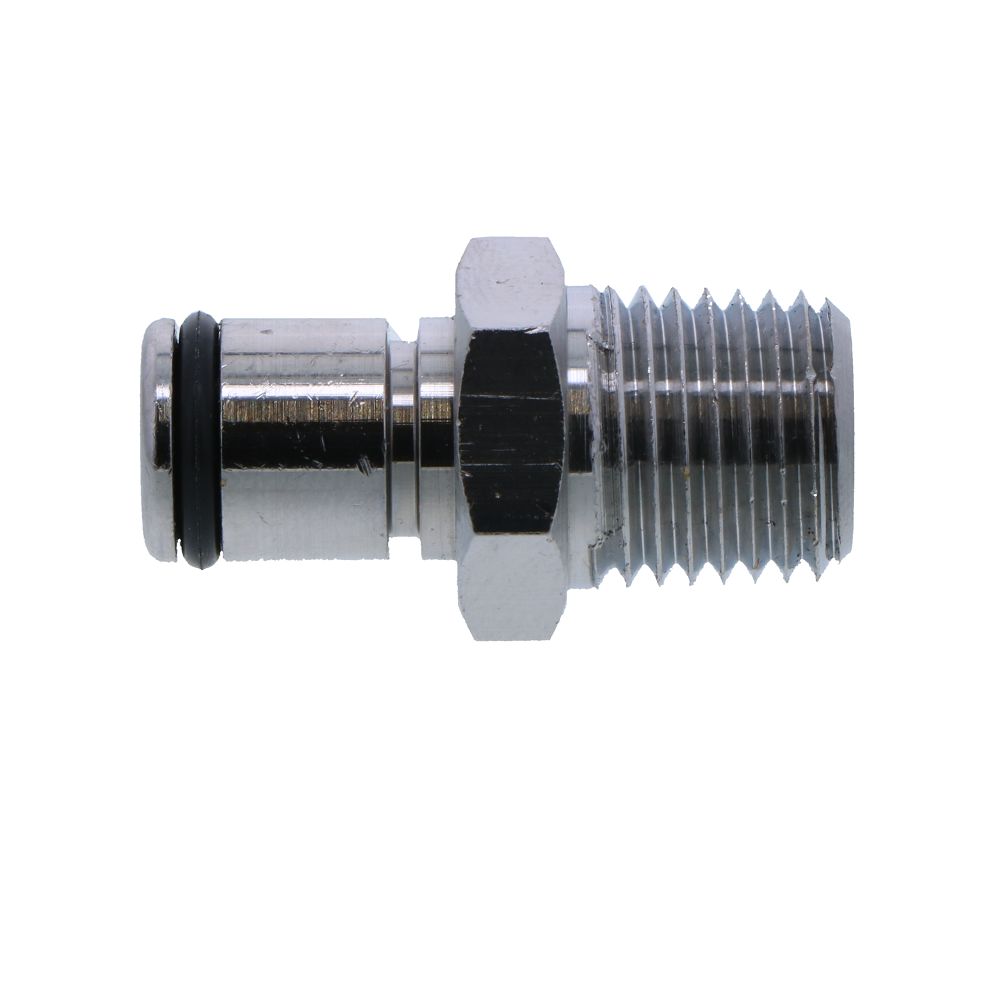

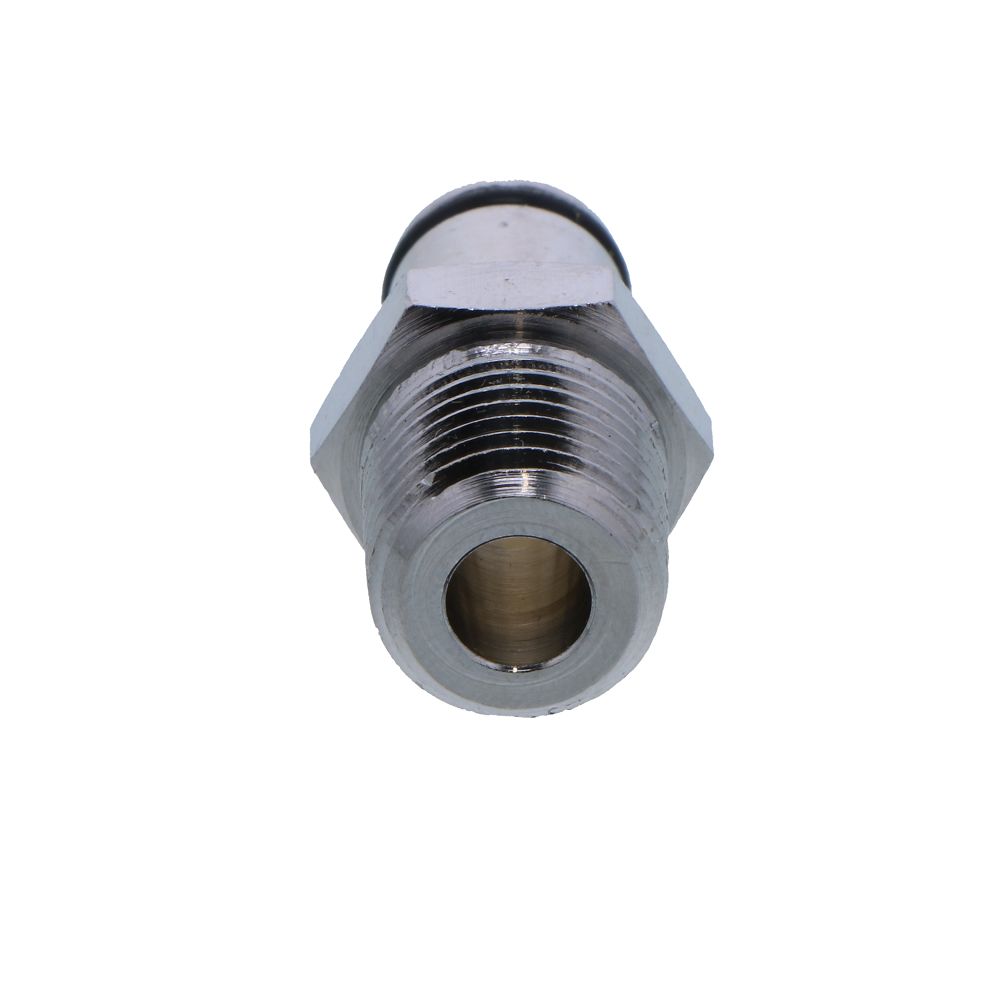

LC24004 Male Thread Coupling Insert 1/4 NPT

Part Number: LC24004

In Stock

out of stock

In Stock

$5.80

Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: 1/4" NPT Thread
  • Valve Option: Non-Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 10 Units

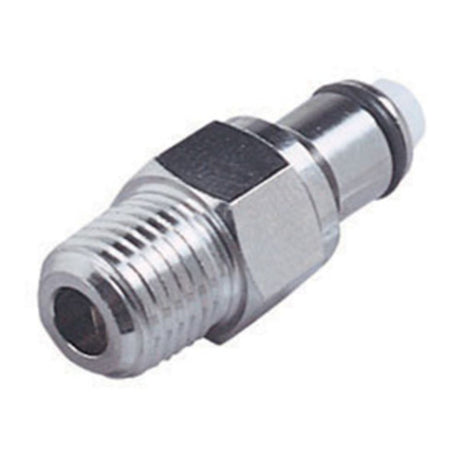

  • NSF Listed Version (part # 71400) Available Upon Request




Weight & Dimensions

Length (inches)

1.25

Height (inches)

0.38

Width (inches)

0.38

Weight (lbs)

0.003125

Details

Series

LC

Max Temp (°F)

180

Max Pressure (Psi)

250

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Application

Water

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Thread

Origin

USA

Seal Material

Buna-N

Size

1/4"

Spring

316 stainless steel

Valve Type

Non-Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless steel

Inlet/Outlet Connection

1/4" MPT


LC24004




Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: 1/4" NPT Thread
  • Valve Option: Non-Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 10 Units
  • NSF Listed Version (part # 71400) Available Upon Request



Weight & Dimensions

Length (inches)

1.25

Height (inches)

0.38

Width (inches)

0.38

Weight (lbs)

0.003125

Details

Series

LC

Max Temp (°F)

180

Max Pressure (Psi)

250

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Application

Water

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Thread

Origin

USA

Seal Material

Buna-N

Size

1/4"

Spring

316 stainless steel

Valve Type

Non-Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless steel

Inlet/Outlet Connection

1/4" MPT

Documentation
LC24004
