Colder Products

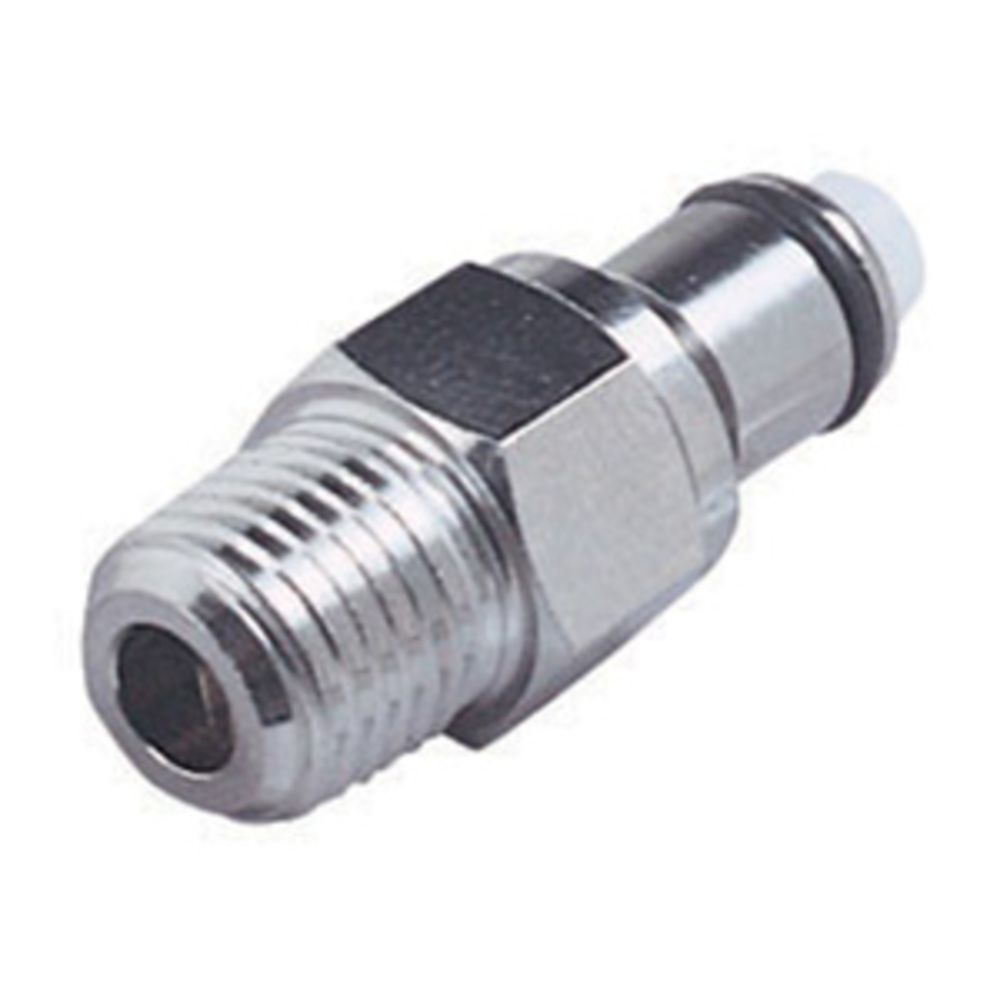

71400 NSF Non-Valved Coupling Insert 1/4 NPT

Part Number: 71400

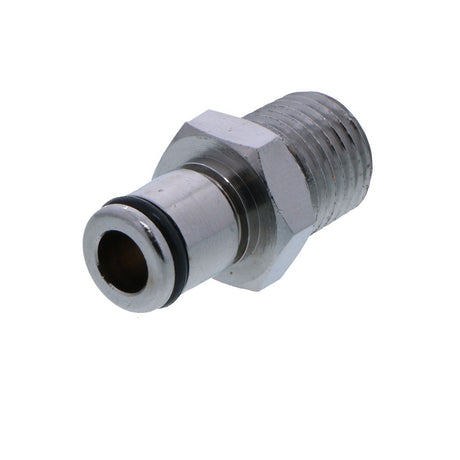

Alt. Part Number: LC24004 (Non-NSF)

In Stock

out of stock

In Stock

$6.69

CPC’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects from water and beverage lines.

Specifications:
  • Material: Brass
  • Material Finish: Chrome
  • Color: Chrome
  • Mounting Option: Thread
  • Temperature Range: -40°F to 180°F
  • Pressure Range: Vacuum to 250 psi, 17.3 bar (-40°C to 82°C)
  • Seal Options: FDA BUNA-N
  • Valve Option: Non-Valved



Details

Application

Water

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

1/4" MPT

Max Operating Pressure

250

Max Operating Temperature

180

Mounting Options

Thread

Seal Material

Buna-N

Series

LC

Size

1/4"

Spring

316 stainless steel

Thumb Latch

Stainless steel

Valve Type

Non-Valved

Warranty & Certifications

Certifications

NSF 169


71400




CPC’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects from water and beverage lines.

Specifications:
  • Material: Brass
  • Material Finish: Chrome
  • Color: Chrome
  • Mounting Option: Thread
  • Temperature Range: -40°F to 180°F
  • Pressure Range: Vacuum to 250 psi, 17.3 bar (-40°C to 82°C)
  • Seal Options: FDA BUNA-N
  • Valve Option: Non-Valved


Details

Application

Water

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

1/4" MPT

Max Operating Pressure

250

Max Operating Temperature

180

Mounting Options

Thread

Seal Material

Buna-N

Series

LC

Size

1/4"

Spring

316 stainless steel

Thumb Latch

Stainless steel

Valve Type

Non-Valved

Warranty & Certifications

Certifications

NSF 169

Documentation
71400
