Colder Products

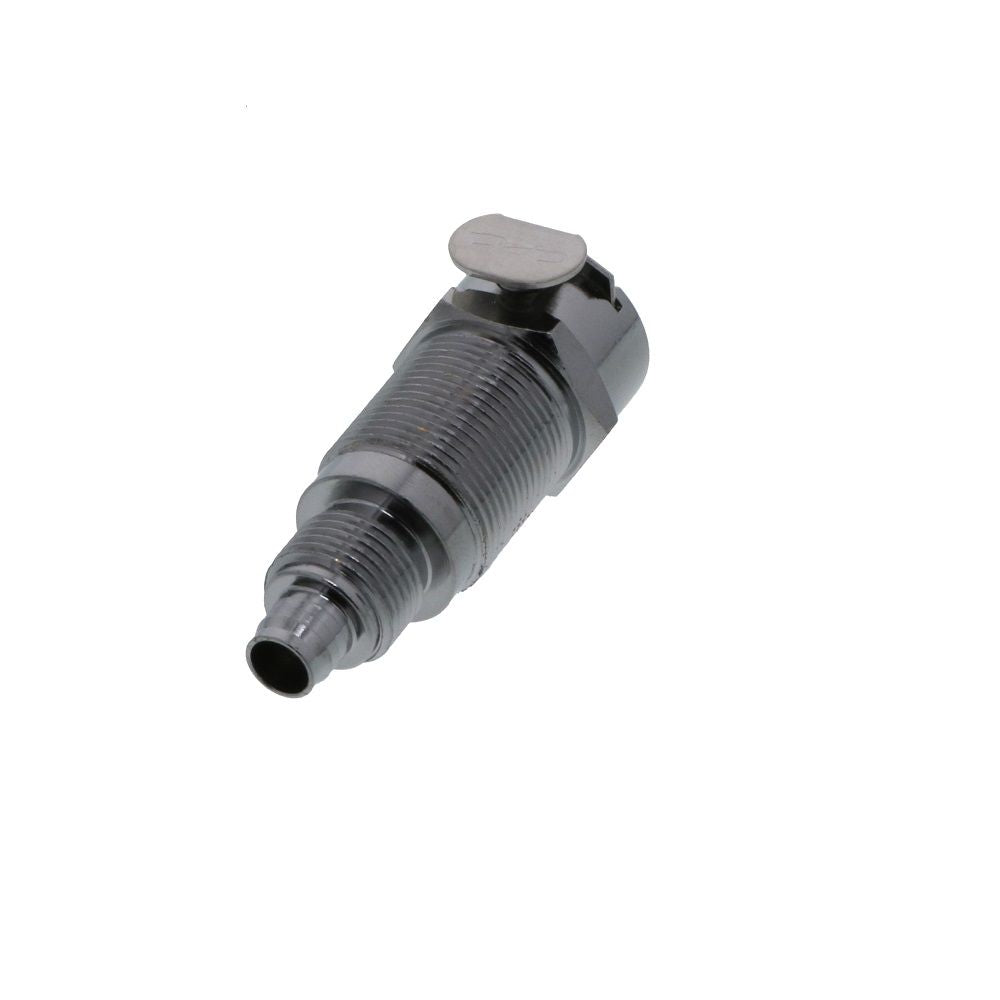

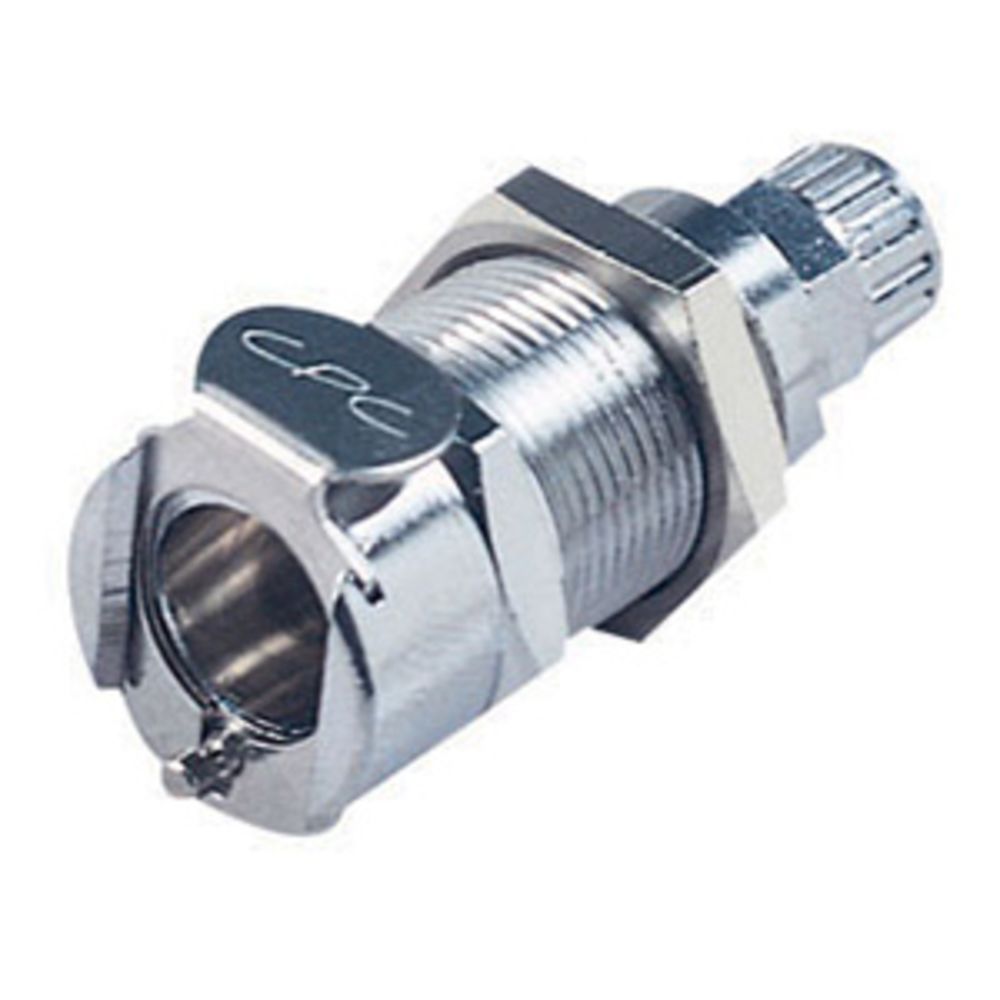

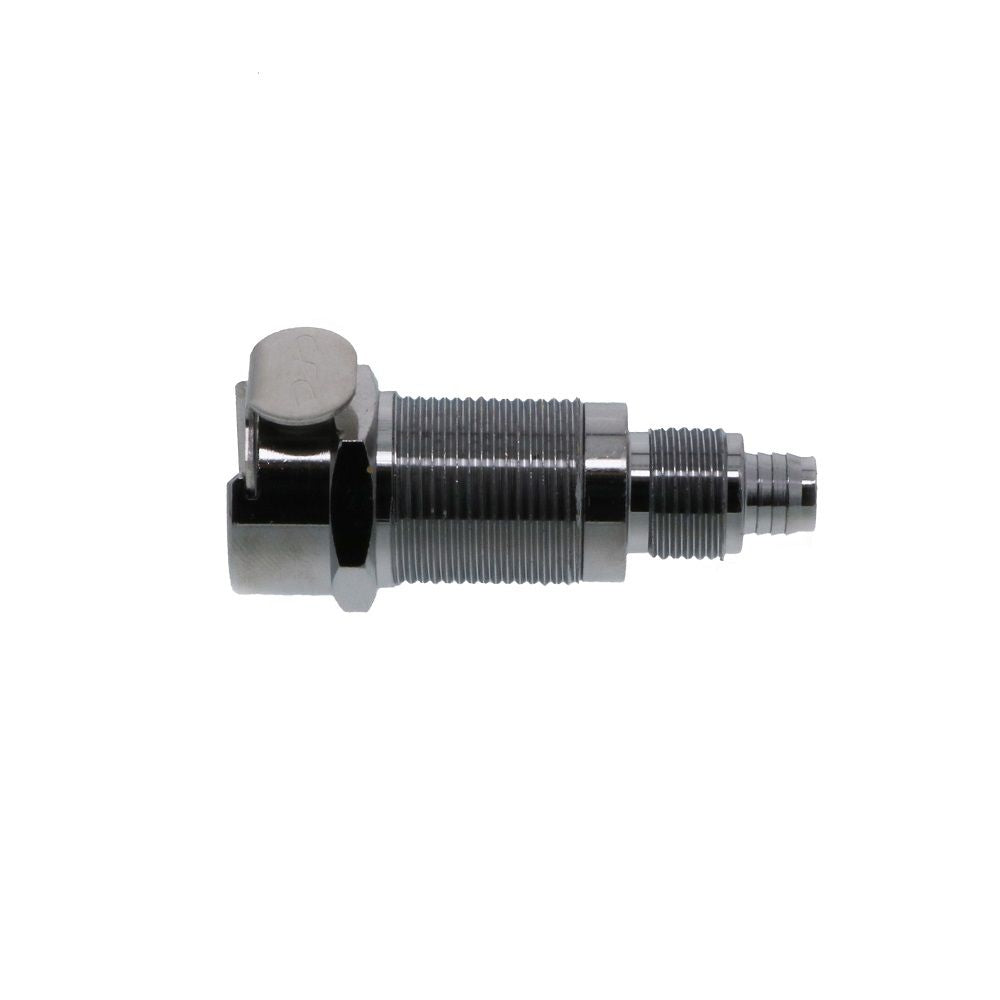

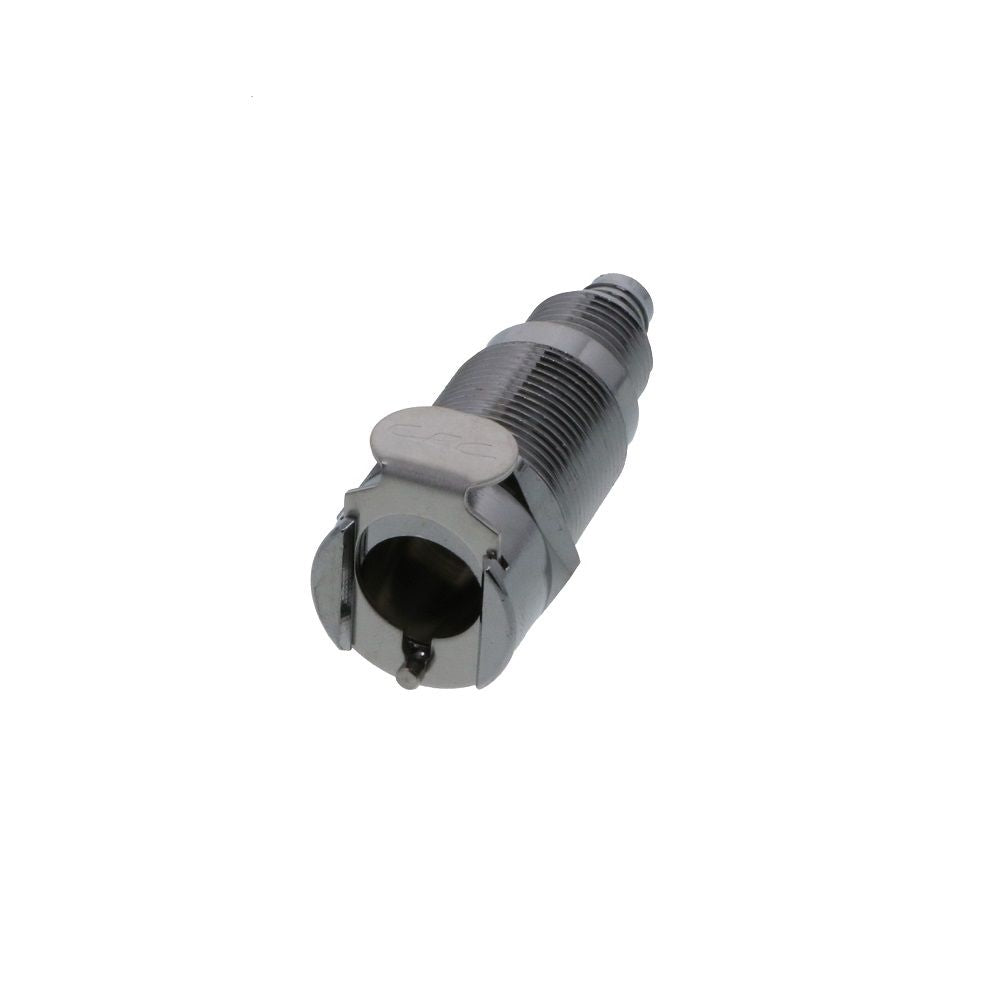

LC12006 Panel Mount PTF Coupling Body 3/8 PTF

Part Number: LC12006

In Stock

out of stock

In Stock

$21.07


Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.
Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Panel Mount
  • Tubing Size: .17" ID, 3/8" OD
  • Valve Option: Non-Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 10 Units


Weight & Dimensions

Length (inches)

2

Height (inches)

1

Width (inches)

0.75

Weight (lbs)

0.125

Details

Series

LC

Max Temp (°F)

180

Max Pressure (Psi)

250

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Push-In Size

3/8" OD

Application

Water

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Panel Mount

Size

3/8"

Spring

316 Stainless steel

Valve Type

Non-Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless steel

Inlet/Outlet Connection

3/8" FPT


LC12006





Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.
Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Panel Mount
  • Tubing Size: .17" ID, 3/8" OD
  • Valve Option: Non-Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 10 Units

Weight & Dimensions

Length (inches)

2

Height (inches)

1

Width (inches)

0.75

Weight (lbs)

0.125

Details

Series

LC

Max Temp (°F)

180

Max Pressure (Psi)

250

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Push-In Size

3/8" OD

Application

Water

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Panel Mount

Size

3/8"

Spring

316 Stainless steel

Valve Type

Non-Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless steel

Inlet/Outlet Connection

3/8" FPT
