Colder Products

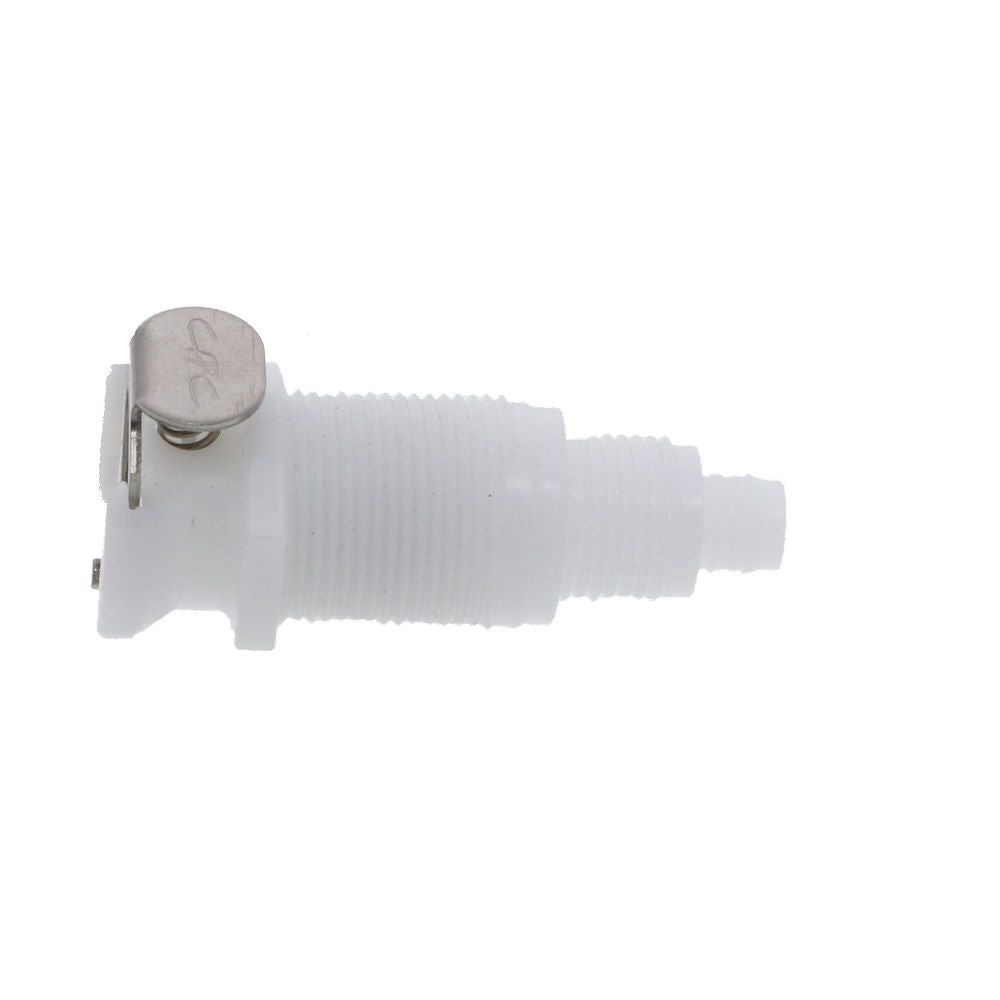

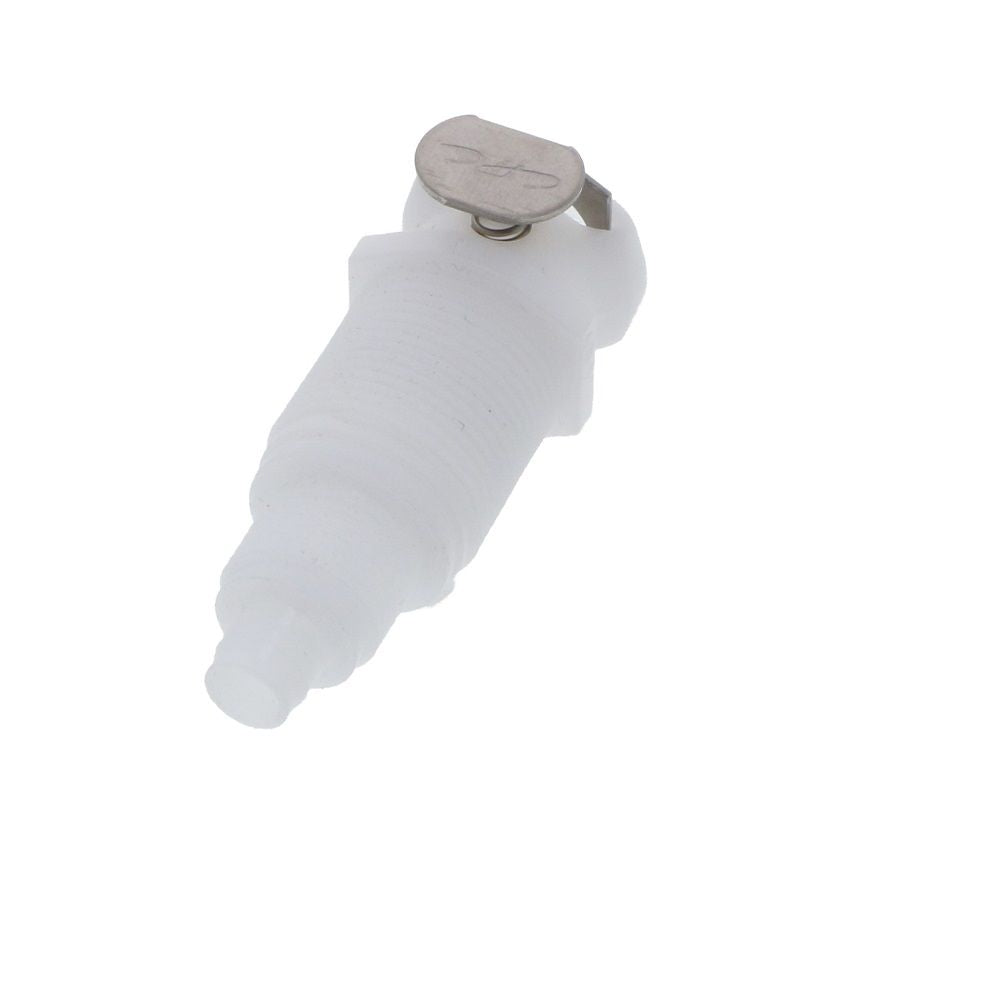

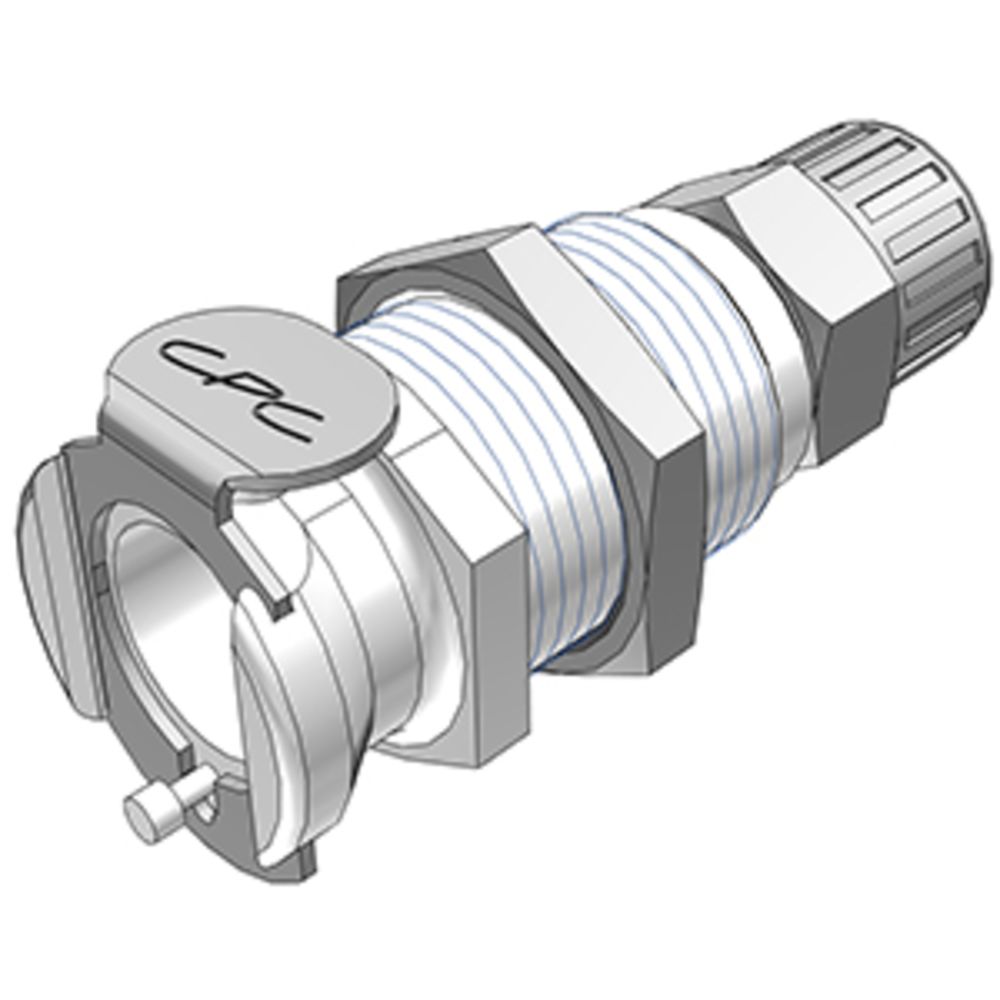

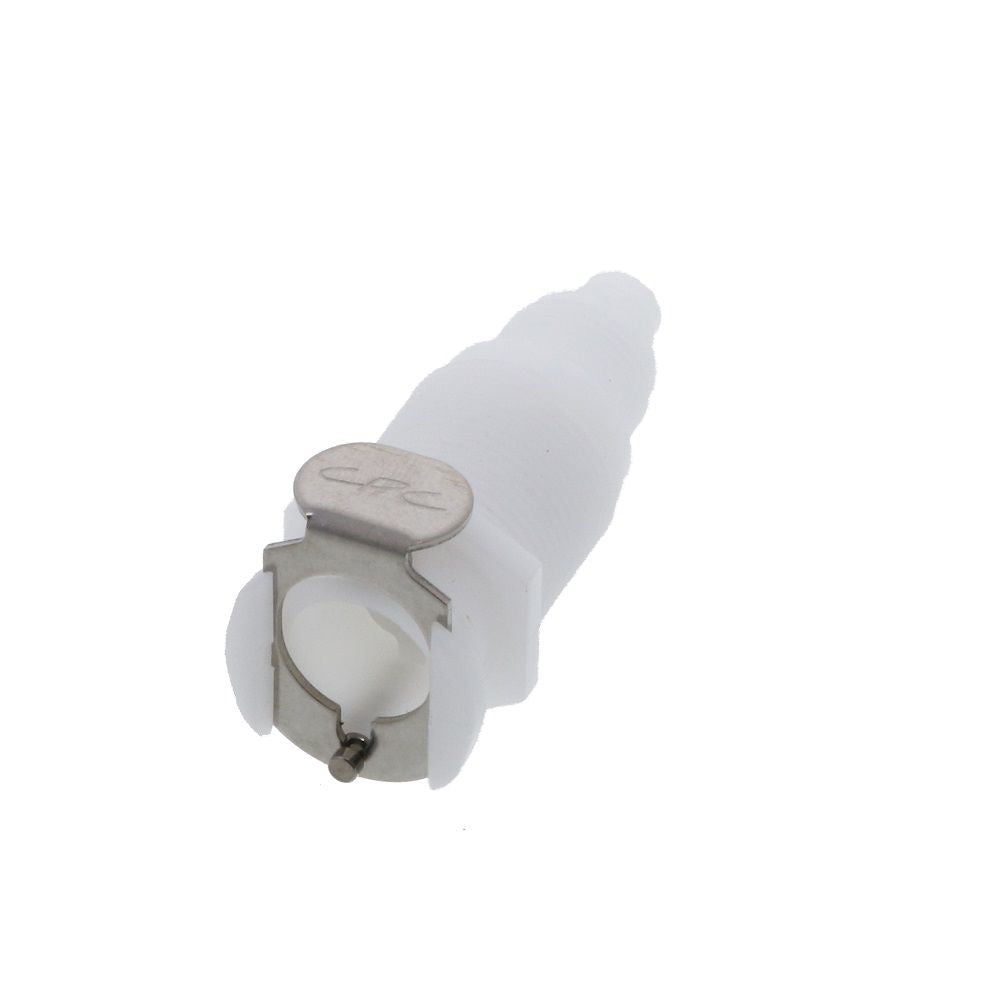

PLC12006 Panel Mount PTF Coupling Body 3/8 PTF

Part Number: PLC12006

In Stock

out of stock

In Stock

$11.57

The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 25 units




Weight & Dimensions

Height (inches)

0.75

Length (inches)

1.75

Weight (lbs)

0.00625

Width (inches)

0.75

Details

Application

Water

Body Material

Acetal Copolymer

Inlet/Outlet Connection

3/8" FPT

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Panel Mount

Push-In Size

3/8" OD

Series

PLC

Size

3/8"

Valve Type

Non-Valved

Color / Finish

White

Connection Type

Female (FPT)

Type

Coupling Body


PLC12006




The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 25 units



Weight & Dimensions

Height (inches)

0.75

Length (inches)

1.75

Weight (lbs)

0.00625

Width (inches)

0.75

Details

Application

Water

Body Material

Acetal Copolymer

Inlet/Outlet Connection

3/8" FPT

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Panel Mount

Push-In Size

3/8" OD

Series

PLC

Size

3/8"

Valve Type

Non-Valved

Color / Finish

White

Connection Type

Female (FPT)

Type

Coupling Body
