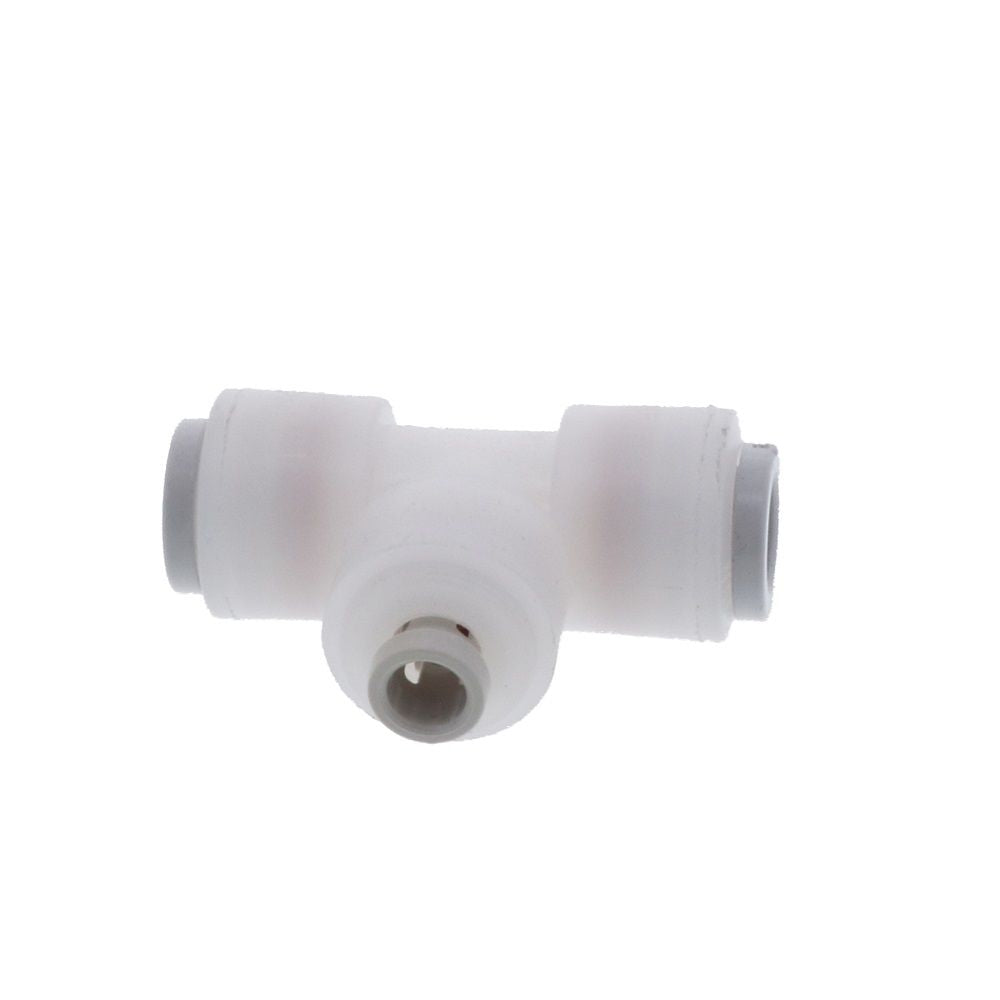

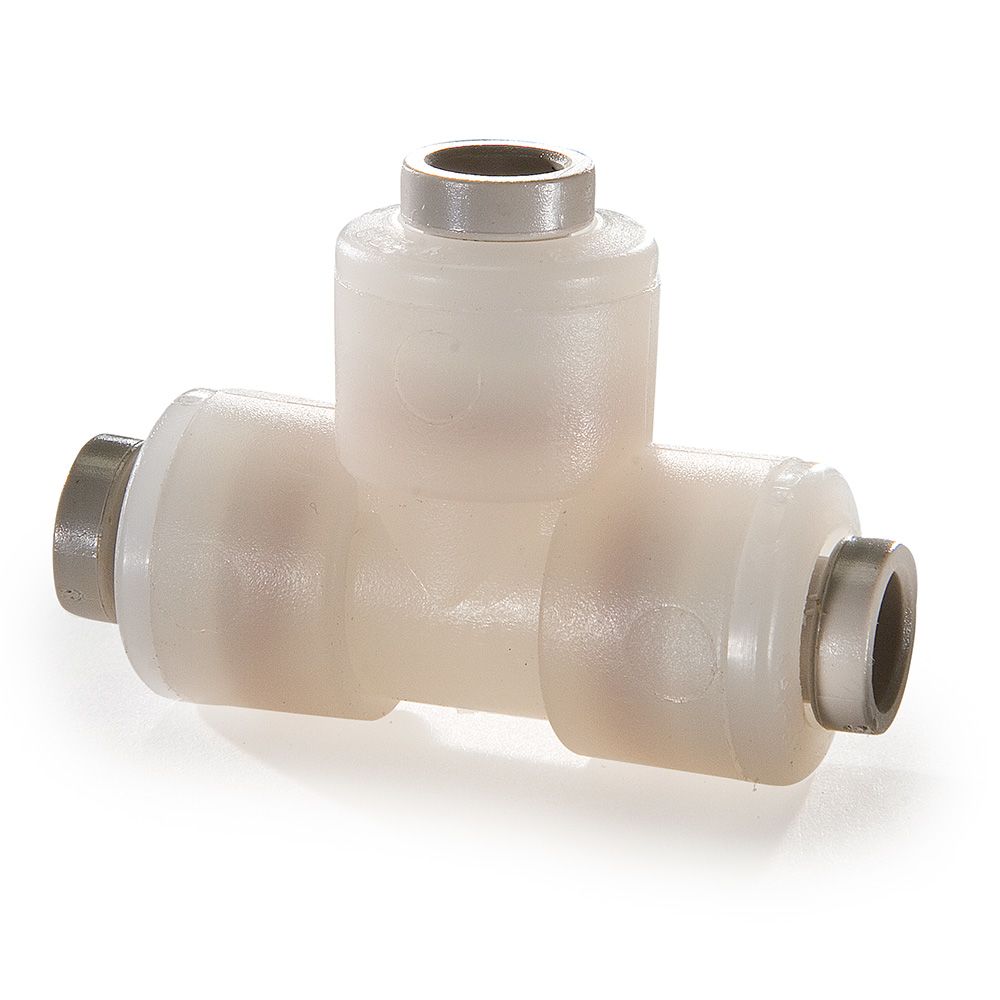

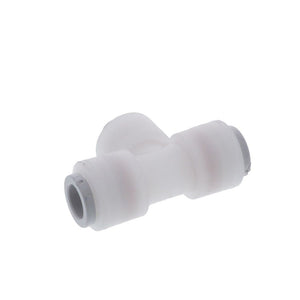

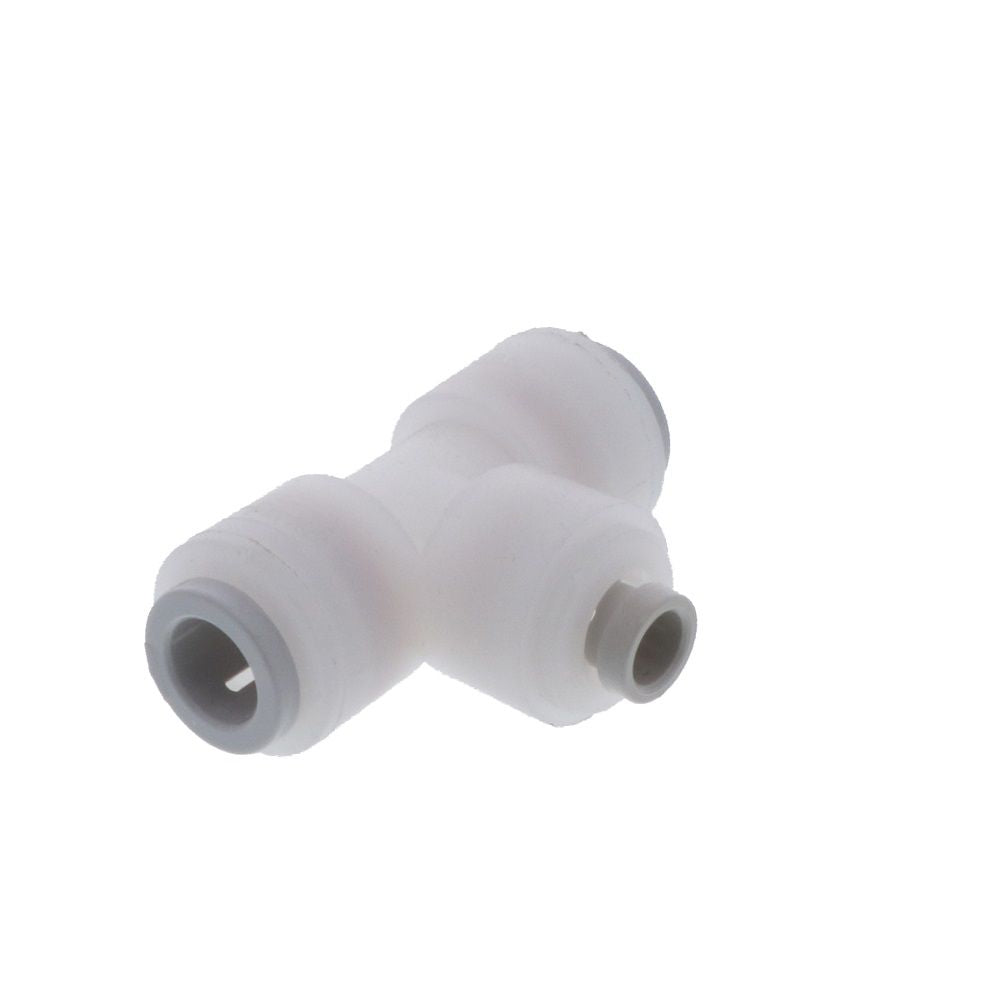

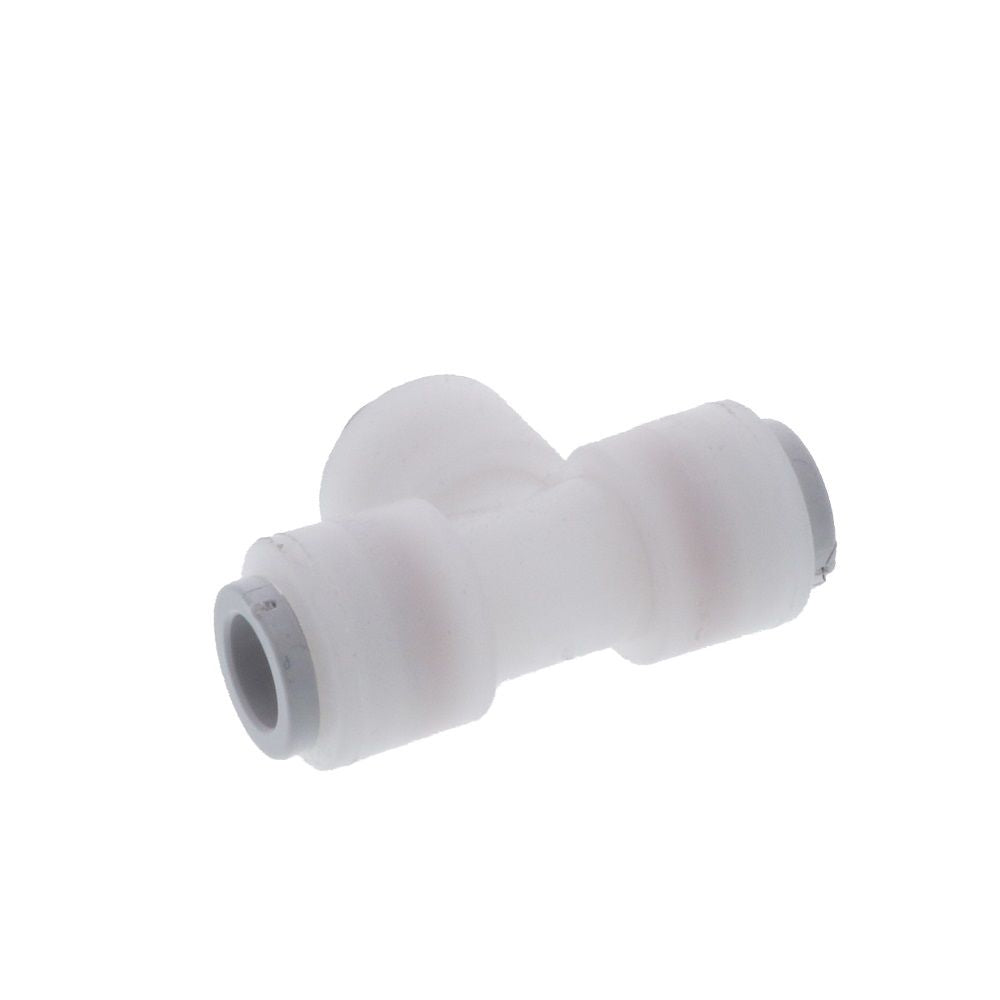

Kynar PVDF Union Tee - 3/8 x 1/4 Branch

Part Number: F6TU4

1 5

Up to 10% OFF

Parker

Kynar PVDF Union Tee - 3/8 x 1/4 Branch

Part Number: F6TU4

MSRP: $15.67

$8.55 $9.50

Quantity

Unit Price

Price

Savings

$8.55

—

$8.41

$42.06

$8.26

$82.68

100

$8.12

$812.58

Product variants

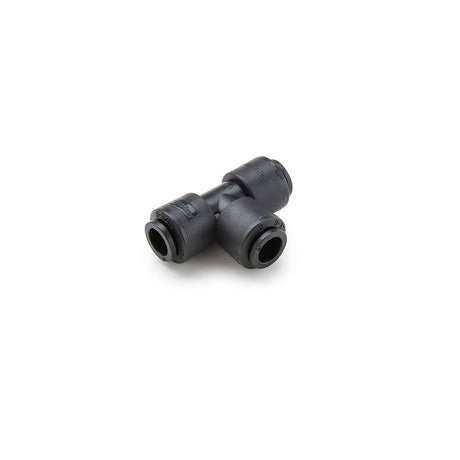

This item is discontinued. We recommend the Parker TrueSeal Push in Tube Fitting - 3/8 OD - 1/4 OD - FB6TU4-HBLK as a substitute.

You May Also Need

Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Features:

Patented Push-to-connect Design
Chemical Resistance
UV Resistance
FDA Compliant

Applications:

Chemical Processing/Storage
Fluid Handling
Semiconductor Equipment
DI Water Systems
High Purity
Aquariums

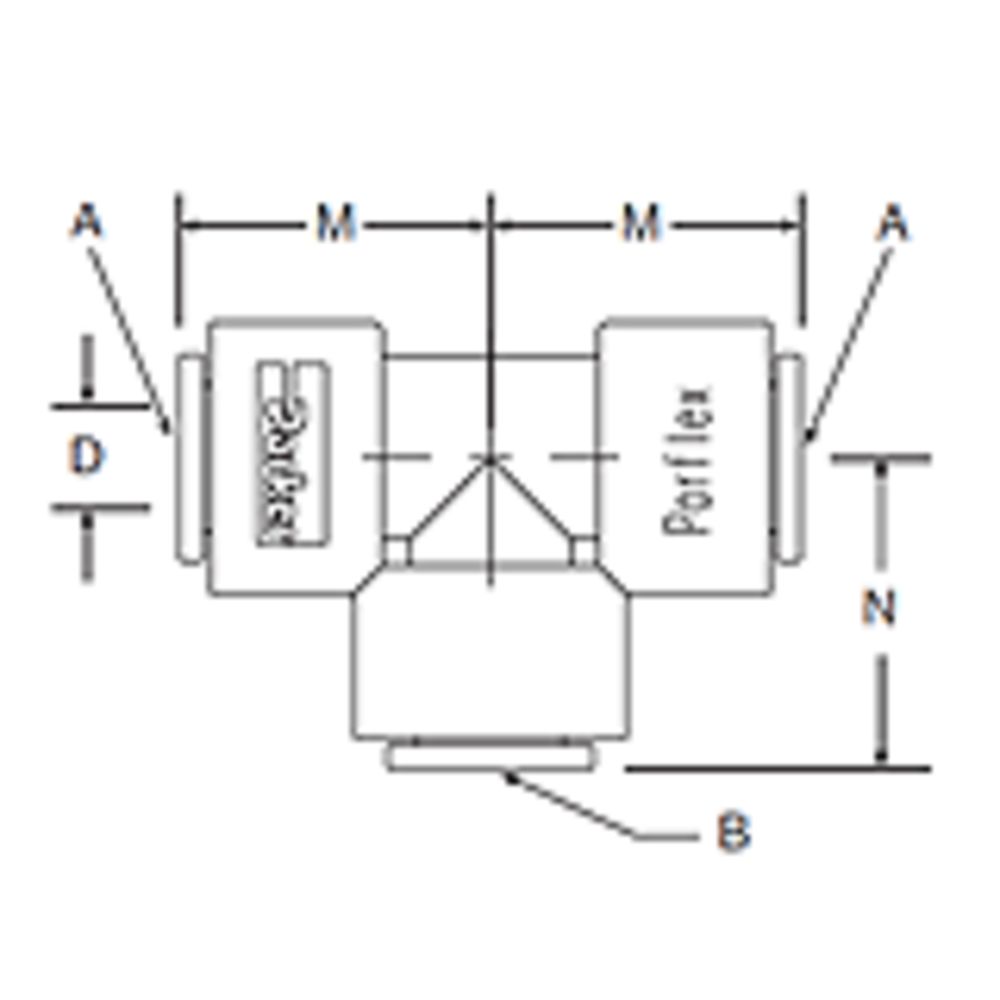

Kynar w/Viton Seal	Run O.D. A	Branch O.D. B	M	N	D
F4TU4	1/4	1/4	0.81	0.68	.175
F6TU4	3/8	1/4	1.02	1.03	.175
F6TU6	3/8	3/8	1.02	1.02	.290

Specifications

Product Details
Max Pressure (Psi)	250
Max Temp (°F)	275°F
Min Temp (°F)	0°F
Push-In Size	3/8" OD 1/4" OD
Series	TrueSeal
Shape	Tee
Color / Finish	White
Origin	U.S.A.
Sub-Type	Reducer Tee
Type	Tee
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
Shipping Dimensions
Shipping Length	20 in.
Shipping Width	17 in.
Shipping Height	8 in.
Product Weight & Dimensions
Product Weight (lbs)	7.5

Product Details
Max Pressure (Psi)	250
Max Temp (°F)	275°F
Min Temp (°F)	0°F
Push-In Size	3/8" OD 1/4" OD
Series	TrueSeal
Shape	Tee
Color / Finish	White
Origin	U.S.A.
Sub-Type	Reducer Tee
Type	Tee
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
Product Weight & Dimensions
Product Weight (lbs)	0.22499999999999998

Product Details
Max Pressure (Psi)	250
Max Temp (°F)	275°F
Min Temp (°F)	0°F
Push-In Size	3/8" OD 1/4" OD
Series	TrueSeal
Shape	Tee
Color / Finish	White
Origin	U.S.A.
Sub-Type	Reducer Tee
Type	Tee
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
Product Weight & Dimensions
Product Weight (lbs)	0.44999999999999996

Product Details
Max Pressure (Psi)	250
Max Temp (°F)	275°F
Min Temp (°F)	0°F
Push-In Size	3/8" OD 1/4" OD
Series	TrueSeal
Shape	Tee
Color / Finish	White
Origin	U.S.A.
Sub-Type	Reducer Tee
Type	Tee
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
Product Weight & Dimensions
Product Weight (lbs)	4.5

Downloads

Kynar PVDF Union Tee - 3/8 x 1/4 Branch Manual
