Parker

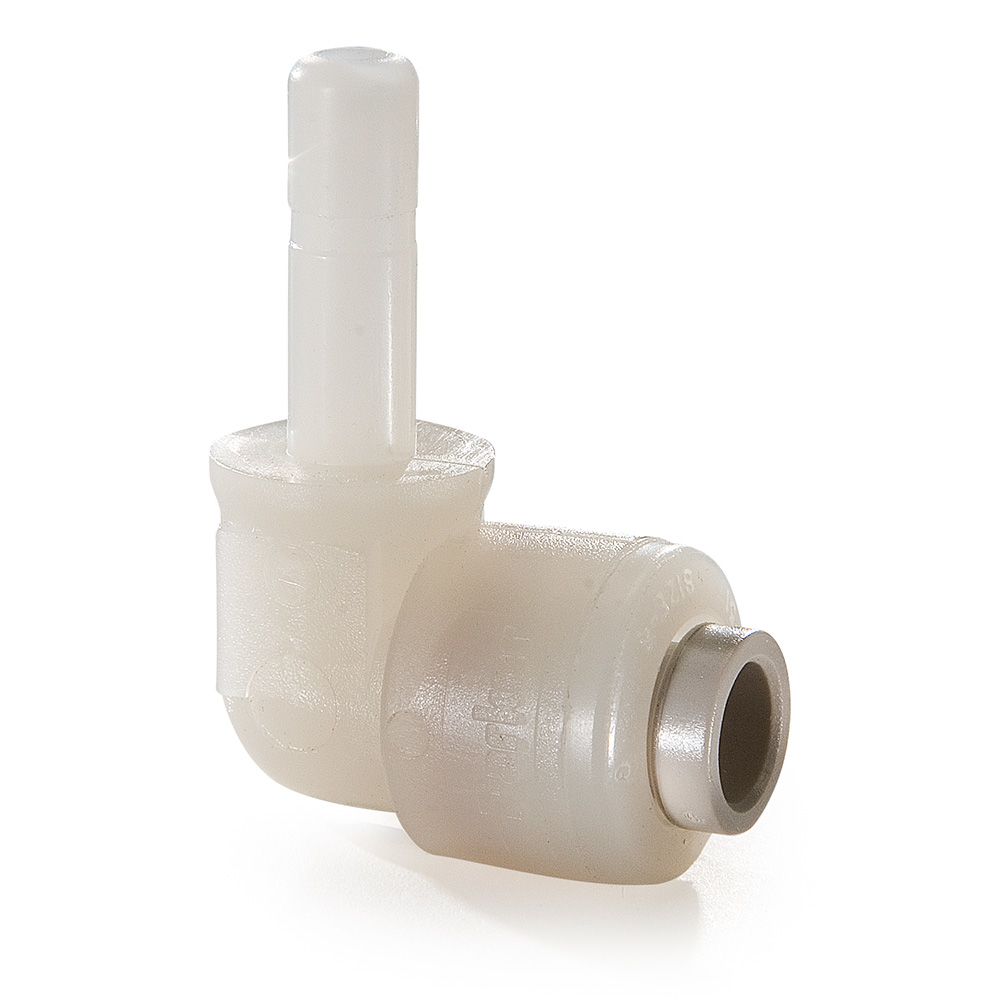

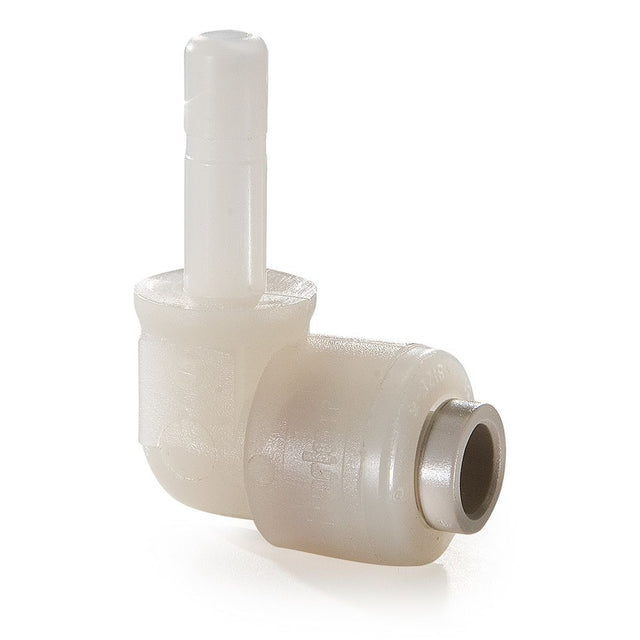

Kynar PVDF Tube Elbow Union Stem - 3/8 x 3/8

Part Number: F6TEU6

In Stock

out of stock

In Stock

Closeout sale item with limited availability.

$5.61 Regular price $6.38 (12% Off)

Features:
  • Patented Push-to-connect Design
  • Chemical Resistance
  • UV Resistance
  • FDA Compliant
Applications:
  • Chemical Processing/Storage
  • Fluid Handling
  • Semiconductor Equipment
  • DI Water Systems
  • High Purity
  • Aquariums


Kynar
w/Viton Seal

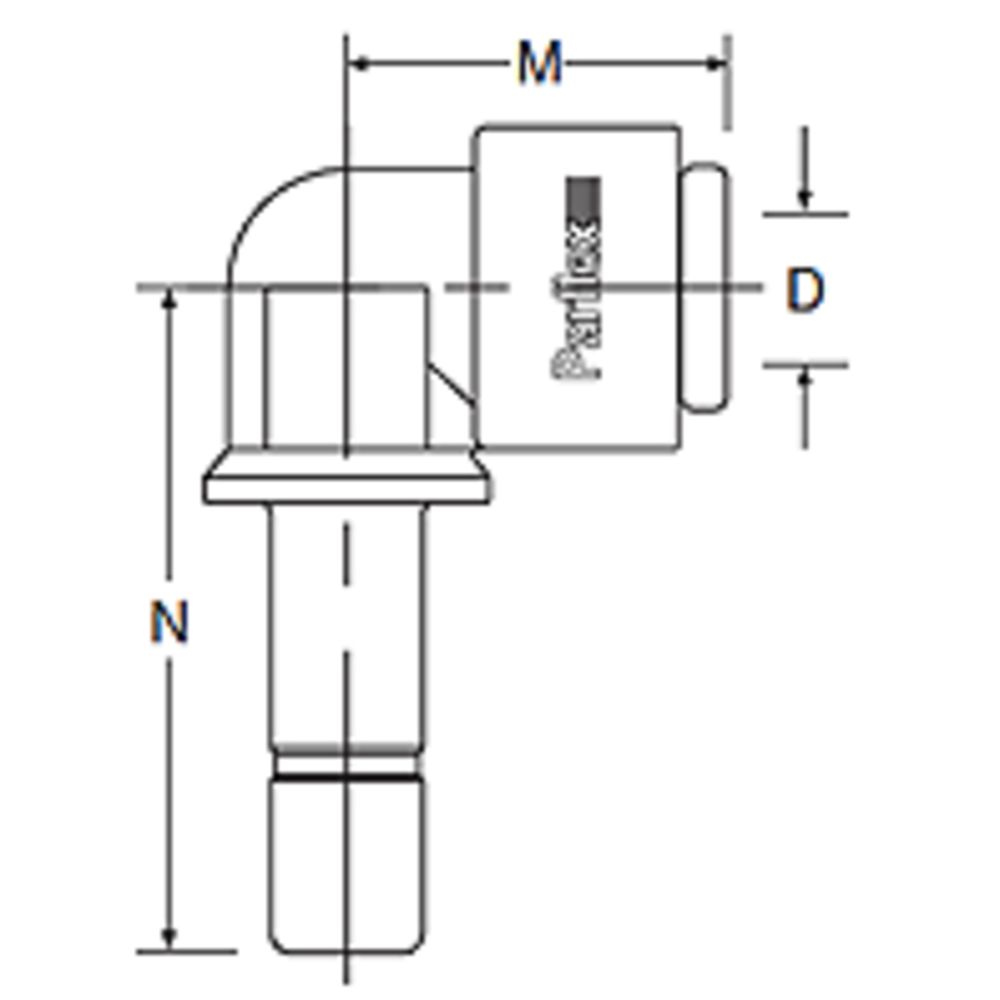

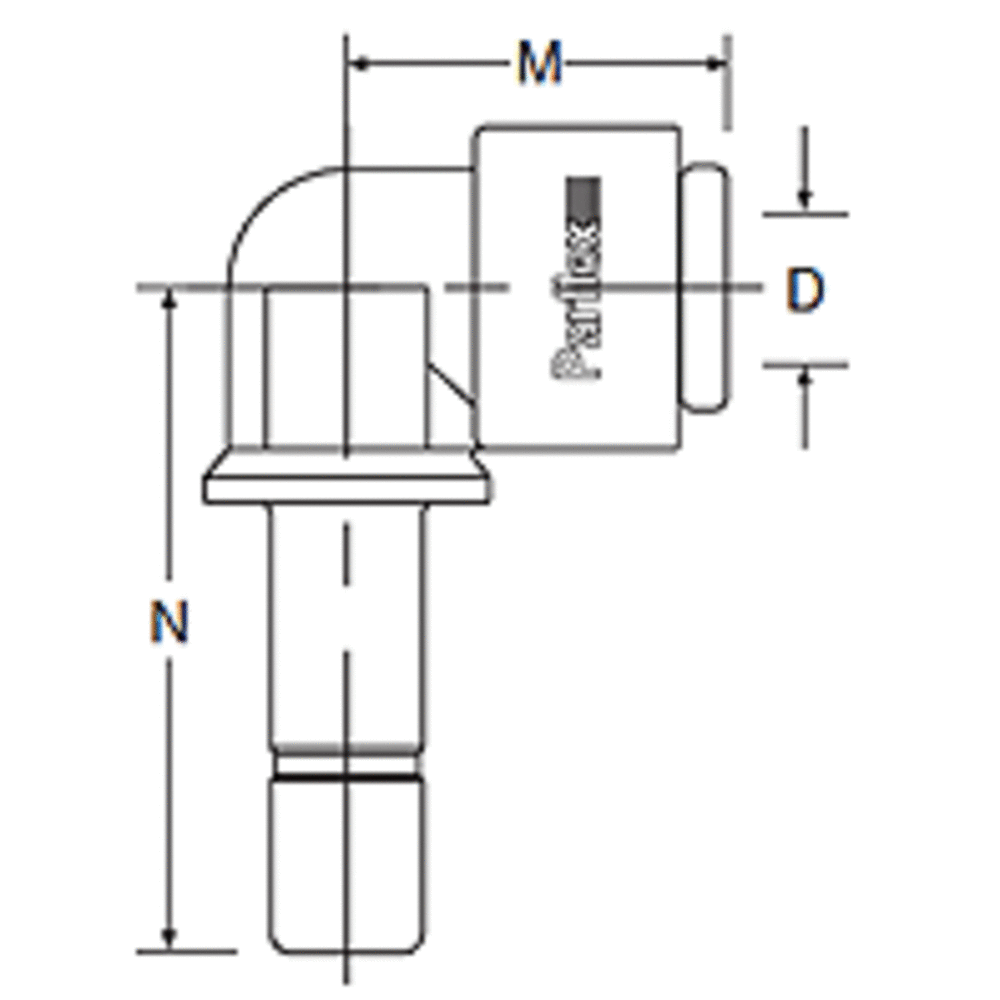

Tube O.D.

Stem O.D. M N D
 F4TEU4

1/4

1/4

0.84

1.21 .125
 F4TEU6

1/4

3/8

0.84

1.35 .125
 F6TEU4

3/8

1/4

1.03 1.29 .125
 F6TEU6

3/8

3/8

1.03 1.64 .250


Weight & Dimensions

Weight (lbs)

0.045

Details

Series

TrueSeal

Max Temp (°F)

275

Max Pressure (Psi)

250

Min Temp (°F)

0

Min Pressure (Psi)

Vacuum

Push-In Size

3/8" OD

Stem Size

3/8" OD

Application

Water, Air, Beverage, Beer, Wine, Soft Drinks, Dyes

Body Material

Kynar

Color / Finish

White

Mounting Options

Free Floating

Origin

USA

Seal Material

FKM (Viton)

Warranty & Certifications

Certifications

NSF 51


Kynar




Features:
  • Patented Push-to-connect Design
  • Chemical Resistance
  • UV Resistance
  • FDA Compliant
Applications:
  • Chemical Processing/Storage
  • Fluid Handling
  • Semiconductor Equipment
  • DI Water Systems
  • High Purity
  • Aquariums


Kynar
w/Viton Seal

Tube O.D.

Stem O.D. M N D
 F4TEU4

1/4

1/4

0.84

1.21 .125
 F4TEU6

1/4

3/8

0.84

1.35 .125
 F6TEU4

3/8

1/4

1.03 1.29 .125
 F6TEU6

3/8

3/8

1.03 1.64 .250

NOTE: Closeout sale item with limited availability.

Weight & Dimensions

Weight (lbs)

0.045

Details

Series

TrueSeal

Max Temp (°F)

275

Max Pressure (Psi)

250

Min Temp (°F)

0

Min Pressure (Psi)

Vacuum

Push-In Size

3/8" OD

Stem Size

3/8" OD

Application

Water, Air, Beverage, Beer, Wine, Soft Drinks, Dyes

Body Material

Kynar

Color / Finish

White

Mounting Options

Free Floating

Origin

USA

Seal Material

FKM (Viton)

Warranty & Certifications

Certifications

NSF 51

Documentation
Kynar
