Parker

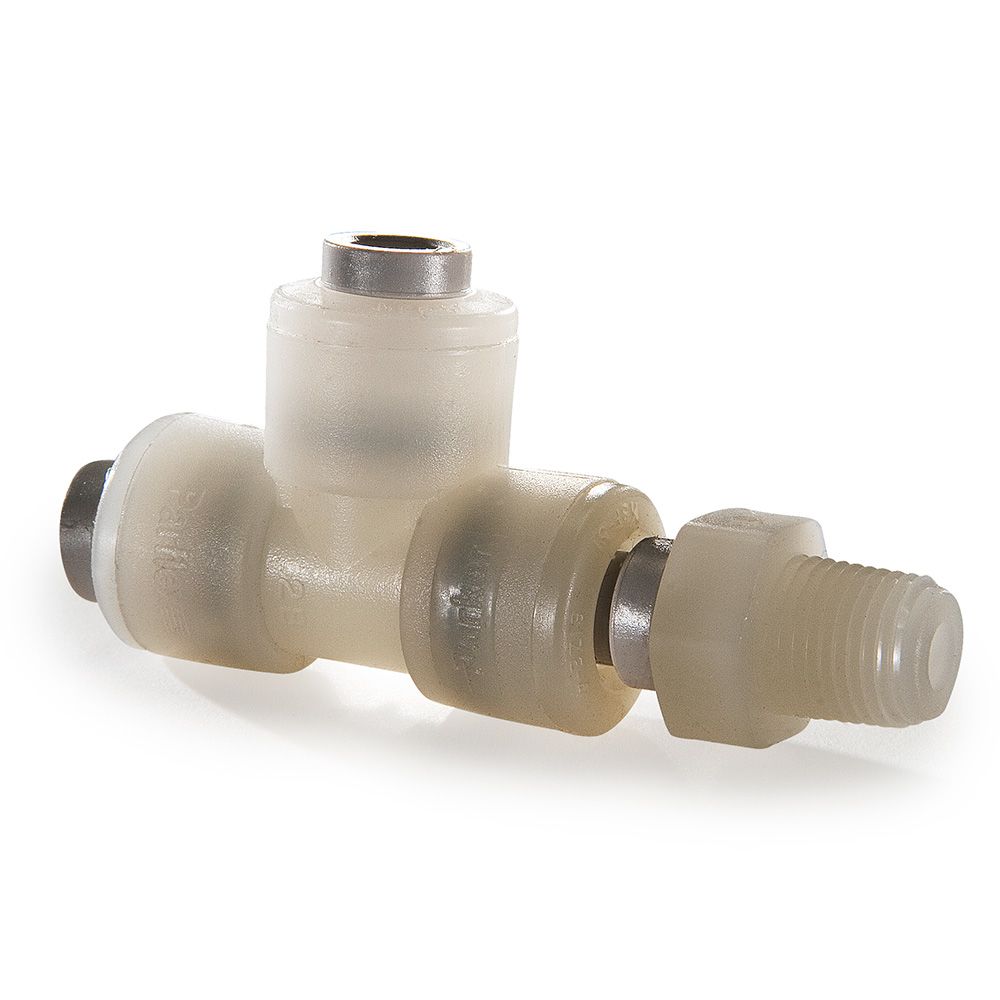

Kynar PVDF Male Run Swivel Tee - 3/8 x 1/4 NPTF

Part Number: F6MRS4

In Stock

out of stock

In Stock

$9.24

Parker's Kynar® PVDF range is the only Push-to- ... MES - Male Elbow SwivelKynar®(PVDF) metal gripper collet is available as an option

Features:
  • Patented Push-to-connect Design
  • Chemical Resistance
  • UV Resistance
  • FDA Compliant
Applications:
  • Chemical Processing/Storage
  • Fluid Handling
  • Semiconductor Equipment
  • DI Water Systems
  • High Purity
  • Aquariums

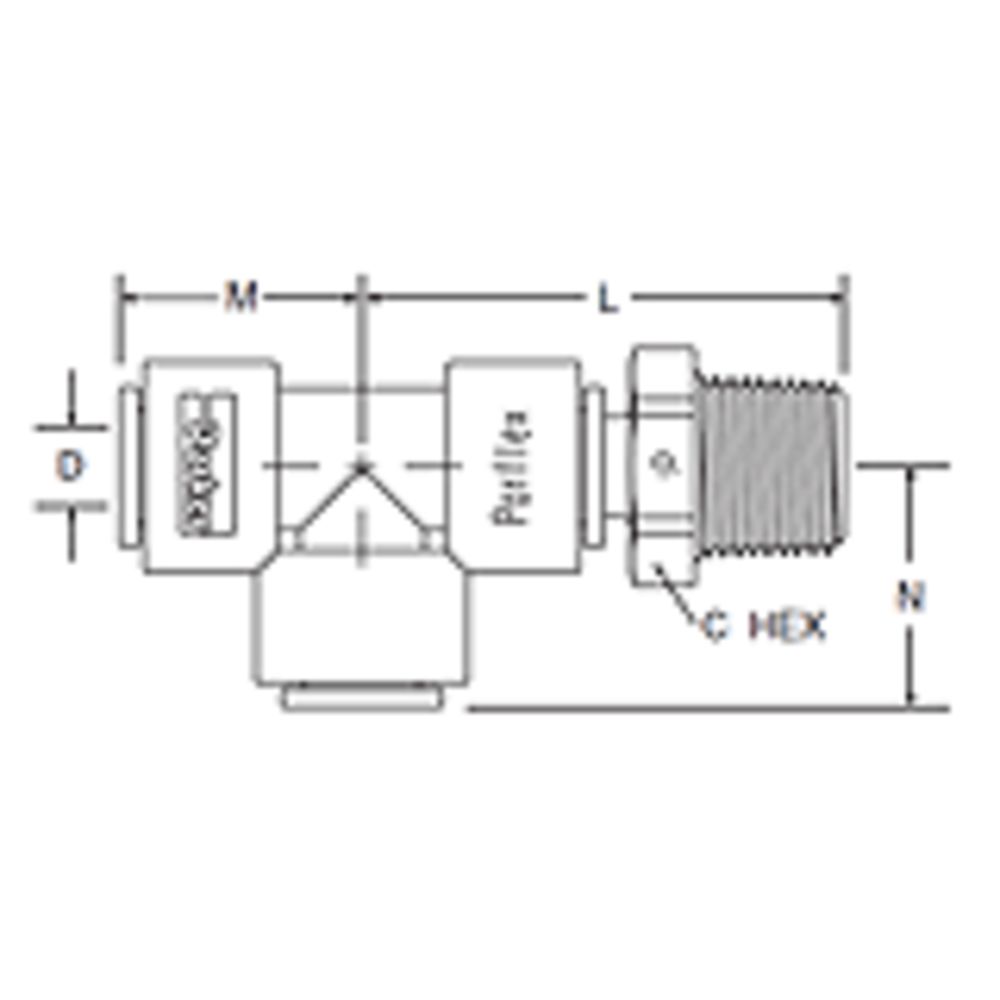

Kynar
w/Viton Seal
 Tube O.D. NPTF
Thread
C
Hex
L  M  N  D
 F4MRS2 1/4

1/8

9/16 1.55 0.81

0.85

.175
 F4MRS4 1/4 1/4 11/16 1.67 0.81 0.85 .175
 F6MRS4 3/8 1/4 13/16 1.90 1.02 1.02 .250
 F6MRS6 3/8 3/8 13/16 1.90 1.02 1.02 .250


Weight & Dimensions

Weight (lbs)

0.075

Details

Series

TrueSeal

Max Temp (°F)

275

Max Pressure (Psi)

250

Min Temp (°F)

0

Min Pressure (Psi)

Vacuum

Push-In Size

3/8" OD

Application

Water, Air, Beverage, Beer, Wine, Soft Drinks, Dyes

Body Material

Kynar

Color / Finish

White

Mounting Options

Thread

Origin

USA

Seal Material

FKM (Viton)

Size

1/4"

Inlet/Outlet Connection

1/4" MPT

Warranty & Certifications

Certifications

NSF 51


Kynar
