Home / Fittings / Quick-Connect Fittings / Kynar PVDF Male Run Swivel Tee - 1/4 x 1/8 NPTF
Parker

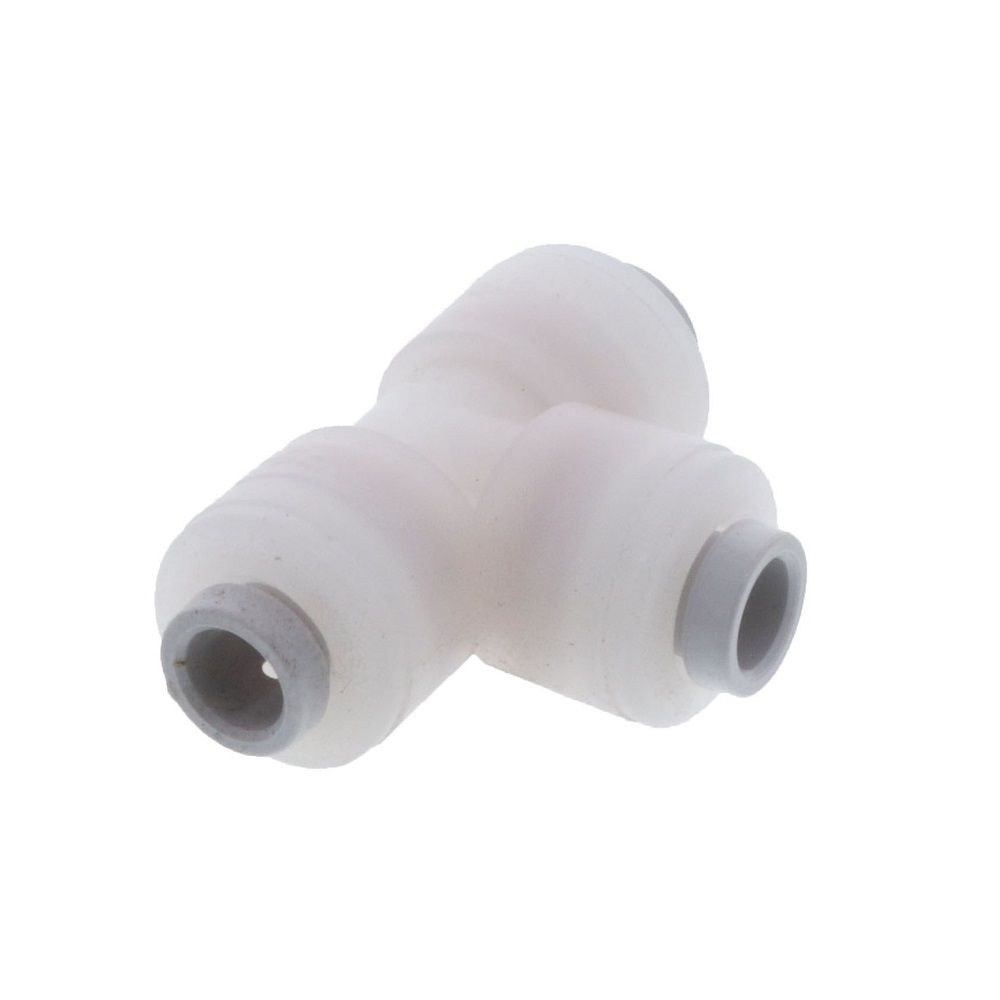

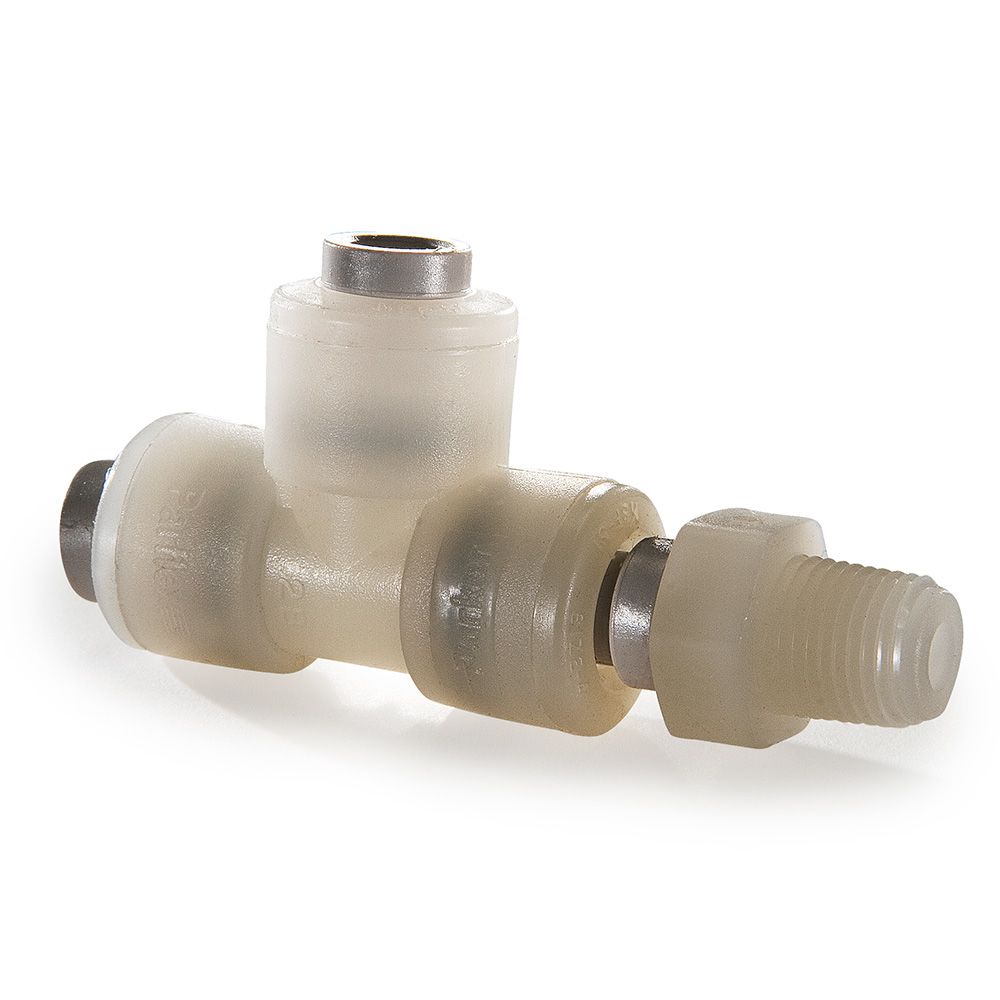

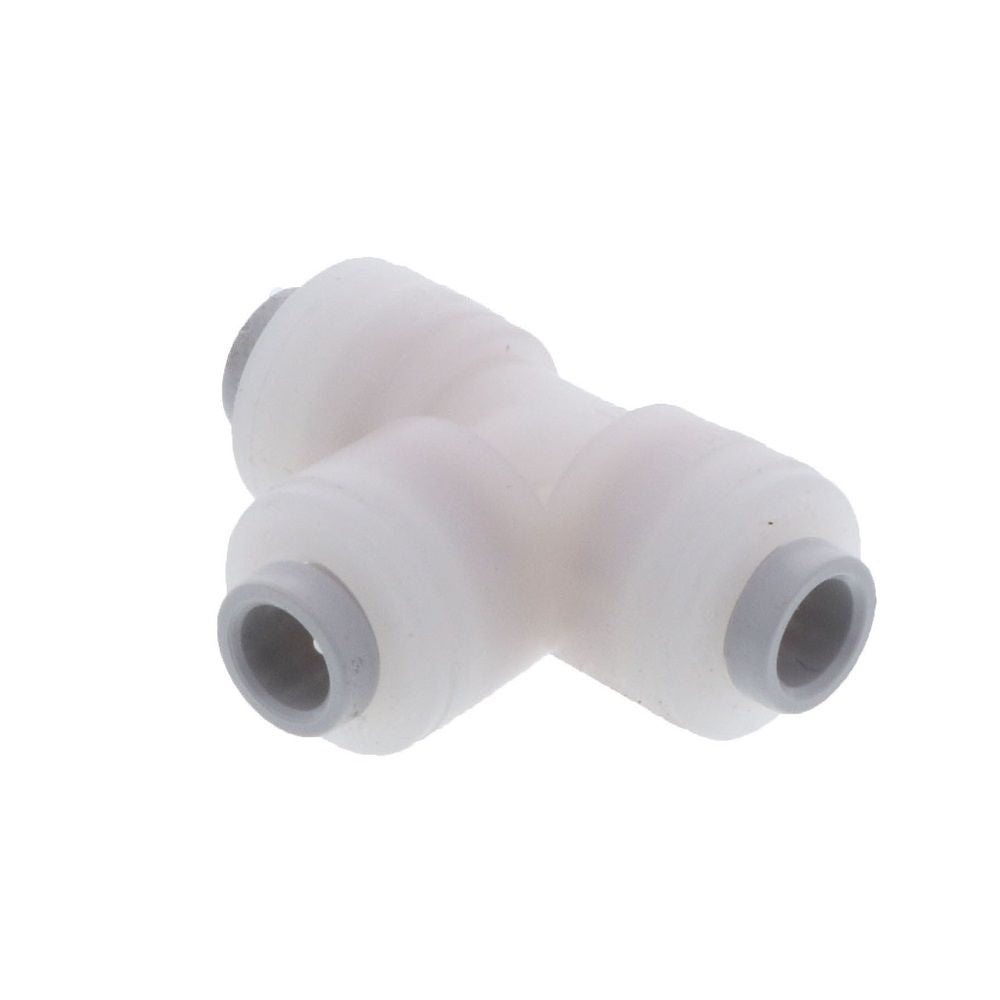

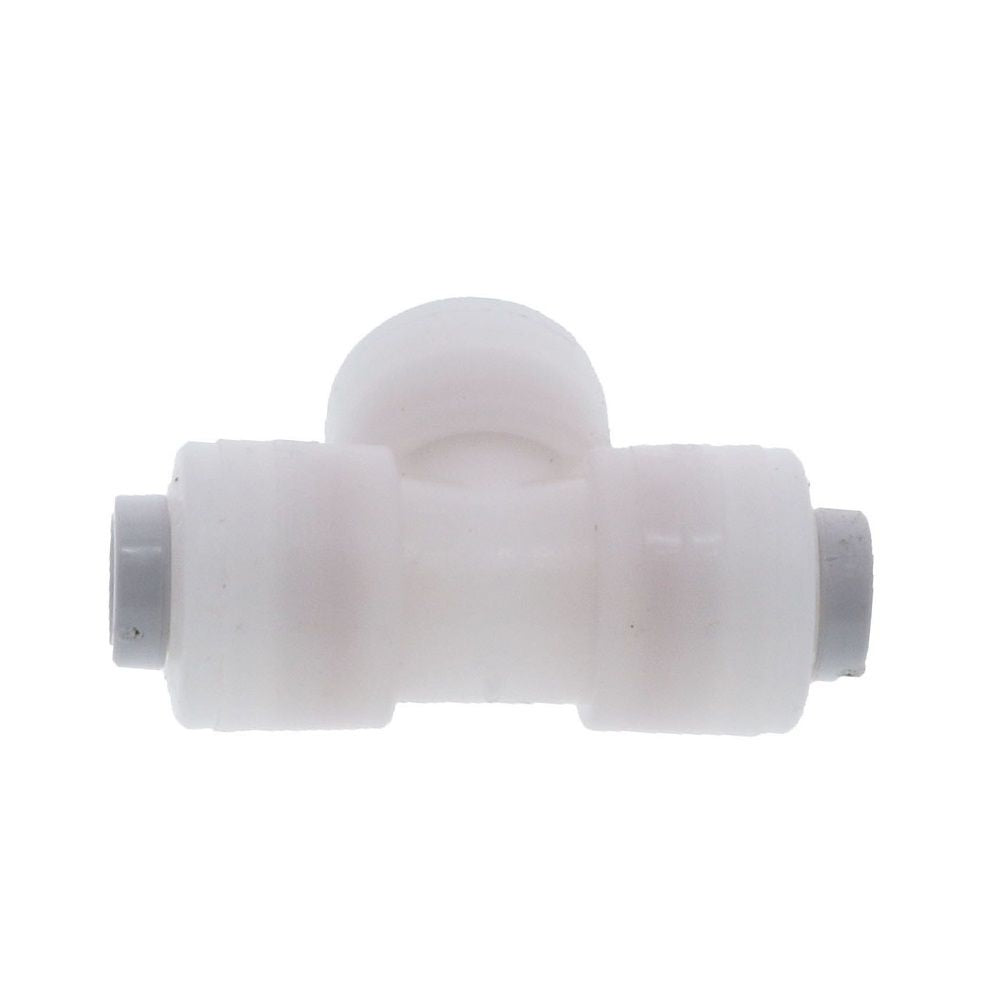

Kynar PVDF Male Run Swivel Tee - 1/4 x 1/8 NPTF

Part Number: F4MRS2
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Your price:
Choose
Single
Box of 10
Push-to-connect fittings offer unique solutions for applications with high temperature, strong chemical concentration or oxidizers such as ozone. The lead free all plastic design is NSF 51 listed, temperature rated up to 275° F and offers a maximum working pressure of up to 300 psi. TrueSeal™ fittings are offered in Kynar® with a fluorocarbon seal or polypropylene and acetal with an EPDM seal. Gripping rings are offered with either stainless steel or engineered thermoplastic bite edges.

Features:
  • Patented Push-to-connect Design
  • Chemical Resistance
  • UV Resistance
  • FDA Compliant
Applications:
  • Chemical Processing/Storage
  • Fluid Handling
  • Semiconductor Equipment
  • DI Water Systems
  • High Purity
  • Aquariums

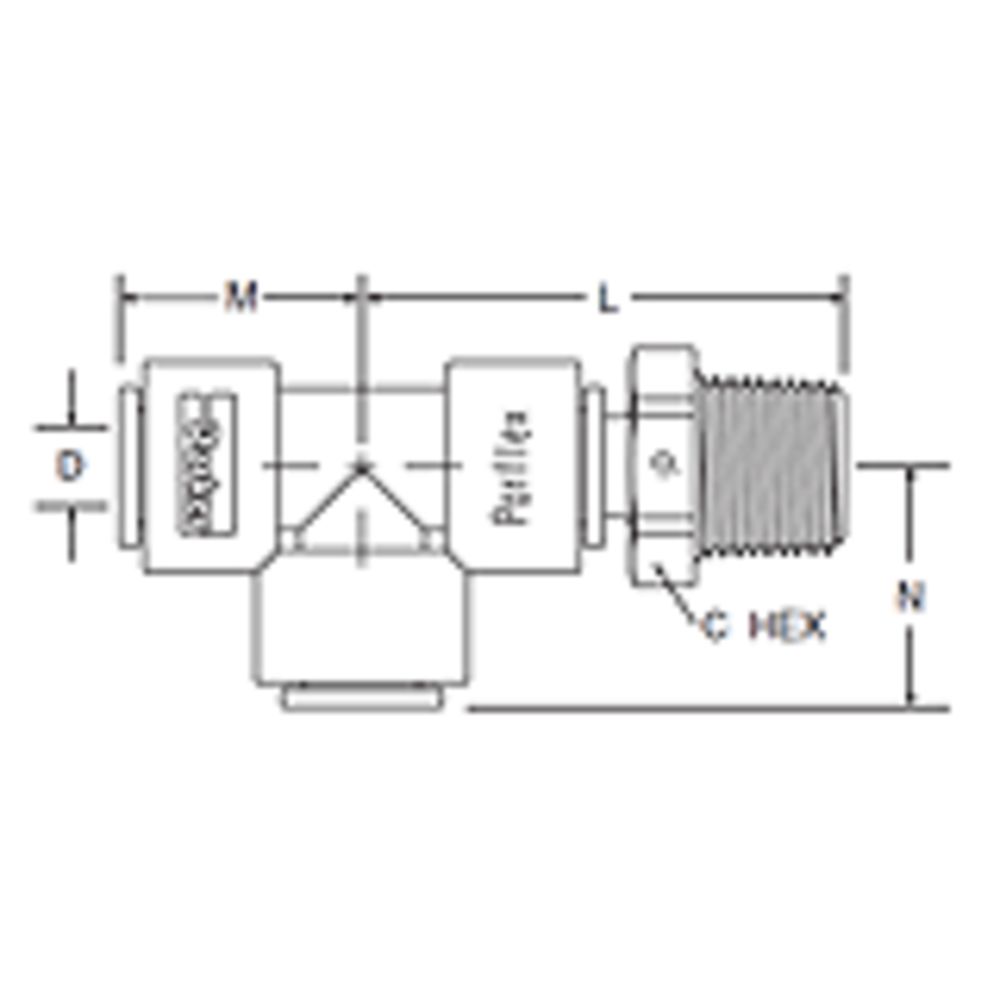

Kynar
w/Viton Seal		  Tube O.D. NPTF
Thread		 C
Hex		 L  M  N  D
 F4MRS2 1/4

1/8

 9/16 1.55 0.81

0.85

 .175
 F4MRS4 1/4 1/4 11/16 1.67 0.81 0.85 .175
 F6MRS4 3/8 1/4 13/16 1.90 1.02 1.02 .250
 F6MRS6 3/8 3/8 13/16 1.90 1.02 1.02 .250
