Parker

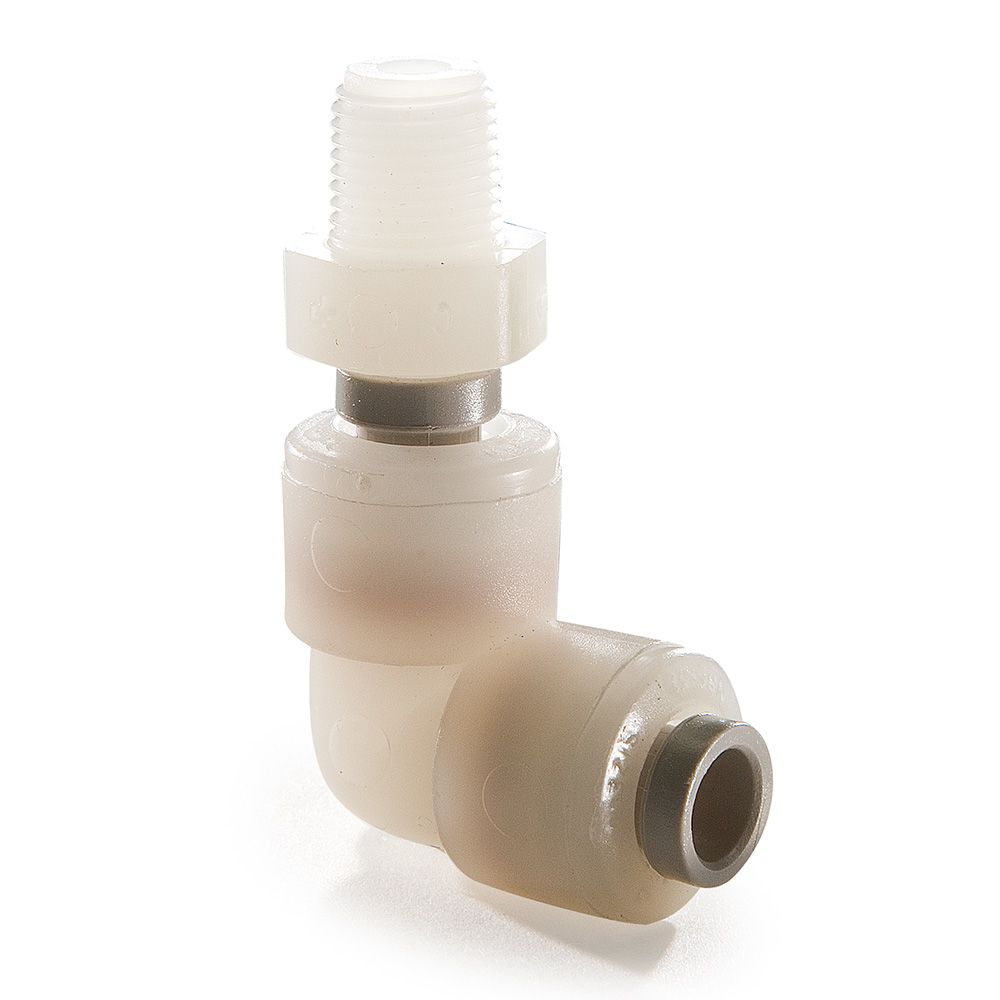

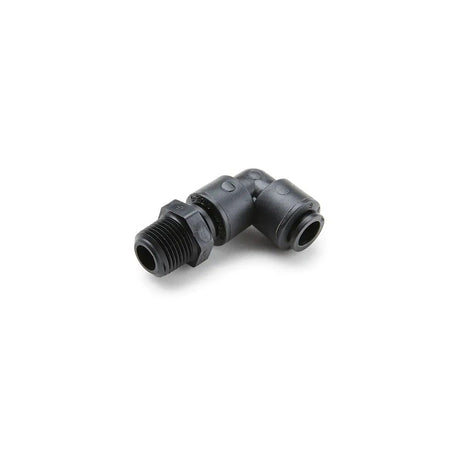

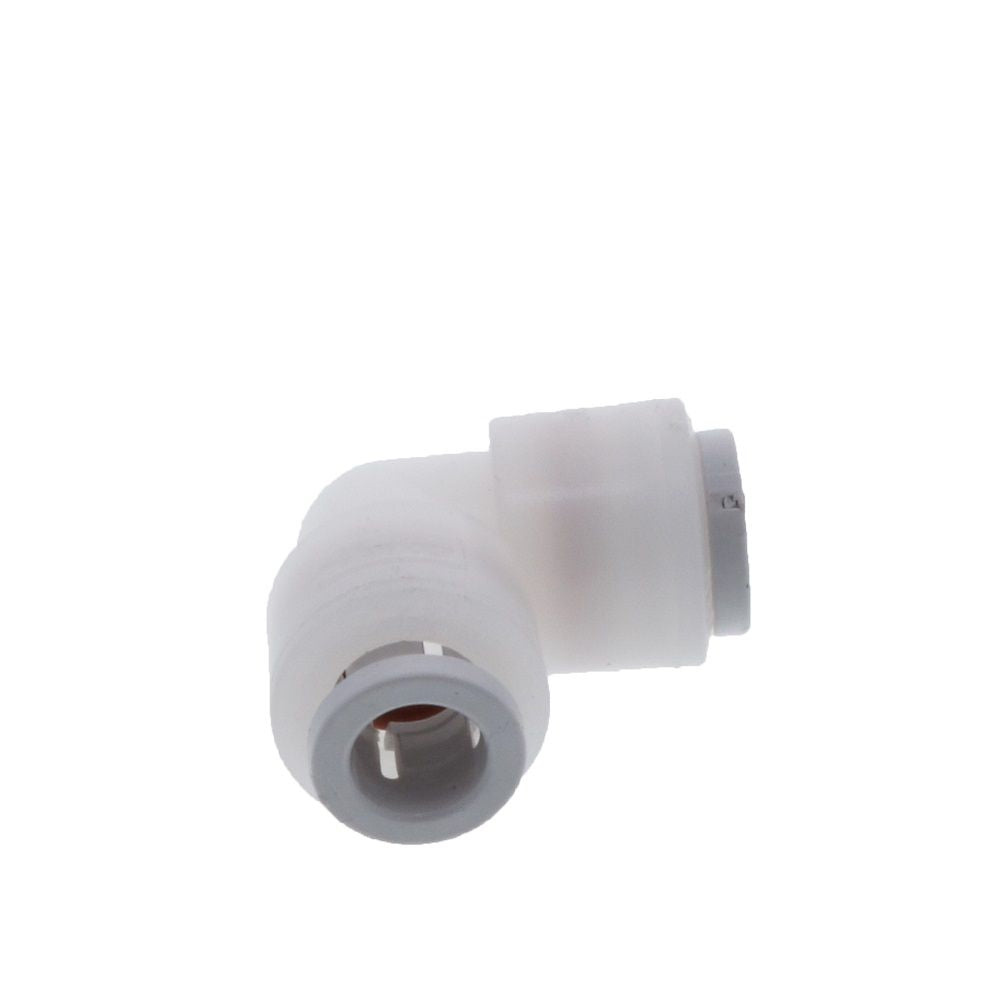

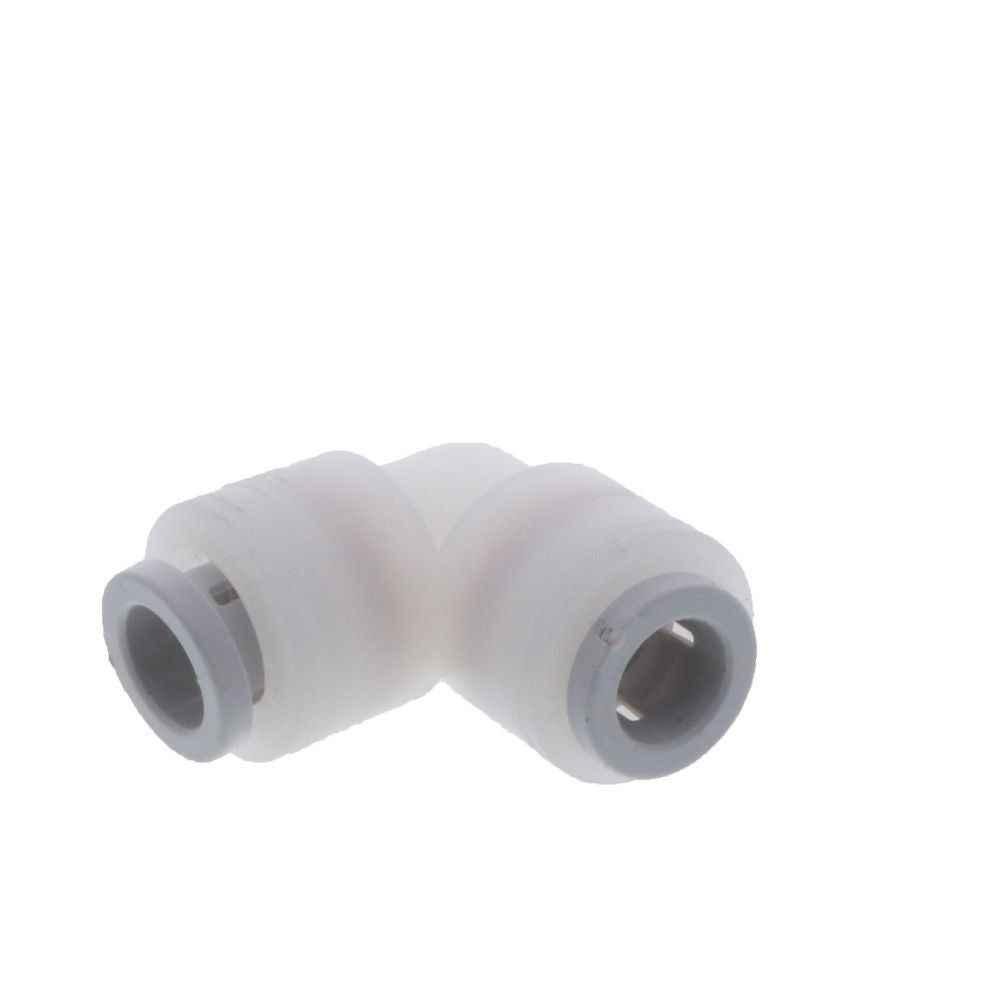

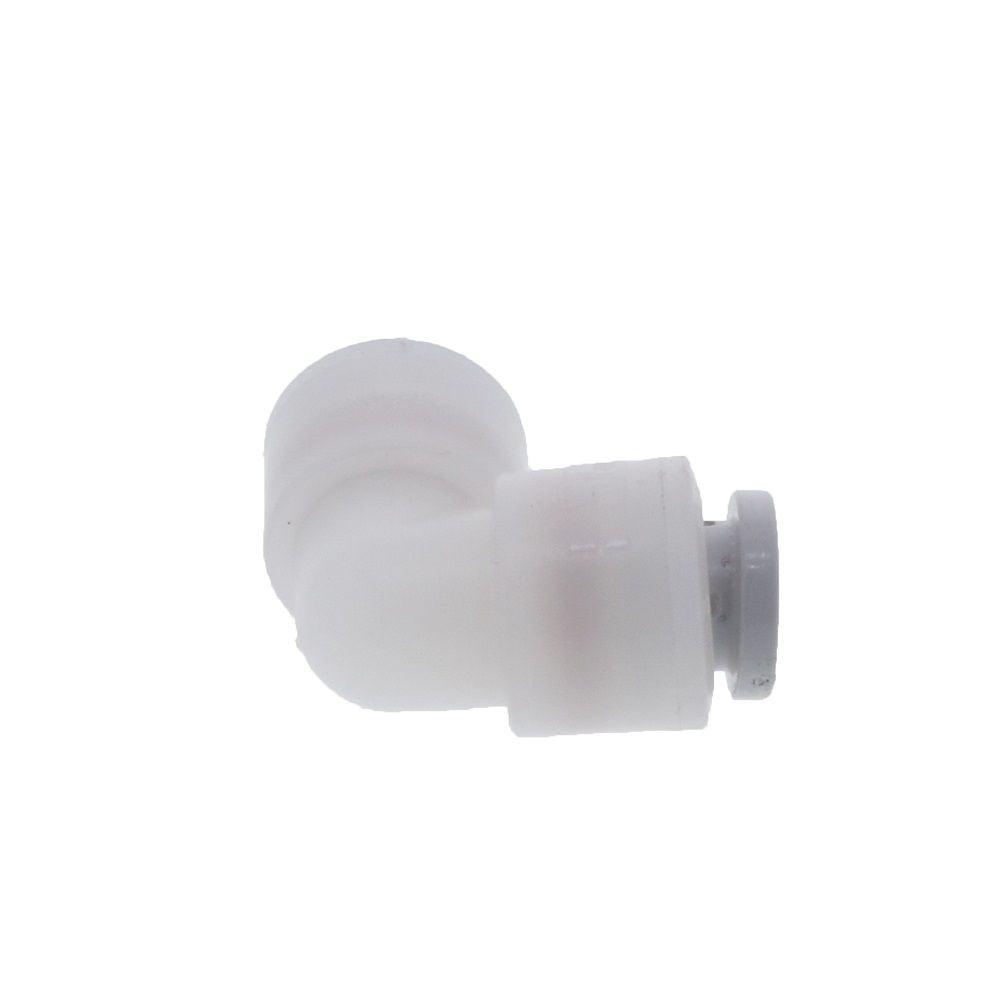

Kynar PVDF Male Elbow Swivel - 3/8 x 1/4 NPTF

Part Number: F6MES4

In Stock

out of stock

In Stock

$8.87 Regular price

Features:
  • Patented Push-to-connect design
  • Chemical Resistance
  • UV Resistance
  • FDA Compliant
Applications:
  • Chemical Processing/Storage
  • Fluid Handling
  • Semiconductor Equipment
  • DI Water Systems
  • High Purity
  • Aquariums

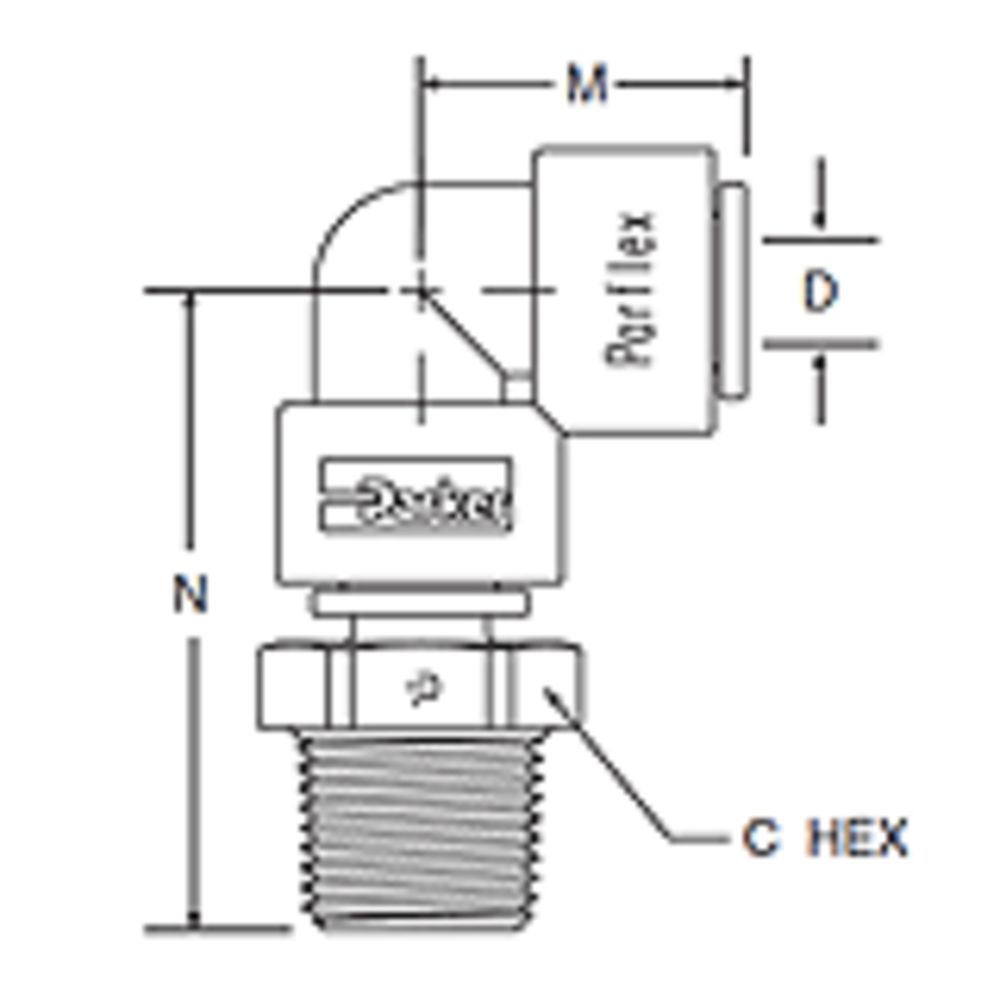

Kynar
w/Viton Seal
Tube O.D. NPTF
Thread
C
Hex
M N D
 F4MES2 1/4 1/8 9/16 0.87 1.60 .175
 F4MES4 1/4 1/4 11/16 0.87 1.71 .175
 F4MES6 1/4 3/8 13/16 0.90 1.91 .212
 F6MES4 3/8 1/4 9/16 1.02 1.90 .250
 F6MES6 3/8 3/8 13/16 1.02 1.90 .250
 F6MES6 3/8 3/8 13/16 1.02 1.06 .250


Weight & Dimensions

Approx Weight

0.0601 Lbs

Details

Application

Chemical Processing/Storage, Fluid Handling, Semiconductor Equipment, DI Water Systems, High Purity, Aquariums

Body Material

Kynar

Color / Finish

Natural

Operating Pressure Range

300 PSI

Operating Temperature Range

0-275 Degrees Fahrenheit

Size

1/4"

Inlet/Outlet Connection

1/4" | MPT

Warranty & Certifications

Certifications

NSF 51


Kynar




Features:
  • Patented Push-to-connect design
  • Chemical Resistance
  • UV Resistance
  • FDA Compliant
Applications:
  • Chemical Processing/Storage
  • Fluid Handling
  • Semiconductor Equipment
  • DI Water Systems
  • High Purity
  • Aquariums
Kynar
w/Viton Seal
Tube O.D. NPTF
Thread
C
Hex
M N D
 F4MES2 1/4 1/8 9/16 0.87 1.60 .175
 F4MES4 1/4 1/4 11/16 0.87 1.71 .175
 F4MES6 1/4 3/8 13/16 0.90 1.91 .212
 F6MES4 3/8 1/4 9/16 1.02 1.90 .250
 F6MES6 3/8 3/8 13/16 1.02 1.90 .250
 F6MES6 3/8 3/8 13/16 1.02 1.06 .250

Weight & Dimensions

Approx Weight

0.0601 Lbs

Details

Application

Chemical Processing/Storage, Fluid Handling, Semiconductor Equipment, DI Water Systems, High Purity, Aquariums

Body Material

Kynar

Color / Finish

Natural

Operating Pressure Range

300 PSI

Operating Temperature Range

0-275 Degrees Fahrenheit

Size

1/4"

Inlet/Outlet Connection

1/4" | MPT

Warranty & Certifications

Certifications

NSF 51
