Parker

Kynar PVDF Male Connector - 1/4 x 3/8 NPTF

Part Number: F4MC6

In Stock

out of stock

In Stock

$3.32 Regular price

Features:
  • Patented Push-to-connect design
  • Chemical Resistance
  • UV Resistance
  • FDA Compliant
Applications:
  • Chemical Processing/Storage
  • Fluid Handling
  • Semiconductor Equipment
  • DI Water Systems
  • High Purity
  • Aquariums
Kynar
w/Viton Seal

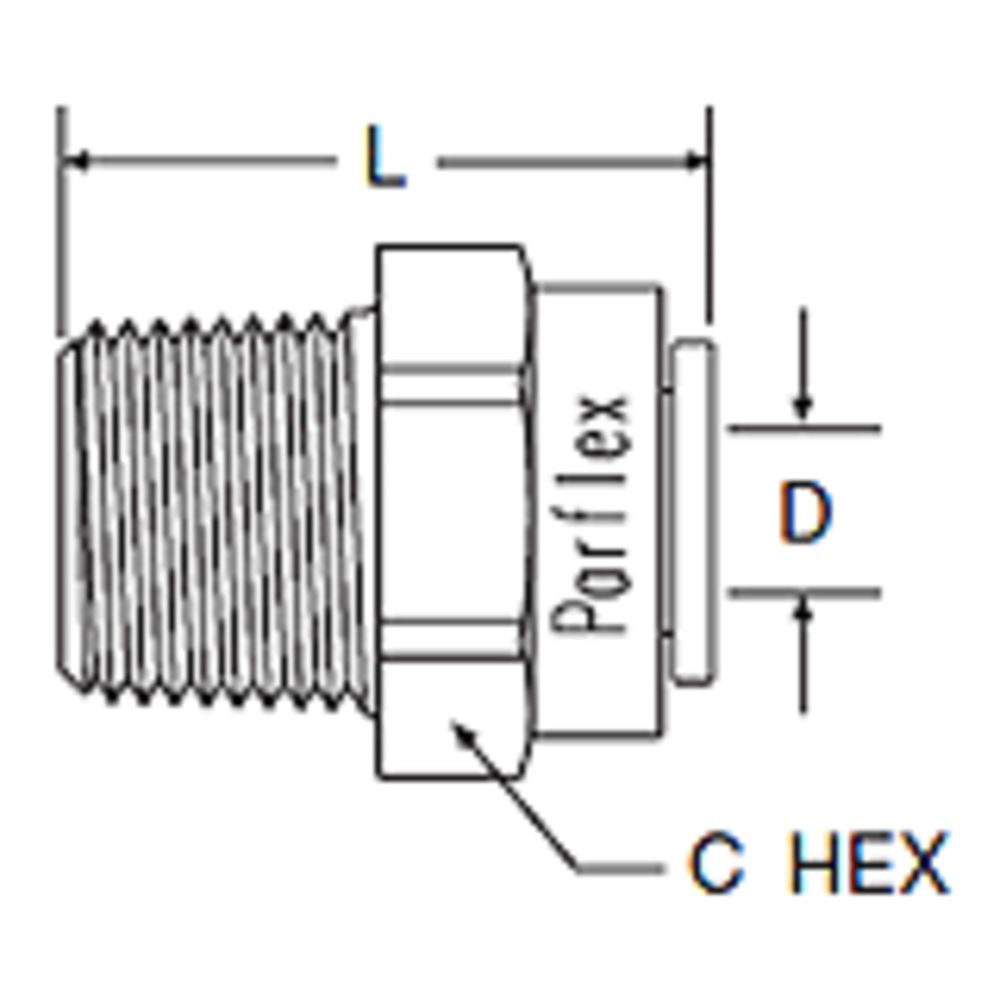

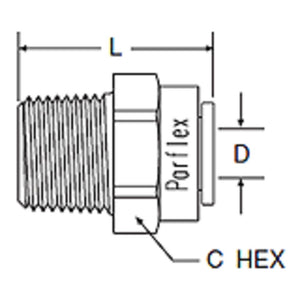

Tube O.D. NPTF
Thread
C L D
 F4MC2 1/4 1/8  11/16  1.28  .175
 F4MC4 1/4 1/4  11/16  1.14  .175
 F4MC6 1/4 3/8  11/16  1.18  .175
 F6MC2 3/8 1/8  13/16  1.46  .175
 F6MC4 3/8 1/4  13/16  1.41  .250
 F6MC6 3/8 3/8  13/16  1.27  .250
 F6MC8 3/8 1/2  15/16  1.45  .250


Weight & Dimensions

Approx Weight

0.0245 Lbs

Details

Body Material

PVDF

Color / Finish

Natural

Operating Pressure Range

0 - 300 PSI

Operating Temperature Range

275 Degrees Fahrenheit

Size

1/4 x 3/8 Inches

Type

Male Connector


Kynar




Features:
  • Patented Push-to-connect design
  • Chemical Resistance
  • UV Resistance
  • FDA Compliant
Applications:
  • Chemical Processing/Storage
  • Fluid Handling
  • Semiconductor Equipment
  • DI Water Systems
  • High Purity
  • Aquariums
Kynar
w/Viton Seal
Tube O.D. NPTF
Thread
C L D
 F4MC2 1/4 1/8  11/16  1.28  .175
 F4MC4 1/4 1/4  11/16  1.14  .175
 F4MC6 1/4 3/8  11/16  1.18  .175
 F6MC2 3/8 1/8  13/16  1.46  .175
 F6MC4 3/8 1/4  13/16  1.41  .250
 F6MC6 3/8 3/8  13/16  1.27  .250
 F6MC8 3/8 1/2  15/16  1.45  .250

Weight & Dimensions

Approx Weight

0.0245 Lbs

Details

Body Material

PVDF

Color / Finish

Natural

Operating Pressure Range

0 - 300 PSI

Operating Temperature Range

275 Degrees Fahrenheit

Size

1/4 x 3/8 Inches

Type

Male Connector
