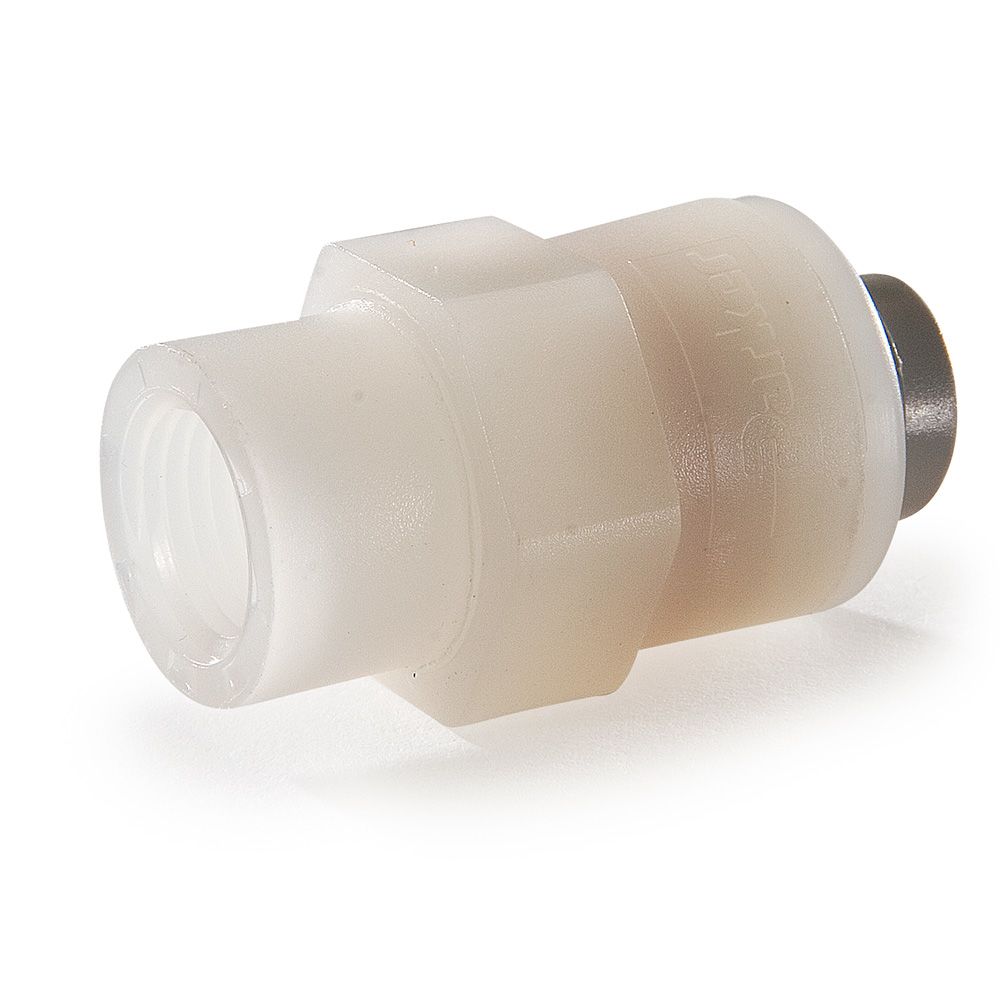

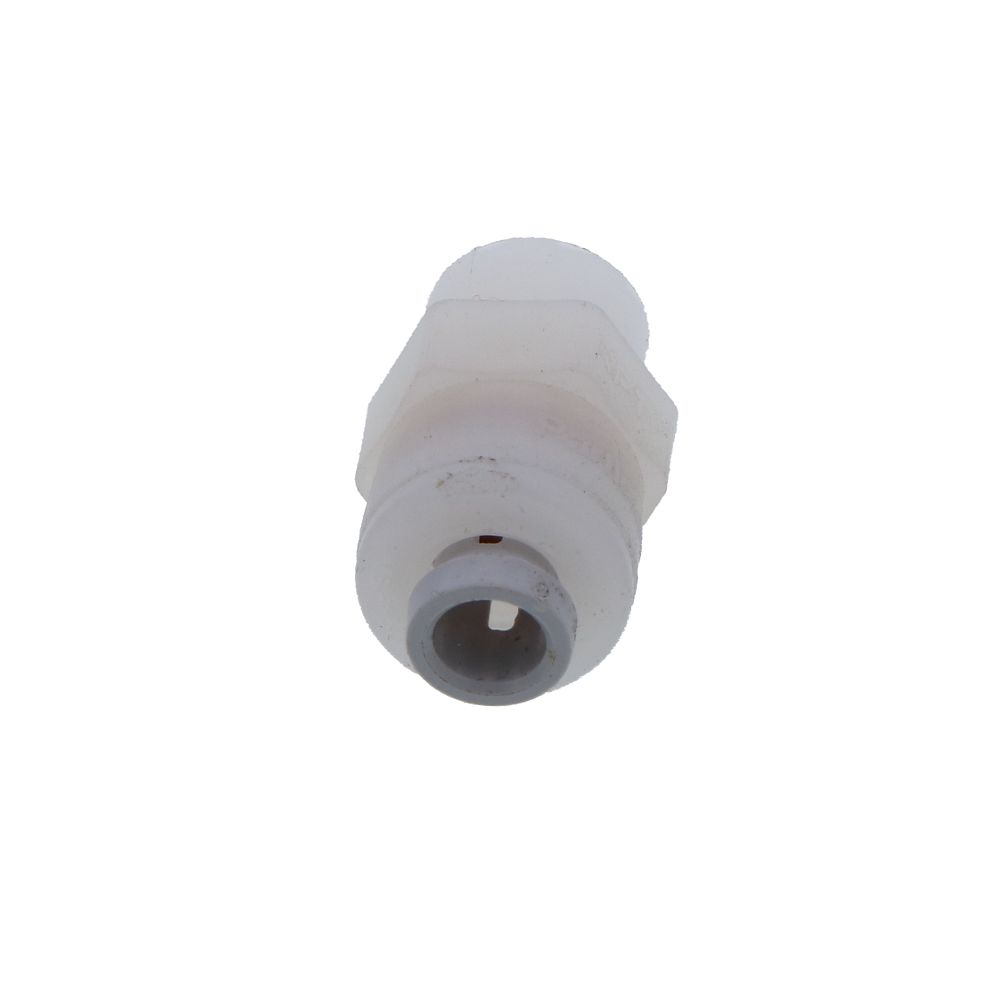

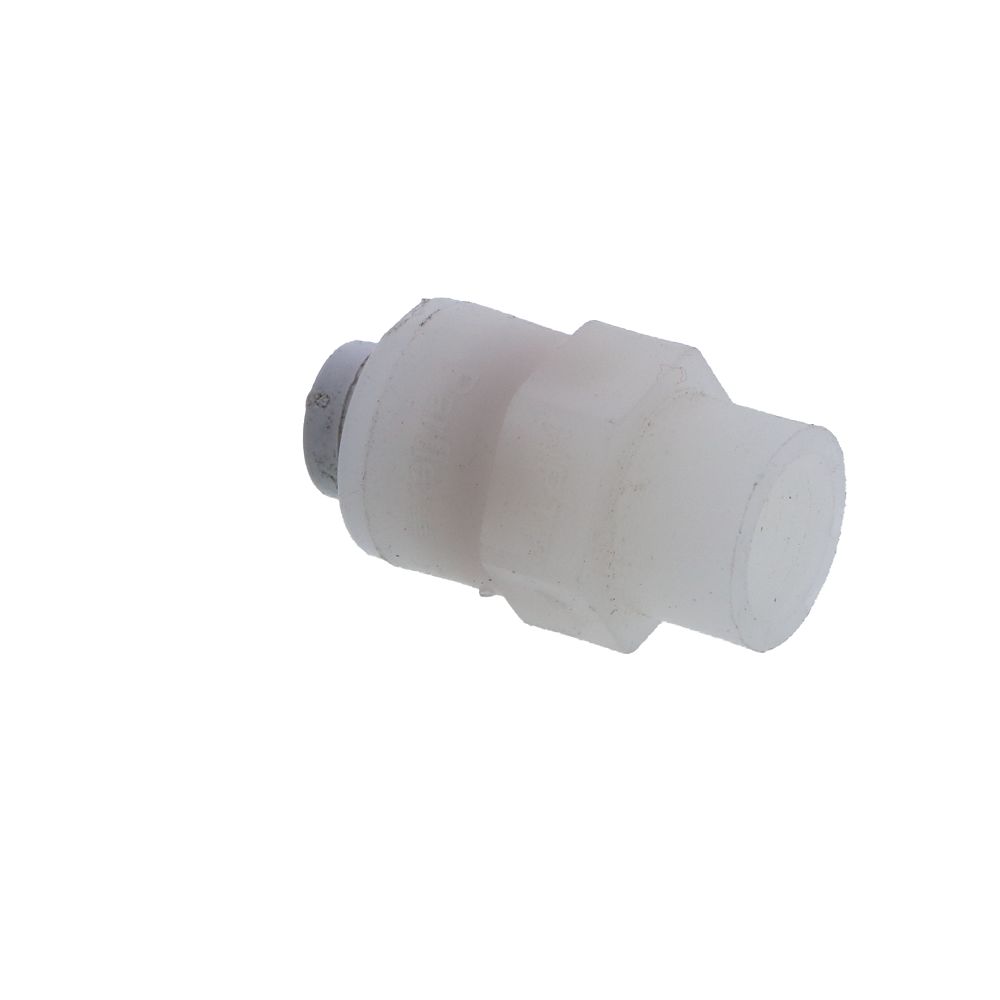

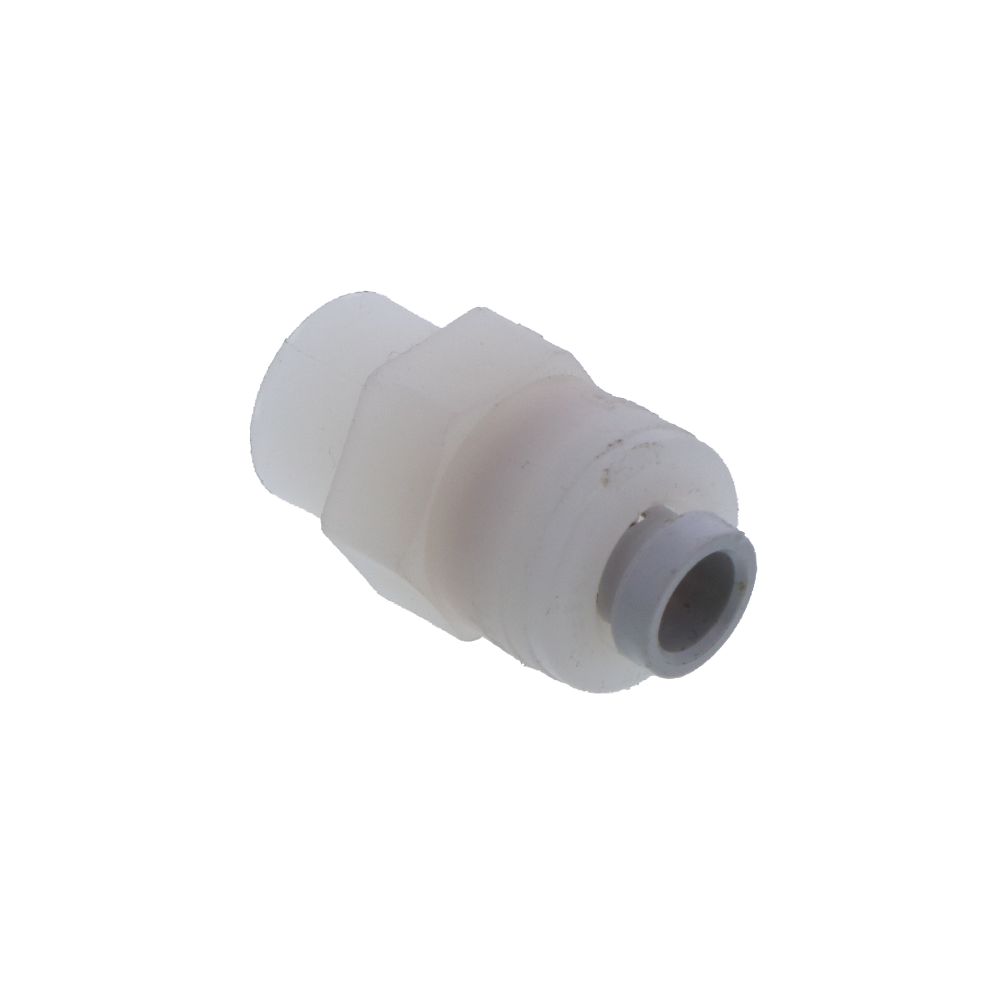

Kynar PVDF Female Connector - 1/4 x 1/8 NPTF

Home / Fittings / Quick-Connect Fittings / Kynar PVDF Female Connector - 1/4 x 1/8 NPTF

Parker

Kynar PVDF Female Connector - 1/4 x 1/8 NPTF

Part Number: F4FC2

similar items

Parker's liquifit fittings ensure reliable and compact connections for liquid transfer applications. Liquifit offers an "eco-designed" innovative alternative for water applications; no fluid contamination occurs and environmental protection is guaranteed.

Features:

Patented Push-to-connect design
Chemical Resistance
UV Resistance
FDA Compliant

Applications:

Chemical Processing/Storage
Fluid Handling
Semiconductor Equipment
DI Water Systems
High Purity
Aquariums

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water Air Beverage Beer Wine Soft Drinks Dyes
Body Material	Kynar
Inlet Connection	1/8" FPT
Max Pressure (Psi)	250
Max Temp (°F)	275
Min Pressure (Psi)	Vacuum
Min Temp (°F)	0
Mounting Options	Thread
Outlet Connection	1/8" FPT
Push-In Size	1/4" OD
Seal Material	FKM (Viton)
Series	TrueSeal
Shape	Straight
Size	1/8"
Color / Finish	White
Connection Type	Female (FPT)
Origin	USA
Sub-Type	Female Adapter
Type	Adapter
Warranty & Certifications
Certifications	NSF 51
