Parker

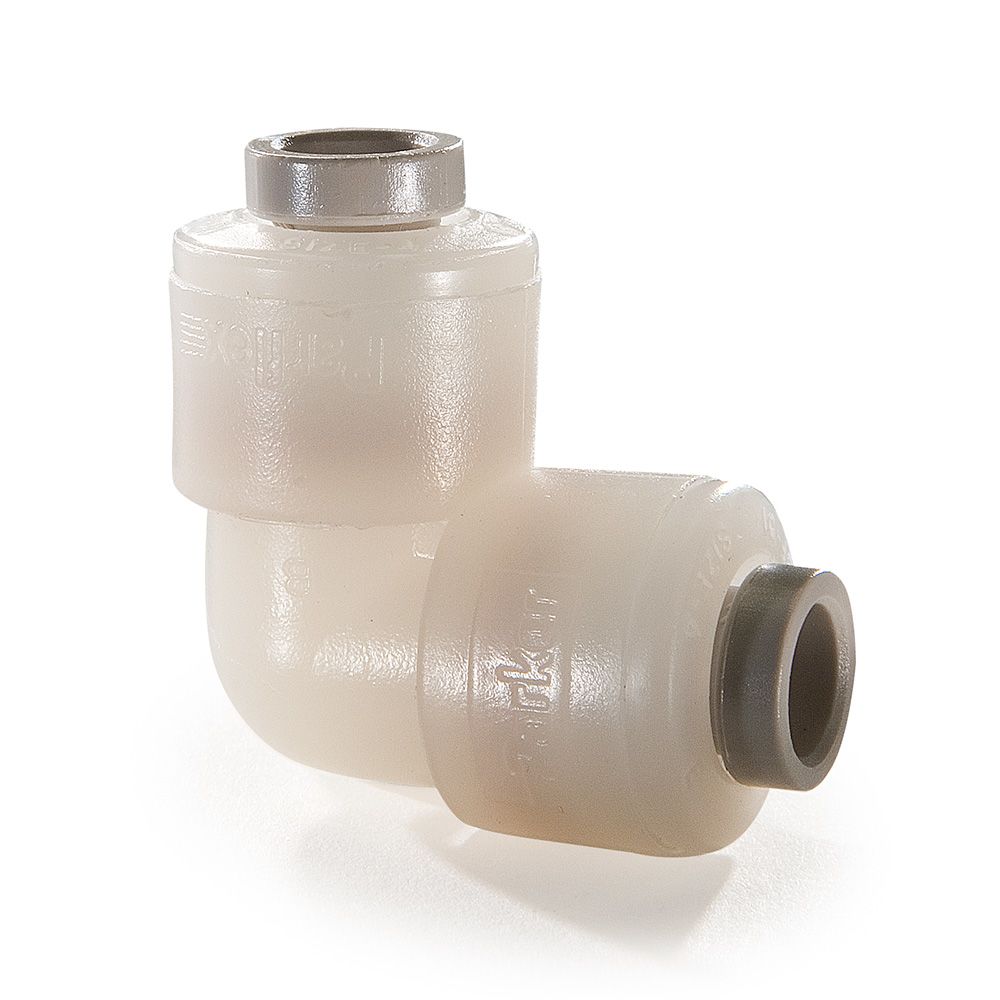

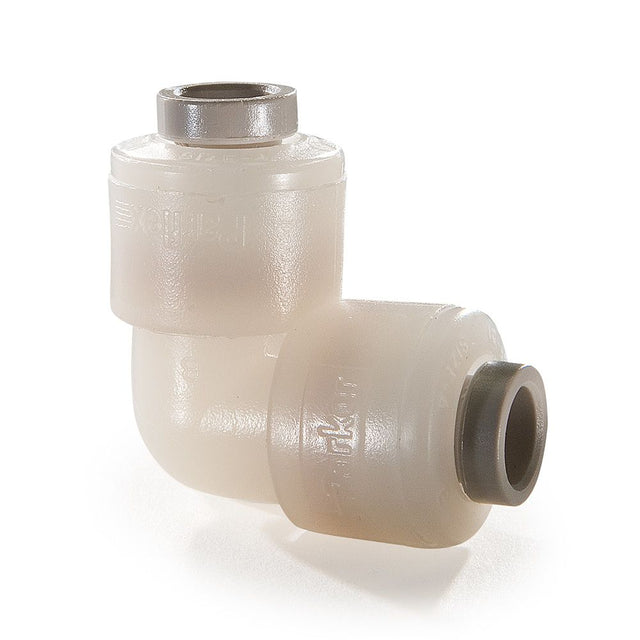

Kynar PVDF Elbow Union - 3/8 x 1/4

Part Number: F6EU4

In Stock

out of stock

Kynar PVDF Elbow Union - 3/8 x 1/4

In Stock

$6.37

Features:
  • Patented Push-to-connect design
  • Chemical Resistance
  • UV Resistance
  • FDA Compliant
Applications:
  • Chemical Processing/Storage
  • Fluid Handling
  • Semiconductor Equipment
  • DI Water Systems
  • High Purity
  • Aquariums
Kynar

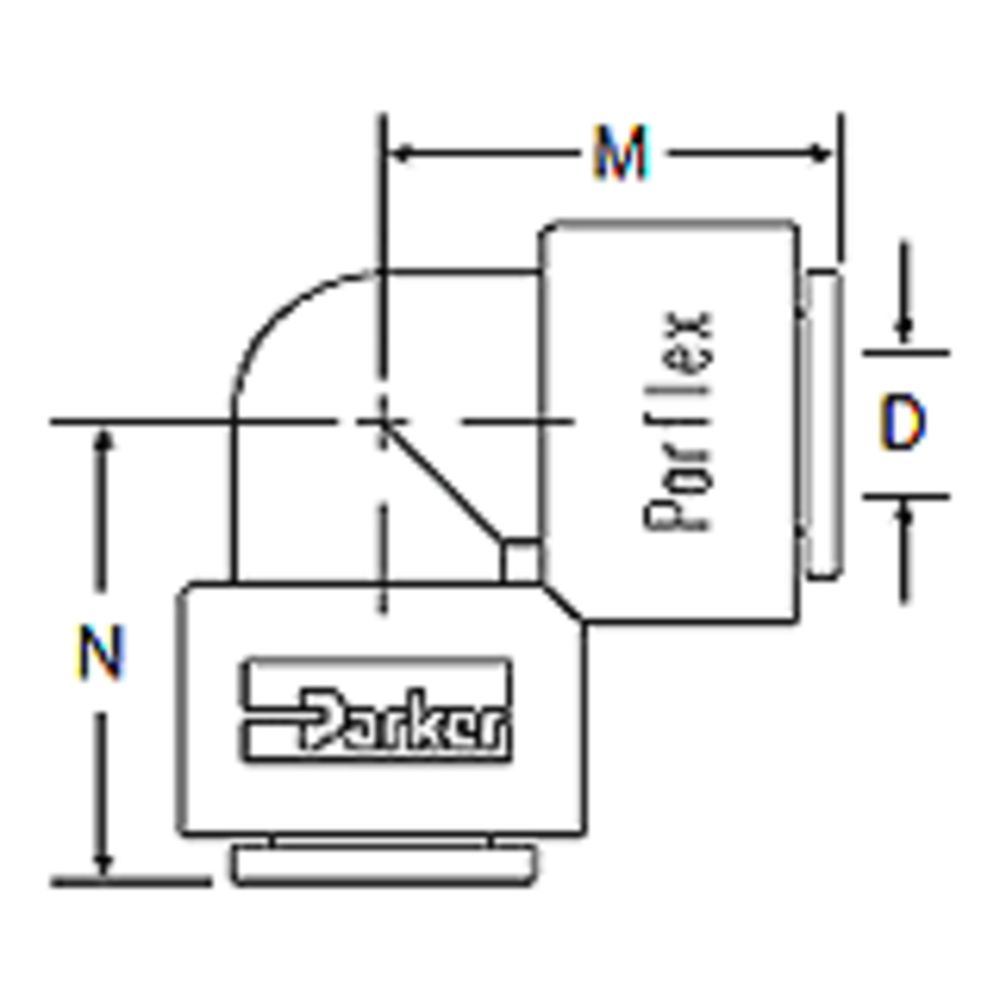

w/Viton Seal 		Tube O.D. M N D
 F4EU4  1/4  0.87  0.87  .175
 F6EU4  3/8 - 1/4  1.02  0.90  .212
 F6EU6  3/8  1.02  1.02  .250


Weight & Dimensions

Approx Weight

0.0287 Lbs

Details

Application

Filtration, Food Process, Dispensing

Body Material

PVDF

Color / Finish

Natural

Operating Pressure Range

300 PSI

Operating Temperature Range

0-275

Warranty & Certifications

Certifications

NSF 51


Kynar



Features:
  • Patented Push-to-connect design
  • Chemical Resistance
  • UV Resistance
  • FDA Compliant
Applications:
  • Chemical Processing/Storage
  • Fluid Handling
  • Semiconductor Equipment
  • DI Water Systems
  • High Purity
  • Aquariums
Kynar
w/Viton Seal 		Tube O.D. M N D
 F4EU4  1/4  0.87  0.87  .175
 F6EU4  3/8 - 1/4  1.02  0.90  .212
 F6EU6  3/8  1.02  1.02  .250

Weight & Dimensions

Approx Weight

0.0287 Lbs

Details

Application

Filtration, Food Process, Dispensing

Body Material

PVDF

Color / Finish

Natural

Operating Pressure Range

300 PSI

Operating Temperature Range

0-275

Warranty & Certifications

Certifications

NSF 51

Documentation
Kynar
Reviews
