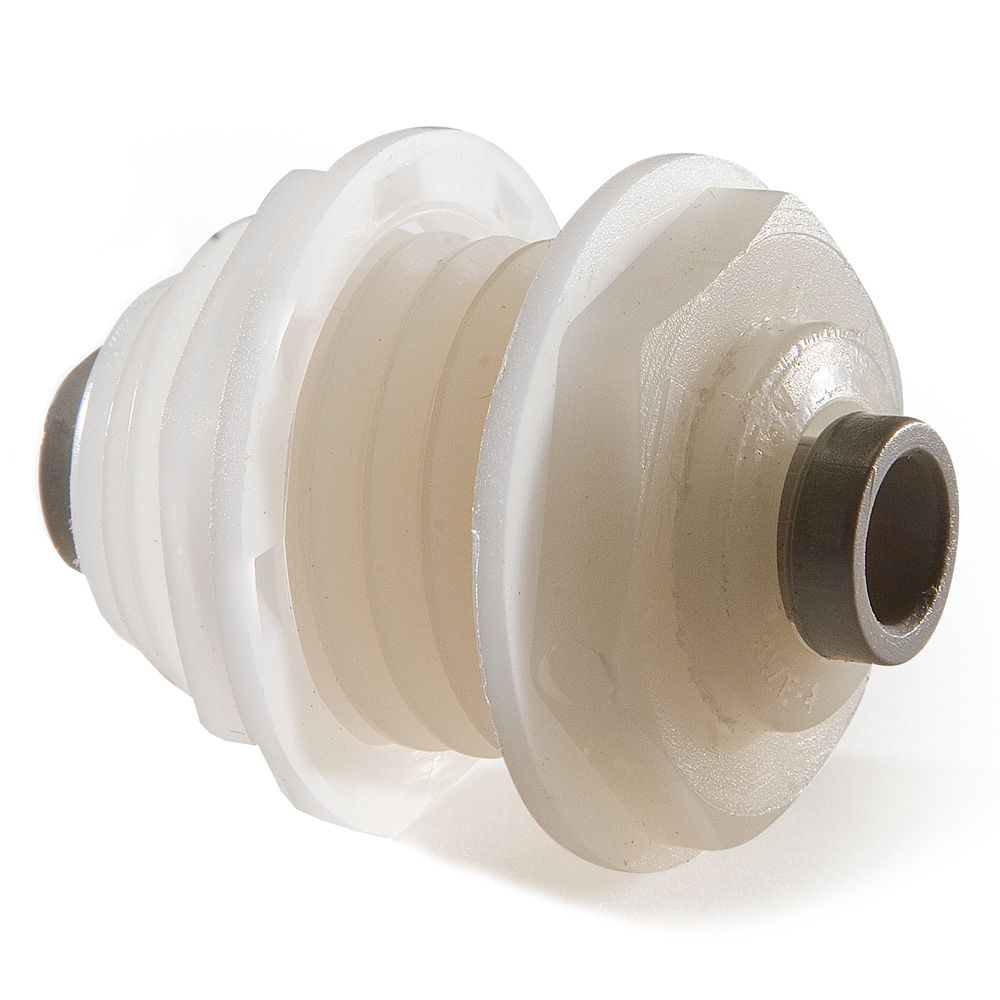

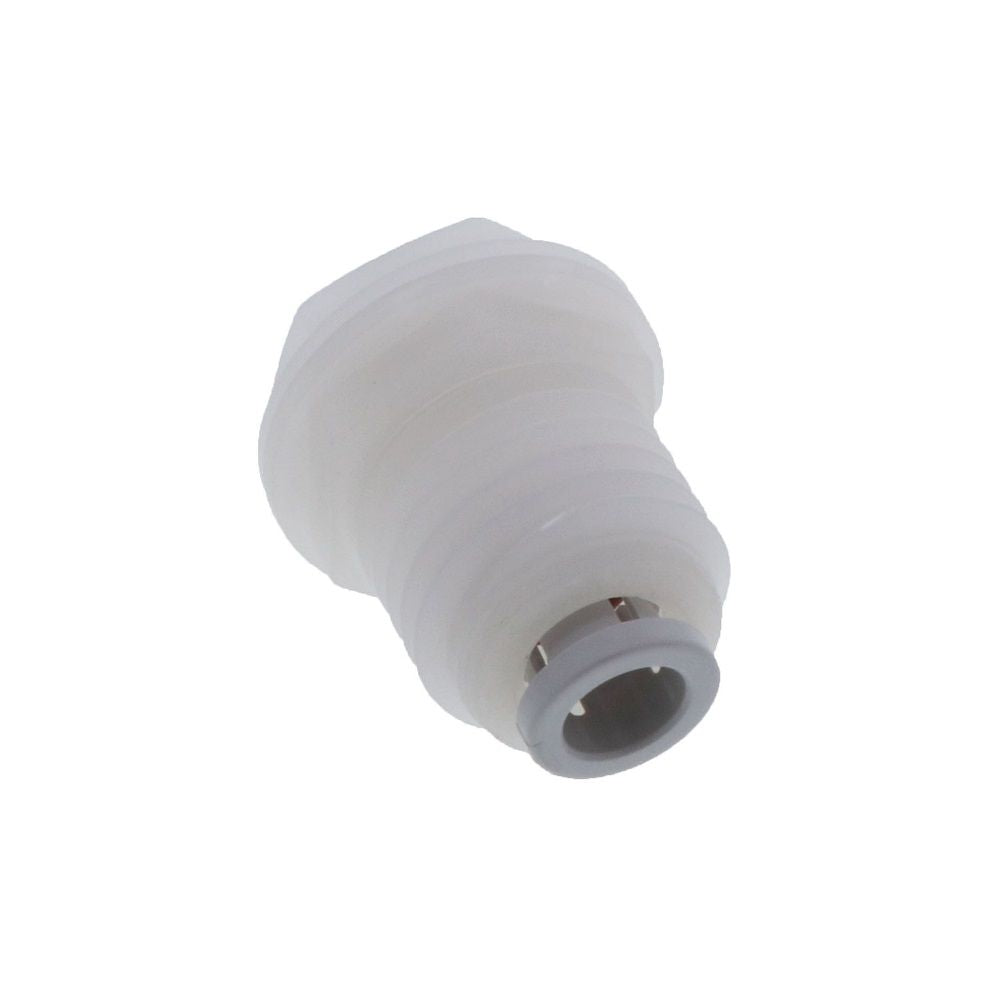

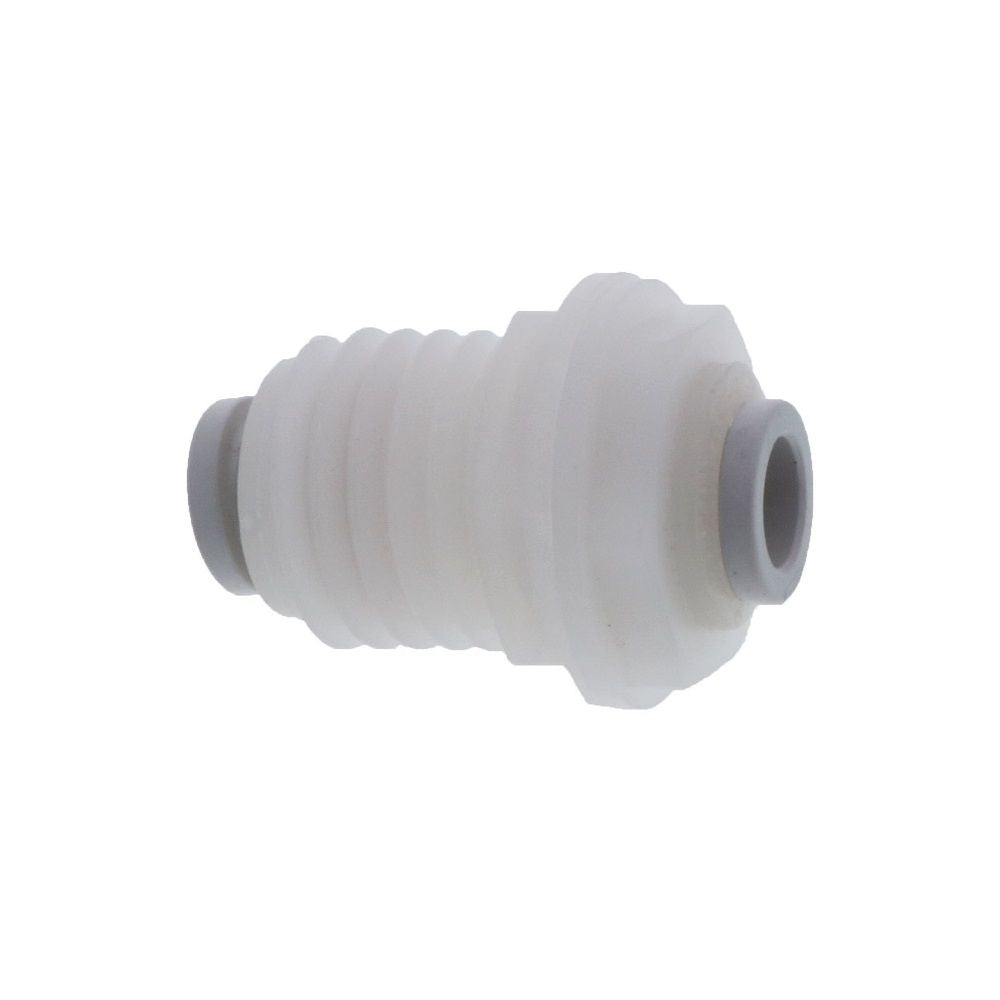

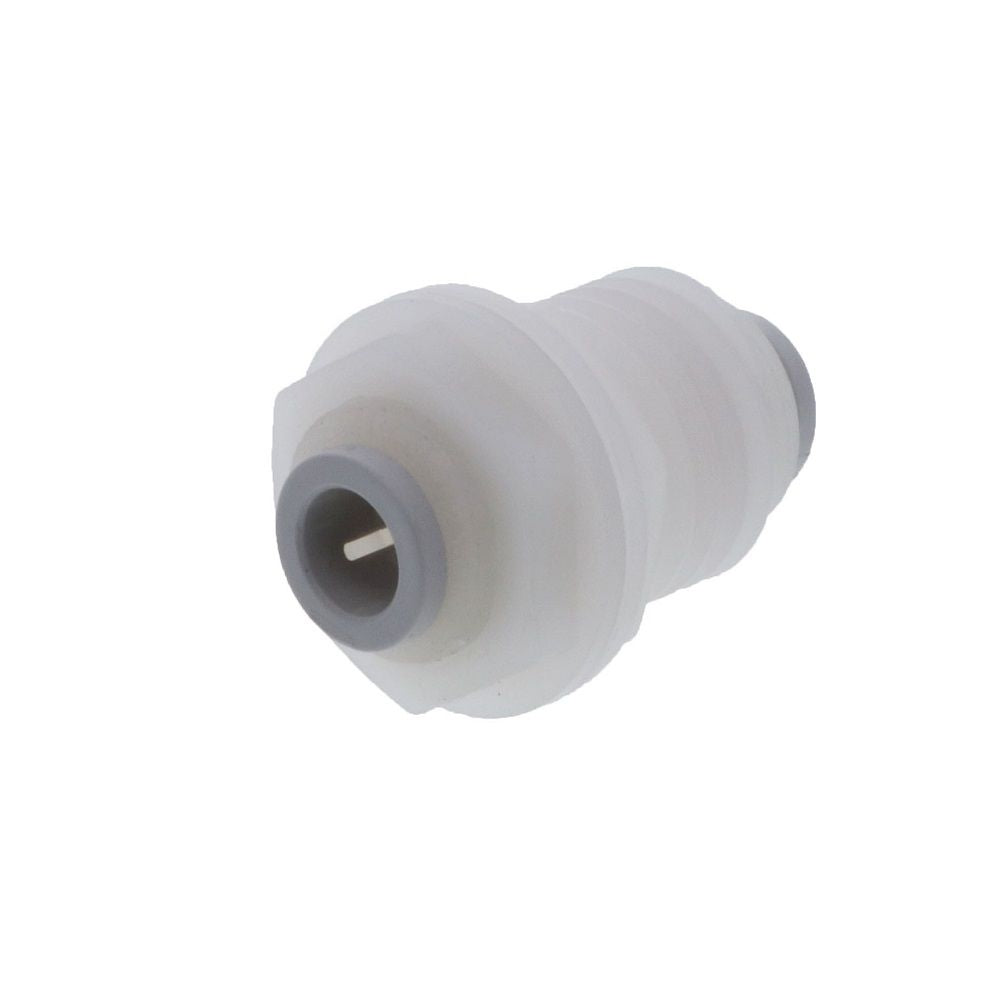

Kynar PVDF Bulkhead Union - 3/8 x 3/8

Parker's liquifit fittings ensure reliable and compact connections for liquid transfer applications. Liquifit offers an "eco-designed" innovative alternative for water applications; no fluid contamination occurs and environmental protection is guaranteed.

Features:

Patented Push-to-connect design
Chemical Resistance
UV Resistance
FDA Compliant

Applications:

Chemical Processing/Storage
Fluid Handling
Semiconductor Equipment
DI Water Systems
High Purity
Aquariums

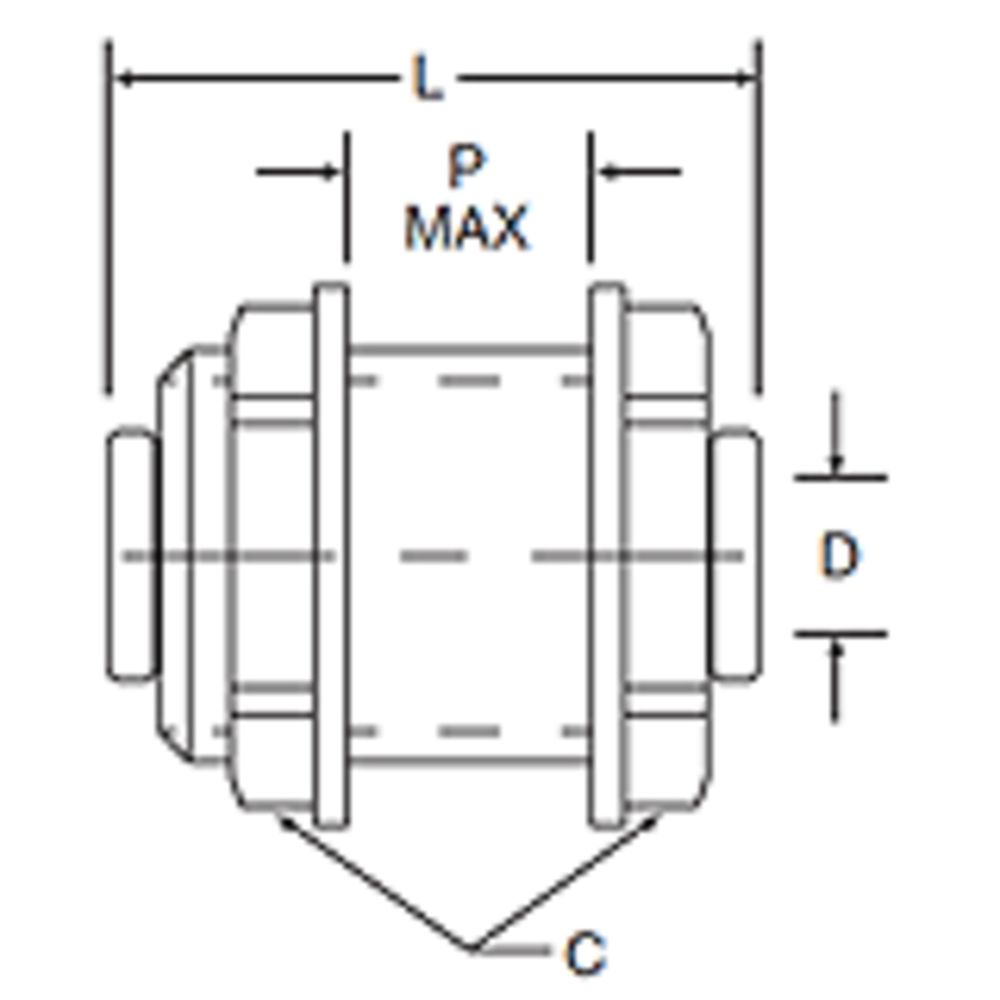

Kynar w/Viton Seal	Tube O.D.	C Hex	L	P	D	Hole Drill Size
F4BU4	1/4	15/16	1.50	0.50	.175	7/8
F6BU6	3/8	1-1/16	1.02	0.90	.212	1

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water Air Beverage Beer Wine Soft Drinks Dyes
Body Material	Kynar
Max Pressure (Psi)	250
Max Temp (°F)	275
Min Pressure (Psi)	Vacuum
Min Temp (°F)	0
Mounting Options	Panel Mount
Push-In Size	1/4" OD
Seal Material	FKM (Viton)
Series	TrueSeal
Shape	Straight
Color / Finish	White
Origin	U.S.A.
Sub-Type	Union Bulkhead
Type	Bulkhead
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51

Product Details
Application	Water Air Beverage Beer Wine Soft Drinks Dyes
Body Material	Kynar
Max Pressure (Psi)	250
Max Temp (°F)	275
Min Pressure (Psi)	Vacuum
Min Temp (°F)	0
Mounting Options	Panel Mount
Push-In Size	1/4" OD
Seal Material	FKM (Viton)
Series	TrueSeal
Shape	Straight
Color / Finish	White
Origin	U.S.A.
Sub-Type	Union Bulkhead
Type	Bulkhead
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
