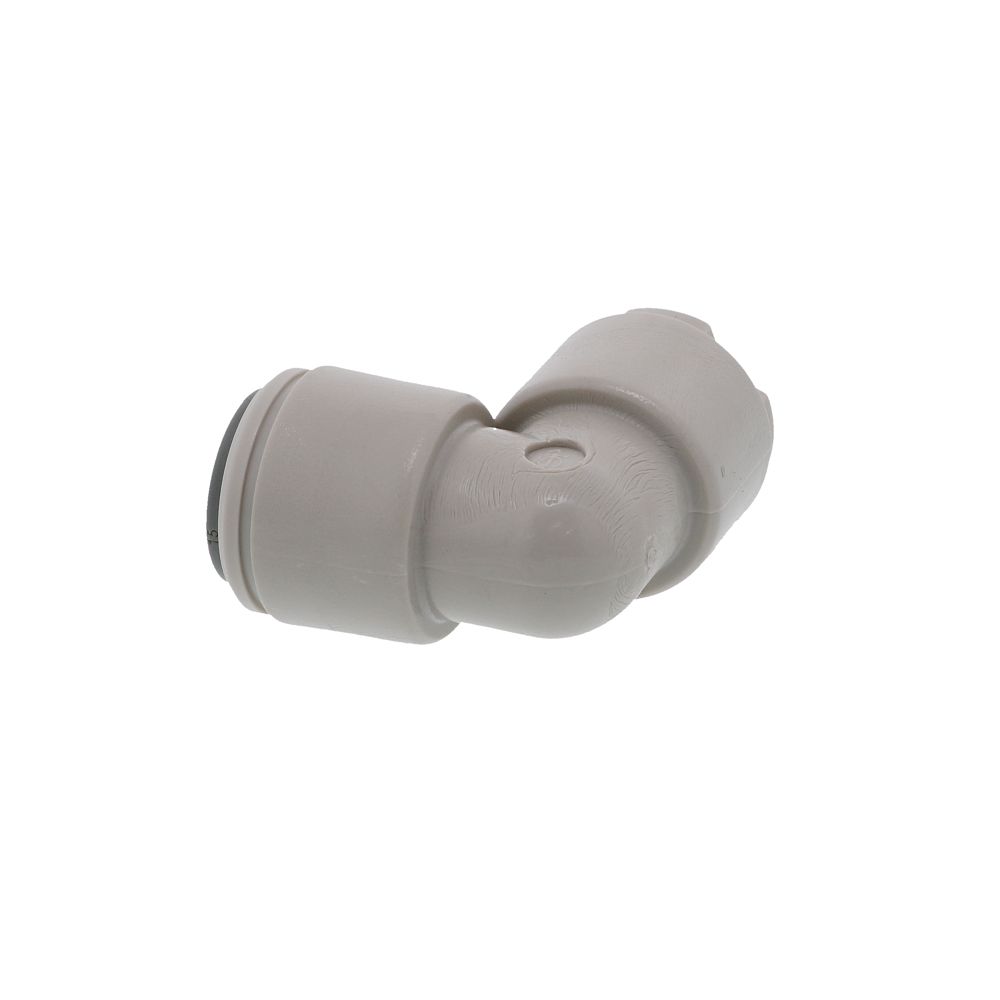

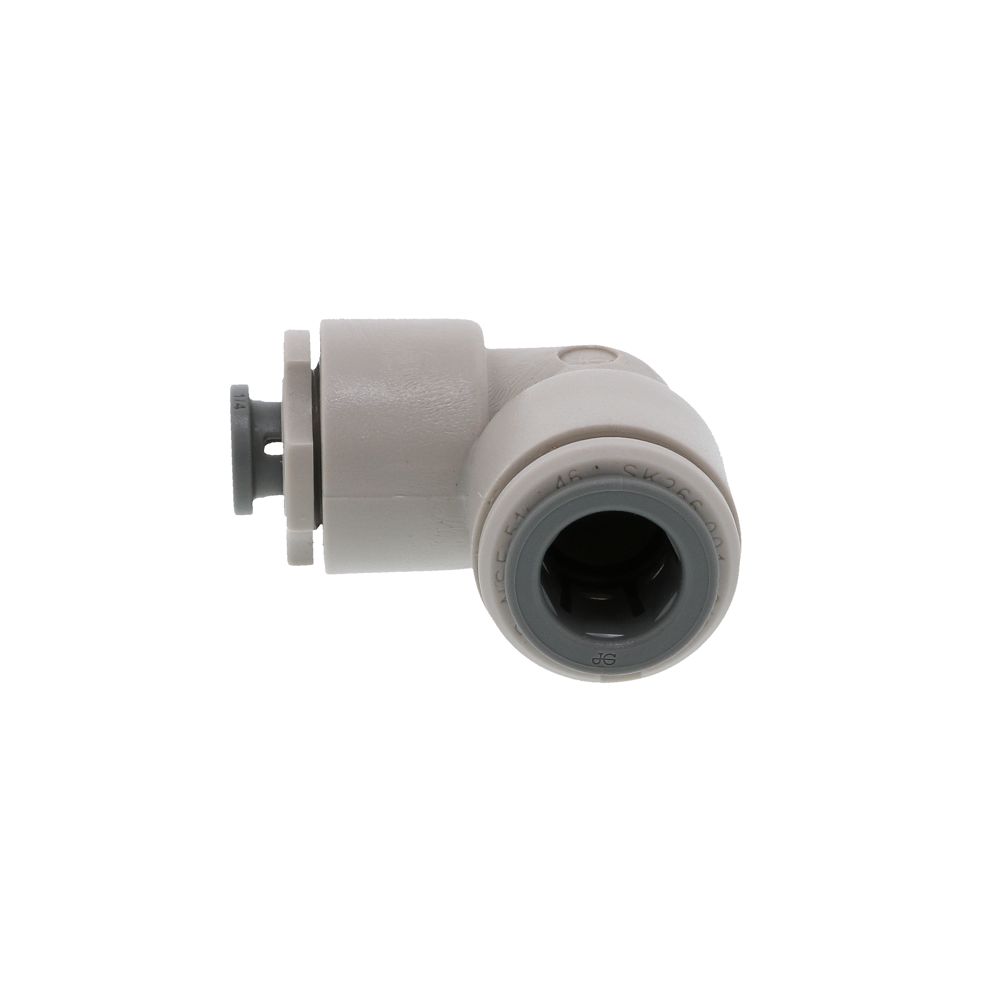

John Guest Superseal Elbow - 1/4 Superseal x 3/8

Part Number: SI030812S Alt. Part Number: SI030812S

1 3

John Guest

John Guest Superseal Elbow - 1/4 Superseal x 3/8

Part Number: SI030812S Alt. Part Number: SI030812S

MSRP: $7.87

$4.73

Quantity

Unit Price

Price

Savings

$4.73

—

$4.24

$42.42

10%

150

$4.12

$618.58

12%

Product variants

You May Also Need

Optional Accessory

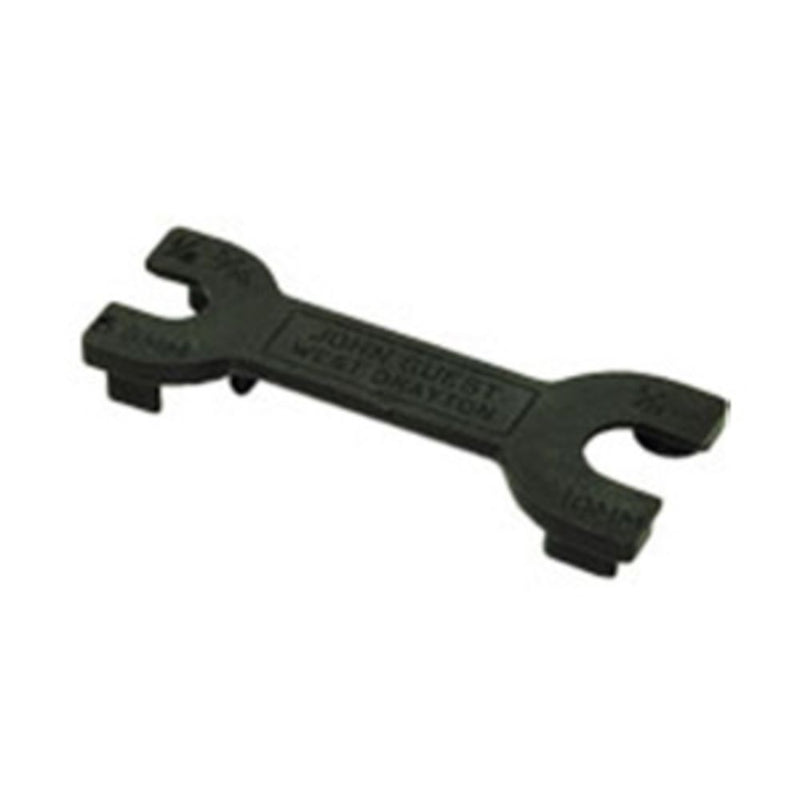

John Guest Spanner - 5/16 Superseal & 3/8 Superseal

Regular price From $5.54
Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The John Guest SuperSeal union elbow is specifically designed to provide extra grip on stainless steel tubing. Each fitting in this series features a collet with integrally molded stainless steel teeth and a hand-operated nut and wedge-shaped plastic washer that applies extra pressure to the collet and the double O-ring seals. This allows the collet teeth to bite thoroughly into the tube to provide grip, while at the same time, compressing the O-rings to further improve the seal.

Features:

Used to connect stainless steel tubing
Acetal body with double Nitrile O-Rings
The nut and wedge-shaped plastic washer apply extra pressure to the collet and the double O-ring seals
Connect, disconnect, and reconnect in seconds without tools
Food Quality and suitable for potable liquids and pure water applications
Made with lead free materials

Working pressure and temperature:

Max. 150 psi at 68° F
Max. 100 psi at 150° F

View Prop 65 Warning

Specifications

Product Details
Max Pressure (Psi)	150
Max Temp (°F)	150°F
Min Temp (°F)	33°F
Push-In Size	3/8" OD
Series	SuperSeal
Shape	Elbow
Color / Finish	Gray
Sub-Type	Reducer Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	1.375 in.
Shipping Width	1.375 in.
Shipping Height	0.75 in.
Product Weight & Dimensions
Product Height	0.75 in.
Product Length	1.375 in.
Product Width	1.375 in.
Product Weight (lbs)	0.0338

Product Details
Max Pressure (Psi)	150
Max Temp (°F)	150°F
Min Temp (°F)	33°F
Push-In Size	3/8" OD
Series	SuperSeal
Shape	Elbow
Color / Finish	Gray
Sub-Type	Reducer Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	4.724 in.
Shipping Width	0.787 in.
Shipping Height	6.693 in.
Product Weight & Dimensions
Product Weight (lbs)	0.3379

Product Details
Max Pressure (Psi)	150
Max Temp (°F)	150°F
Min Temp (°F)	33°F
Push-In Size	3/8" OD
Series	SuperSeal
Shape	Elbow
Color / Finish	Gray
Sub-Type	Reducer Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	11.024 in.
Shipping Width	10.236 in.
Shipping Height	3.937 in.
Product Weight & Dimensions
Product Weight (lbs)	5.07

Downloads

John Guest Superseal Elbow - 1/4 Superseal x 3/8 Manual

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

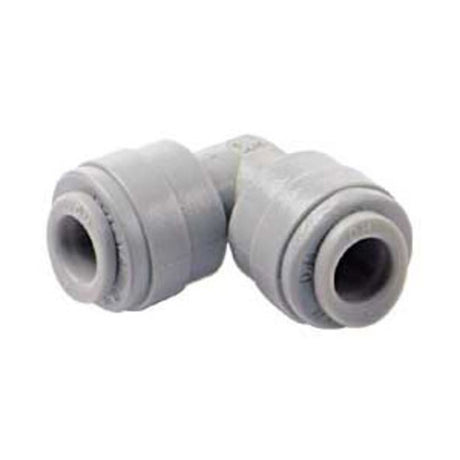

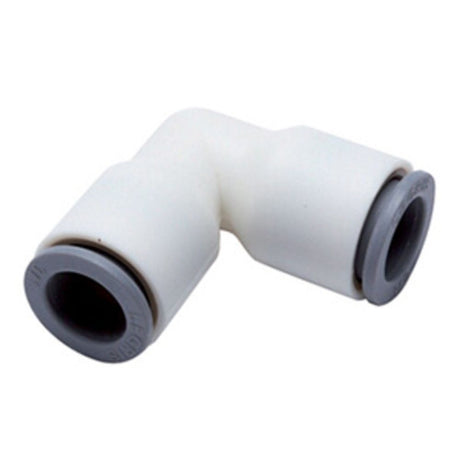

Facet	John Guest John Guest Superseal Elbow - 1/4 Superseal x 3/8 Regular price From $4.73 Part #: SI030812S Save up to 12% with bulk pricing Current Product	DMFit DMfit Elbow Union - 3/8 Push-in x 1/4 Push-in Regular price From $2.77 Part #: AEU0604 Save up to 18% with bulk pricing View details	Parker Parker LIQUIfit Union Elbow - 1/4 x 3/8 Regular price From $3.24 Low stock Part #: 6302-56-60WP2 Save up to 5% with bulk pricing View details
