John Guest

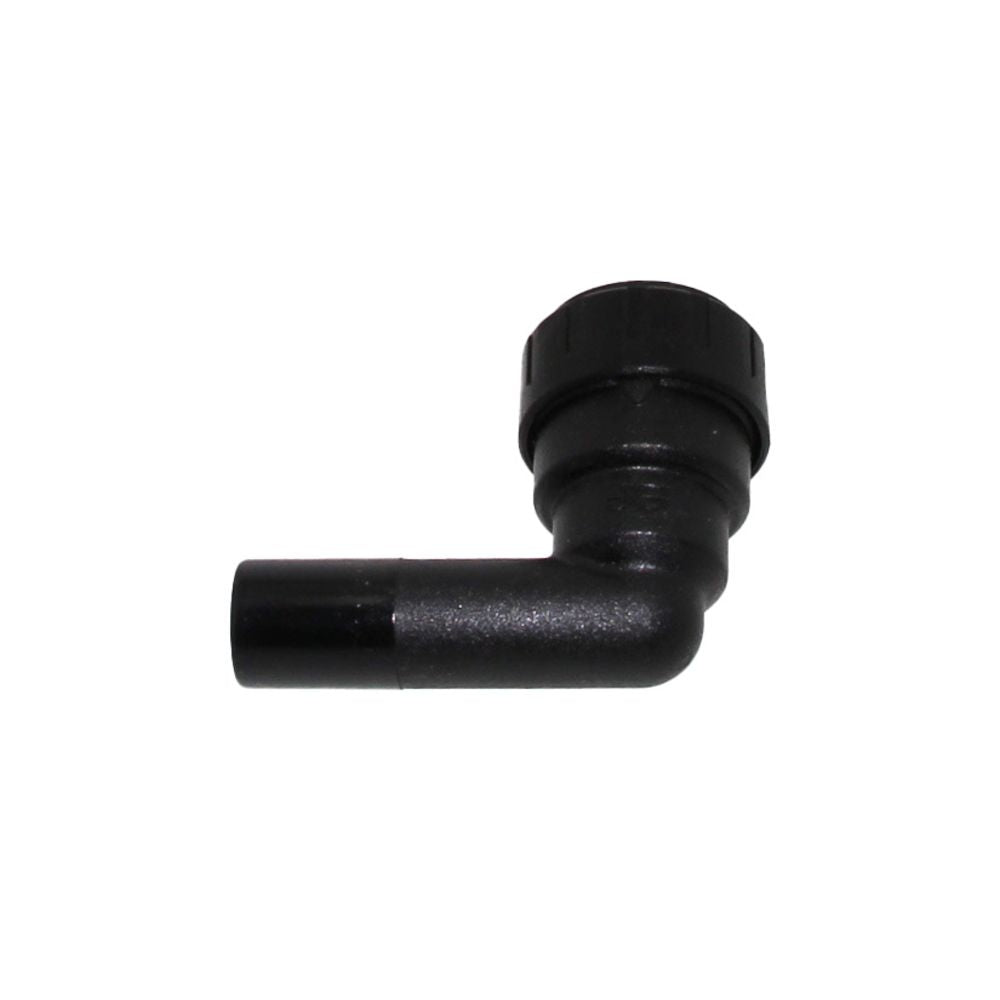

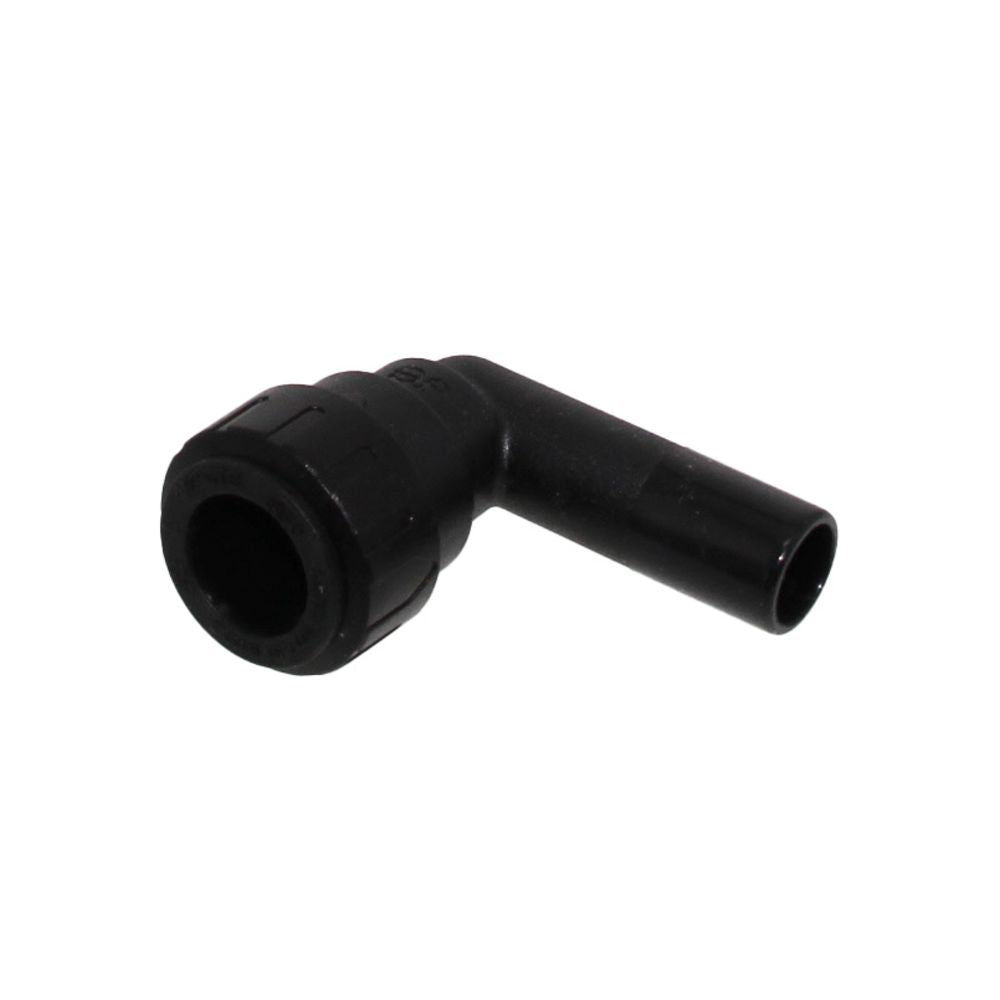

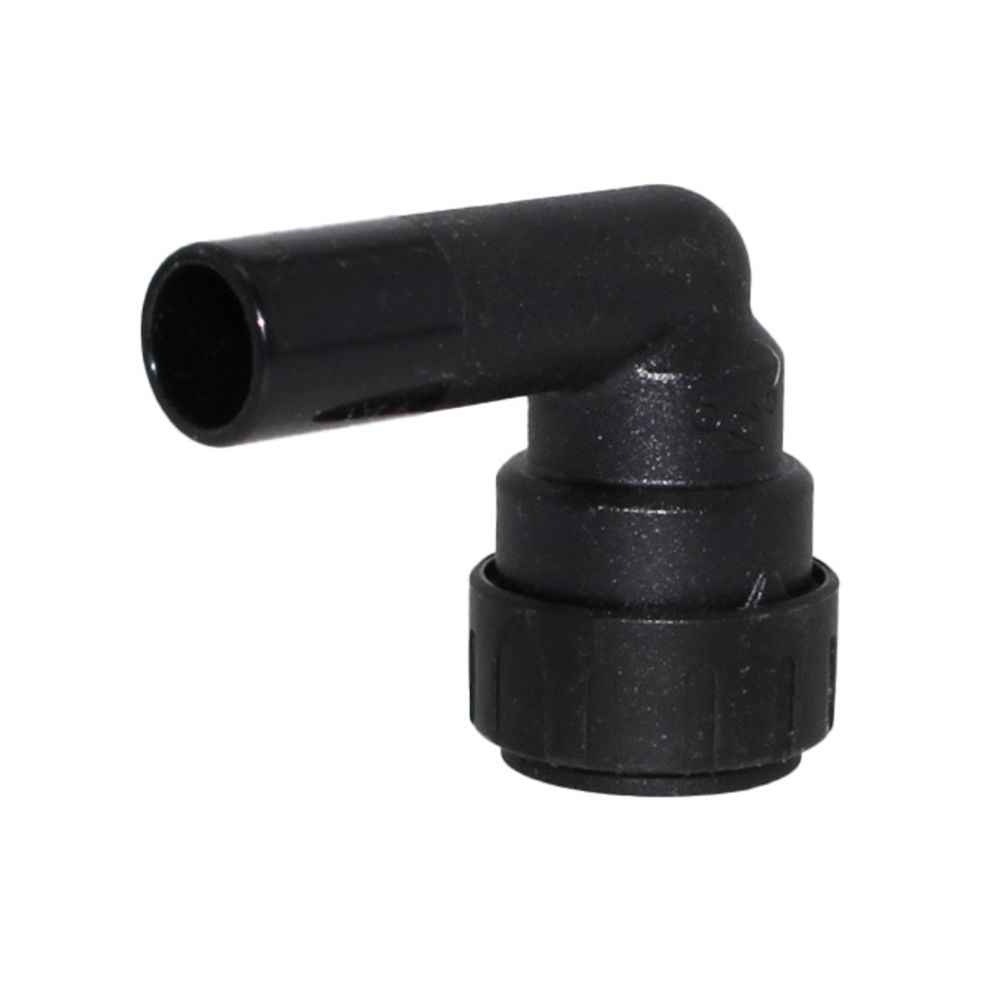

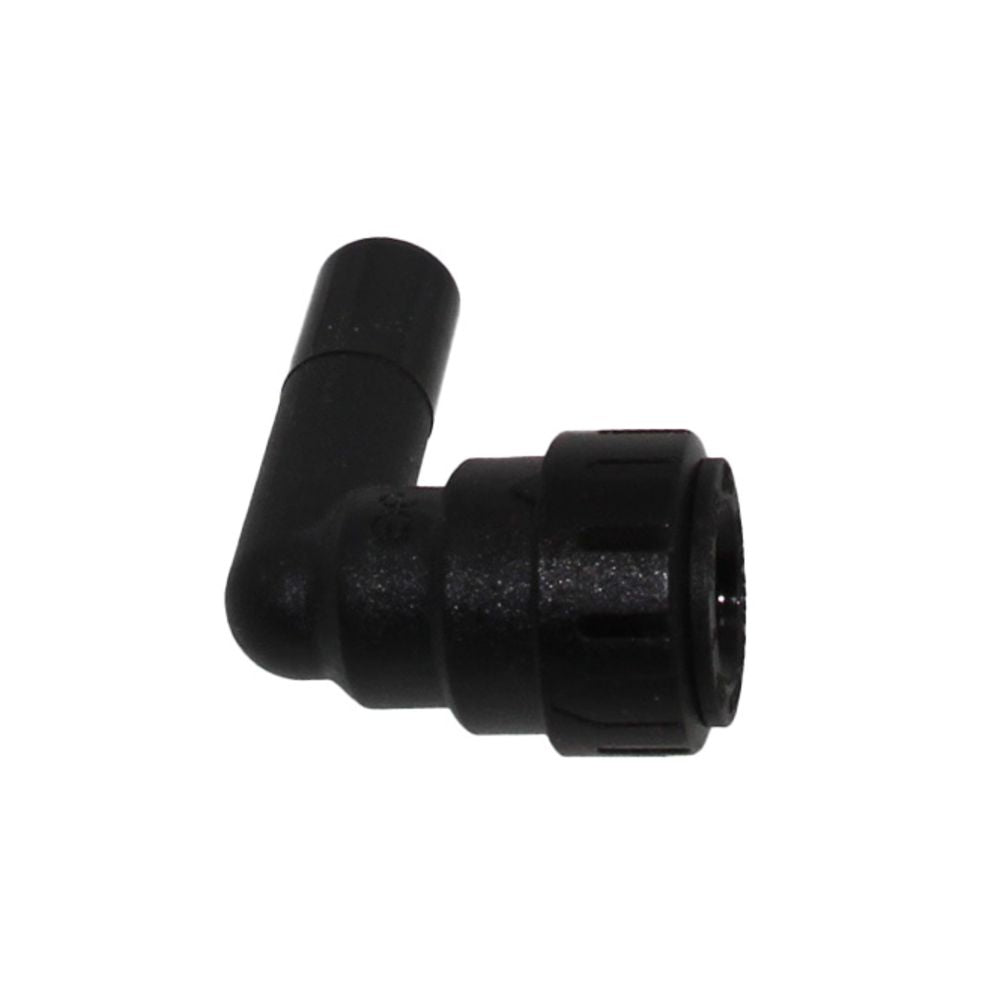

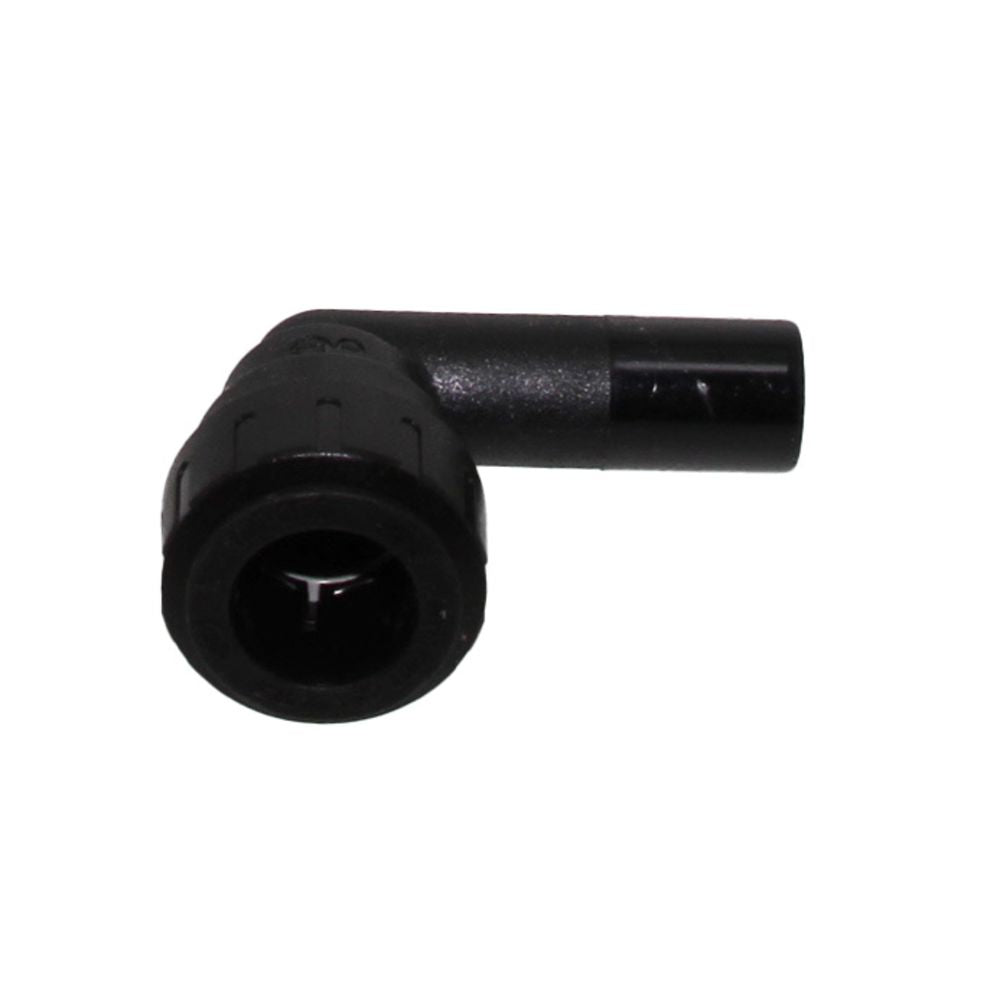

John Guest ProLock Plug In Elbow - 1 CTS

Part Number: PSEI223636E

In Stock

out of stock

In Stock

$8.99

JG ProLock™ fittings use a collet with stainless steel teeth that grips the pipe when fully inserted and an O-ring to provide a permanent, leak-proof seal. When twisted into place, the locking cap locks the pipe in place and creates an audible click, ensuring maximum security. No tools, soldering, clamps or glue are ever required.
Features:
  • Full flow
  • Lead-free
  • UV resistant
  • Code-approved
  • 25-years warranty
  • Approved for behind-wall use
  • For use with copper, PEX and CPVC
  • Twist-to-lock technology provides added security
NOTE:Suitable for hot & cold potable water and hydronic heating applications

John Guest ProLock Ascriptions

Tubing Standards:
  • Copper - ASTM B 88
  • PEX - ASTM F876 / CSA B137.5
  • CPVC - ASTM D2846 / CSA B137.6
Warranty:
  • 25 Year Warranty against defects in materials and manufacturing.
Code Compliance:
  • Uniform Plumbing Code (UPC)
  • International Plumbing Code (IPC)
  • National Plubing Code of Canada
  • ASSE1061-2011
  • ASTM F877-2011
  • NSF Standard 61
Specifications:
  • Material: Polysulfone
  • Bag Quantity: 5
  • Box Quantity: 20
  • Connections: 1" Stem x 1" CTS
  • O-rings: EPDM
  • Type: Plug-In Elbow


Application Max Working Pressure Max Working Temperature
Water
Water
Water
160 PSI
100 PSI
80 PSI
73° F
180° F
200° F

Specifications
  • Material: Polysulfone
  • Bag Quantity: 5
  • Box Quantity: 20
  • Connections: 1" Stem x 1" CTS
  • O-rings: EPDM
  • Type: Plug-In Elbow


Weight & Dimensions

Weight (lbs)

0.18

Details

Series

ProLock

Max Temp (°F)

200

Max Pressure (Psi)

160

Min Temp (°F)

33

Min Pressure (Psi)

0

Push-In Size

1-1/8" OD

Stem Size

1-1/8" OD

Application

Water

Bag Quantity

5

Body Material

Polysulfone

Box Quantity

20

Color / Finish

Black

Mounting Options

Free Floating

Origin

UK

Seal Material

EPDM

Warranty & Certifications

Certifications

NSF 61, NSF 372



JG ProLock™ fittings use a collet with stainless steel teeth that grips the pipe when fully inserted and an O-ring to provide a permanent, leak-proof seal. When twisted into place, the locking cap locks the pipe in place and creates an audible click, ensuring maximum security. No tools, soldering, clamps or glue are ever required.
Features:
  • Full flow
  • Lead-free
  • UV resistant
  • Code-approved
  • 25-years warranty
  • Approved for behind-wall use
  • For use with copper, PEX and CPVC
  • Twist-to-lock technology provides added security
NOTE:Suitable for hot & cold potable water and hydronic heating applications

John Guest ProLock Ascriptions

Tubing Standards:
  • Copper - ASTM B 88
  • PEX - ASTM F876 / CSA B137.5
  • CPVC - ASTM D2846 / CSA B137.6
Warranty:
  • 25 Year Warranty against defects in materials and manufacturing.
Code Compliance:
  • Uniform Plumbing Code (UPC)
  • International Plumbing Code (IPC)
  • National Plubing Code of Canada
  • ASSE1061-2011
  • ASTM F877-2011
  • NSF Standard 61
Specifications:
  • Material: Polysulfone
  • Bag Quantity: 5
  • Box Quantity: 20
  • Connections: 1" Stem x 1" CTS
  • O-rings: EPDM
  • Type: Plug-In Elbow


Application Max Working Pressure Max Working Temperature
Water
Water
Water
160 PSI
100 PSI
80 PSI
73° F
180° F
200° F

Specifications
  • Material: Polysulfone
  • Bag Quantity: 5
  • Box Quantity: 20
  • Connections: 1" Stem x 1" CTS
  • O-rings: EPDM
  • Type: Plug-In Elbow

California residents
see Prop 65 warnings WARNING!
This product contains arsenic known to the State of California to cause cancer and birth defects or other reproductive harm.
.

Weight & Dimensions

Weight (lbs)

0.18

Details

Series

ProLock

Max Temp (°F)

200

Max Pressure (Psi)

160

Min Temp (°F)

33

Min Pressure (Psi)

0

Push-In Size

1-1/8" OD

Stem Size

1-1/8" OD

Application

Water

Bag Quantity

5

Body Material

Polysulfone

Box Quantity

20

Color / Finish

Black

Mounting Options

Free Floating

Origin

UK

Seal Material

EPDM

Warranty & Certifications

Certifications

NSF 61, NSF 372

Reviews
