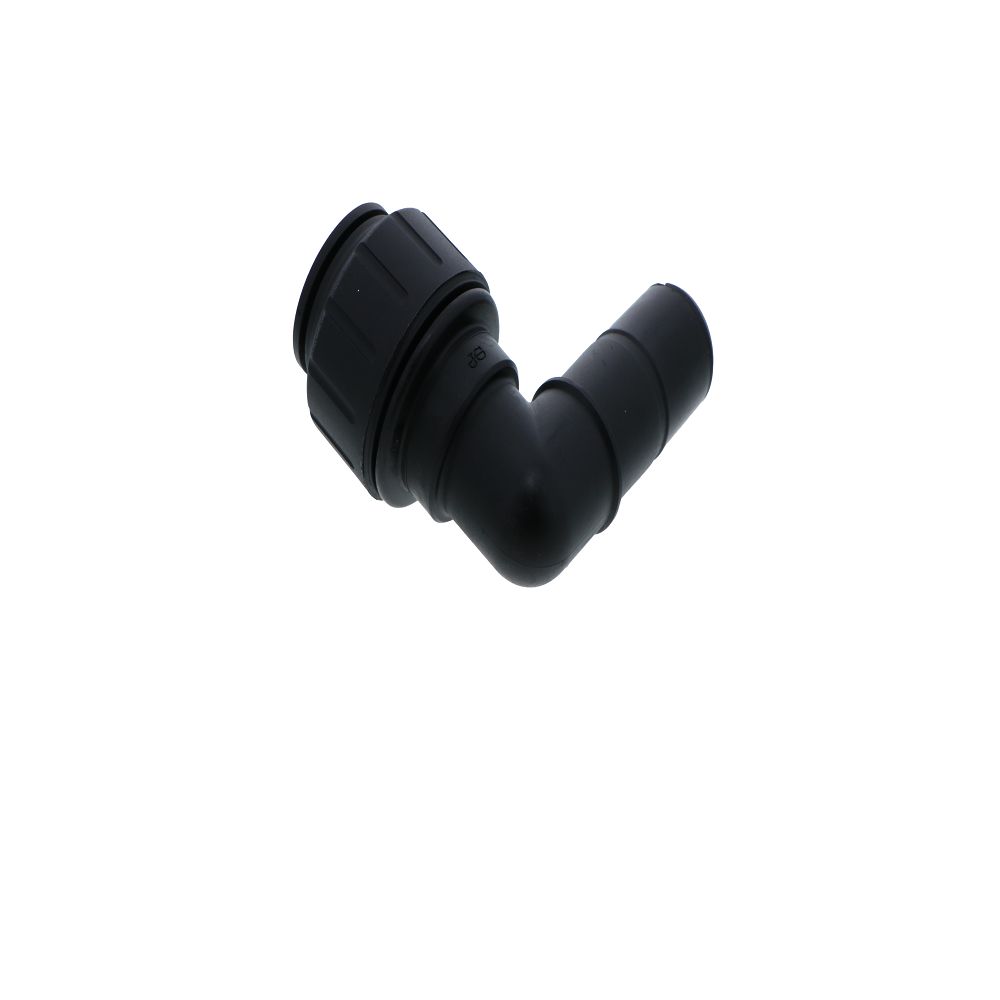

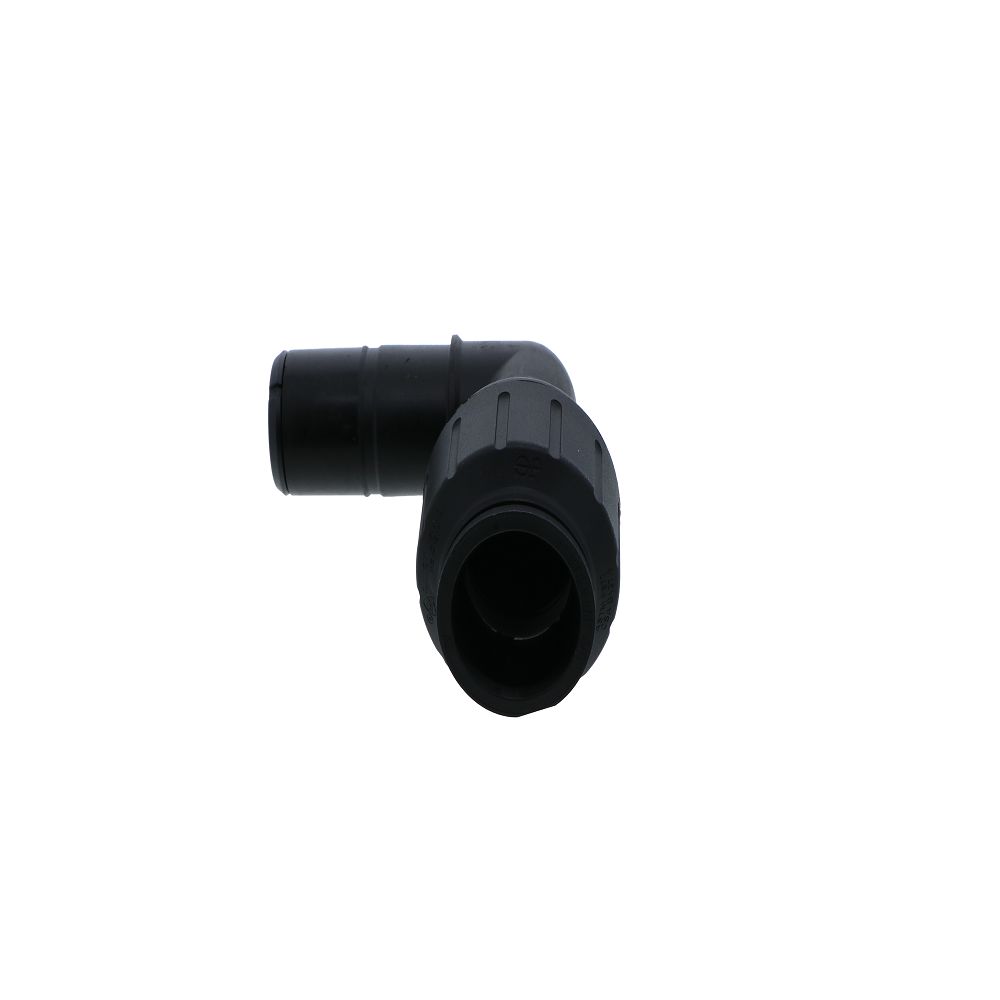

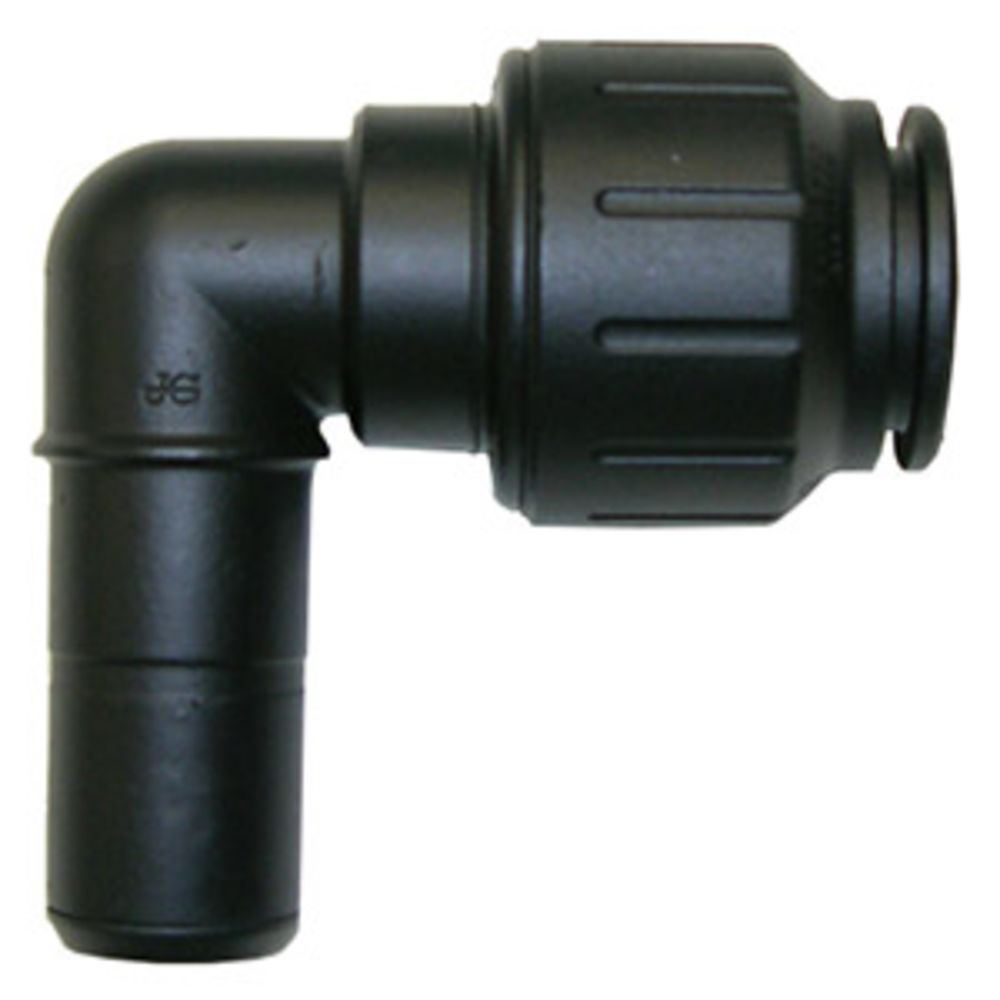

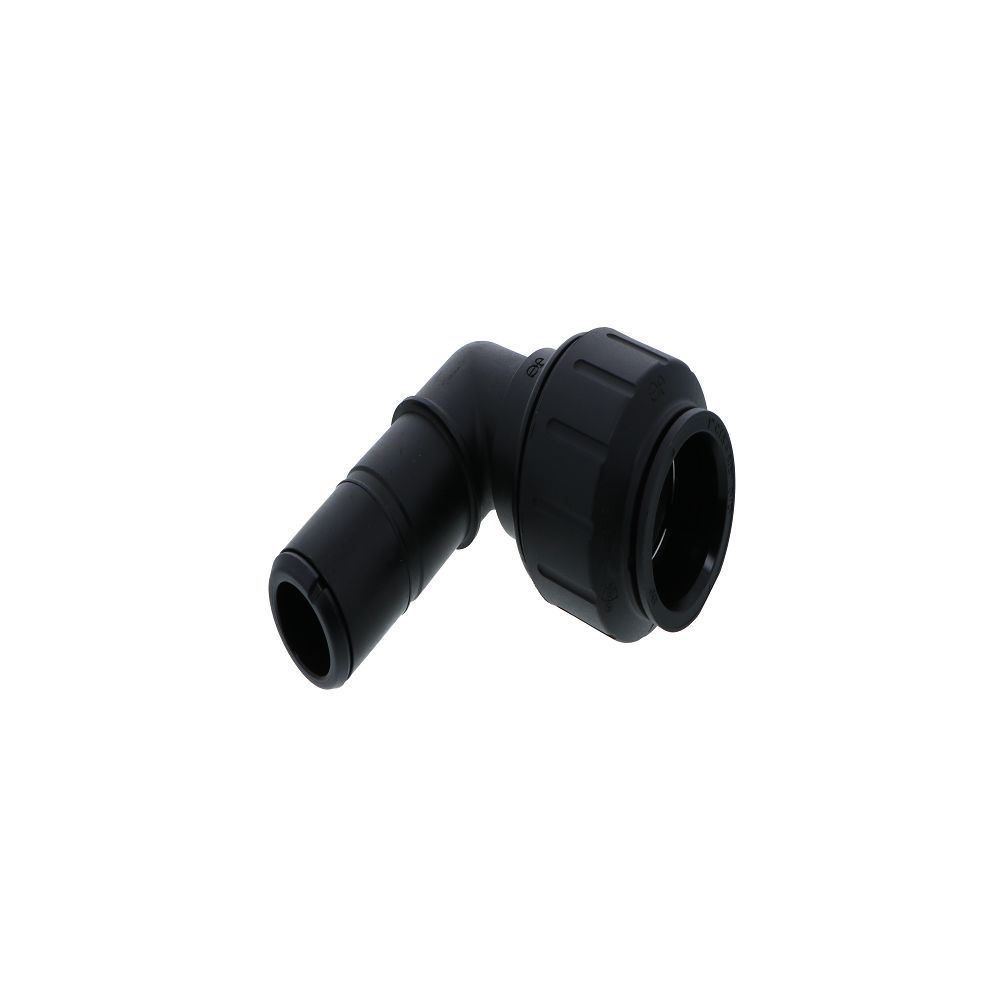

John Guest Black Plug-In Elbow - 1 CTS x 1 Stem
Part Number: PEI223636E
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Features:
- Twist-to-Lock Technology creates reliable, leak-free connections
- For changing the direction of the fitting 90 degrees
- Compatible with copper, PEX and CPVC in any combination
- No tools, soldering, glue or clamps required for installation
- Can be installed on wet lines (hot and cold water)
- Approved for behind-the-wall applications with no access panel
- Can be disconnected as needed
- EPDM O-Rings
- Manufactured in high-quality engineered plastic
- Made with lead free materials
Working pressure and temperature:
- 160 psi at 73° F
- 100 psi at 180° F
- 80 psi at 200° F
Note: Not suitable for compressed air and vacuum applications
Product Details | |
---|---|
Application | CPVC Copper Tubing Material PEX |
Body Material | Polypropylene |
Cts Pipe Size | 1" |
Max Pressure (Psi) | 160 |
Max Temp (°F) | 200 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 33 |
Mounting Options | Free Floating |
Push-In Size | 1-1/8" OD |
Seal Material | EPDM |
Series | PEI |
Shape | 90 |
Stem Size | 1-1/8" OD |
Color / Finish | Black |
Origin | United Kingdom |
Size Type | Common Tube Size (CTS) |
Sub-Type | Tube to Stem Elbow |
Type | Elbow |
Warranty & Certifications | |
Certifications | NSF 61, UPC, NSF 14, NSF 372 |
Product Details | |
---|---|
Application | CPVC Copper Tubing Material PEX |
Body Material | Polypropylene |
Cts Pipe Size | 1" |
Max Pressure (Psi) | 160 |
Max Temp (°F) | 200 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 33 |
Mounting Options | Free Floating |
Push-In Size | 1-1/8" OD |
Seal Material | EPDM |
Series | PEI |
Shape | 90 |
Stem Size | 1-1/8" OD |
Color / Finish | Black |
Origin | United Kingdom |
Size Type | Common Tube Size (CTS) |
Sub-Type | Tube to Stem Elbow |
Type | Elbow |
Warranty & Certifications | |
Certifications | NSF 61, UPC, NSF 14, NSF 372 |
Features:
- Twist-to-Lock Technology creates reliable, leak-free connections
- For changing the direction of the fitting 90 degrees
- Compatible with copper, PEX and CPVC in any combination
- No tools, soldering, glue or clamps required for installation
- Can be installed on wet lines (hot and cold water)
- Approved for behind-the-wall applications with no access panel
- Can be disconnected as needed
- EPDM O-Rings
- Manufactured in high-quality engineered plastic
- Made with lead free materials
Working pressure and temperature:
- 160 psi at 73° F
- 100 psi at 180° F
- 80 psi at 200° F
Note: Not suitable for compressed air and vacuum applications
