John Guest

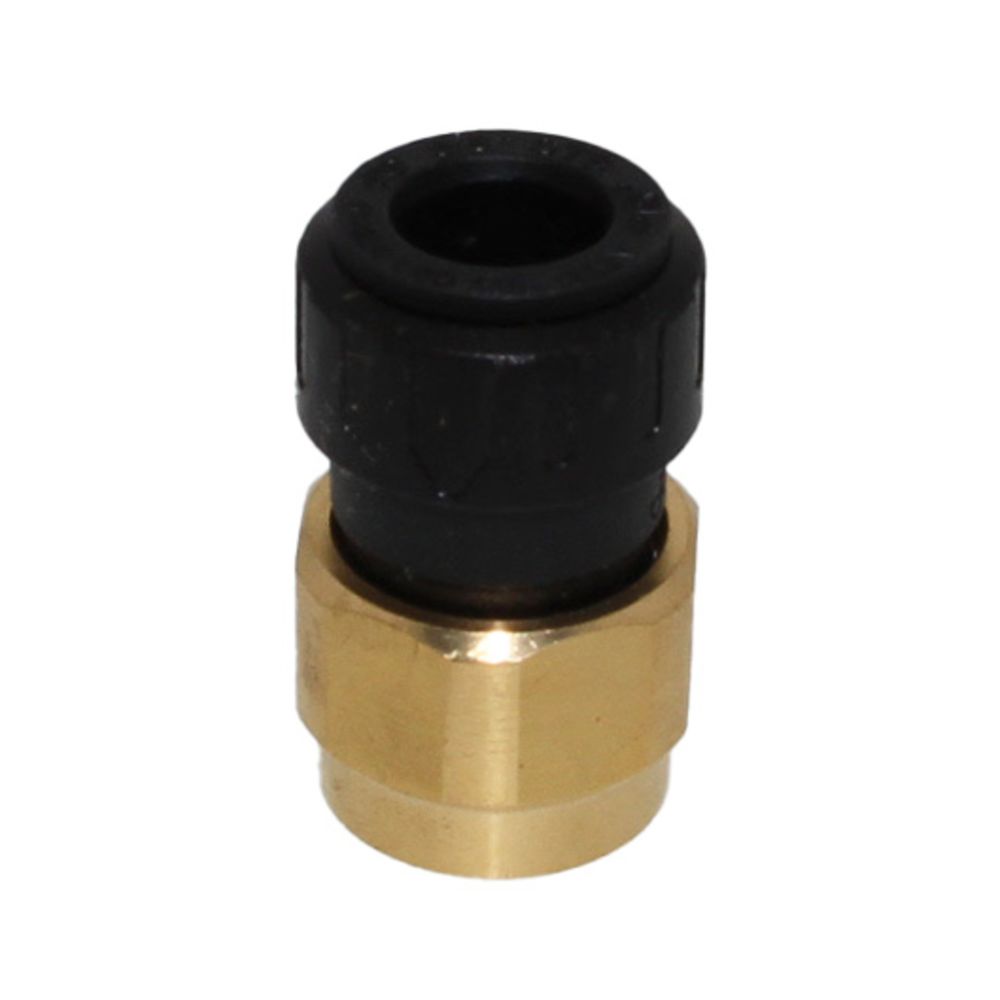

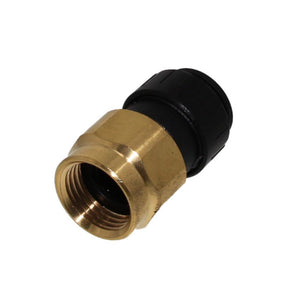

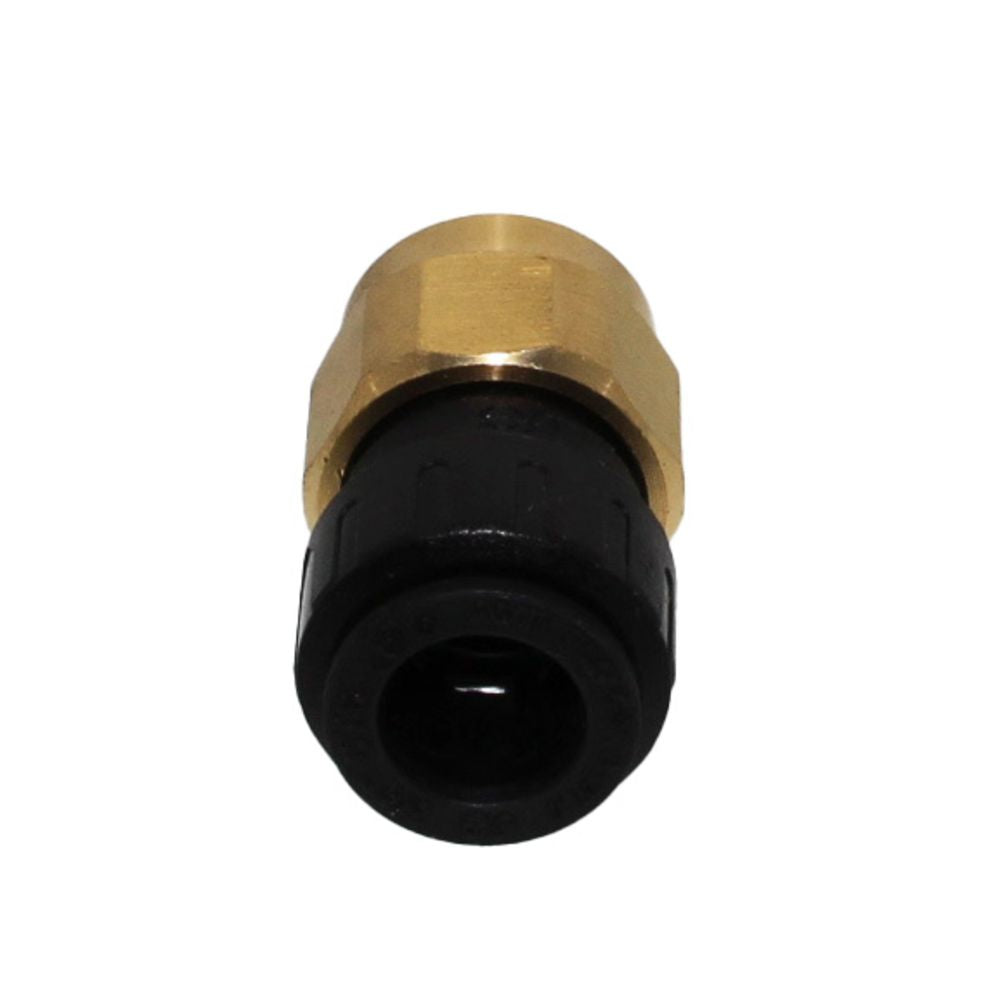

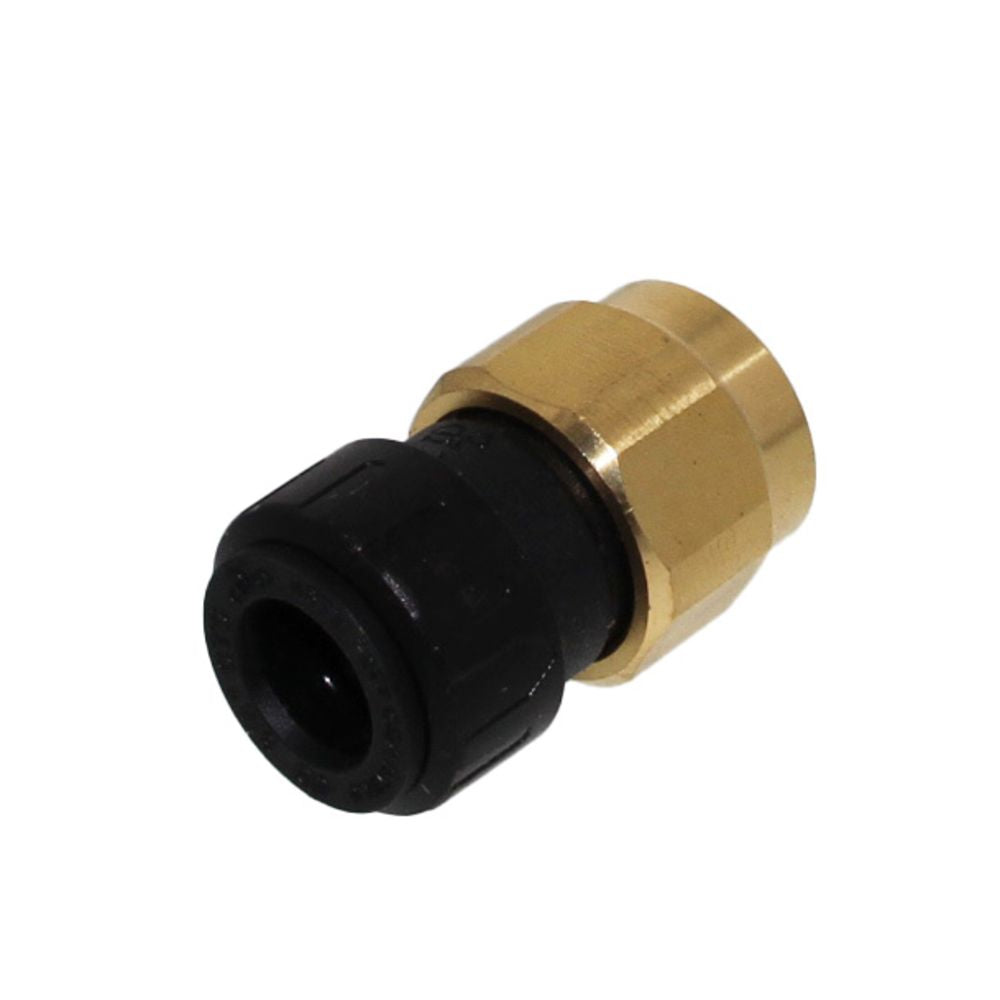

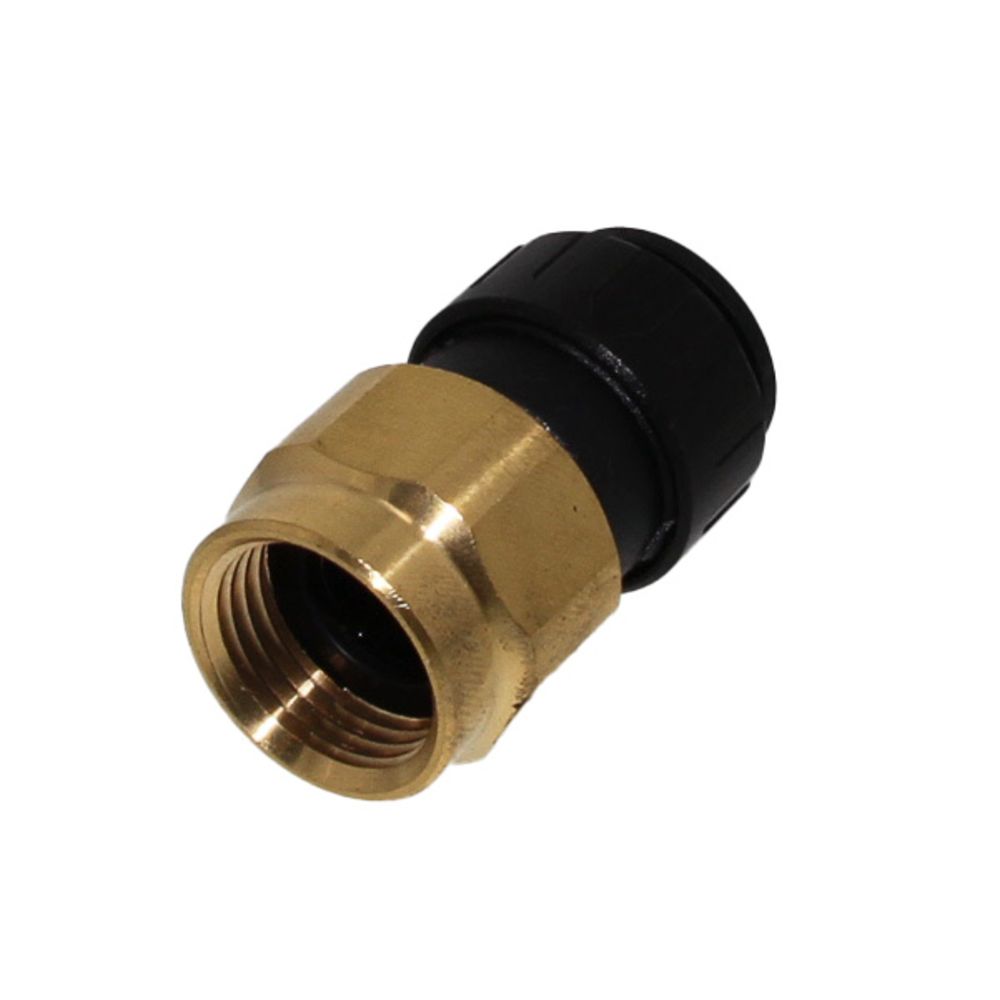

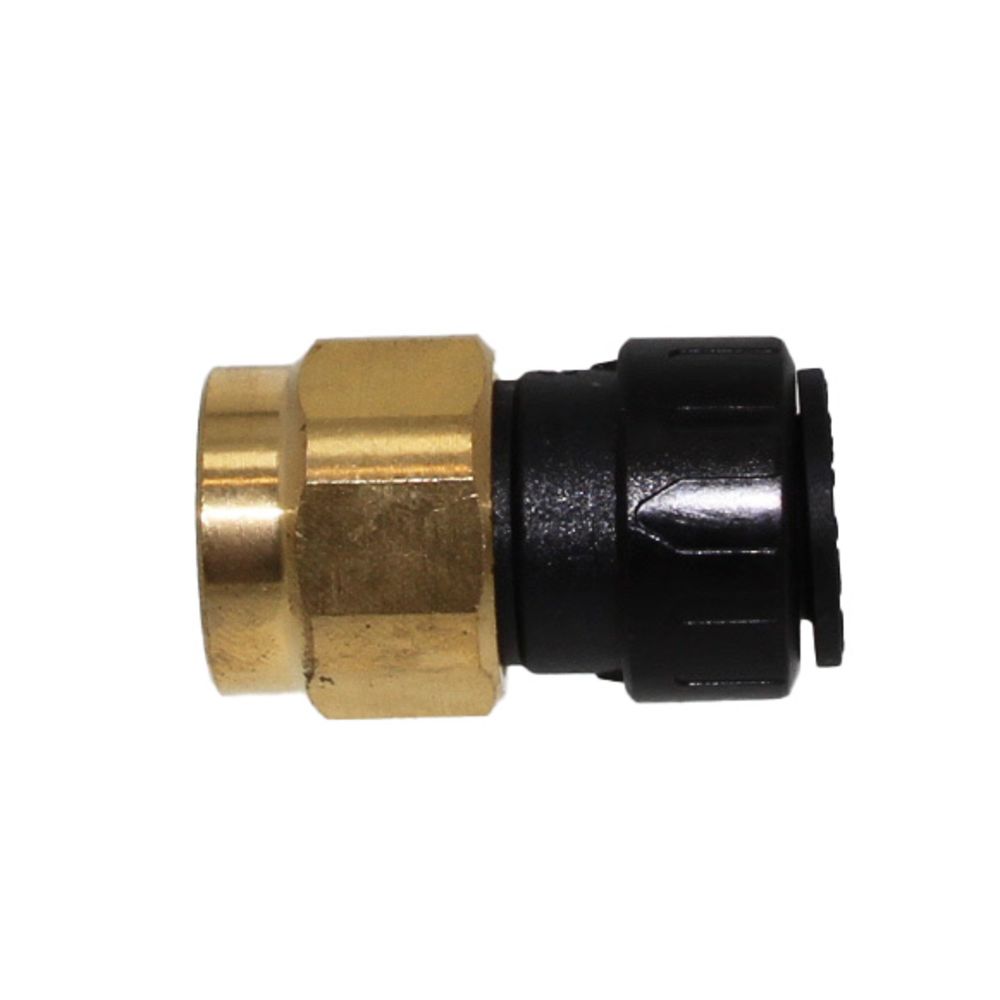

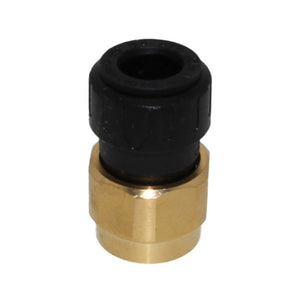

John Guest ProLock Female Connector NPS - 3/4 CTS x 3/4 NPS (Brass Nut)

Part Number: PSEI602836E

In Stock

out of stock

In Stock

$14.09


JG ProLock™ fittings use a collet with stainless steel teeth that grips the pipe when fully inserted and an O-ring to provide a permanent, leak-proof seal. When twisted into place, the locking cap locks the pipe in place and creates an audible click, ensuring maximum security. No tools, soldering, clamps or glue are ever required.

Features:
  • Full flow
  • Lead-free
  • UV resistant
  • Code-approved
  • 25-years warranty
  • Approved for behind-wall use
  • For use with copper, PEX and CPVC
  • Twist-to-lock technology provides added security
John Guest ProLock Ascriptions

Tubing Standards:
  • Copper - ASTM B 88
  • PEX - ASTM F876 / CSA B137.5
  • CPVC - ASTM D2846 / CSA B137.6
Warranty:
  • 25 Year Warranty against defects  in materials and manufacturing.
Code Compliance:
  • Uniform Plumbing Code (UPC)
  • International Plumbing Code (IPC)
  • National Plubing Code of Canada
  • ASSE1061-2011
  • ASTM F877-2011
  • NSF Standard 61
Specifications:
  • Material: Brass
  • Bag Quantity: 5
  • Box Quantity: 30
  • Connections: 3/4" CTS x 3/4" NPS Thread
  • O-rings: EPDM
  • Type: Female Connector

NOTE: Suitable for hot & cold potable water and hydronic heating applications
Application Max Working Pressure Max Working Temperature
Water
Water
Water
160 PSI
100 PSI
80 PSI
73° F
180° F
200° F


Details

Bag Quantity

5

Body Material

Brass

Box Quantity

30

Connections

3/4" CTS x 3/4" NPS

O Rings

EPDM

Operating Pressure Range

80 - 160 PSI

Operating Temperature Range

73 Degrees Fahrenheit

Size

3/4 x 3/4 Inches

Type

Female Connector



Product Videos



JG ProLock™ fittings use a collet with stainless steel teeth that grips the pipe when fully inserted and an O-ring to provide a permanent, leak-proof seal. When twisted into place, the locking cap locks the pipe in place and creates an audible click, ensuring maximum security. No tools, soldering, clamps or glue are ever required.

Features:
  • Full flow
  • Lead-free
  • UV resistant
  • Code-approved
  • 25-years warranty
  • Approved for behind-wall use
  • For use with copper, PEX and CPVC
  • Twist-to-lock technology provides added security
John Guest ProLock Ascriptions

Tubing Standards:
  • Copper - ASTM B 88
  • PEX - ASTM F876 / CSA B137.5
  • CPVC - ASTM D2846 / CSA B137.6
Warranty:
  • 25 Year Warranty against defects  in materials and manufacturing.
Code Compliance:
  • Uniform Plumbing Code (UPC)
  • International Plumbing Code (IPC)
  • National Plubing Code of Canada
  • ASSE1061-2011
  • ASTM F877-2011
  • NSF Standard 61
Specifications:
  • Material: Brass
  • Bag Quantity: 5
  • Box Quantity: 30
  • Connections: 3/4" CTS x 3/4" NPS Thread
  • O-rings: EPDM
  • Type: Female Connector

NOTE: Suitable for hot & cold potable water and hydronic heating applications
Application Max Working Pressure Max Working Temperature
Water
Water
Water
160 PSI
100 PSI
80 PSI
73° F
180° F
200° F

Details

Bag Quantity

5

Body Material

Brass

Box Quantity

30

Connections

3/4" CTS x 3/4" NPS

O Rings

EPDM

Operating Pressure Range

80 - 160 PSI

Operating Temperature Range

73 Degrees Fahrenheit

Size

3/4 x 3/4 Inches

Type

Female Connector
