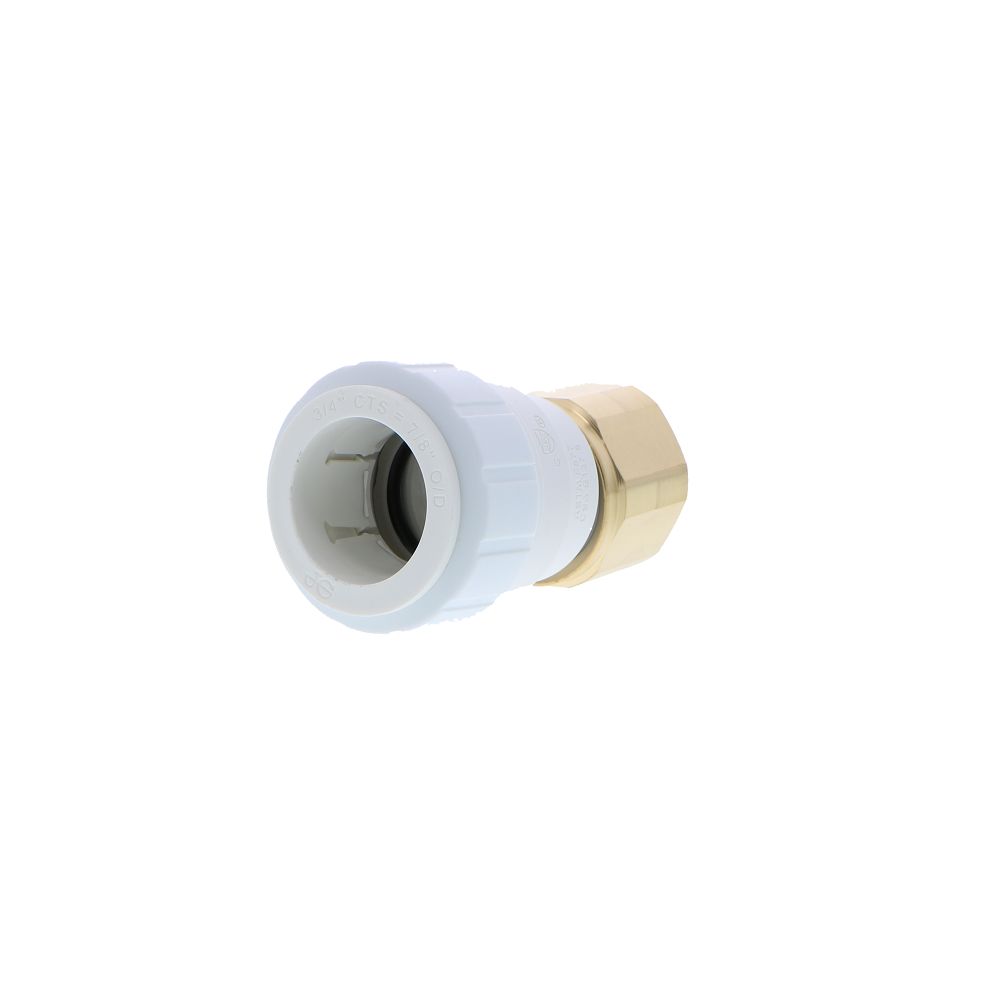

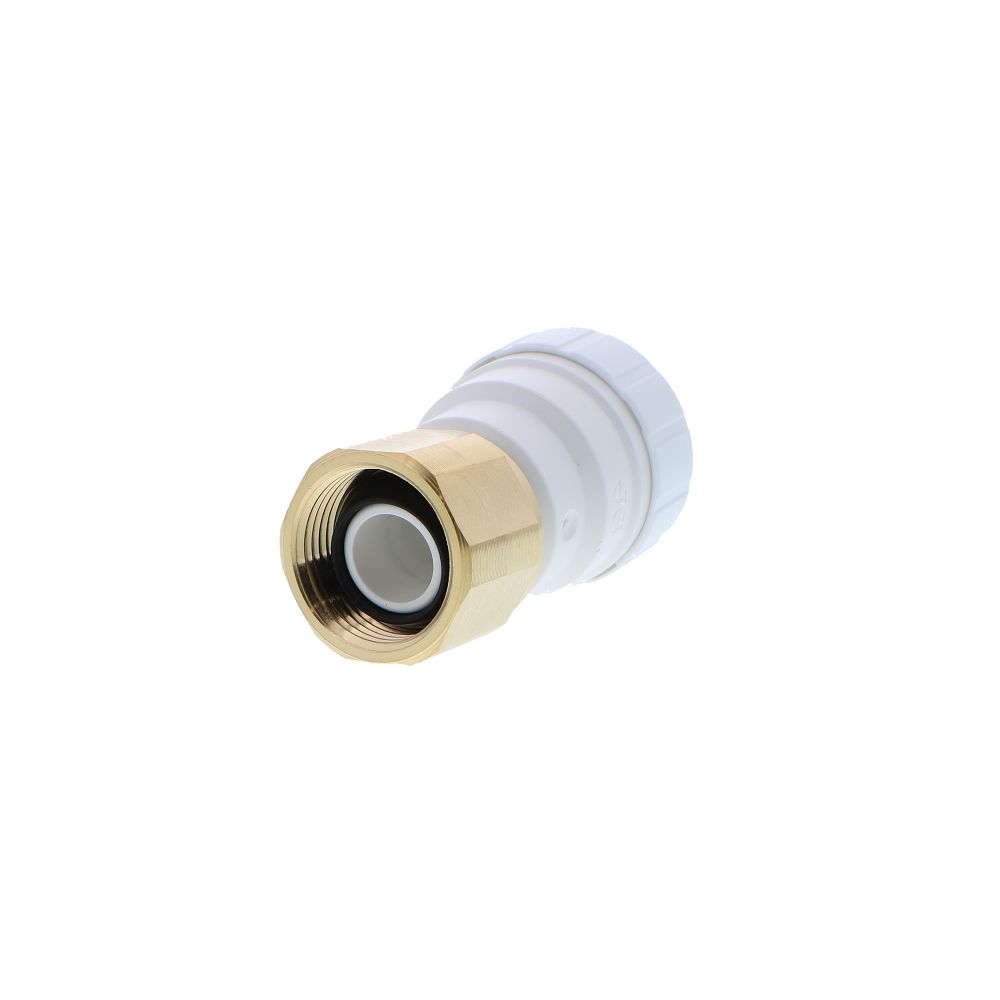

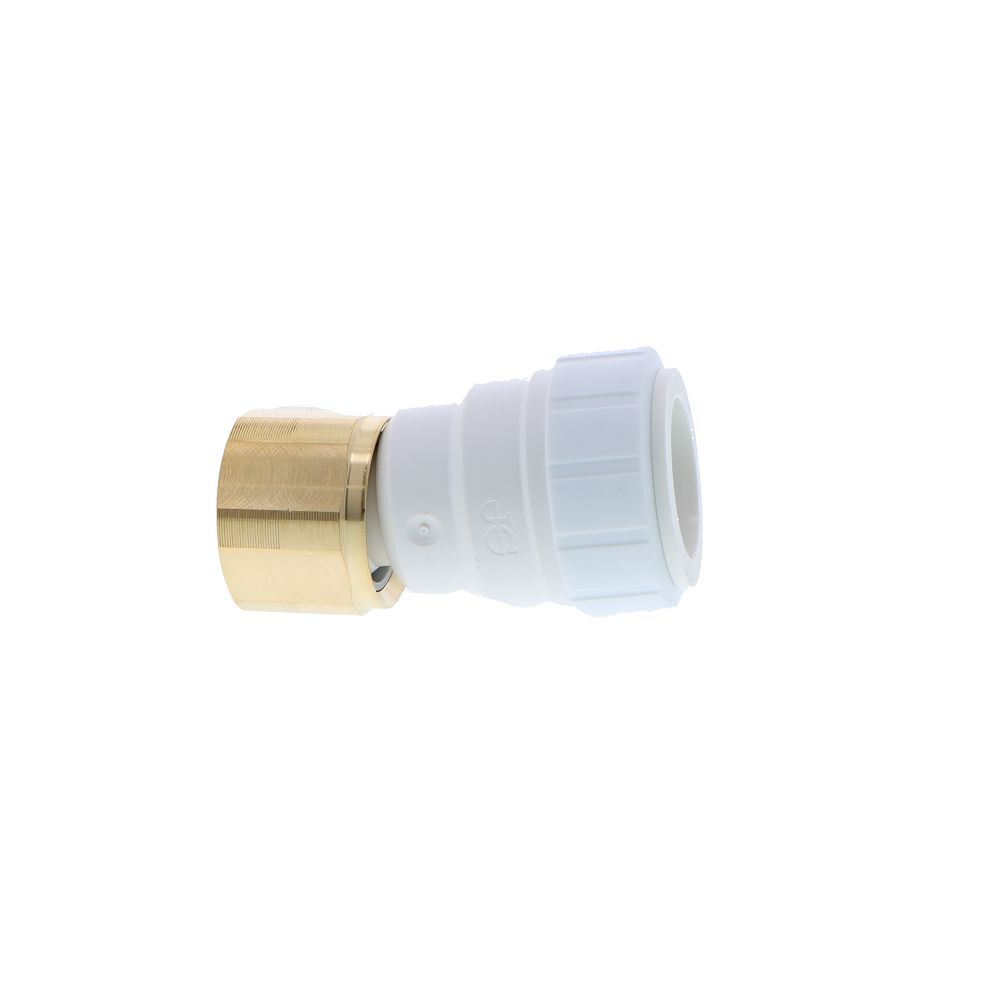

John Guest Female Connector NPS - 3/4 CTS x 3/4 NPS

Part Number: PSEI452826

1 5

John Guest

John Guest Female Connector NPS - 3/4 CTS x 3/4 NPS

Part Number: PSEI452826

MSRP: $15.69

$10.59

Quantity

Unit Price

Price

Savings

$10.59

—

$9.80

$49.03

$9.17

$367.15

13%

Product variants

Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.

Expected Ship Date: December 31, 2025

You May Also Need

Optional Accessory

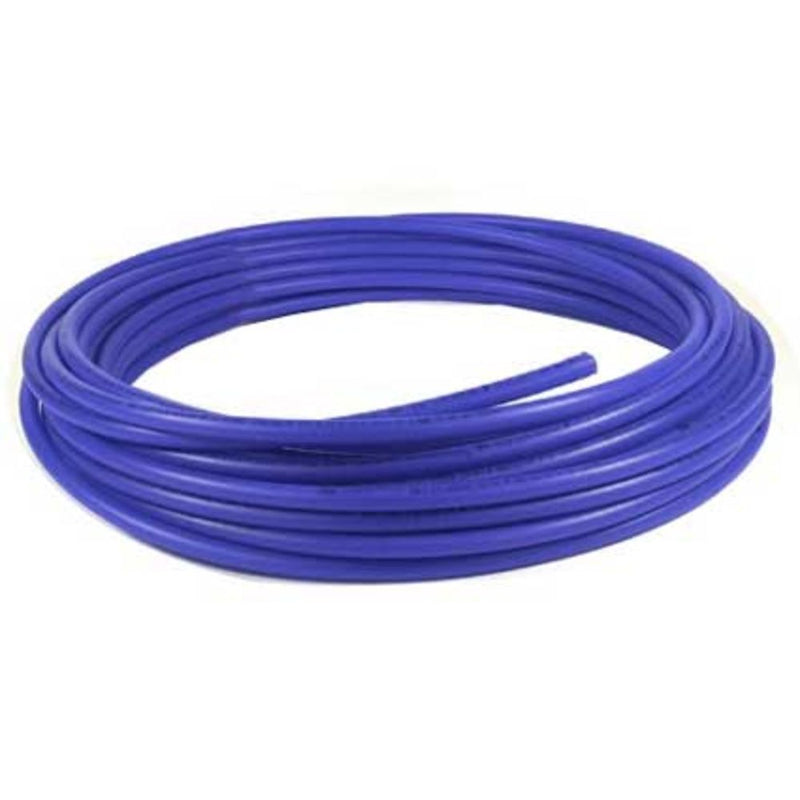

PEX-B Tubing - 3/4" CTS (ID) BLUE

Regular price From $21.29
Optional Accessory
John Guest Pipe Cutter - Standard

Regular price From $32.73
Optional Accessory
John Guest Pipe Insert / Tube Support - 3/4 CTS

Regular price From $0.62
Optional Accessory
John Guest Pipe Clip - 3/4" CTS and 22 mm

Regular price From $0.36
Optional Accessory
John Guest Pipe Clip - Spacer Only

Regular price From $0.27

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The John Guest Speedfit female connector makes joining copper, PEX or CPVC in any combination quick and easy. The incorporated rubber washer in the female thread provides a reliable seal. Fast and easy to use - no soldering, glue or clamps. Approved for behind-the-wall applications and can be used for permanent installations. Ideal for work in tight spaces. Can be disconnected without damage to tubing.

Features:

Twist-to-Lock Technology creates reliable, leak-free connections
For making multiport manifolds
Compatible with copper, PEX and CPVC in any combination
No tools, soldering, glue or clamps required for installation
Can be installed on wet lines (hot and cold water)
Approved for behind-the-wall applications with no access panel
Can be disconnected as needed
EPDM O-Rings
Manufactured in high-quality engineered plastic
Made with lead free materials

Working pressure and temperature:

Max. 160 psi at 73° F
Max. 100 psi at 180° F
Max. 80 psi at 200° F

View Prop 65 Warning

Specifications

Product Details
Inlet Connection	3/4" NPS
Max Pressure (Psi)	160
Max Temp (°F)	200°F
Min Temp (°F)	33°F
Outlet Connection	3/4" NPS
Push-In Size	7/8" OD
Series	PEI
Shape	Straight
Size	3/4"
Color / Finish	White
Connection Type	NPS
Origin	United Kingdom
Size Type	Common Tube Size (CTS)
Sub-Type	Female Adapter
Type	Adapter
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61
Shipping Dimensions
Shipping Length	2.646 in.
Shipping Width	1.555 in.
Shipping Height	1.555 in.
Product Weight & Dimensions
Product Height	1.555 in.
Product Length	2.646 in.
Product Width	1.555 in.
Product Weight (lbs)	0.1676

Product Details
Inlet Connection	3/4" NPS
Max Pressure (Psi)	160
Max Temp (°F)	200°F
Min Temp (°F)	33°F
Outlet Connection	3/4" NPS
Push-In Size	7/8" OD
Series	PEI
Shape	Straight
Size	3/4"
Color / Finish	White
Connection Type	NPS
Origin	United Kingdom
Size Type	Common Tube Size (CTS)
Sub-Type	Female Adapter
Type	Adapter
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61
Product Weight & Dimensions
Product Weight (lbs)	0.838

Product Details
Inlet Connection	3/4" NPS
Max Pressure (Psi)	160
Max Temp (°F)	200°F
Min Temp (°F)	33°F
Outlet Connection	3/4" NPS
Push-In Size	7/8" OD
Series	PEI
Shape	Straight
Size	3/4"
Color / Finish	White
Connection Type	NPS
Origin	United Kingdom
Size Type	Common Tube Size (CTS)
Sub-Type	Female Adapter
Type	Adapter
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61
Shipping Dimensions
Shipping Length	11.024 in.
Shipping Width	10.236 in.
Shipping Height	4.134 in.
Product Weight & Dimensions
Product Weight (lbs)	7.295

Downloads

John Guest Female Connector NPS - 3/4 CTS x 3/4 NPS Manual

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

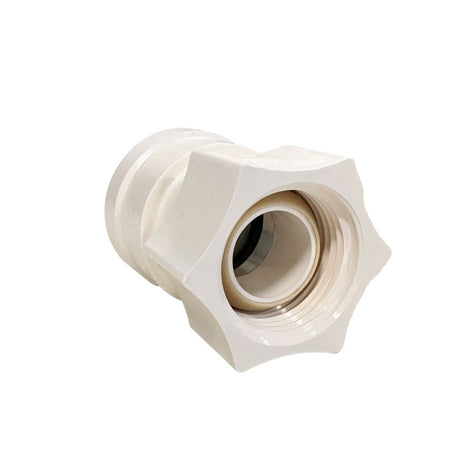

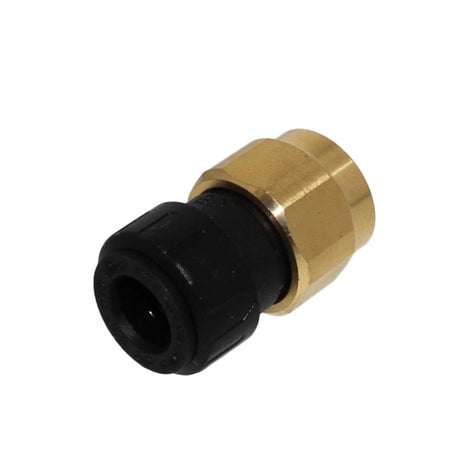

Facet	John Guest John Guest Female Connector NPS - 3/4 CTS x 3/4 NPS Regular price From $10.59 Part #: PSEI452826 Save up to 13% with bulk pricing Current Product	John Guest John Guest ProLock Female Connector NPS - 3/4 CTS x 3/4 NPS (Brass Nut) Regular price From $16.87 Low stock Part #: PSEI602836E Save up to 7% with bulk pricing View details	Watts AquaLock/SeaTech Watts AquaLock/SeaTech - Female Connector - 3/4 CTS x 3/4 NPS Regular price From $5.60 Part #: 3510-1412 Save up to 5% with bulk pricing View details
Price
Price	Regular price From $10.59	Regular price From $16.87	Regular price From $5.60
Part #
Part #	PSEI452826	PSEI602836E	3510-1412
Description
Description	The John Guest Speedfit female connector makes joining copper, PEX or CPVC in any combination quick and easy. The incorporated rubber washer in the female...	The John Guest ProLock™ push-fit female connector makes joining PE-RT, PEX, copper, and CPVC pipe to NPT threads easy. Incorporates Twist-to-Lock feature for added security. Fast and...	Note: Watts has rebranded SeaTech to Watts AquaLock. This rebrand does not affect the part numbers. However, during the transition the product and packaging that...
