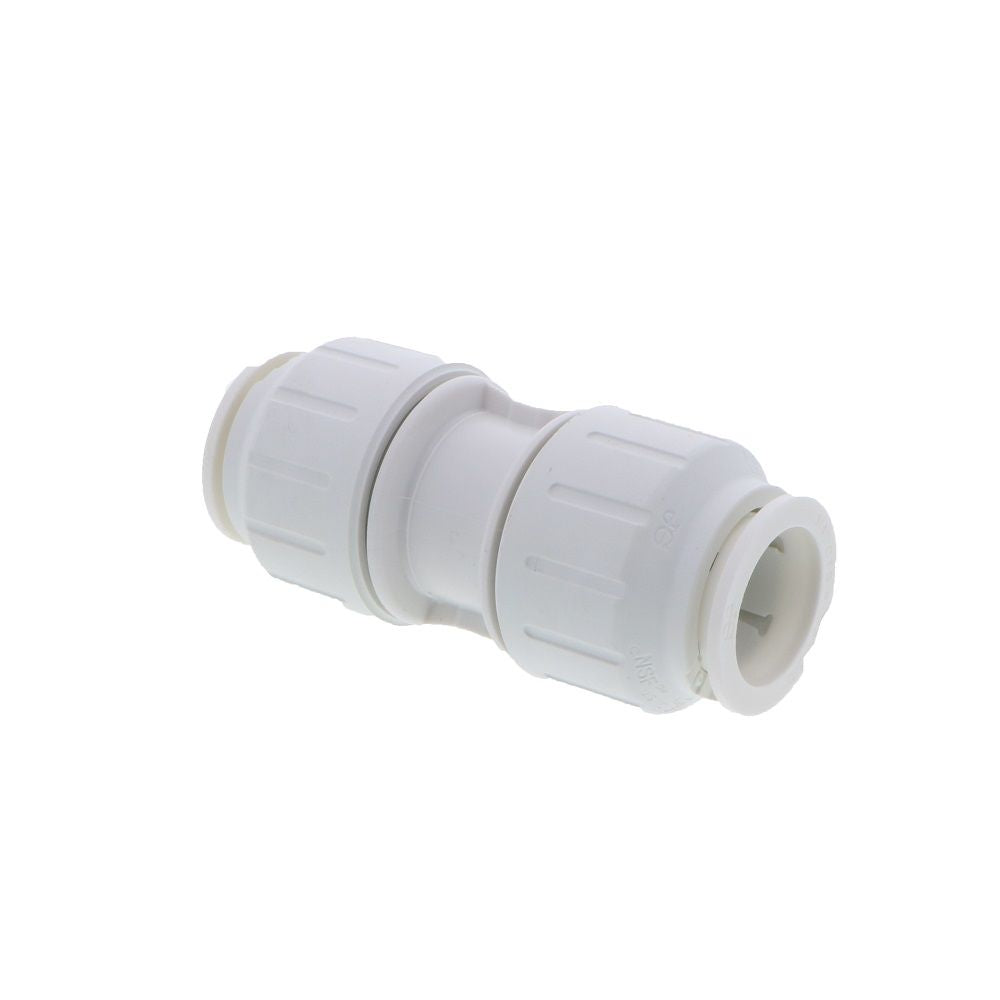

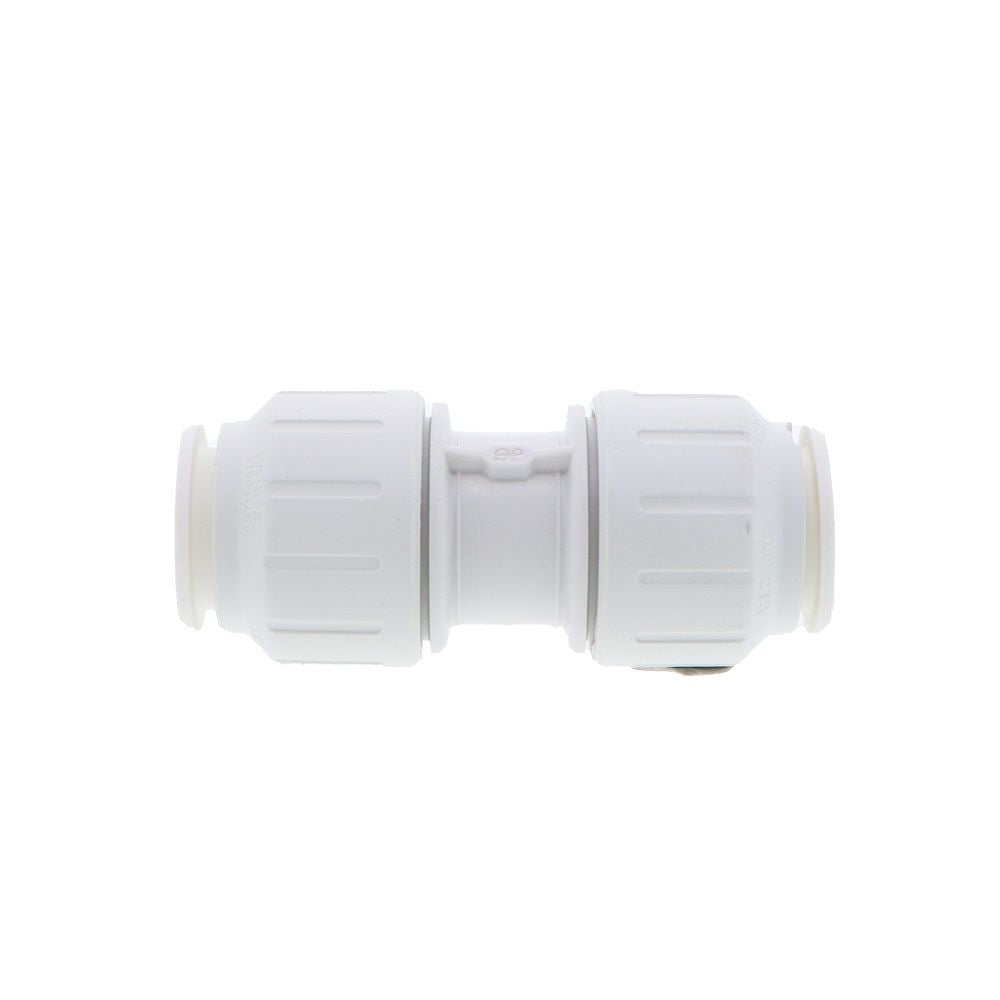

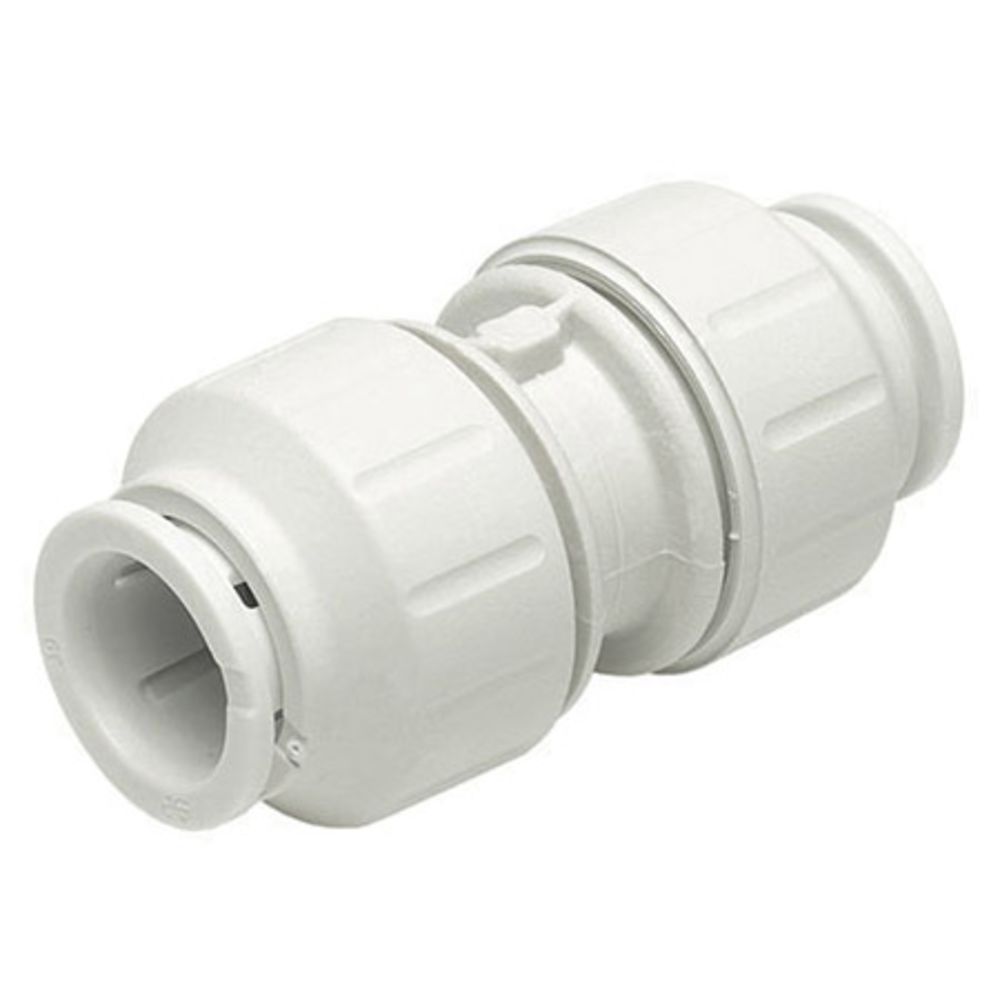

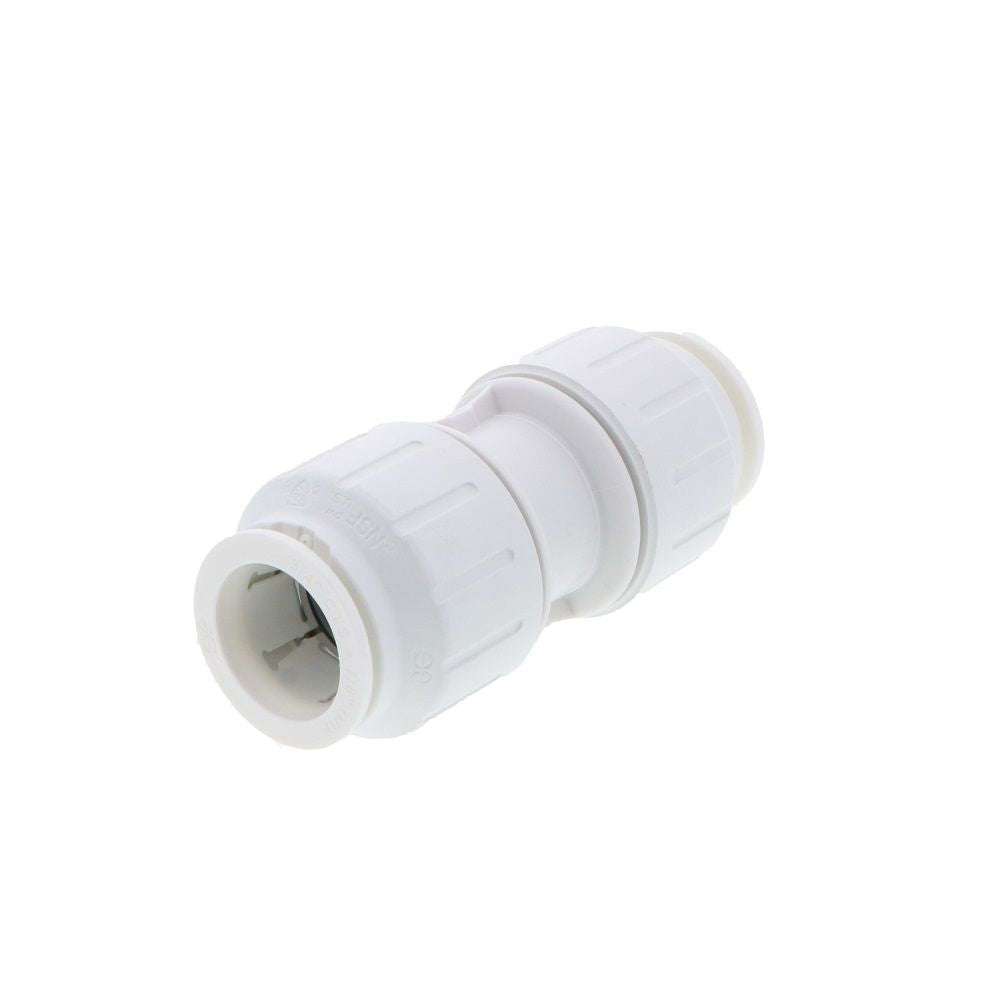

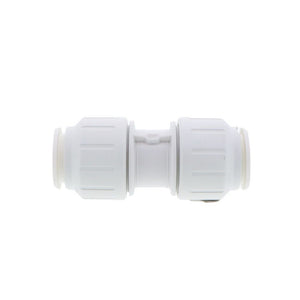

John Guest Coupler - 3/4 CTS

Part Number: PEI0428

1 6

John Guest

John Guest Coupler - 3/4 CTS

Part Number: PEI0428

MSRP: $8.23

$5.38

Quantity

Unit Price

Price

Savings

$5.38

—

$5.24

$26.23

$5.11

$127.78

Product variants

You May Also Need

Optional Accessory
PEX-B Tubing - 3/4" CTS (ID) RED

Regular price From $39.20
Optional Accessory
John Guest Pipe Clip - 3/4" CTS and 22 mm

Regular price From $0.36
Optional Accessory
John Guest Pipe Insert / Tube Support - 3/4 CTS

Regular price From $0.62
Optional Accessory
John Guest Pipe Cutter - Standard

Regular price From $32.73

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The John Guest Speedfit coupler makes joining copper, PEX or CPVC in any combination quick and easy. Incorporates Twist-to-Lock for added security. Approved for behind-the-wall applications and can be used for permanent installations. These are ideal for work in tight spaces. Fittings can be disconnected without damage to tubing.

Features:

Twist-to-Lock Technology creates reliable, leak-free connections
Compatible with copper, PEX and CPVC in any combination
No tools, soldering, glue or clamps required for installation
Can be installed on wet lines (hot and cold water)
Approved for behind-the-wall applications with no access panel
Can be disconnected as needed
EPDM O-Rings
Manufactured in high-quality engineered plastic
Made with lead free materials

Working pressure and temperature:

160 psi at 73° F
100 psi at 180° F
80 psi at 200° F

Note: Not suitable for compressed air and vacuum applications

View Prop 65 Warning

Specifications

Product Details
Max Pressure (Psi)	160
Max Temp (°F)	200°F
Min Temp (°F)	33°F
Push-In Size	7/8" OD
Seal / O-Ring Material	EPDM
Series	PEI
Shape	Straight
Color / Finish	White
Origin	United Kingdom
Size Type	Common Tube Size (CTS)
Sub-Type	Union Coupling
Type	Coupling
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61
Warranty	25 Years
Shipping Dimensions
Shipping Length	0.441 in.
Shipping Width	0.409 in.
Shipping Height	0.165 in.
Product Weight & Dimensions
Product Height	0.165 in.
Product Length	0.441 in.
Product Width	0.409 in.
Product Weight (lbs)	0.1852

Product Details
Max Pressure (Psi)	160
Max Temp (°F)	200°F
Min Temp (°F)	33°F
Push-In Size	7/8" OD
Seal / O-Ring Material	EPDM
Series	PEI
Shape	Straight
Color / Finish	White
Origin	United Kingdom
Size Type	Common Tube Size (CTS)
Sub-Type	Union Coupling
Type	Coupling
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61
Warranty	25 Years
Product Weight & Dimensions
Product Weight (lbs)	0.926

Product Details
Max Pressure (Psi)	160
Max Temp (°F)	200°F
Min Temp (°F)	33°F
Push-In Size	7/8" OD
Seal / O-Ring Material	EPDM
Series	PEI
Shape	Straight
Color / Finish	White
Origin	United Kingdom
Size Type	Common Tube Size (CTS)
Sub-Type	Union Coupling
Type	Coupling
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61
Warranty	25 Years
Shipping Dimensions
Shipping Length	11 in.
Shipping Width	10.5 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	4.63

Downloads

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

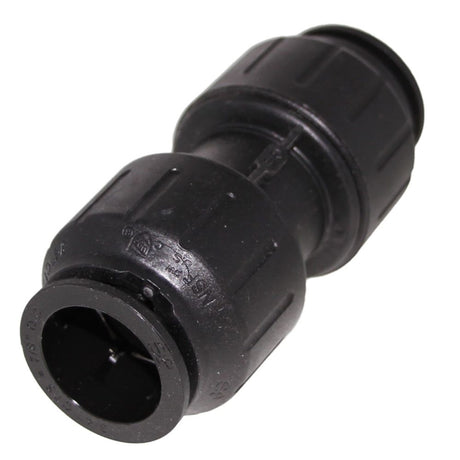

Facet	John Guest John Guest Coupler - 3/4 CTS Regular price From $5.38 Part #: PEI0428 Save up to 5% with bulk pricing Current Product	John Guest John Guest Black Coupler - 3/4 CTS Regular price From $5.38 Part #: PEI0428E Save up to 5% with bulk pricing View details	Watts AquaLock/SeaTech Watts AquaLock/SeaTech - Union Connector - 3/4 CTS 5.0 Regular price From $10.02 Part #: 3515-14 Save up to 5% with bulk pricing View details
