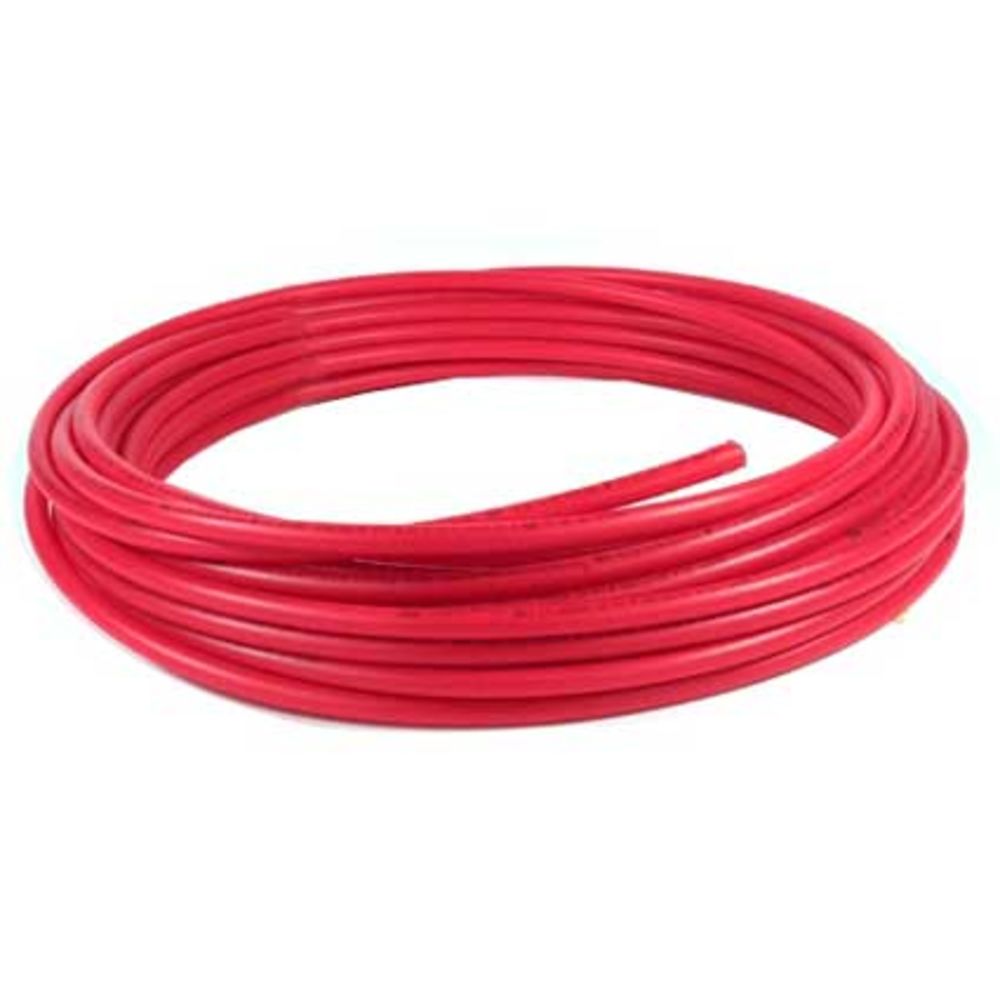

SeaTech PEX tubing is produced from a high performance, cross-linked polyethylene material. SeaTech PEX tubing is formulated and manufactured in 3/8" CTS (1/2" OD), 1/2" CTS (5/8" OD), 3/4" CTS (7/8" OD), and 1" CTS (9/8" OD) sizes. SeaTech PEX Tubing is NSF listed, FDA recognized and available in multiple colors for ease of water line identification.

Tubing Performance Rating:

Operating Pressure: Vacuum to 160 psi
Max Temperature: 180º F @ 100 psi
Max Temperature: 72º F @ 160 psi
Coil Length: 100'*
Also known as: Watts 81904328

Notes:* Orders for lengths greater than 100' will receive full coil(s). Any remaining length will be shipped as a separate segment.**Any length of tubing that is less than a full coil must be custom cut and is non-returnable. Only complete, unaltered coils may be returned.

Operating Pressure: Vacuum to 160 psi
Max Temperature: 180º F @ 100 psi
Max Temperature: 72º F @ 160 psi
Coil Length: 100'*
Also known as: Watts 81904328

Product Details
Application	Potable Water
Material Of Construction	Cross-Linked Polyethylene
Max Pressure (Psi)	160
Max Temp (°F)	180
Thickness	3/32"
Color / Finish	Red
Diameter	7/8"
Inner Diameter	3/4"
Origin	USA
Warranty & Certifications
Warranty	25-yr warranty,
Shipping Dimensions
Shipping Length	12 in.
Shipping Width	1.5 in.
Shipping Height	1.5 in.
Product Weight & Dimensions
Product Height	1.5 in.
Product Length	12 in.
Product Width	1.5 in.
Product Weight (lbs)	0.1229

Product Details
Application	Potable Water
Material Of Construction	Cross-Linked Polyethylene
Max Pressure (Psi)	160
Max Temp (°F)	180
Thickness	3/32"
Color / Finish	Red
Diameter	7/8"
Inner Diameter	3/4"
Origin	USA
Warranty & Certifications
Warranty	25-yr warranty,
Product Weight & Dimensions
Product Weight (lbs)	12.5

Product Details
Application	Potable Water
Material Of Construction	Cross-Linked Polyethylene
Max Pressure (Psi)	160
Max Temp (°F)	180
Thickness	3/32"
Color / Finish	Red
Diameter	7/8"
Inner Diameter	3/4"
Origin	USA
Warranty & Certifications
Warranty	25-yr warranty,
Product Weight & Dimensions
Product Weight (lbs)	25

Product Details
Application	Potable Water
Material Of Construction	Cross-Linked Polyethylene
Max Pressure (Psi)	160
Max Temp (°F)	180
Thickness	3/32"
Color / Finish	Red
Diameter	7/8"
Inner Diameter	3/4"
Origin	USA
Warranty & Certifications
Warranty	25-yr warranty,
Shipping Dimensions
Shipping Length	12 in.
Shipping Width	1.5 in.
Shipping Height	1.5 in.
Product Weight & Dimensions
Product Height	1.5 in.
Product Length	12 in.
Product Width	1.5 in.
Product Weight (lbs)	0.1229

Product Details
Application	Potable Water
Material Of Construction	Cross-Linked Polyethylene
Max Pressure (Psi)	160
Max Temp (°F)	180
Thickness	3/32"
Color / Finish	Red
Diameter	7/8"
Inner Diameter	3/4"
Origin	USA
Warranty & Certifications
Warranty	25-yr warranty,
Product Weight & Dimensions
Product Weight (lbs)	12.5
