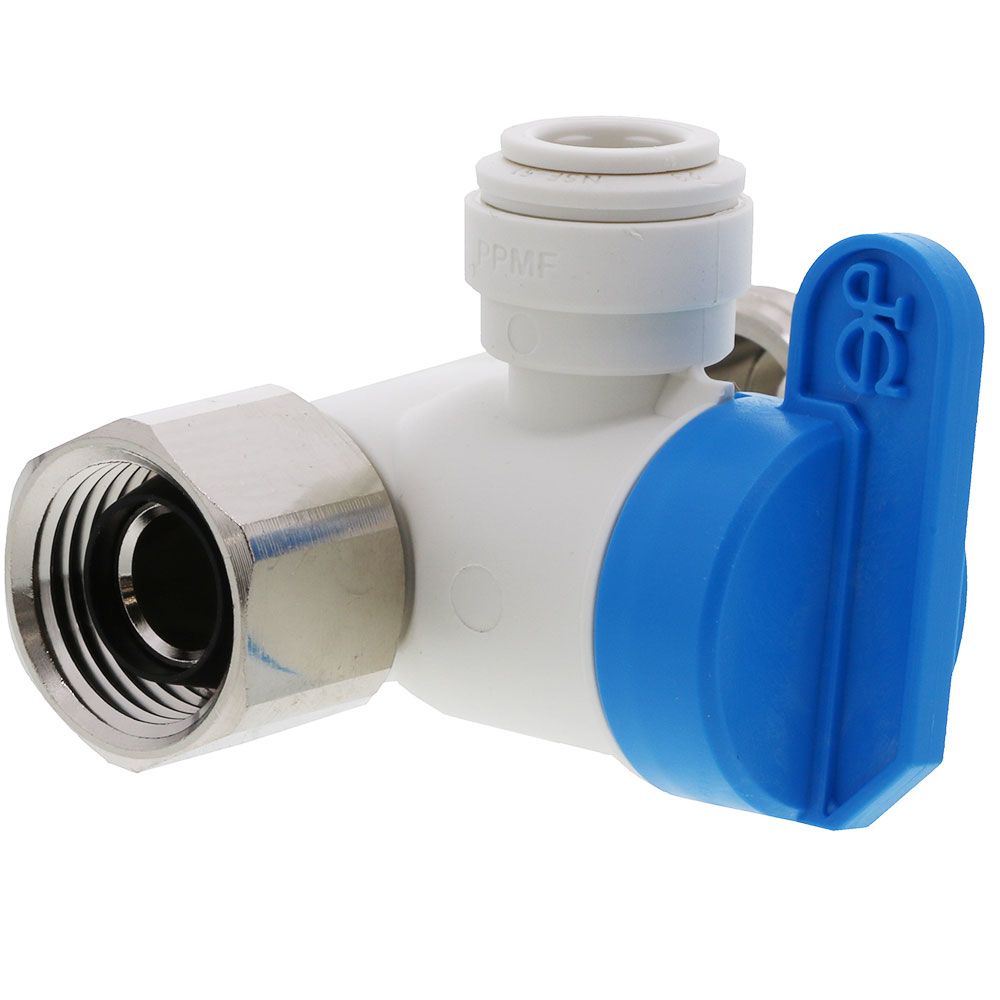

John Guest Angle Stop Adapter Valve valves are manufactured from white polypropylene and equipped with food grade EPDM O-rings. The valve connects between your valve and riser, to the main water supply line, for applications in reverse osmosis, filtration systems, coffee brewers, ice-makers, home/office, hydroponics, and many more.

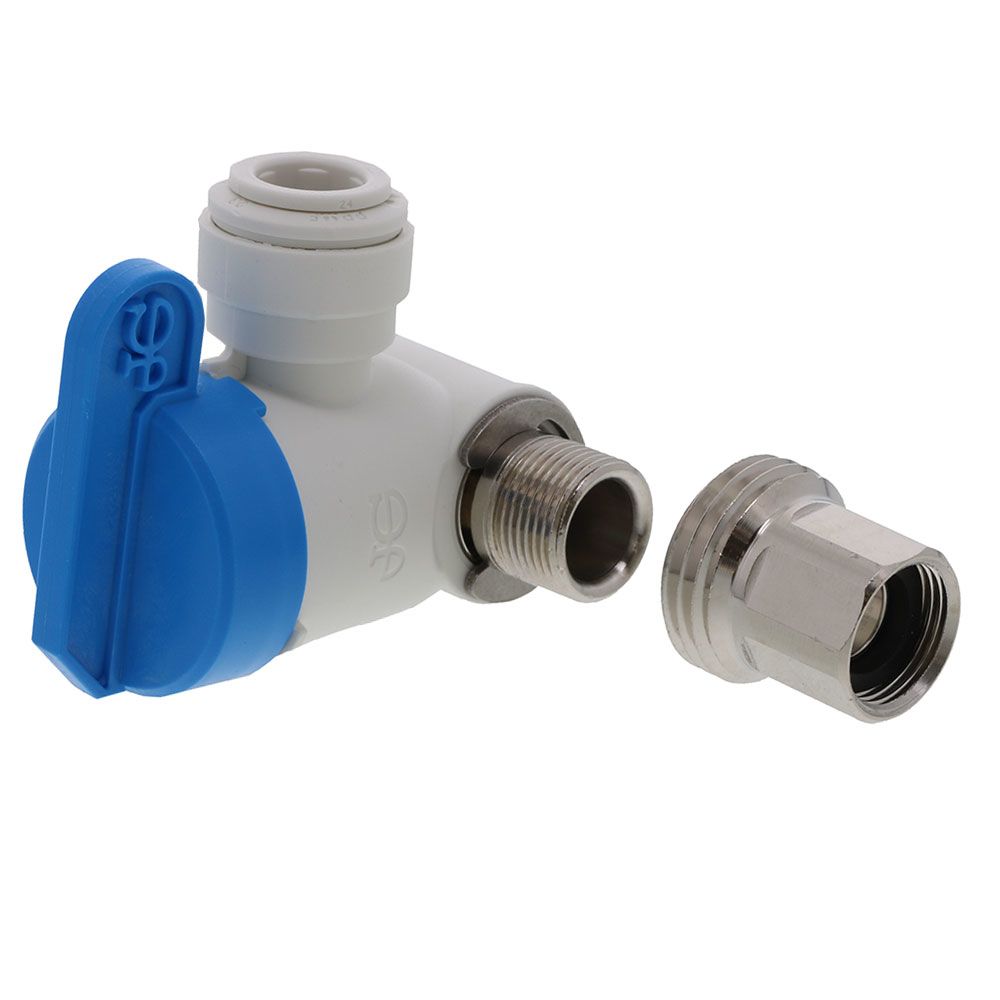

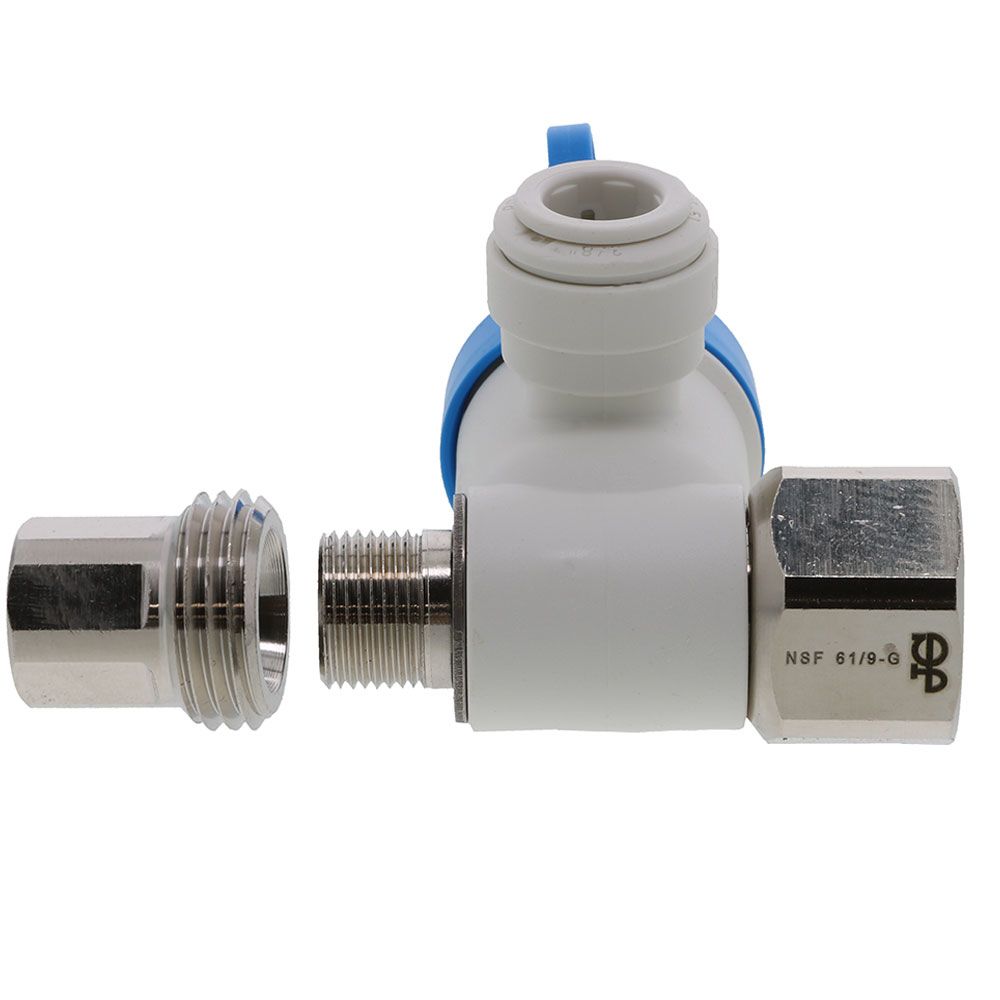

The conversion adaptor can be threaded to either side of the valve to make various configurations with either plastic or soft copper tubing. John Guest's push-fit technology makes connections easy and leak-free. The tube is easily pushed in by hand and then firmly locks in place. Disconnection is just as easy and requires no special tools.
Specifications:
The conversion adaptor can be threaded to either side of the valve to make various configurations with either plastic or soft copper tubing. John Guest's push-fit technology makes connections easy and leak-free. The tube is easily pushed in by hand and then firmly locks in place. Disconnection is just as easy and requires no special tools.
Specifications:
- 3/8" male compression x 1/2" NPS female thread
- Conversion adapter can be installed on either side of valve to create either 1/2" x 1/2" NPS or 3/8" x 3/8" compression configurations
- 3/8" OD quick connect fitting
- Push-fit technology
- EPDM O-rings
- NSF Certified 61 Section 9-G
- Intended for use with potable water
- NOT suitable for use with air or inert gases
Details
Series | PI |
Max Temp (°F) | 158 |
Max Pressure (Psi) | 150 |
Min Temp (°F) | 33 |
Min Pressure (Psi) | 0 |
Push-In Size | 3/8" OD |
Application | Water Supply |
Body Material | Polypropylene |
Box Quantity | 20 |
Color / Finish | White |
O-Rings | EPDM |
Origin | UK |
Size | 3/8", 1/2" |
Inlet/Outlet Connection | 3/8" Compression, 1/2" NPS |
Warranty & Certifications
Certifications | NSF 51; NSF 61 |
John Guest Angle Stop Adapter Valve valves are manufactured from white polypropylene and equipped with food grade EPDM O-rings. The valve connects between your valve and riser, to the main water supply line, for applications in reverse osmosis, filtration systems, coffee brewers, ice-makers, home/office, hydroponics, and many more.
The conversion adaptor can be threaded to either side of the valve to make various configurations with either plastic or soft copper tubing. John Guest's push-fit technology makes connections easy and leak-free. The tube is easily pushed in by hand and then firmly locks in place. Disconnection is just as easy and requires no special tools.
Specifications:
- 3/8" male compression x 1/2" NPS female thread
- Conversion adapter can be installed on either side of valve to create either 1/2" x 1/2" NPS or 3/8" x 3/8" compression configurations
- 3/8" OD quick connect fitting
- Push-fit technology
- EPDM O-rings
- NSF Certified 61 Section 9-G
- Intended for use with potable water
- NOT suitable for use with air or inert gases
Details
Series | PI |
Max Temp (°F) | 158 |
Max Pressure (Psi) | 150 |
Min Temp (°F) | 33 |
Min Pressure (Psi) | 0 |
Push-In Size | 3/8" OD |
Application | Water Supply |
Body Material | Polypropylene |
Box Quantity | 20 |
Color / Finish | White |
O-Rings | EPDM |
Origin | UK |
Size | 3/8", 1/2" |
Inlet/Outlet Connection | 3/8" Compression, 1/2" NPS |
Warranty & Certifications
Certifications | NSF 51; NSF 61 |
