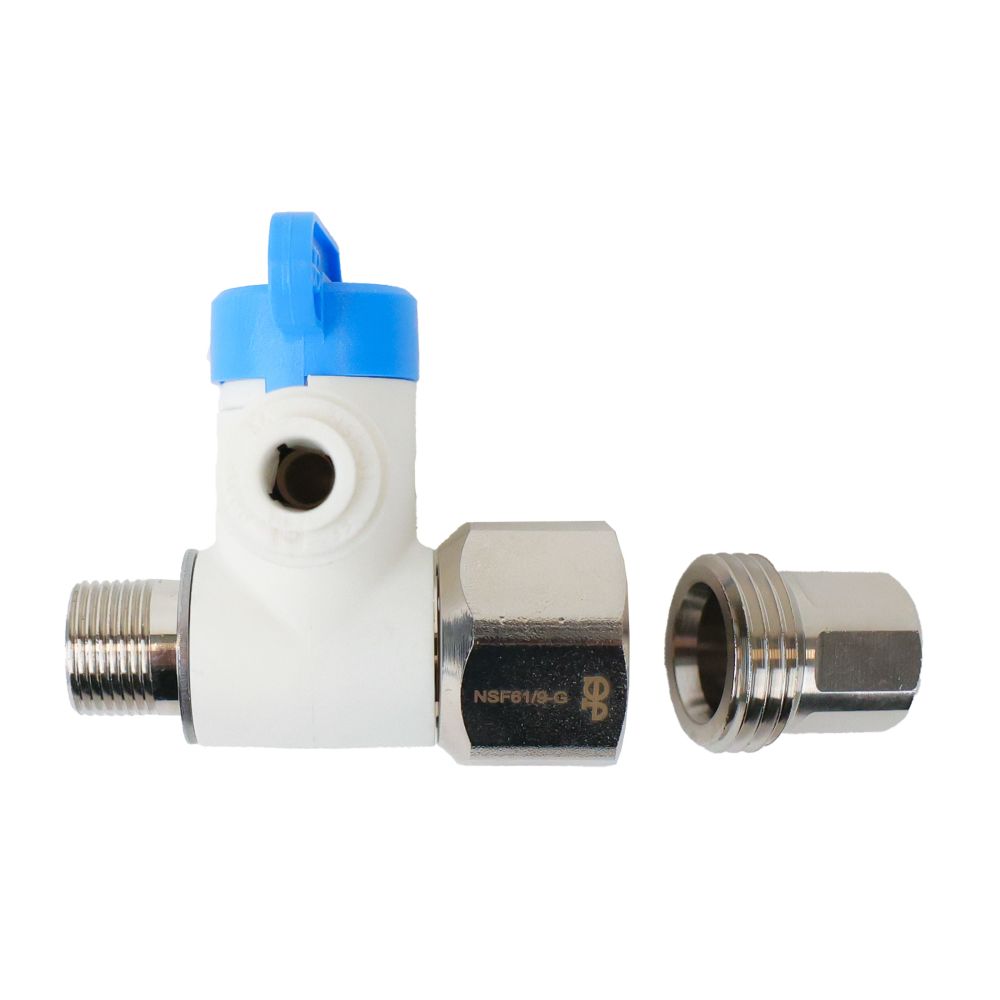

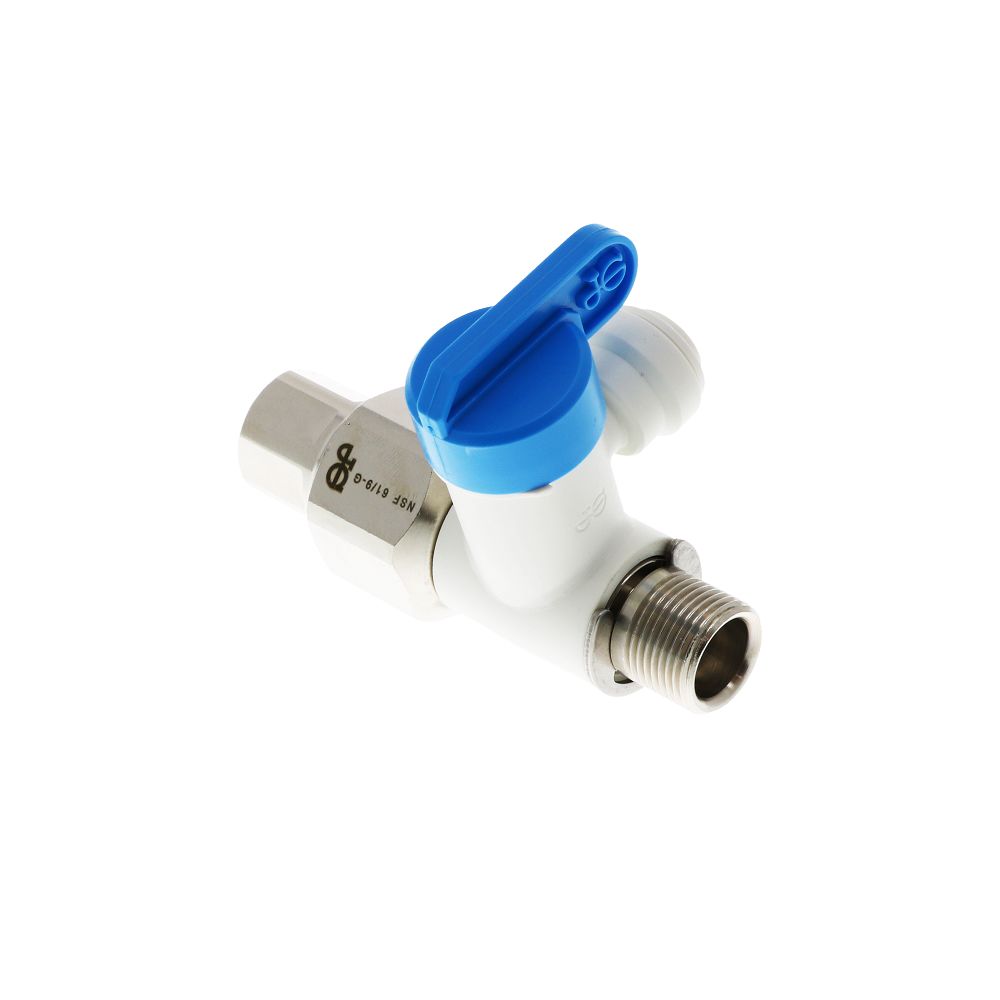

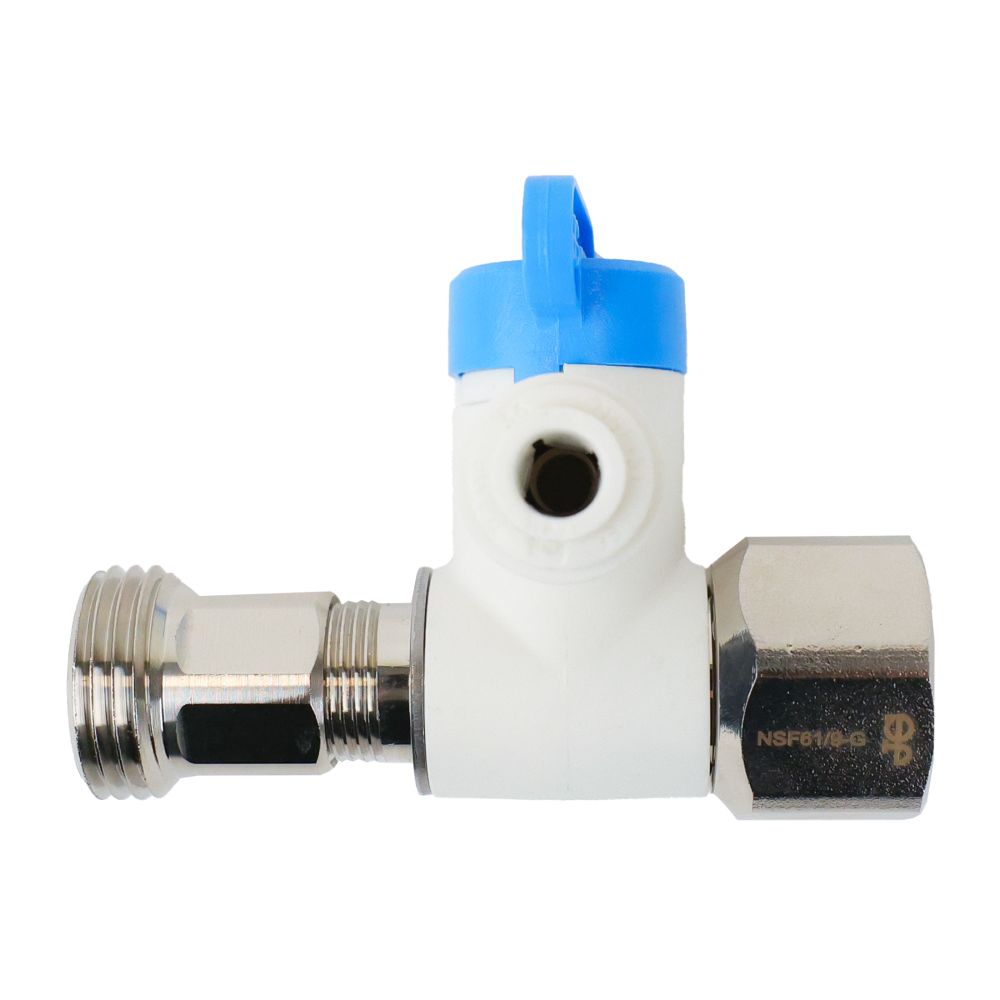

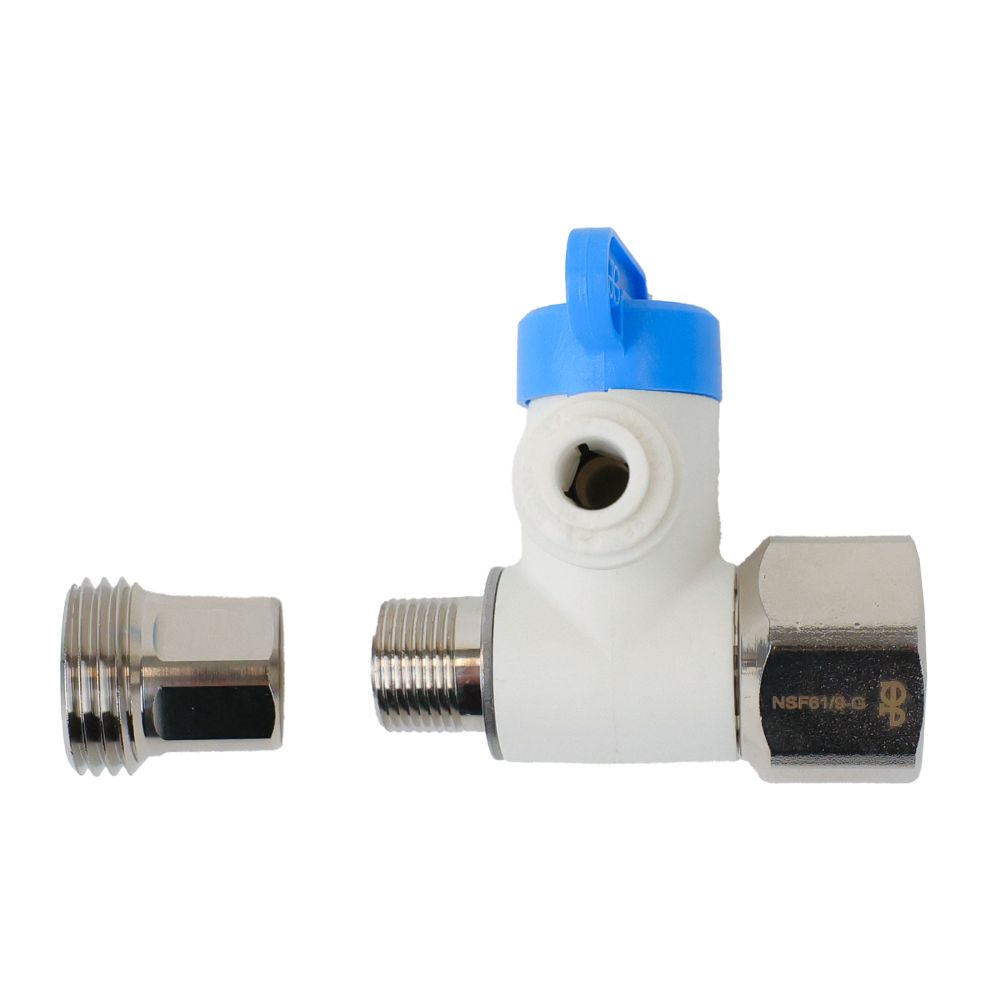

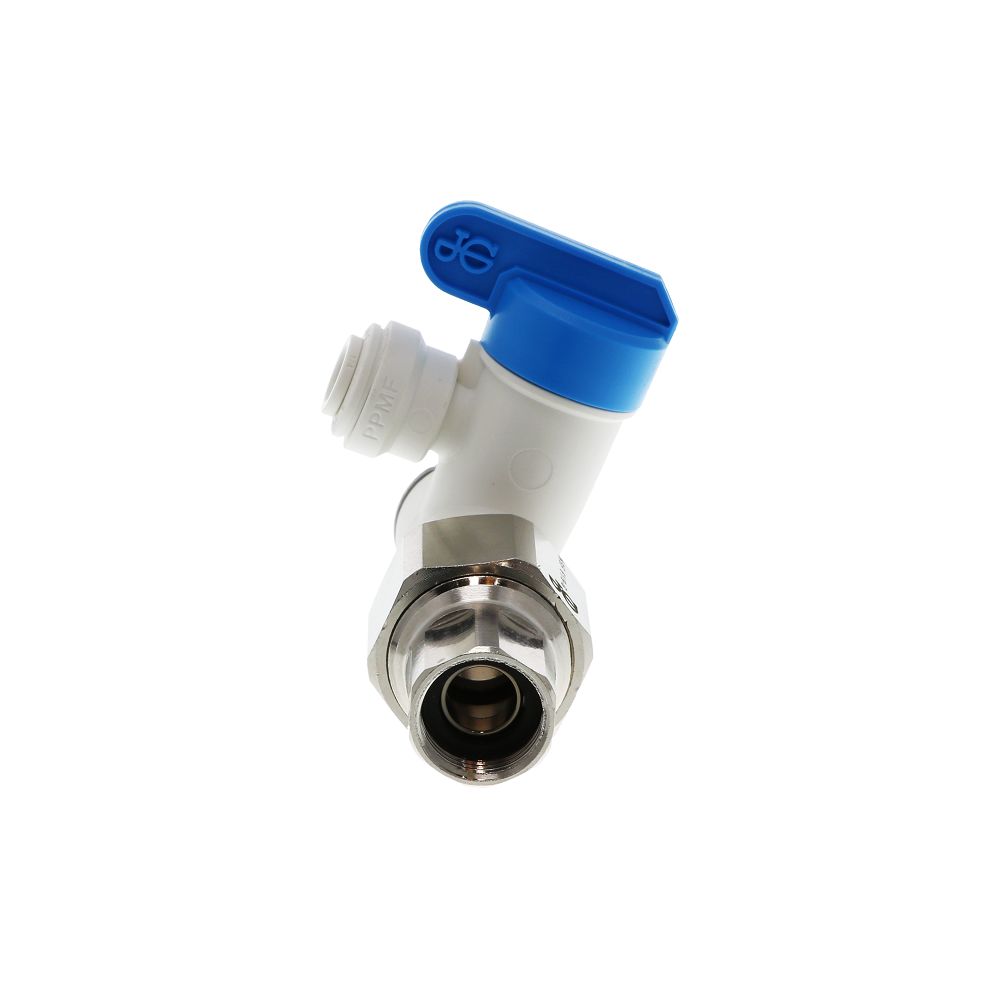

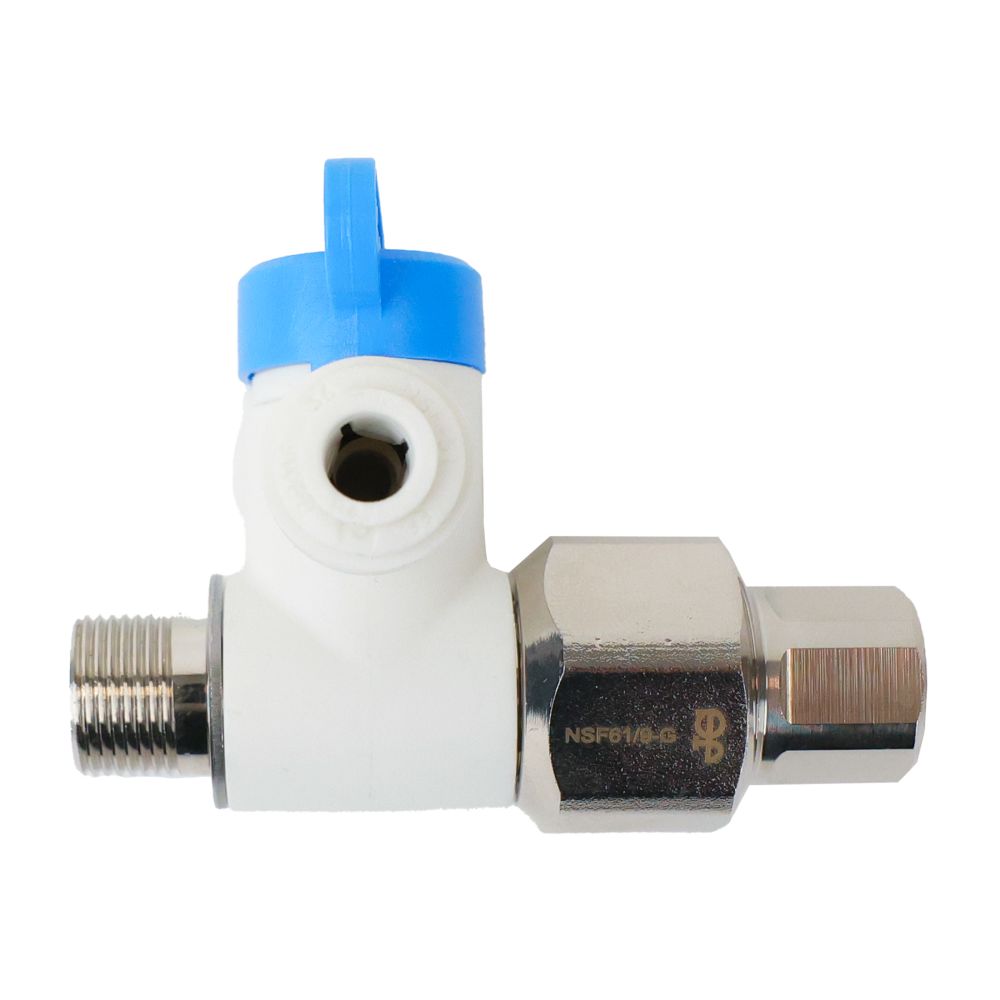

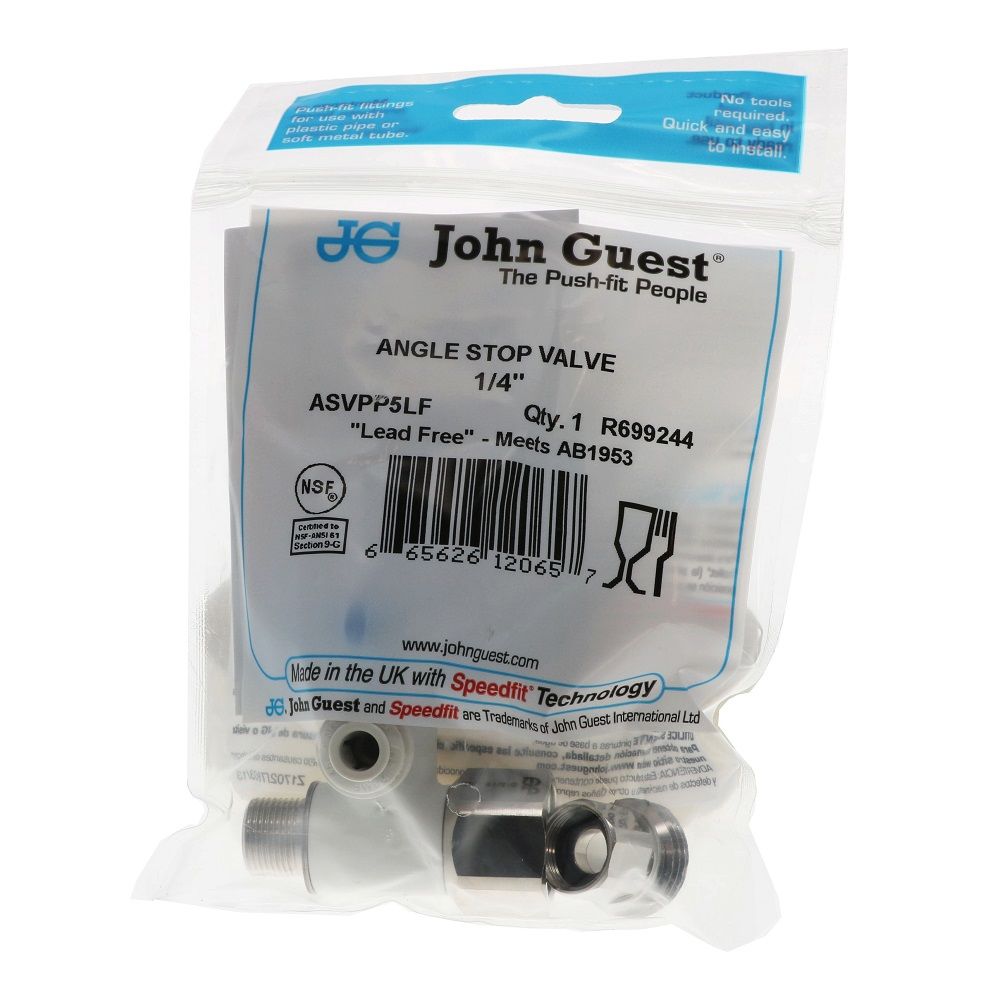

John Guest Angle Stop Adapter Valve Lead-Free - 1/2 x 3/8 x 1/4

Part Number: ASVPP5LF
Alt. Part Number: ASVPP5
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10
Your price:
Choose
Single
Box of 30
Box of 150
Box of 300
similar items
The John Guest Angle Stop Adapter Valve provides an easy way to add a water feed supply from an existing chrome supply stop valve. These valves connect between the chrome supply stop and riser to provide a water supply feed line for water filtration systems, RO systems, coffee machines, and ice makers. The Push-fit technology makes installations quick and easy. They are manufactured in white polypropylene with food grade EPDM seals, with plated lead-free brass threads.

Features:
  • For use with plastic or copper OD sized tubing
  • For cold water supply use only
  • Threads onto 3/8 in compression chrome supply stop
  • Quarter turn to open or close
  • White Polypropylene body, EPDM seals
  • Lead Free materials
  • Quick and easy connection/disconnection
  • NSF51 and NSF61 listed
  • Not suitable for compressed air, explosive gases, petroleum spirits and other fuels or for heating systems

Working pressure & temperature:
  • Max 150 psi at 70°F
  • Max 60 psi at 140°F

Do Not Use these Valves:
  • In a partially open position to control flow
  • To provide a permanent termination
  • Without tubing assembled or plugged (or threaded connections sealed)
  • As a tap of “faucet”
