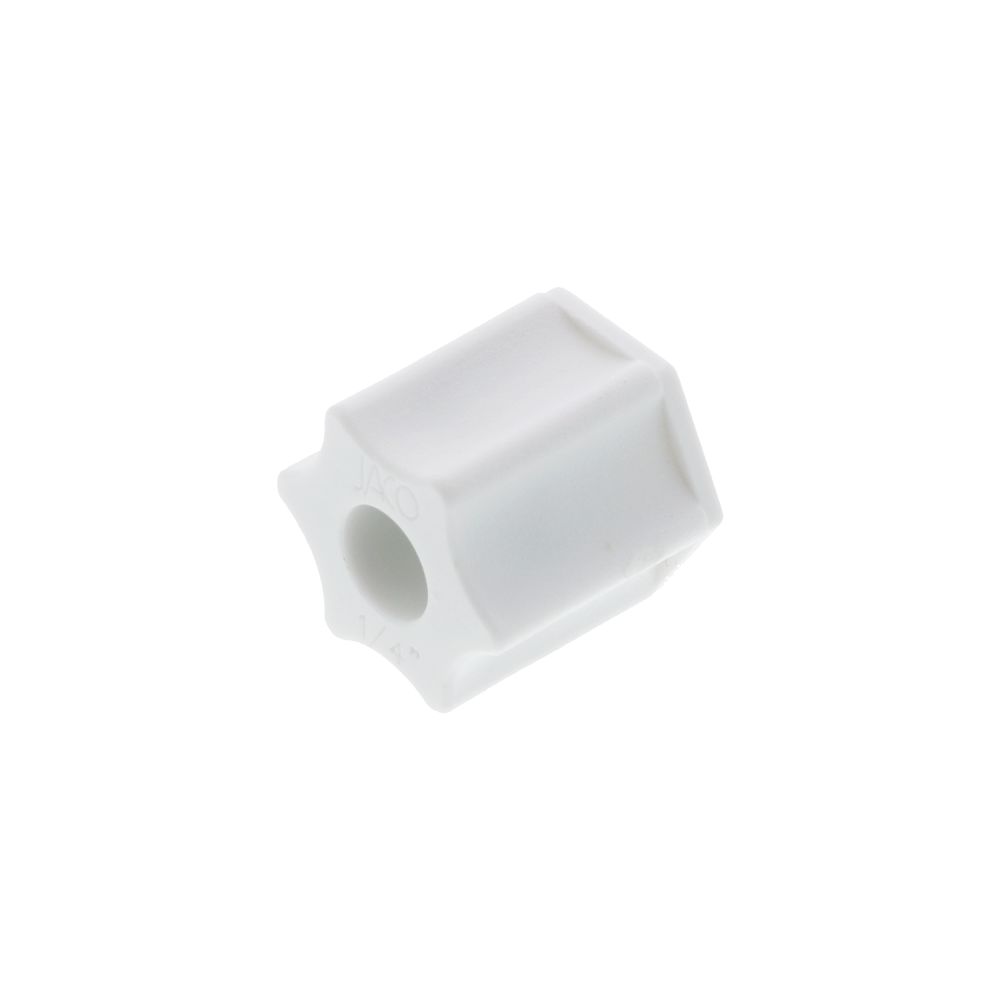

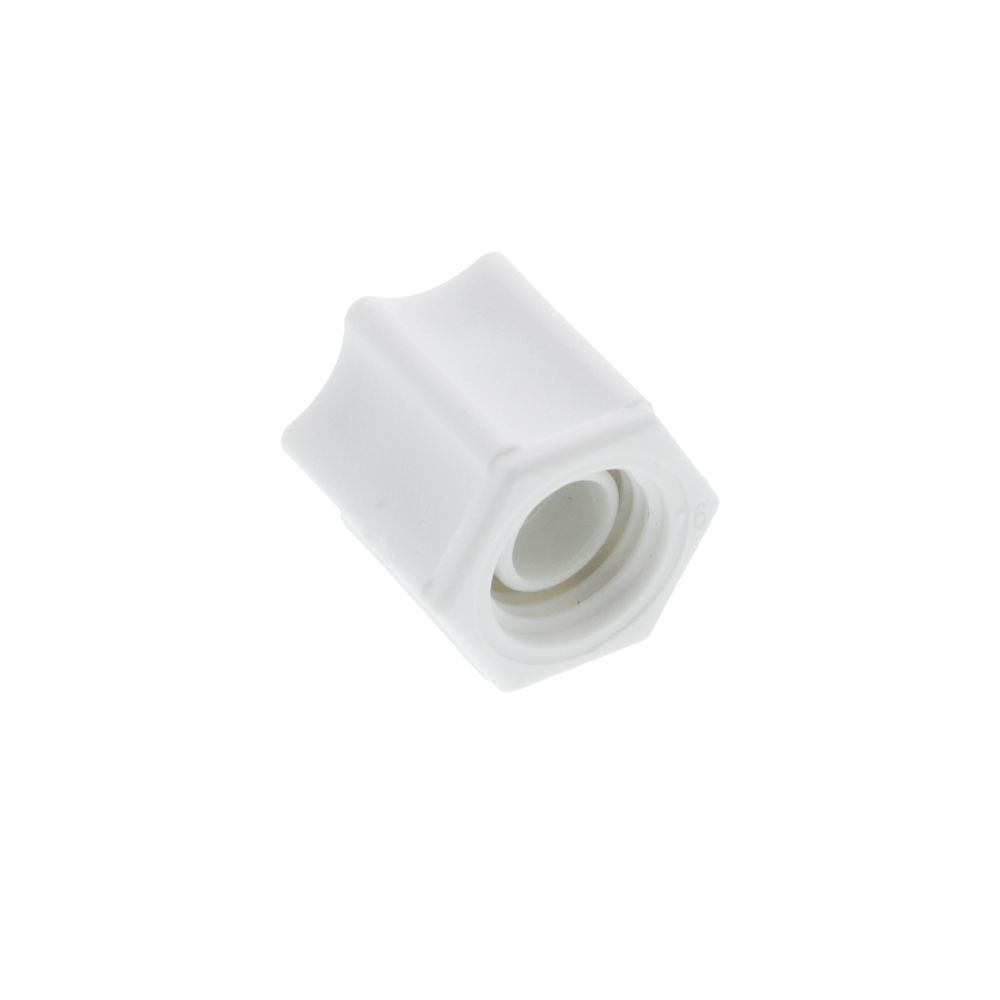

JACO P-SG-4 Polypropylene Stainless Steel Gripper Nut 1/4 OD Tube

Part Number: P-SG-4

In Stock

out of stock

In Stock

$0.46


JACO polypropylene fittings have good chemical resistance and are unaffected by most weak acids and alkalies. Below 175°F they have good resistance to organic solvents. They should not be used with oxidants or strong acids or in continuous sunlight. The polypropylene used in JACO fittings is 20% glass filled for improved stiffness and is NSF listed.

Advantages of JACO fittings over metal compression fittings:
  • Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
  • Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
  • Low resistance to flow due to the smooth internal surface of the fittings.
  • Resistance to scale buildup.

Specifications:
  • Connections: 1/4" OD tube
  • Fitting Material: polypropylene
  • Ferrule nut with stainless steel gripper for use with hard and smooth surfaced tubing
  • Ferrule nut thread size: 7/16-20
  • Max Pressure: 220 psi
  • Temperature Range: -30° - 215° F
  • Color: opaque white


Details

Body Material

Polypropylene

Color / Finish

opaque white

Operating Pressure Range

220 psi

Operating Temperature Range

-30° - 215° F

Outlet Size

1/4"

Size

7/16-20
