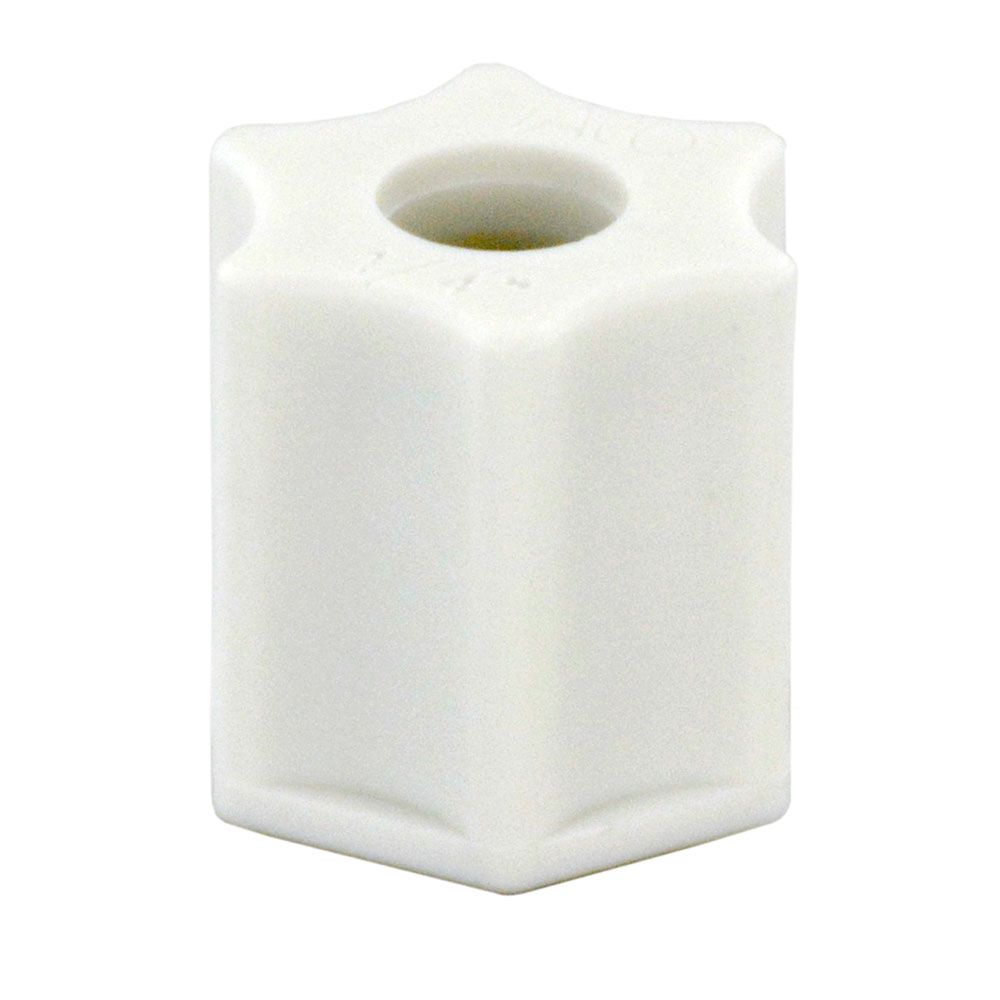

JACO P-PG-12 Polypropylene Plastic Gripper Nut 3/4 OD Tube

JACO polypropylene fittings have good chemical resistance and are unaffected by most weak acids and alkalies. Below 175°F they have good resistance to organic solvents. They should not be used with oxidants or strong acids or in continuous sunlight. The polypropylene used in JACO fittings is 20% glass filled for improved stiffness and is NSF listed.

Specifications:

• Connections: 3/4" OD tube

• Fitting Material: polypropylene

• Ferrule nut with plastic gripper for use with plastic tubing

• Ferrule nut thread size: 1-1/16-20

• Max Pressure: 220 psi

• Temperature Range: -30° - 215° F

• Color: opaque white


Advantages of JACO fittings over metal compression fittings:

• Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.

• Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.

• Low resistance to flow due to the smooth internal surface of the fittings.

• Resistance to scale buildup.
