Home / Fittings / Fittings Accessories / JACO K-PG-4 Kynar Plastic Gripper Nut 1/4 OD Tube
JACO Manufacturing Company

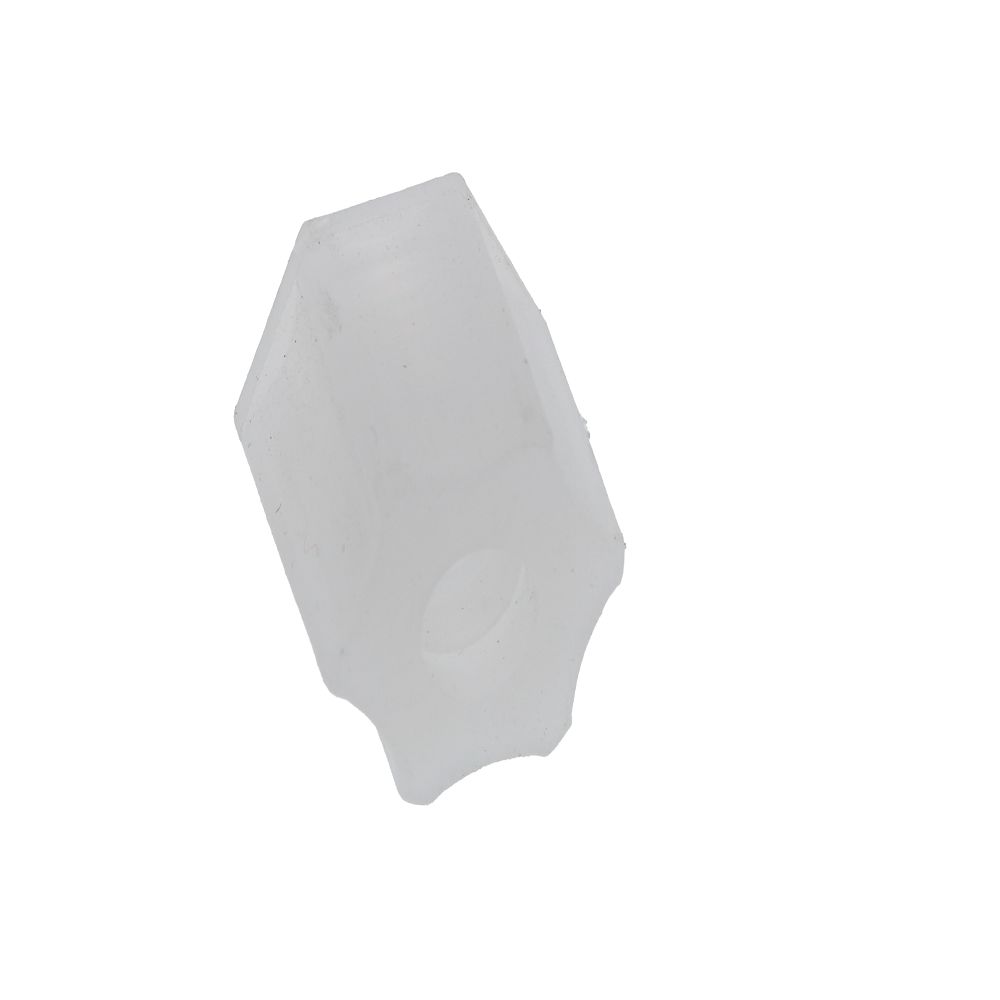

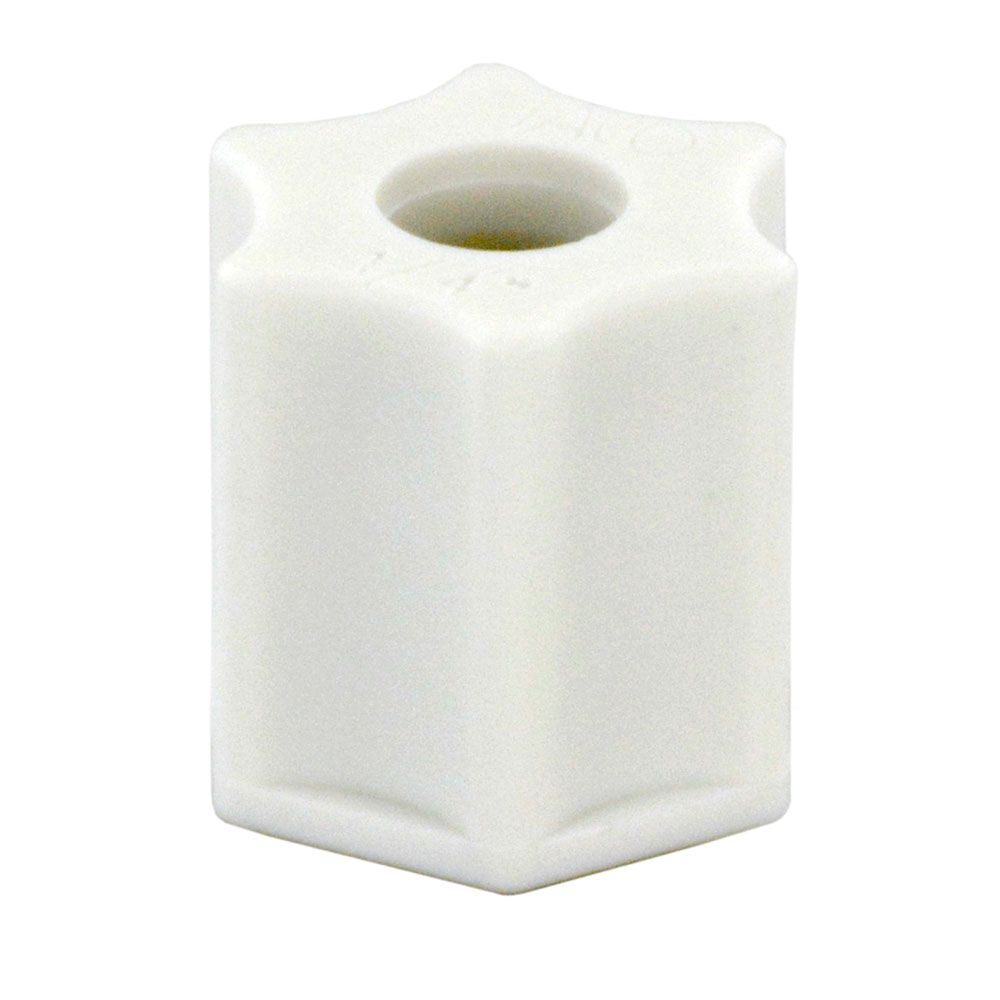

JACO K-PG-4 Kynar Plastic Gripper Nut 1/4 OD Tube
Part Number: K-PG-4
Product image 1
Product image 2
Product image 3
Your price:
Choose
Single
3456-Pack
JACO K-PG-4 Kynar fittings have high chemical resistance and have the ability to handle highly corrosive fluids. Kynar is a specialized grade of polyvinylidene fluoride (PVDF), which is chemically resistant against strong inorganic and organic acids. They are also NSF listed.

Specifications:
  • Connections: 1/4" OD tube
  • Fitting Material: Kynar
  • For use with plastic tubing
  • Max Pressure: 220 psi
  • Temperature Range: -80° - 275° F
Advantages of JACO fittings over metal compression fittings:
  • Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
  • Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
  • Low resistance to flow due to the smooth internal surface of the fittings.
  • Resistance to scale buildup.

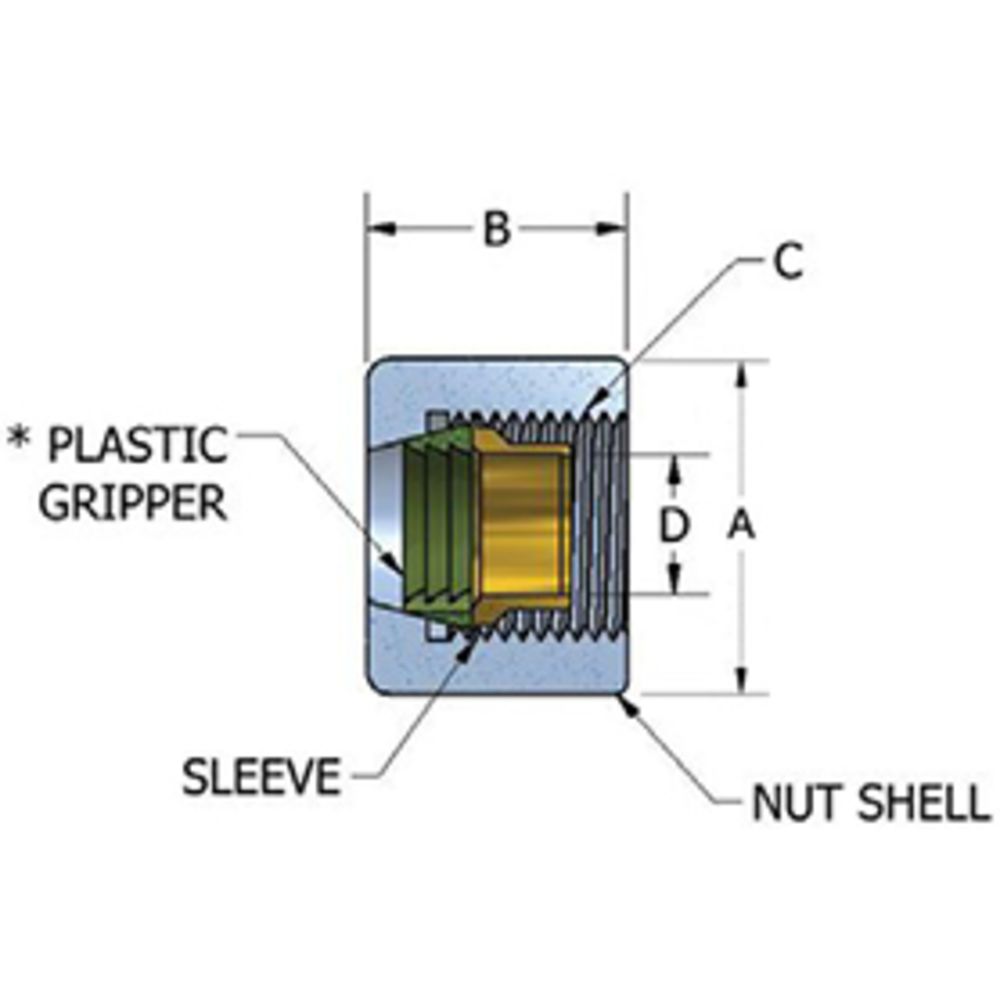

JACO Part
Number		 Tube Size
(O.D.)		 A B C D
K-PG-4 1/4" 5/8" 43/64" 7/16-20" 0.250"
