Home / Fittings / Compression Fittings / Tee / JACO 60-4-2-N-O Nylon Male Branch Tee 1/4 OD Tube x 1/8 MPT

JACO Manufacturing Company

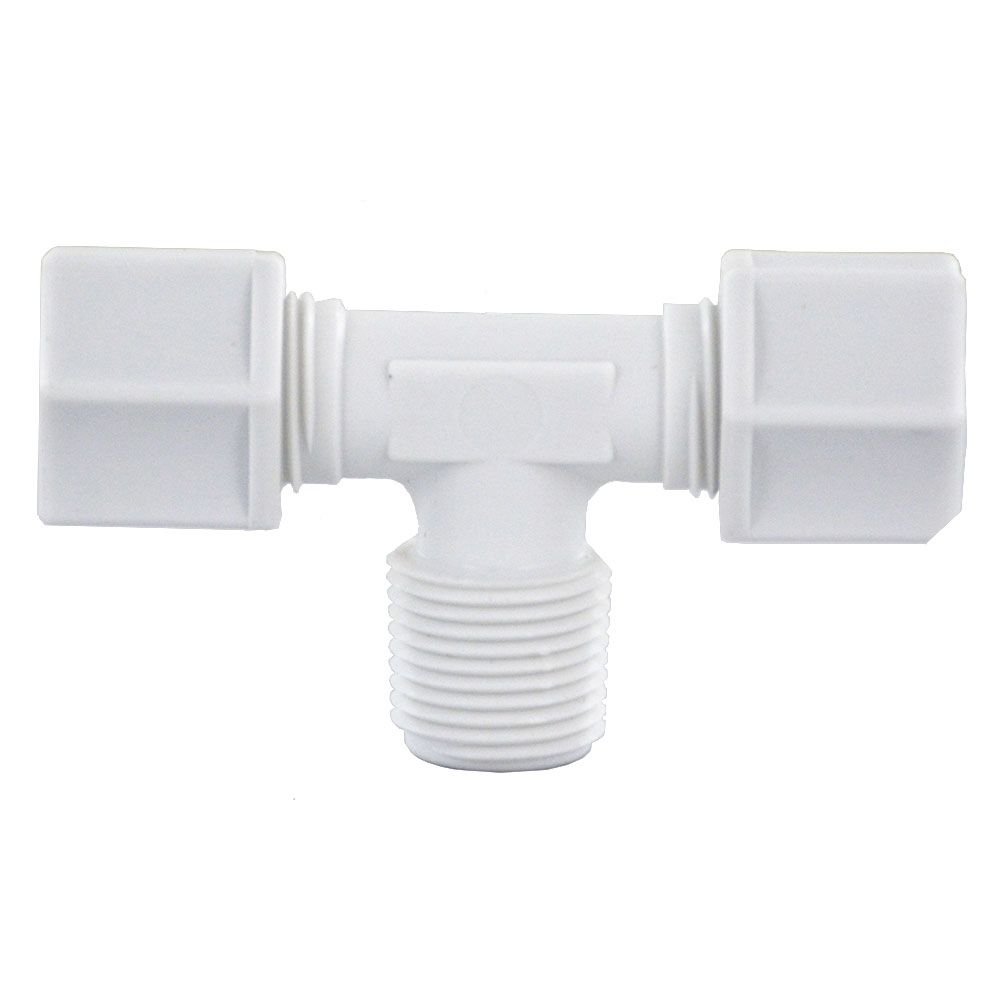

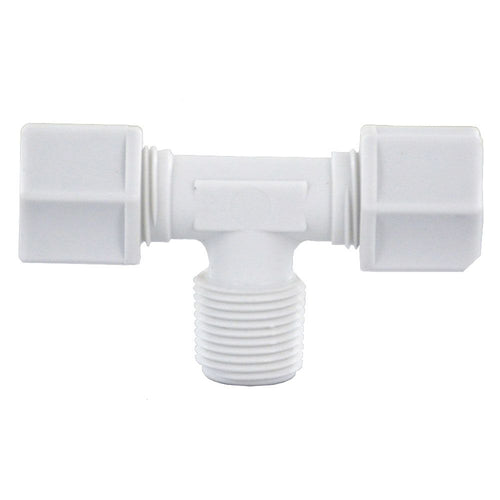

JACO 60-4-2-N-O Nylon Male Branch Tee 1/4 OD Tube x 1/8 MPT

Part Number: 60-4-2-N-O

JACO nylon fittings have good resistance to organic solvents, oils and gasoline. The FDA and NSF Listed nylon maintains good strength at high temperatures and is suitable for use in both cold and hot water applications. The fittings are not recommended for use with ammonium, boric acid, calcium, sulfuric acid or hydrochloric acid.

Advantages of JACO fittings over metal compression fittings:

Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
Low resistance to flow due to the smooth internal surface of the fittings.
Resistance to scale buildup.

Specifications:

Connections: 1/4" OD tube x 1/8" MPT
Fitting Material: Nylon
Ferrule nut with integral sleeve for use with soft plastic tubing
Ferrule nut thread size: 7/16-20
Max Pressure: 50 psi
Temperature Range: -30° - 215° F
Color: opaque white

Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
Low resistance to flow due to the smooth internal surface of the fittings.
Resistance to scale buildup.

Specifications:

Connections: 1/4" OD tube x 1/8" MPT
Fitting Material: Nylon
Ferrule nut with integral sleeve for use with soft plastic tubing
Ferrule nut thread size: 7/16-20
Max Pressure: 50 psi
Temperature Range: -30° - 215° F
Color: opaque white

Product Details
Application	Water
Body Material	Nylon
Inlet Connection	1/8" MPT
Max Pressure (Psi)	50
Max Temp (°F)	250
Min Pressure (Psi)	0
Min Temp (°F)	-40
Mounting Options	Thread
Outlet Connection	1/8" MPT
Push-In Size	1/4" OD
Shape	Tee
Size	1/8"
Color / Finish	White
Connection Type	Male (MPT)
Sub-Type	Branch Tee
Type	Tee
