JACO Manufacturing Company

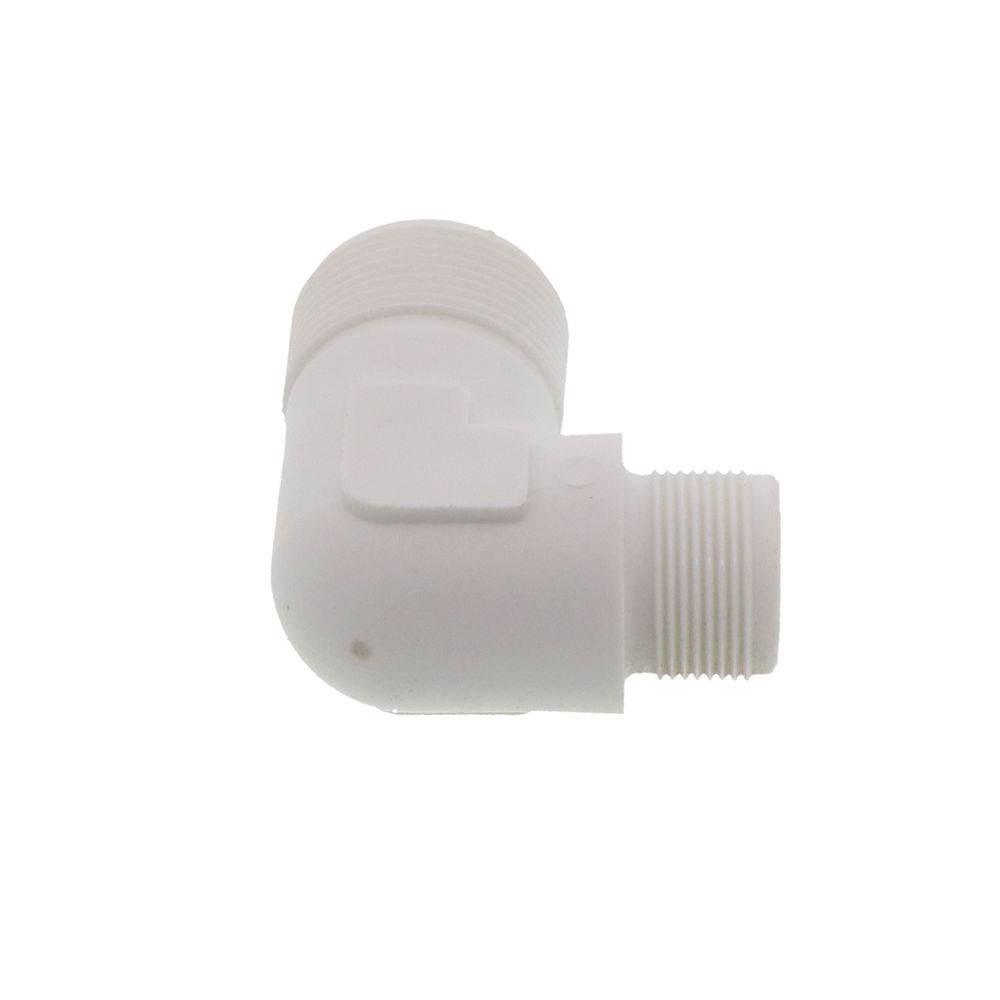

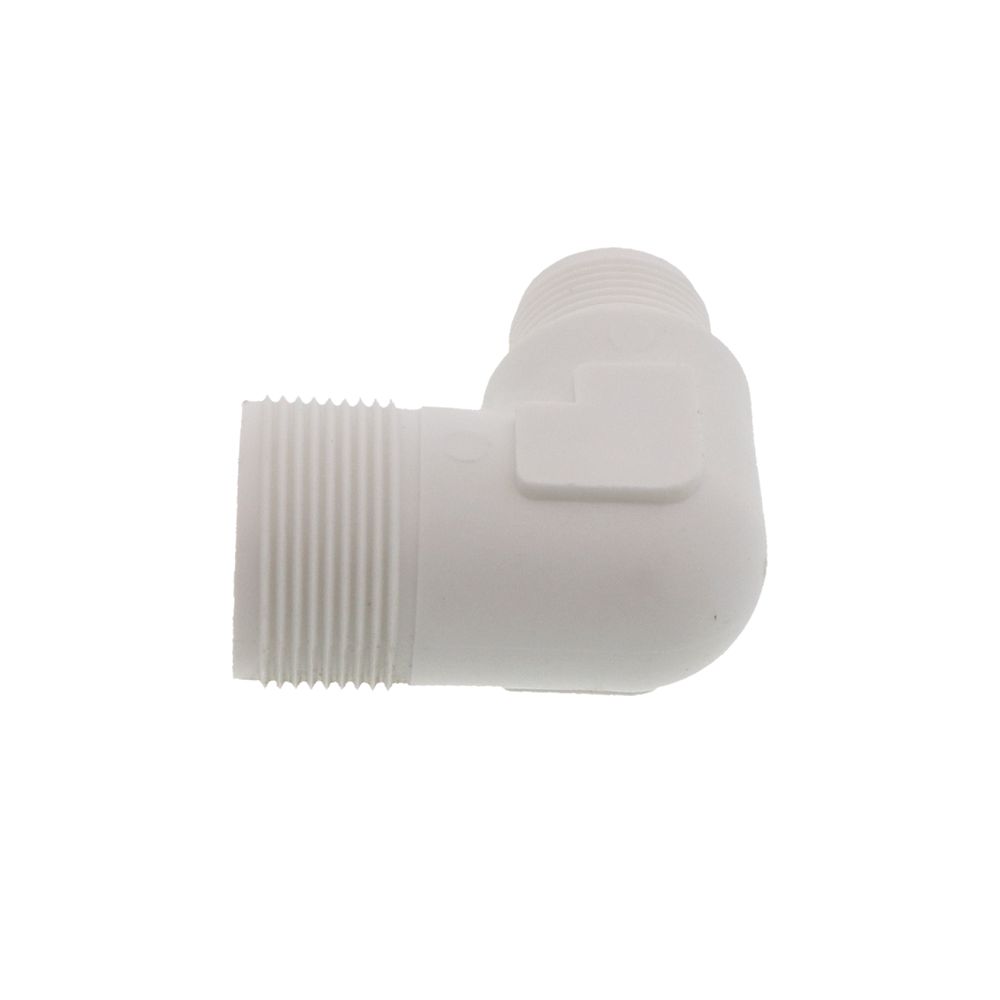

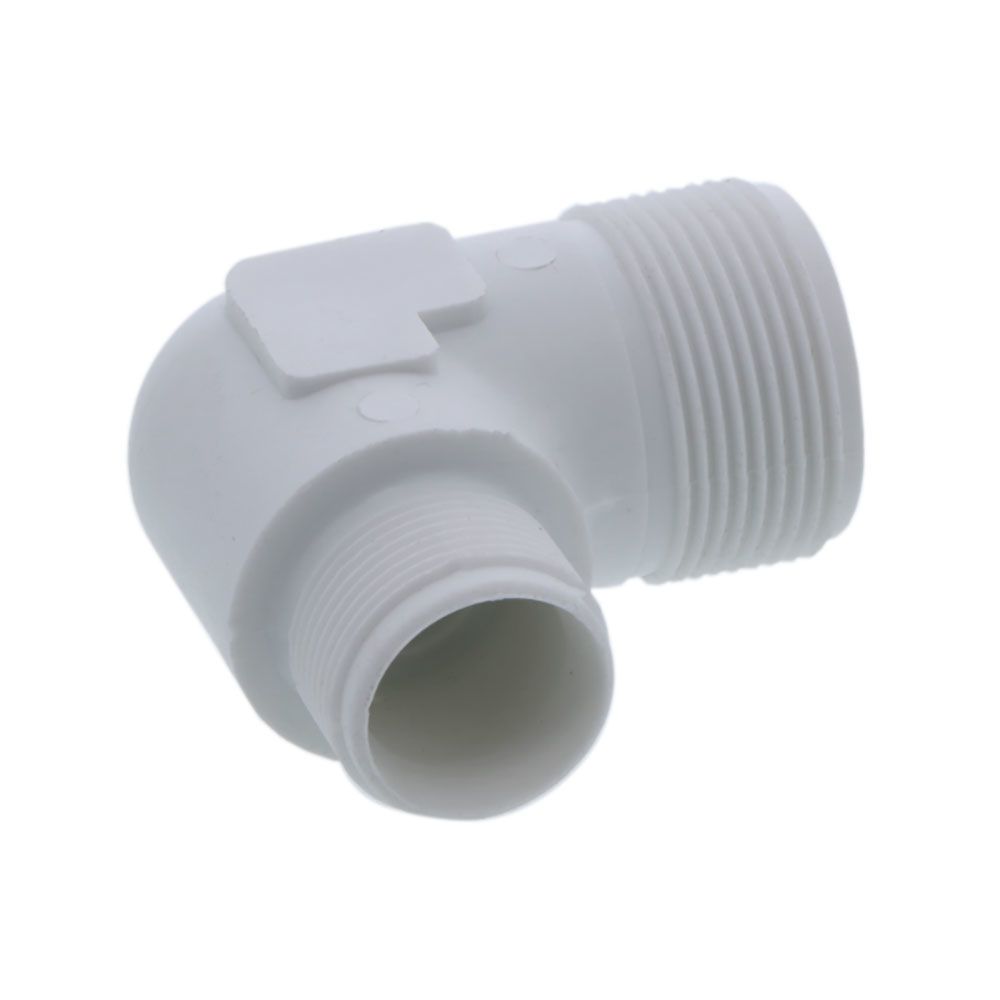

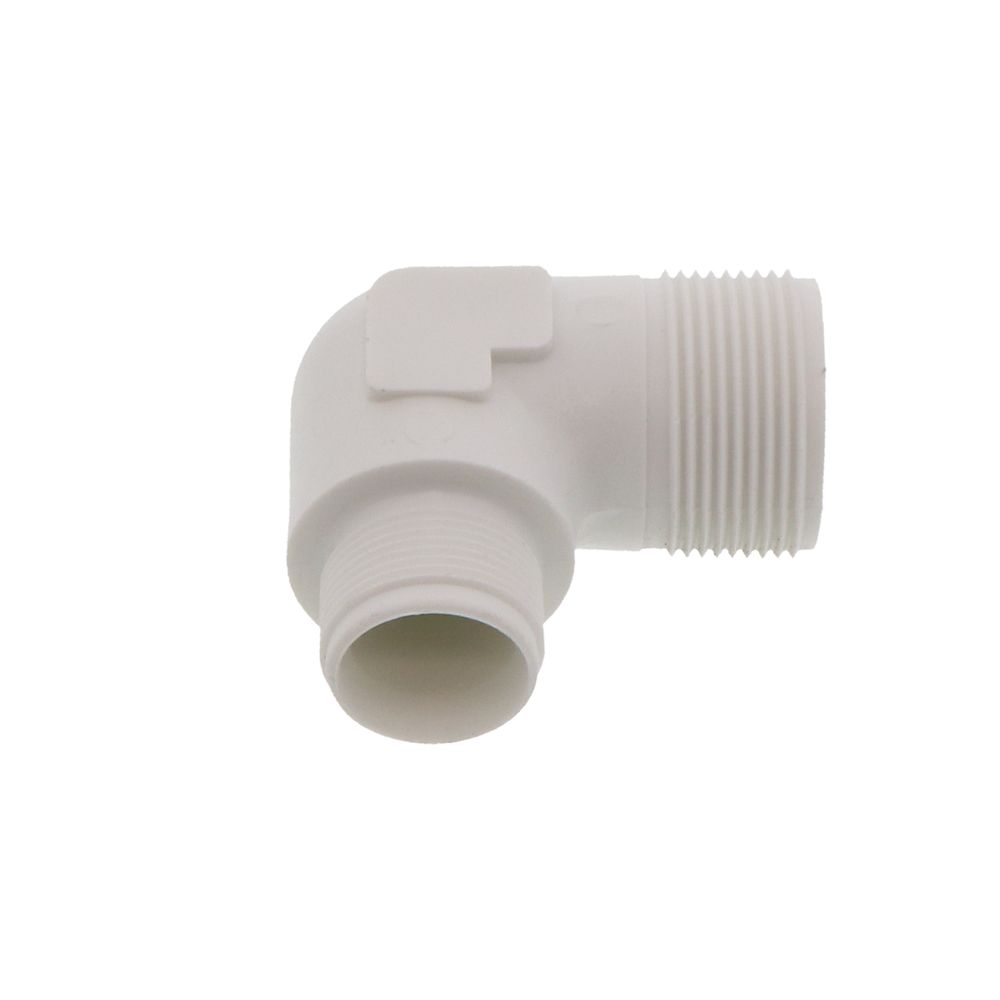

JACO 50-14-10-P Polypropylene Reducing Union Elbow 7/8 OD Tube x 5/8 OD Tube
JACO polypropylene fittings have good chemical resistance and are unaffected by most weak acids and alkalies. Below 175°F they have good resistance to organic solvents. They should not be used with oxidants or strong acids or in continuous sunlight. The polypropylene used in JACO fittings is 20% glass filled for improved stiffness and is NSF listed.
Advantages of JACO fittings over metal compression fittings:
Advantages of JACO fittings over metal compression fittings:
- Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
- Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
- Low resistance to flow due to the smooth internal surface of the fittings.
- Resistance to scale buildup.
- Fitting Material: Polypropylene
- No Ferrule Nut
- Max Pressure: 220 psi
- Temperature Range: -30° - 215° F
- Color: opaque white
Weight & Dimensions
Weight (lbs) | 0.135 |
Details
Application | Water |
Body Material | Polypropylene |
Max Temp (°F) | 225 |
Min Temp (°F) | -30 |
Mounting Options | Free Floating |
Push-In Size | 7/8" OD, 5/8" OD |
Color / Finish | White |
Sub-Type | Reducer Elbow |
Type | Elbow |
JACO polypropylene fittings have good chemical resistance and are unaffected by most weak acids and alkalies. Below 175°F they have good resistance to organic solvents. They should not be used with oxidants or strong acids or in continuous sunlight. The polypropylene used in JACO fittings is 20% glass filled for improved stiffness and is NSF listed.
Advantages of JACO fittings over metal compression fittings:
- Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
- Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
- Low resistance to flow due to the smooth internal surface of the fittings.
- Resistance to scale buildup.
- Fitting Material: Polypropylene
- No Ferrule Nut
- Max Pressure: 220 psi
- Temperature Range: -30° - 215° F
- Color: opaque white
Weight & Dimensions
Weight (lbs) | 0.135 |
Details
Application | Water |
Body Material | Polypropylene |
Max Temp (°F) | 225 |
Min Temp (°F) | -30 |
Mounting Options | Free Floating |
Push-In Size | 7/8" OD, 5/8" OD |
Color / Finish | White |
Sub-Type | Reducer Elbow |
Type | Elbow |
Documentation
