JACO Manufacturing Company

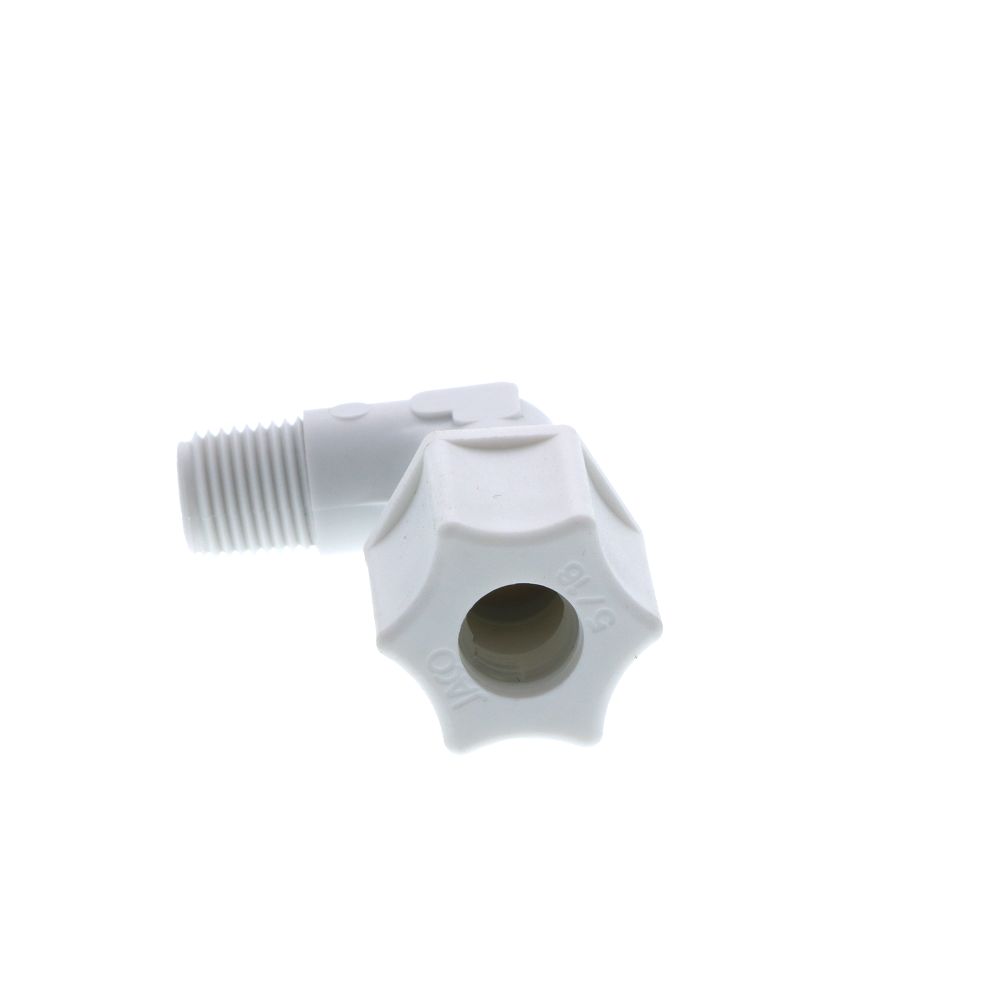

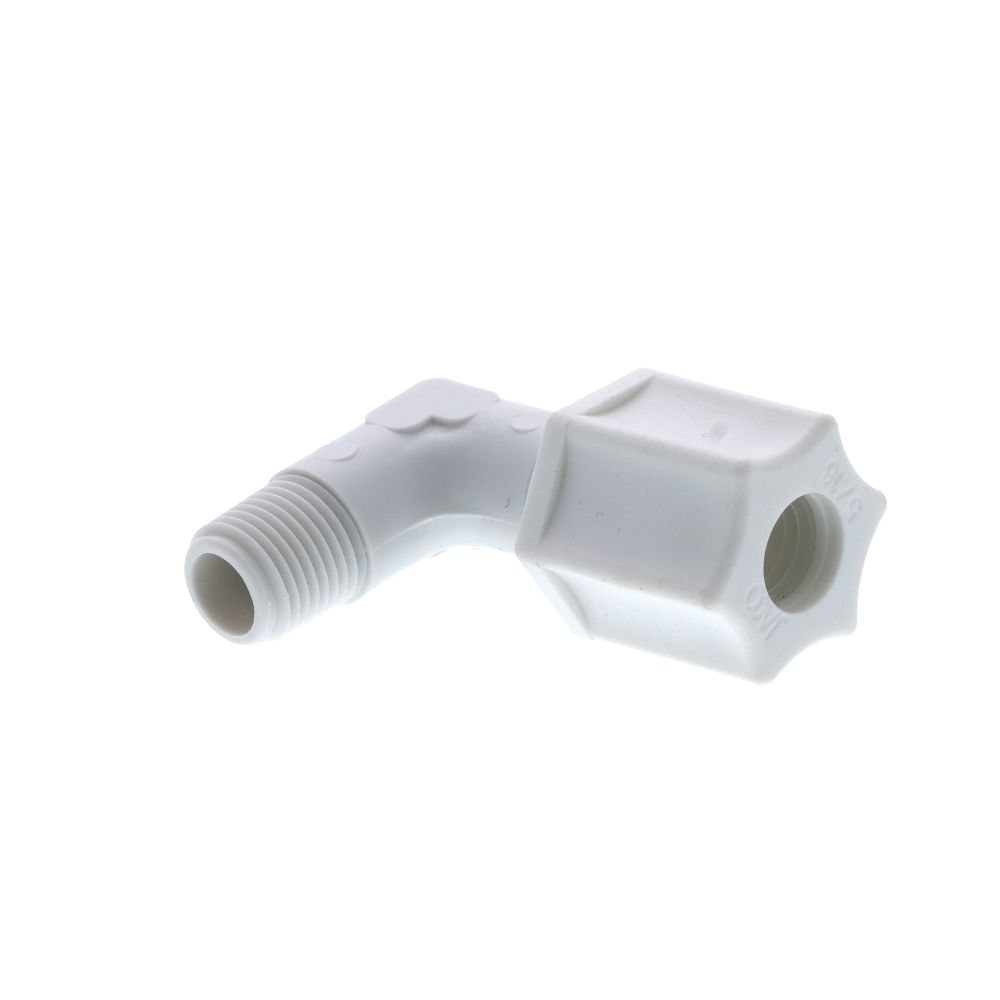

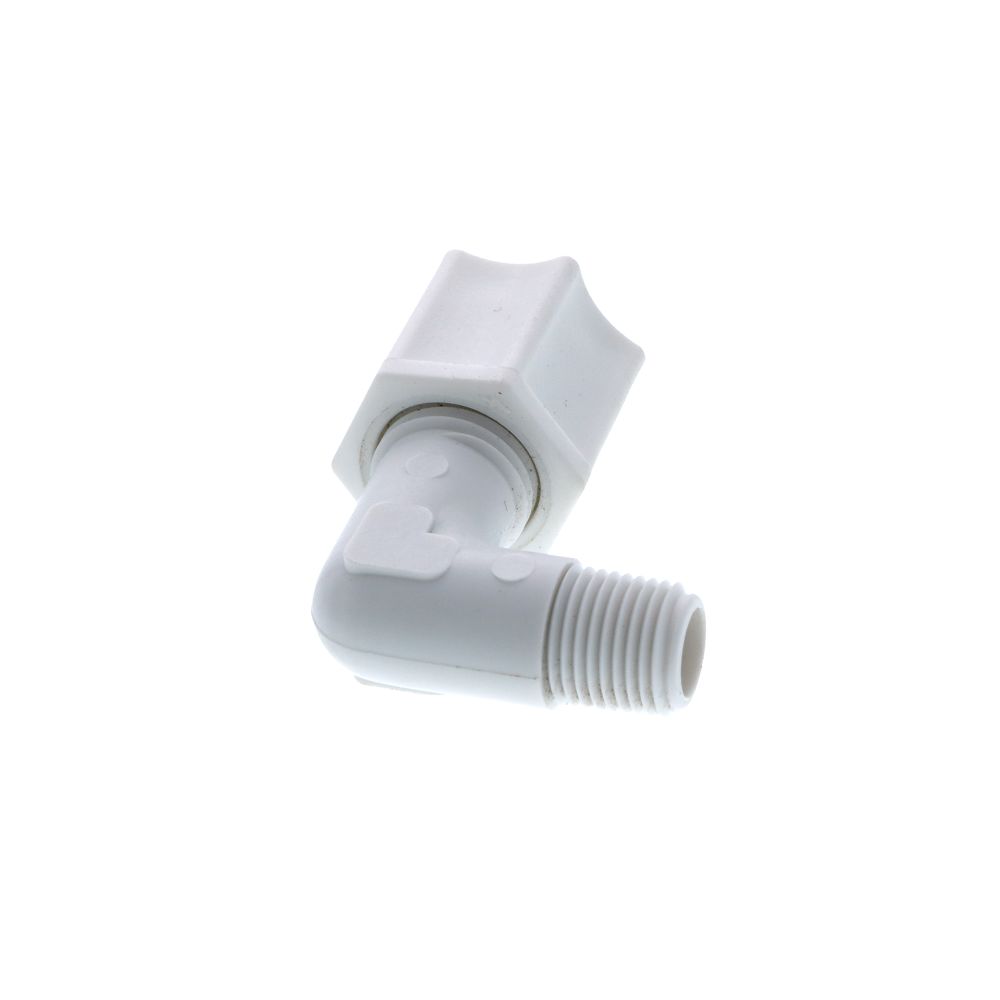

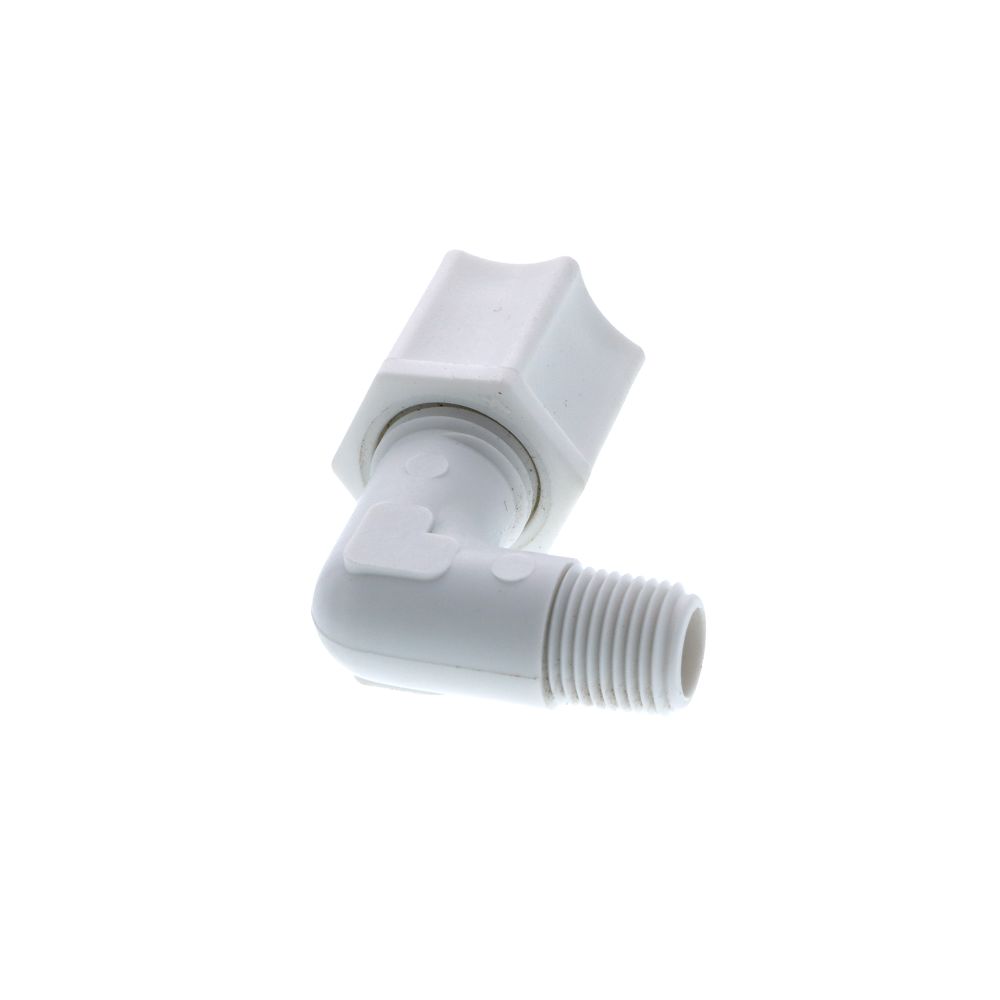

JACO 40-5-2-P-PG Polypropylene Male Elbow 5/16 OD Tube x 1/8 MPT

Part Number: 40-5-2-P-PG

In Stock

out of stock

In Stock

$1.19


JACO polypropylene fittings have good chemical resistance and are unaffected by most weak acids and alkalies. Below 175°F they have good resistance to organic solvents. They should not be used with oxidants or strong acids or in continuous sunlight. The polypropylene used in JACO fittings is 20% glass filled for improved stiffness and is NSF listed.

Advantages of JACO fittings over metal compression fittings:
  • Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
  • Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
  • Low resistance to flow due to the smooth internal surface of the fittings.
  • Resistance to scale buildup.
Specifications:
  • Connections: 5/16" OD tube x 1/8" MPT
  • Fitting Material: polypropylene
  • Ferrule nut with plastic gripper for use with plastic tubing
  • Ferrule nut thread size: 1/2-20
  • Max Pressure: 220 psi
  • Temperature Range: -30° - 215° F
  • Color: opaque white


Details

Body Material

Polypropylene

Color / Finish

Opaque white

Inlet Size

5/16" OD tubing

Operating Pressure Range

220 psi

Operating Temperature Range

-30° - 215° F

Outer Diameter

5/16"

Outlet Size

1/8" MNPT

Type

Male Elbow
