JACO Manufacturing Company

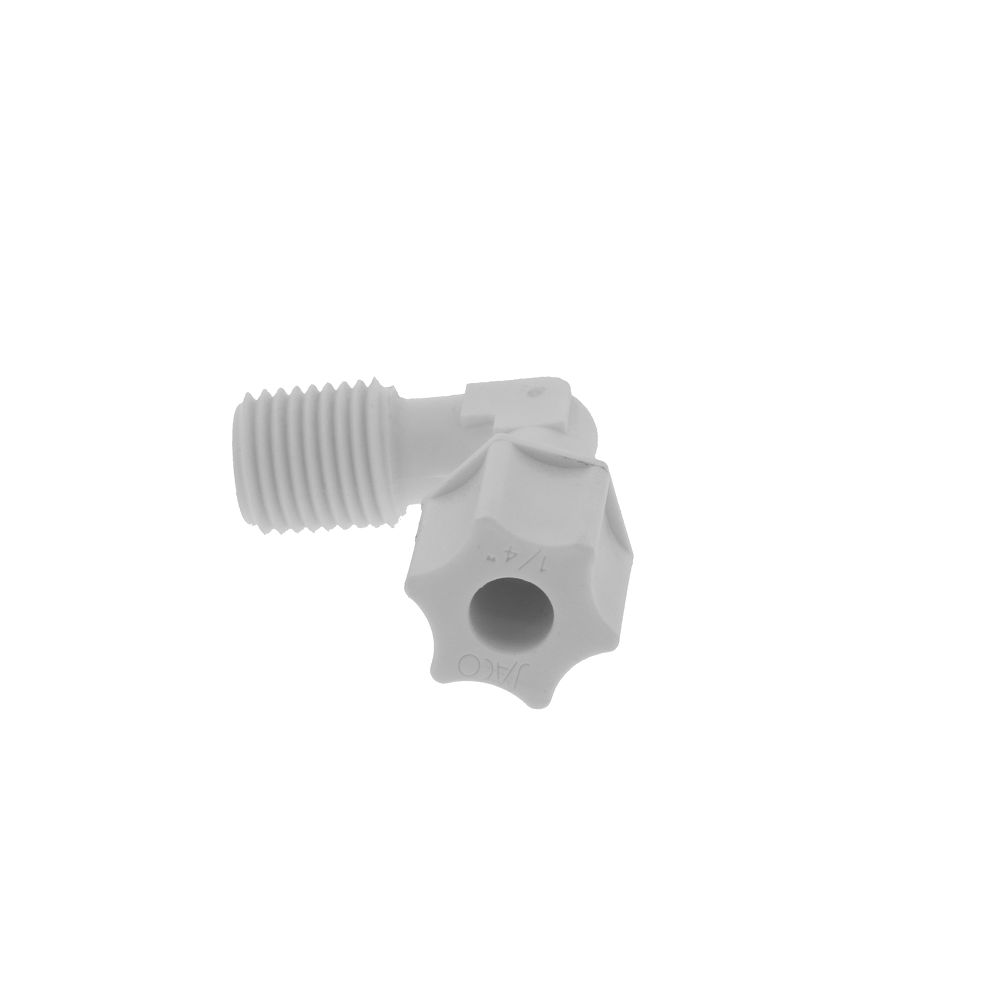

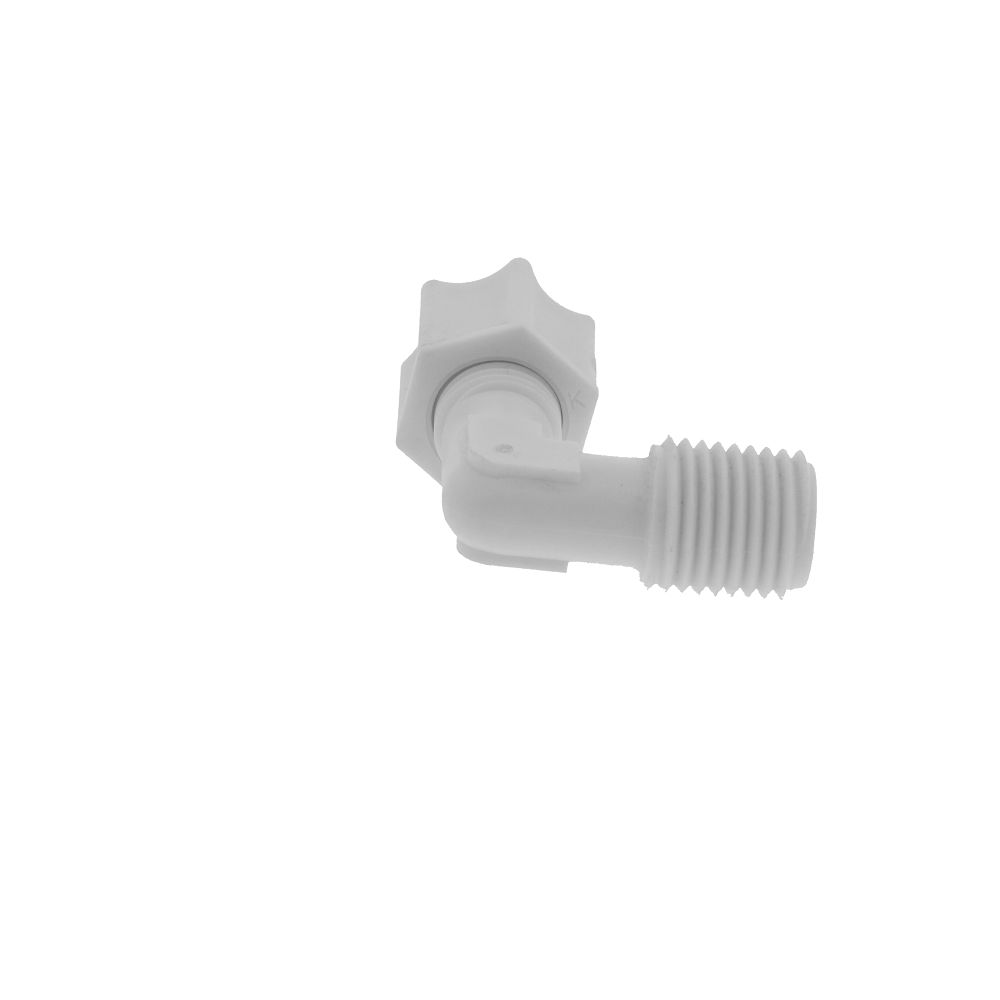

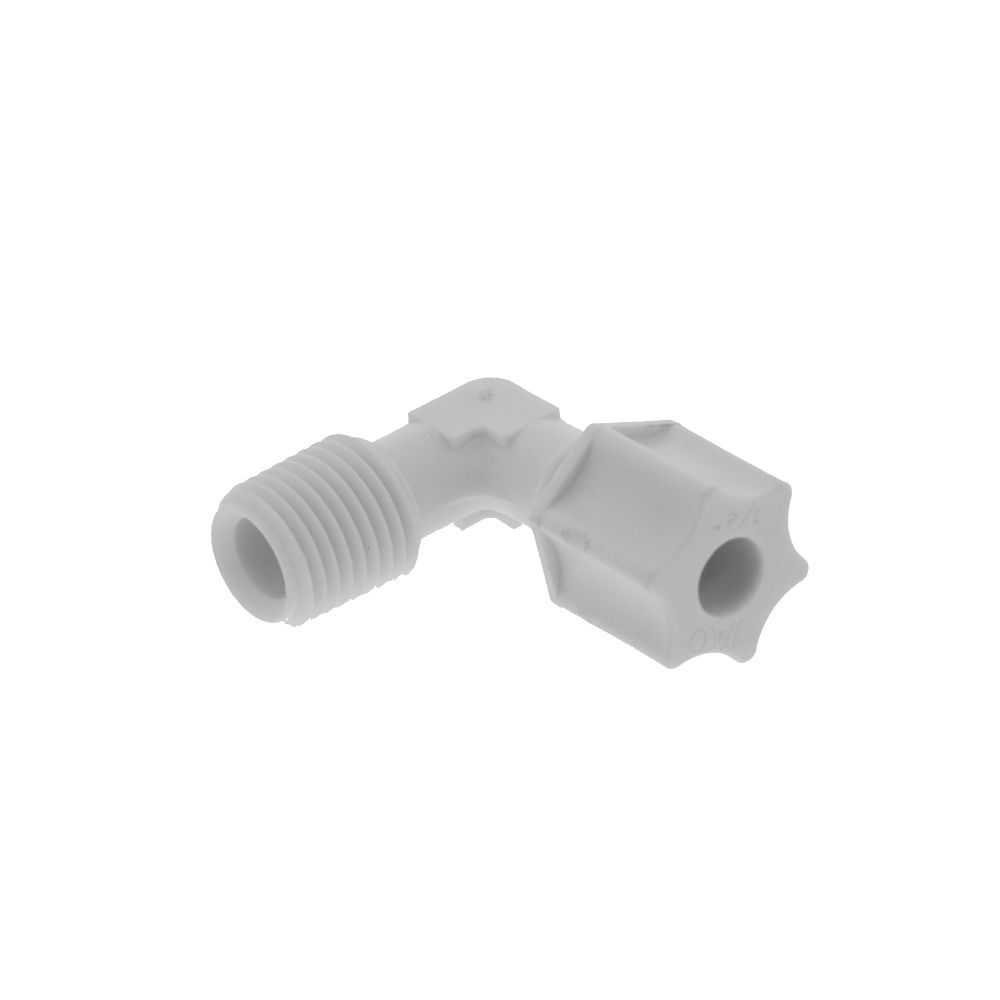

JACO 40-4-4-P-O Polypropylene Male Elbow 1/4 OD Tube x 1/4 MPT

Part Number: 40-4-4-P-O

In Stock

out of stock

In Stock

$0.95


JACO polypropylene fittings have good chemical resistance and are unaffected by most weak acids and alkalies. Below 175°F they have good resistance to organic solvents. They should not be used with oxidants or strong acids or in continuous sunlight. The polypropylene used in JACO fittings is 20% glass filled for improved stiffness and is NSF listed.

Specifictions:
  • Connections: 1/4" OD tube x 1/4" MPT
  • Fitting Material: polypropylene
  • Ferrule nut with integral sleeve for use with soft plastic tubing
  • Ferrule nut thread size: 7/16-20
  • Max Pressure: 50 psi
  • Temperature Range: -30° - 215° F
  • Color: opaque white
Advantages of JACO fittings over metal compression fittings:
  • Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
  • Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
  • Low resistance to flow due to the smooth internal surface of the fittings.
  • Resistance to scale buildup.




Weight & Dimensions

Weight (lbs)

0.01

Details

Max Temp (°F)

225

Max Pressure (Psi)

50

Min Temp (°F)

-30

Min Pressure (Psi)

0

Push-In Size

1/4" OD

Application

Water

Bag Quantity

200

Body Material

Polypropylene

Color / Finish

White

Mounting Options

Thread

Size

1/4"

Inlet/Outlet Connection

1/4" MPT




JACO polypropylene fittings have good chemical resistance and are unaffected by most weak acids and alkalies. Below 175°F they have good resistance to organic solvents. They should not be used with oxidants or strong acids or in continuous sunlight. The polypropylene used in JACO fittings is 20% glass filled for improved stiffness and is NSF listed.

Specifictions:
  • Connections: 1/4" OD tube x 1/4" MPT
  • Fitting Material: polypropylene
  • Ferrule nut with integral sleeve for use with soft plastic tubing
  • Ferrule nut thread size: 7/16-20
  • Max Pressure: 50 psi
  • Temperature Range: -30° - 215° F
  • Color: opaque white
Advantages of JACO fittings over metal compression fittings:
  • Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
  • Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
  • Low resistance to flow due to the smooth internal surface of the fittings.
  • Resistance to scale buildup.



Weight & Dimensions

Weight (lbs)

0.01

Details

Max Temp (°F)

225

Max Pressure (Psi)

50

Min Temp (°F)

-30

Min Pressure (Psi)

0

Push-In Size

1/4" OD

Application

Water

Bag Quantity

200

Body Material

Polypropylene

Color / Finish

White

Mounting Options

Thread

Size

1/4"

Inlet/Outlet Connection

1/4" MPT
